Version 5 Tree Atlas


Quercus lobata

California white oak

elev

Quercus lobata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus lobata

USDA Plants Database entry for Quercus lobata
Silvics Manual entry for Quercus lobata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus lobata var. turbinata; Quercus lobata var. walteri7086156range is well-represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_lobata_final Occurrences

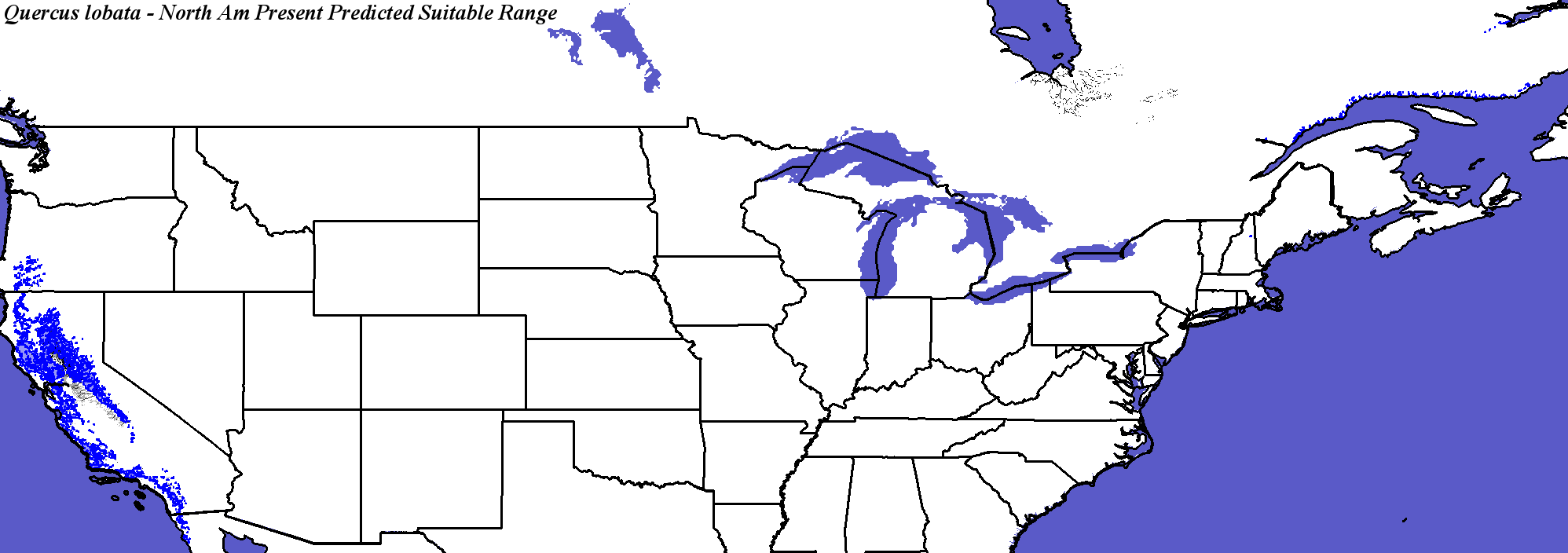

Hargroves Present Suitable Range Outline for Quercus_lobata_final
Quercus lobata - Occurrence Locations Quercus lobata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

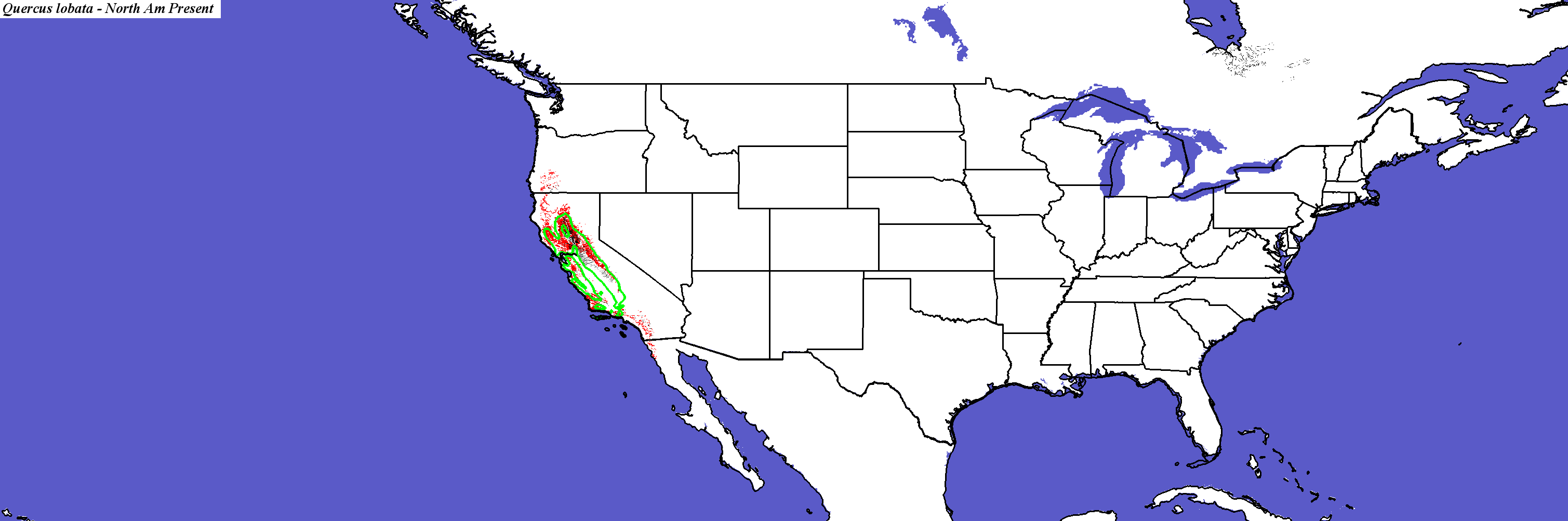

Quercus lobata - CONUS
Compare with Current Range from the Silvics Manual for Quercus lobata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus lobata

Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Current conditions by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring

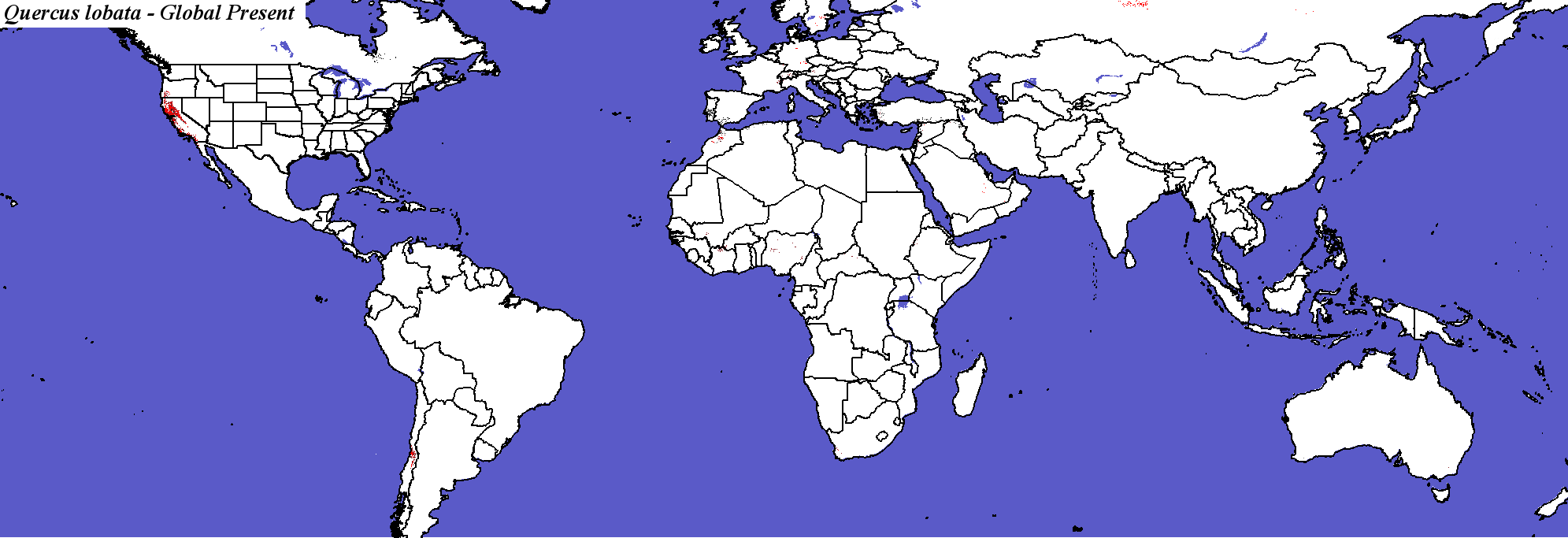

Quercus lobata - Global

PCM - Parallel Climate Model
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

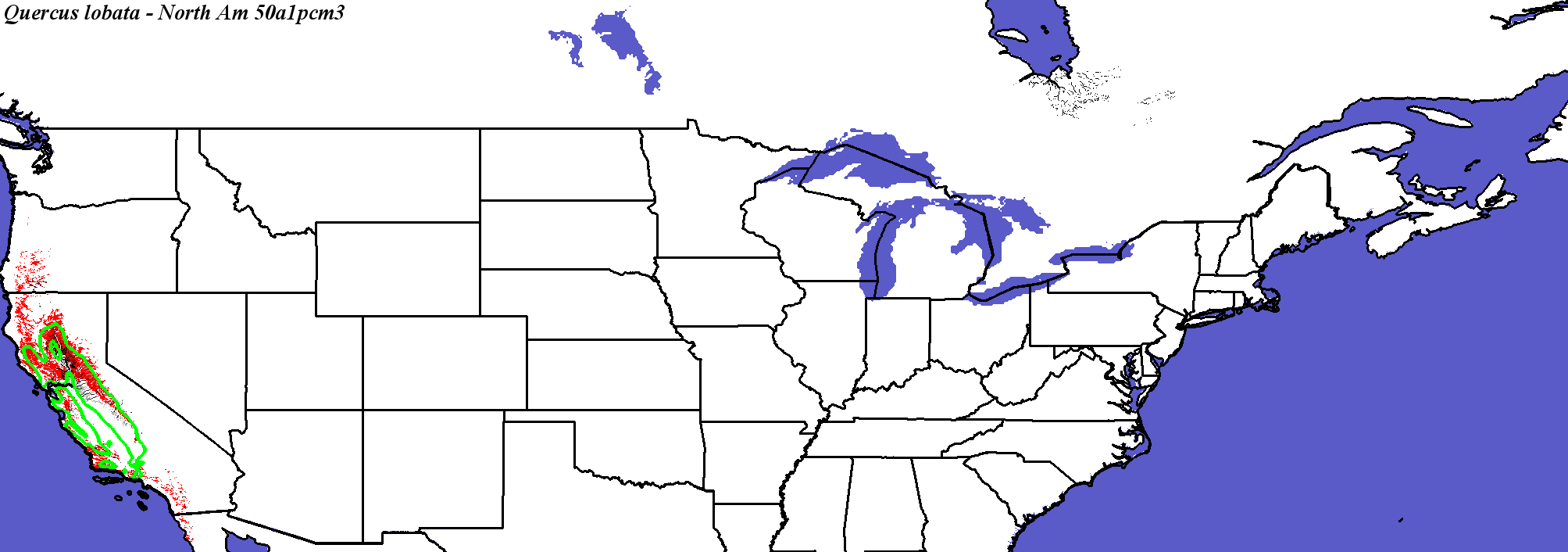

PCM, Scenario A1FI, 2050 - Quercus lobata - CONUS

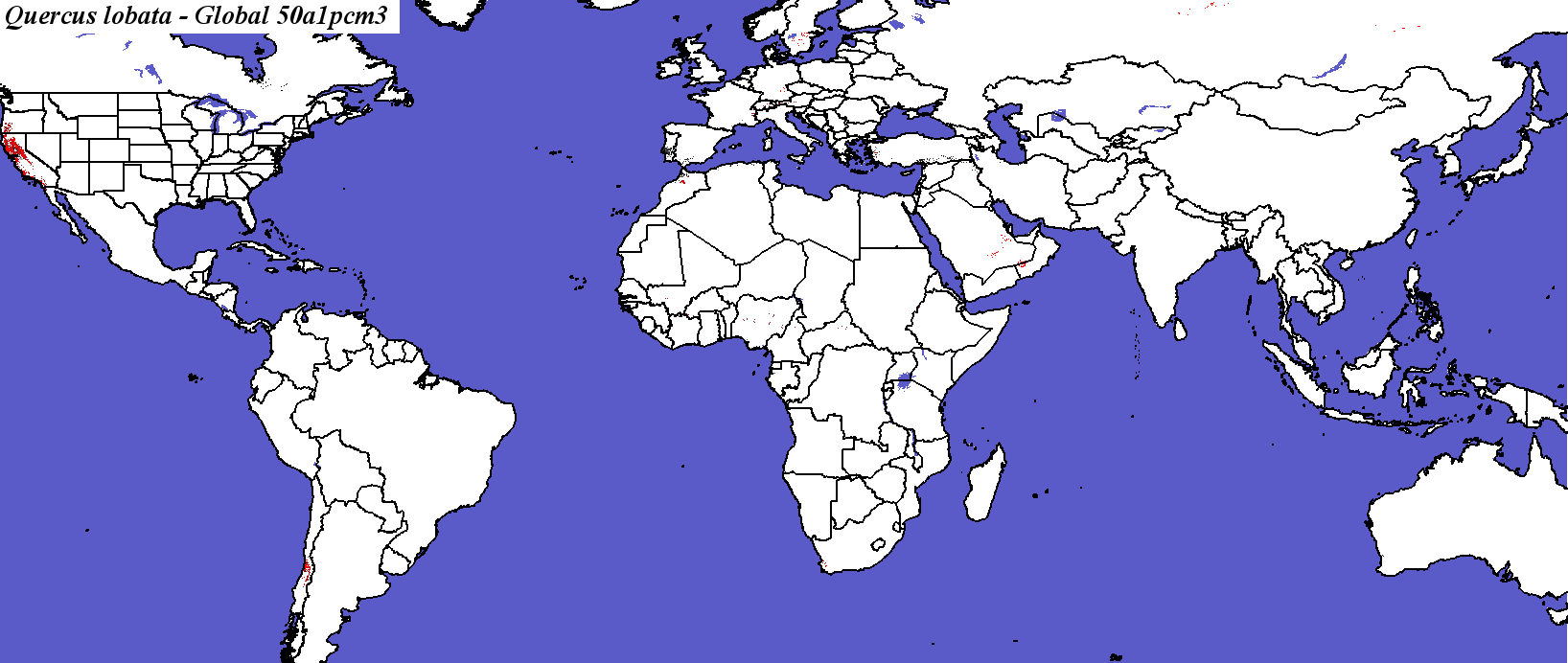

PCM, Scenario A1FI, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global
PCM, Scenario A1FI, 2100 - Quercus lobata - CONUS
Quercus lobata species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus lobata - Global

Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

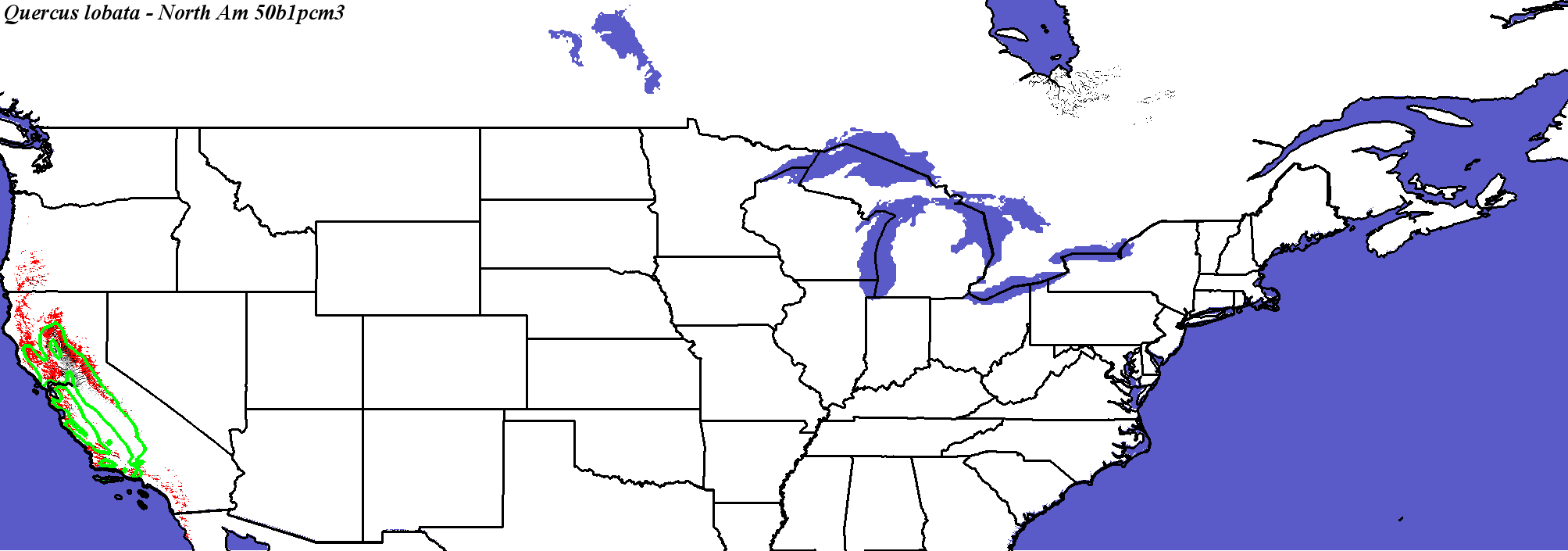

PCM, Scenario B1, 2050 - Quercus lobata - CONUS

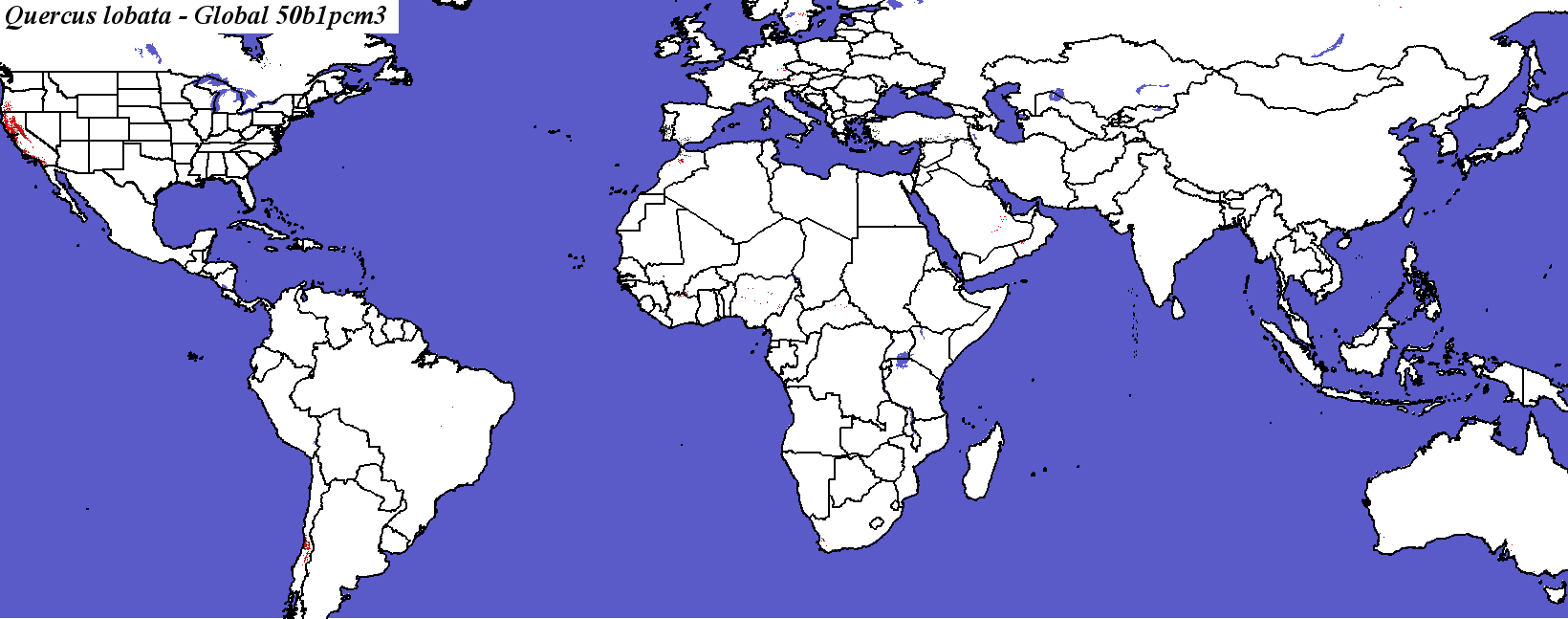

PCM, Scenario B1, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

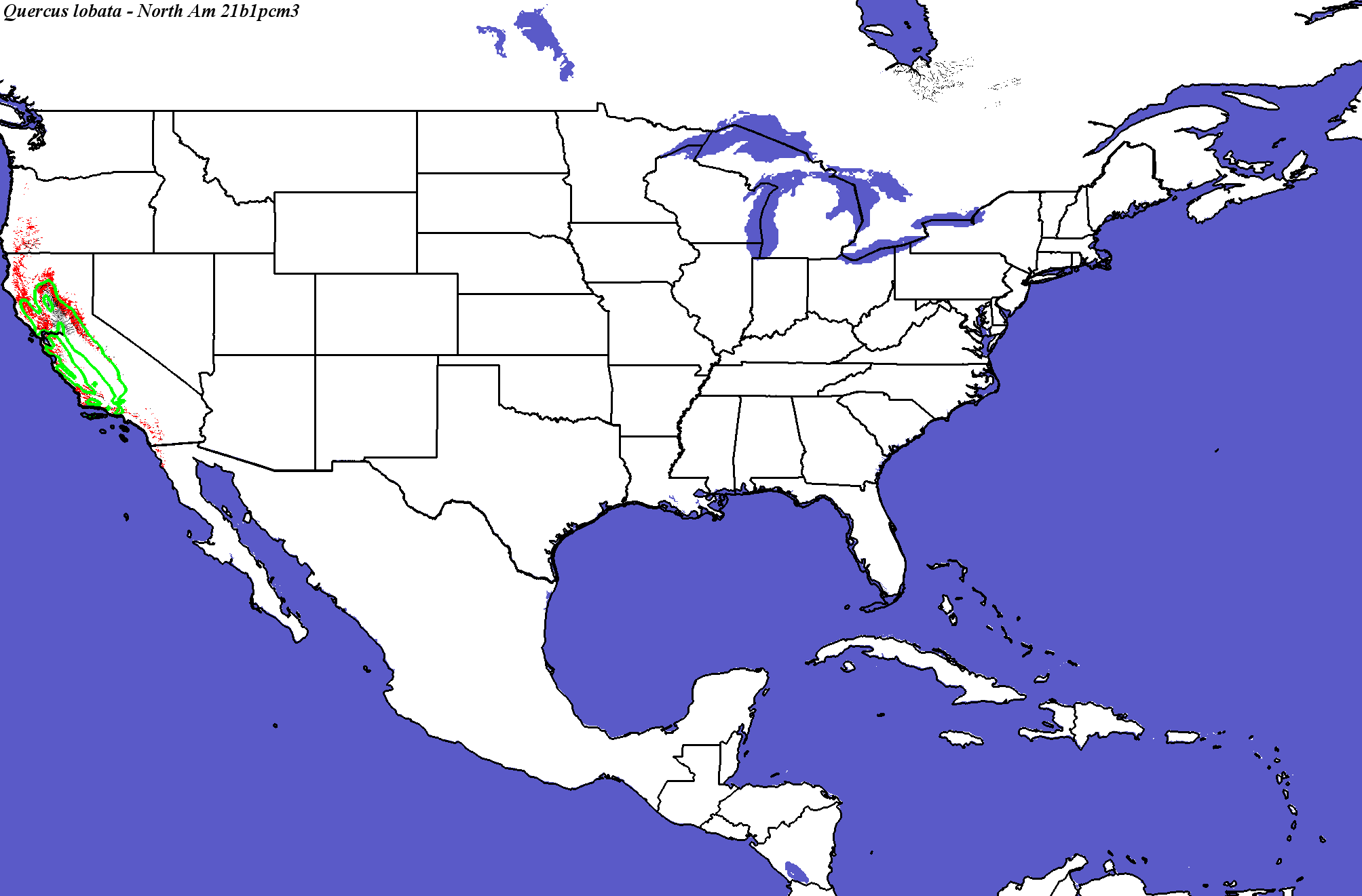

PCM, Scenario B1, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus lobata - Global

Hadley Climate Model
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global

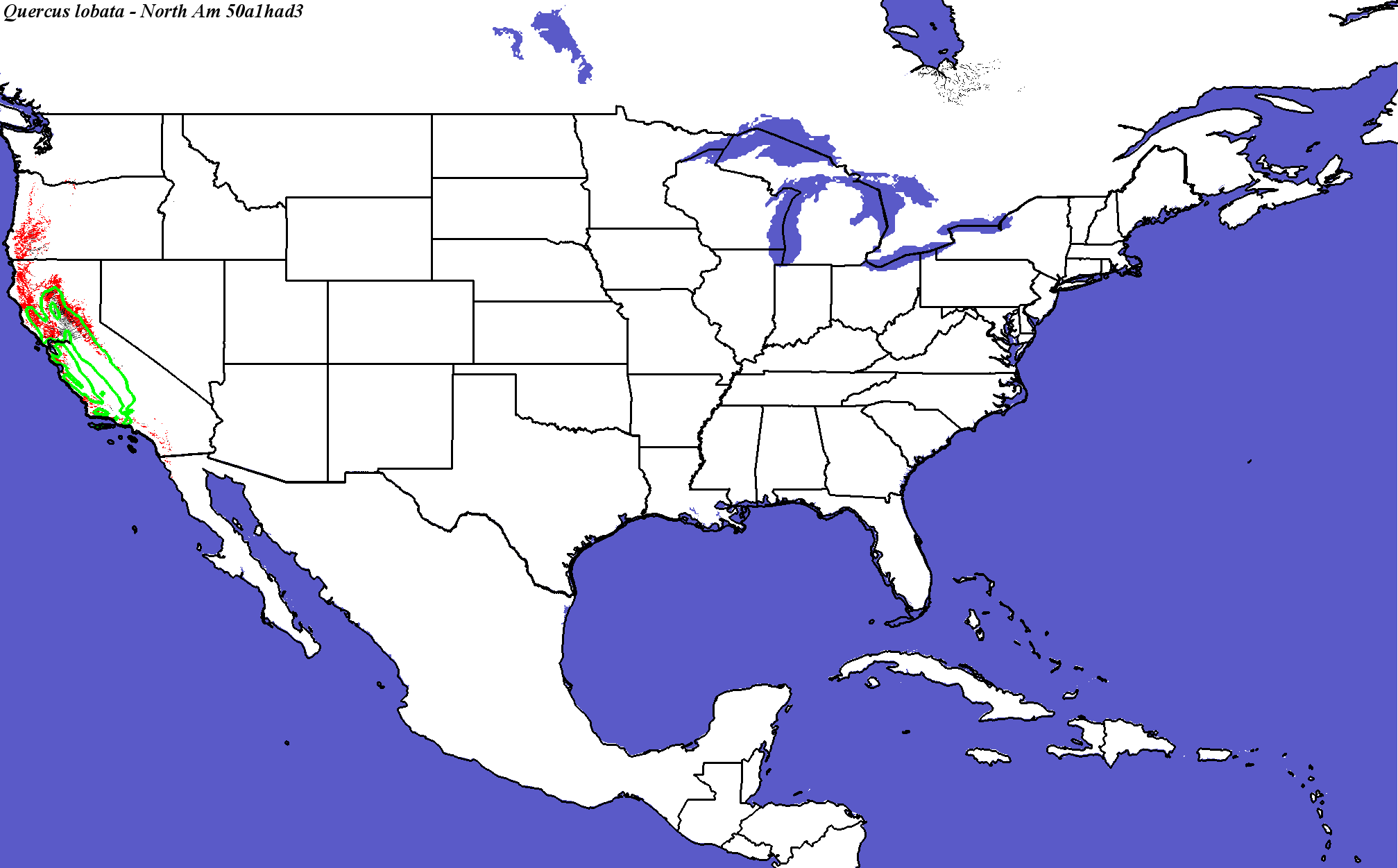

Hadley, Scenario A1FI, 2050 - Quercus lobata - CONUS
Compare with Quercus lobata modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

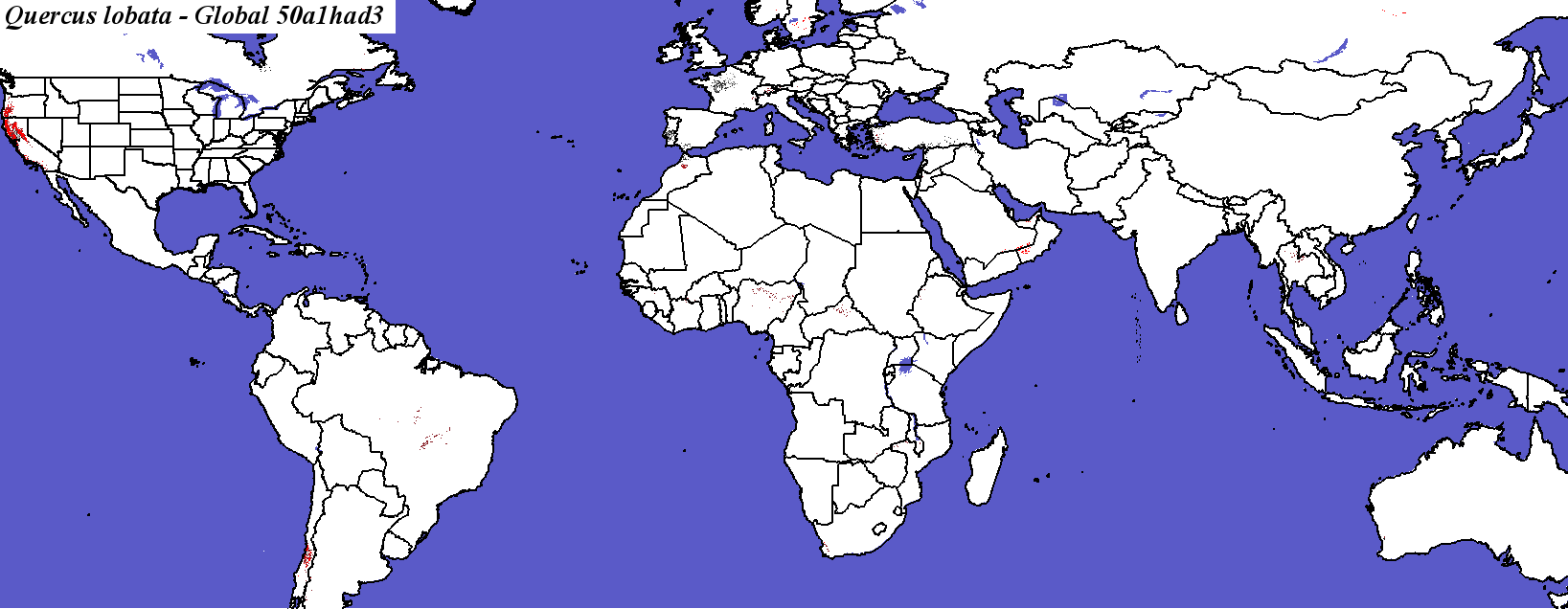

Hadley, Scenario A1FI, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global.

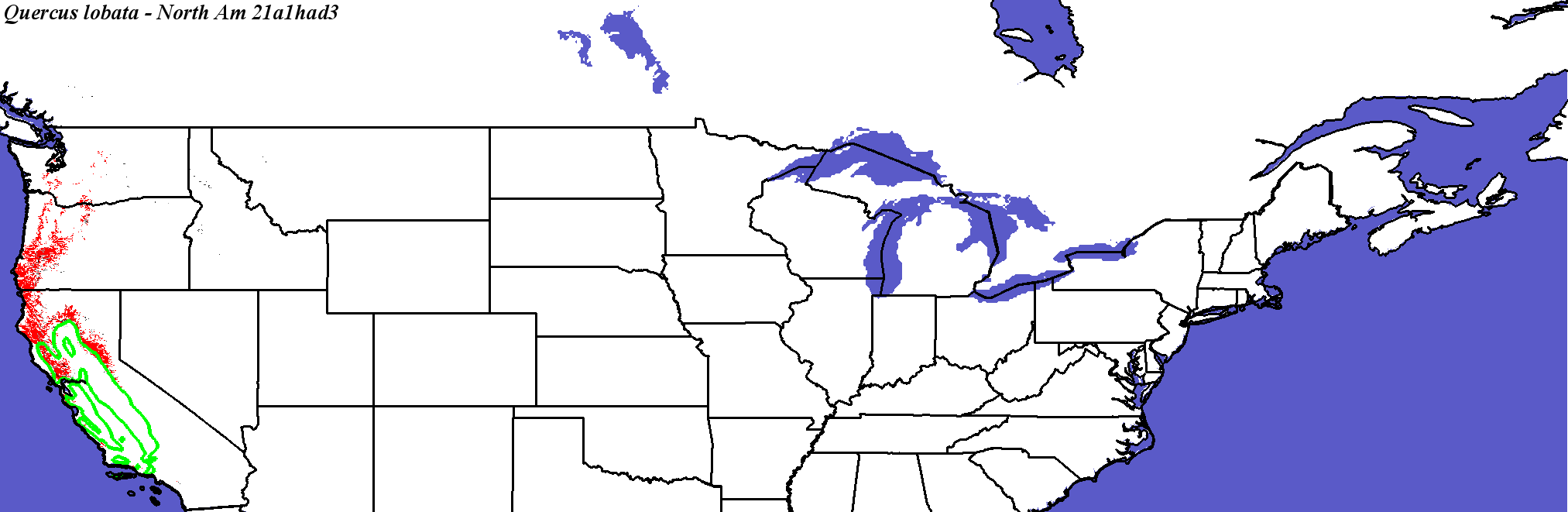

Hadley, Scenario A1FI, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring

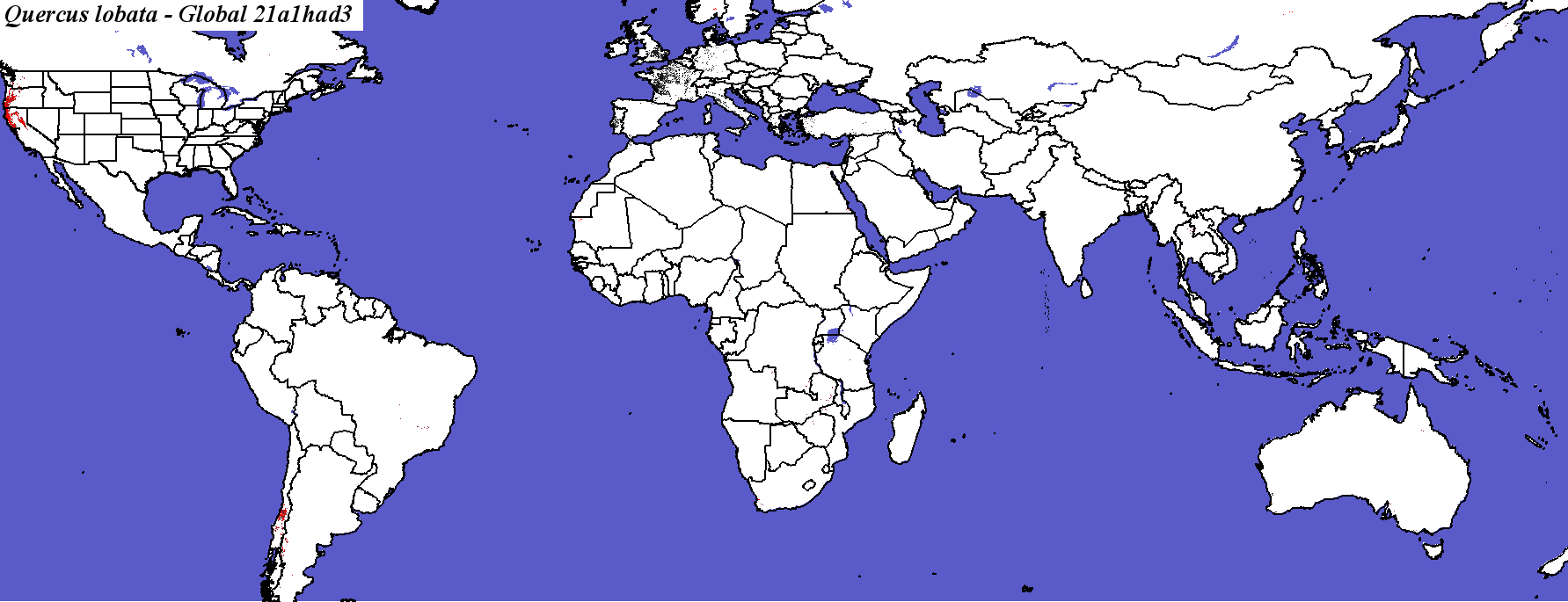

Hadley, Scenario A1FI, 2100 - Quercus lobata - Global

Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global.
Hadley, Scenario B1, 2050 - Quercus lobata - CONUS
Compare with Quercus lobata modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus lobata not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus lobata - Global
Quercus_lobata_final.3.conus
Quercus_lobata_final.3.global
Hadley, Scenario B1, 2100 - Quercus lobata - CONUS
Quercus lobata not modeled by Iverson and Prasad
Compare with Quercus lobata modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus lobata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_lobata_final.elev

Number of Suitable Ecoregions (Niche Breadth)

17

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

68.2192

Area in Present Suitable Range (in km2)

66591

Area in Future Suitable Range (Had B1 2050, in km2)

65246

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

36519

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

54.8400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

38.6301

Percent Change in Area of Suitable Range (Had B1 2050)

-2.0100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

6.9863

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8151.79 +/- 11961.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

76.1644

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.52039 +/- 11.1939

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

60.9589

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

14.7717 +/- 26.2167

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

92.1918

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

76.3014

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

17487

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

26.2600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

52.1918

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus lobata Quercus lobata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_lobata_final.elev Fine MRM Distance
Quercus_lobata_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus lobata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_lobata_final.elev Coarse MRM Distance
Quercus_lobata_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus lobata
