Version 5 Tree Atlas


Quercus macrocarpa

bur oak

elev

Quercus macrocarpa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus macrocarpa

USDA Plants Database entry for Quercus macrocarpa
Silvics Manual entry for Quercus macrocarpa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus macrocarpa var. oliviformis22502542504small populations in South and Northeast; need Canada observances

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_macrocarpa_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_macrocarpa_final
Quercus macrocarpa - Occurrence Locations Quercus macrocarpa - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

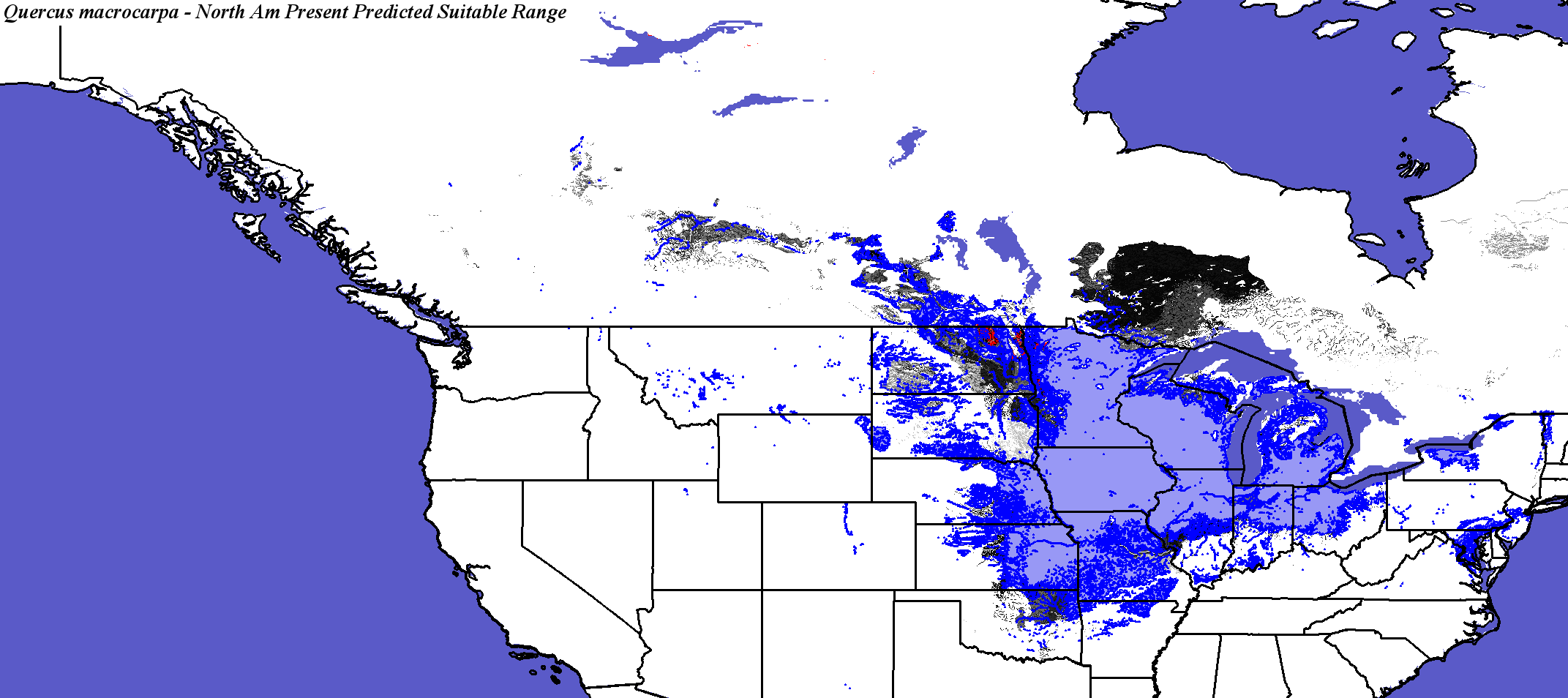

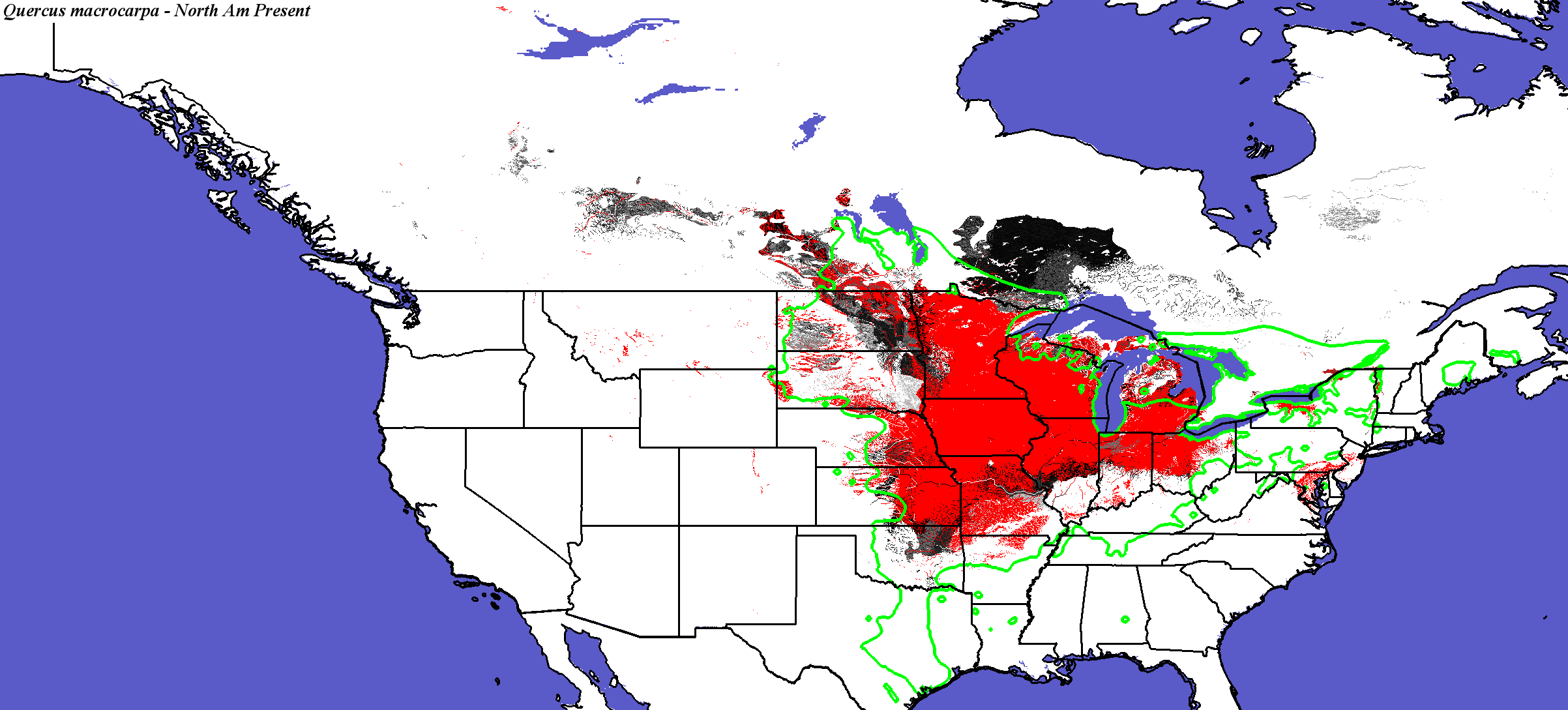

Quercus macrocarpa - CONUS
Compare with Current Range from the Silvics Manual for Quercus macrocarpa
Compare with Current Range from Biota of North America Program (BONAP) for Quercus macrocarpa

Compare with Quercus macrocarpa modeled for Current conditions by Iverson and Prasad
Quercus macrocarpa not modeled by Crookston and Rehfeldt
Quercus macrocarpa not modeled by Coops and Waring

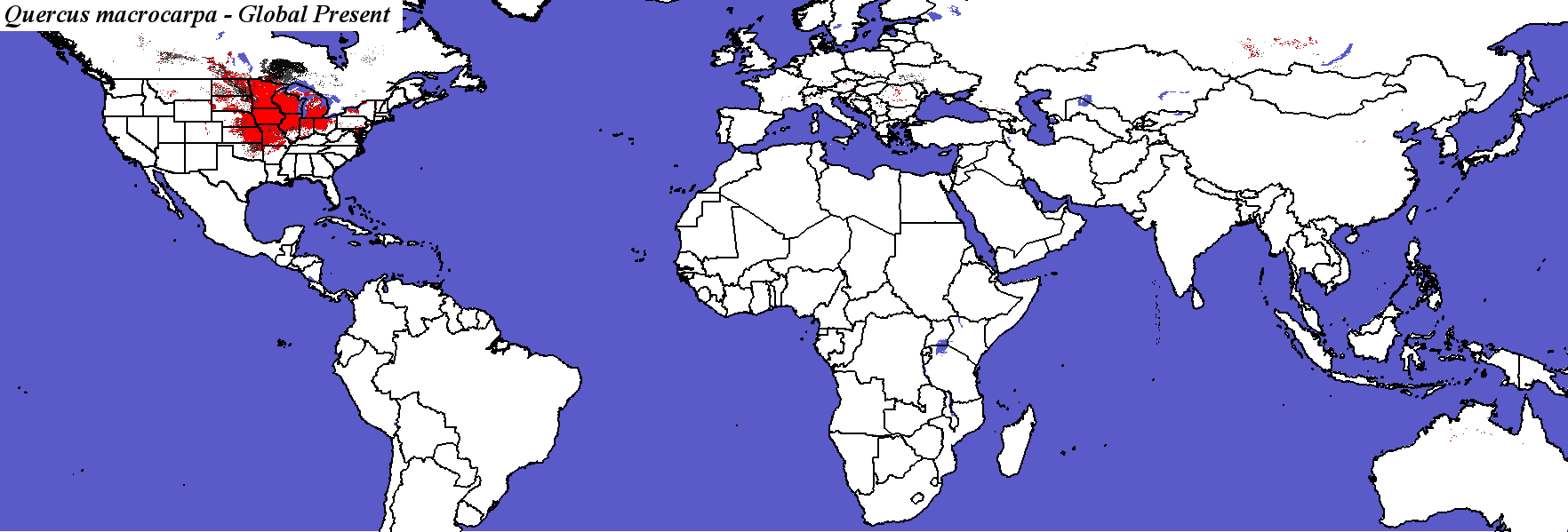

Quercus macrocarpa - Global

PCM - Parallel Climate Model
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

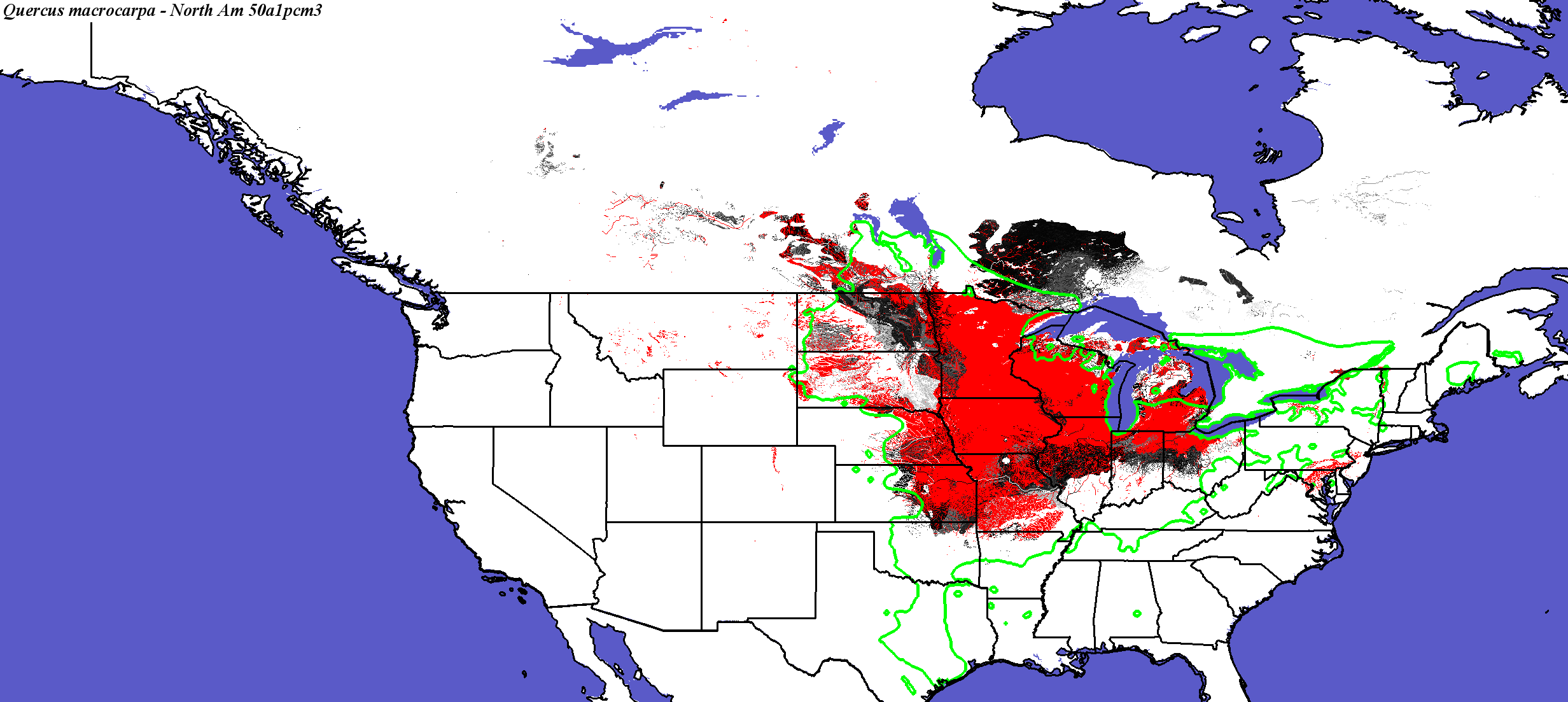

PCM, Scenario A1FI, 2050 - Quercus macrocarpa - CONUS

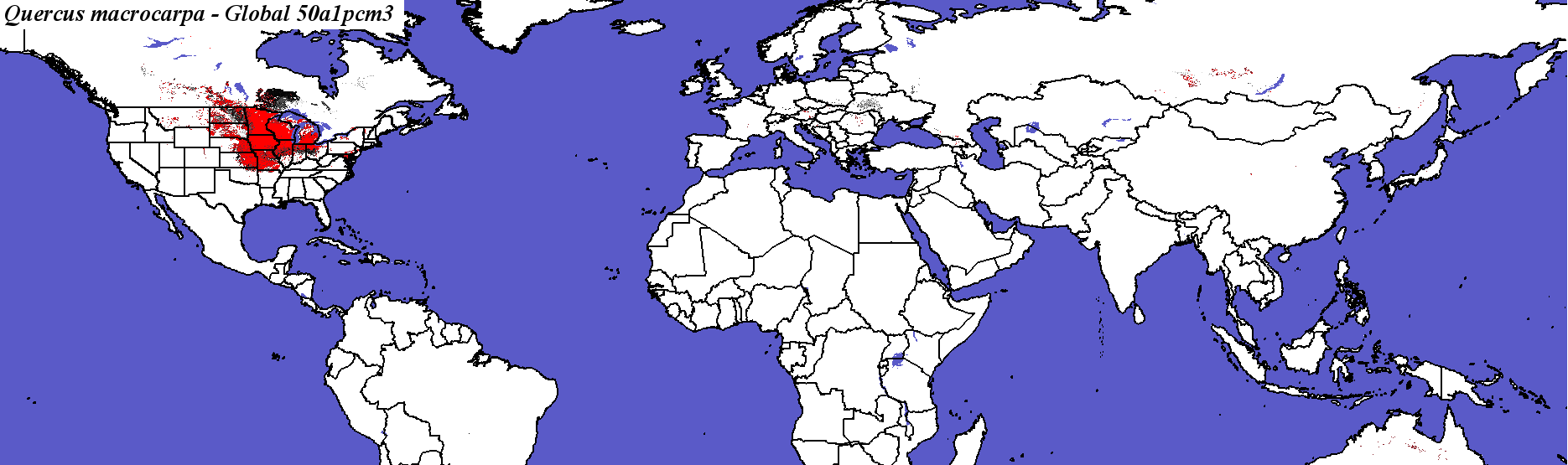

PCM, Scenario A1FI, 2050 - Quercus macrocarpa - Global
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

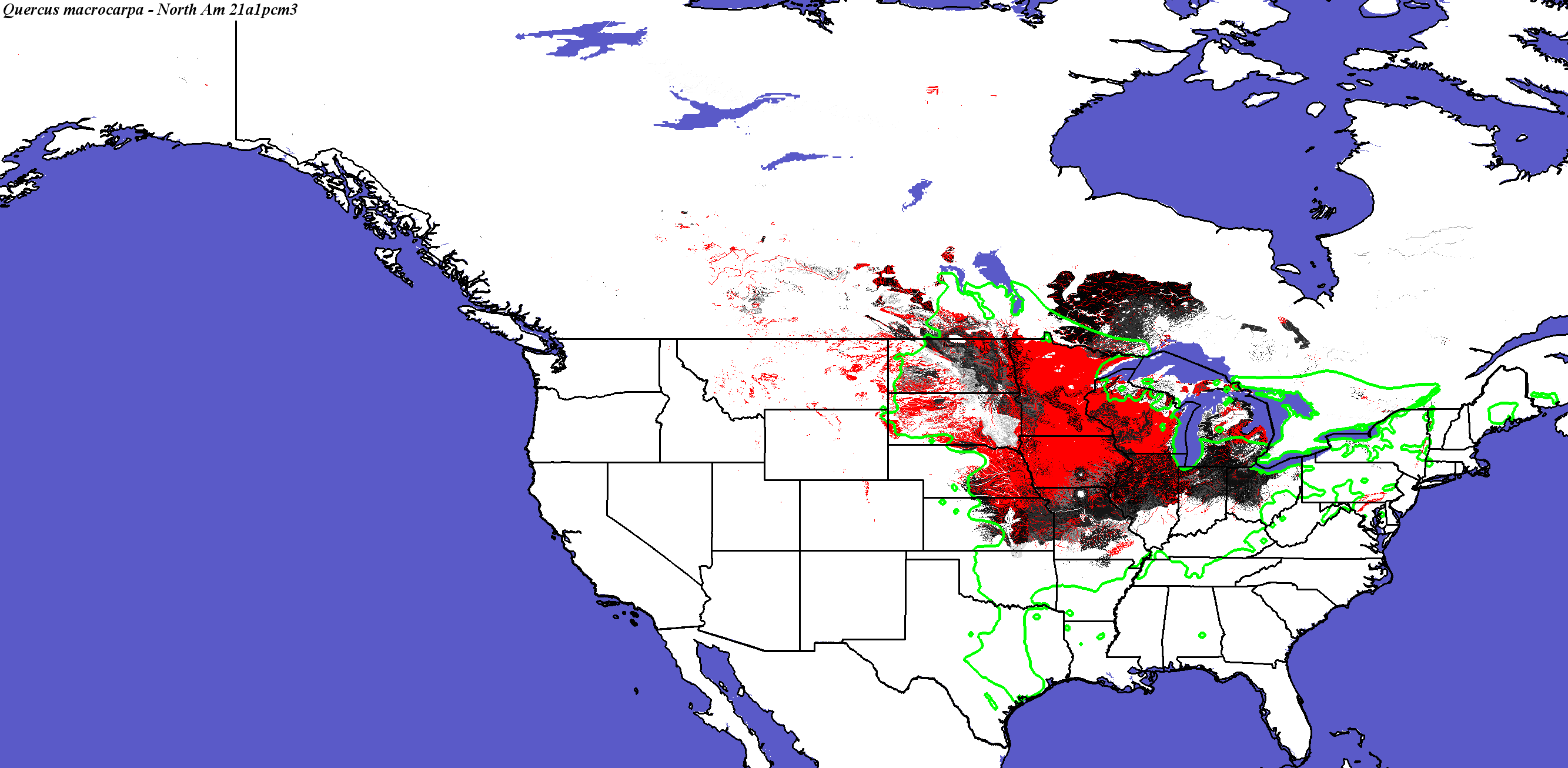

PCM, Scenario A1FI, 2100 - Quercus macrocarpa - CONUS
Compare with Quercus macrocarpa modeled for PCM A1FI in 2100 by Iverson and Prasad

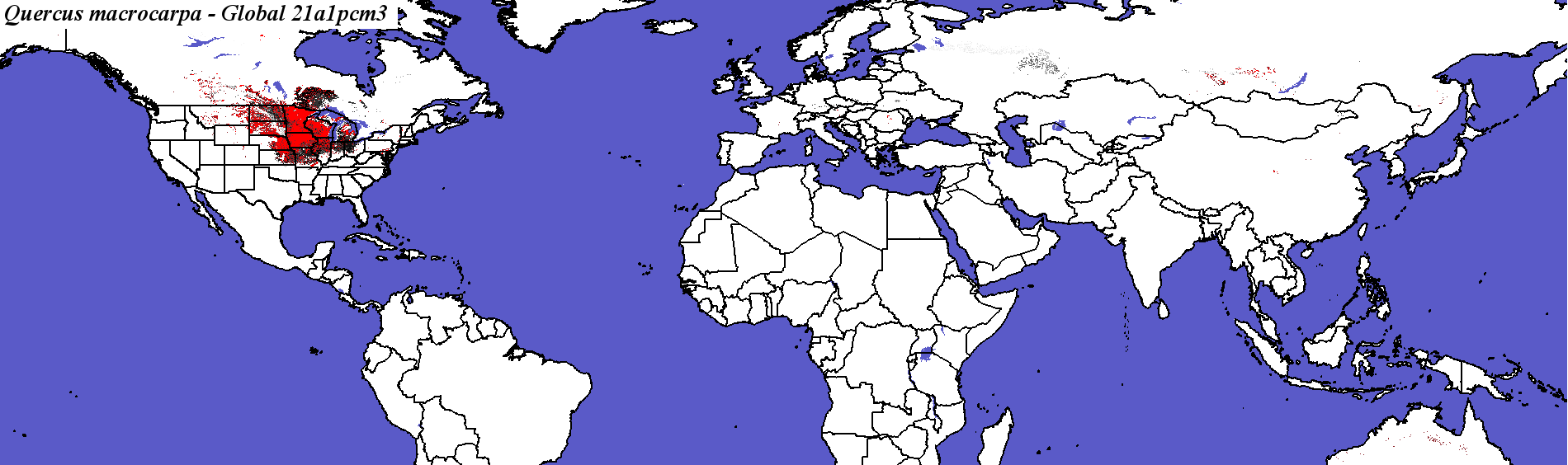

PCM, Scenario A1FI, 2100 - Quercus macrocarpa - Global

Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global
PCM, Scenario B1, 2050 - Quercus macrocarpa - CONUS

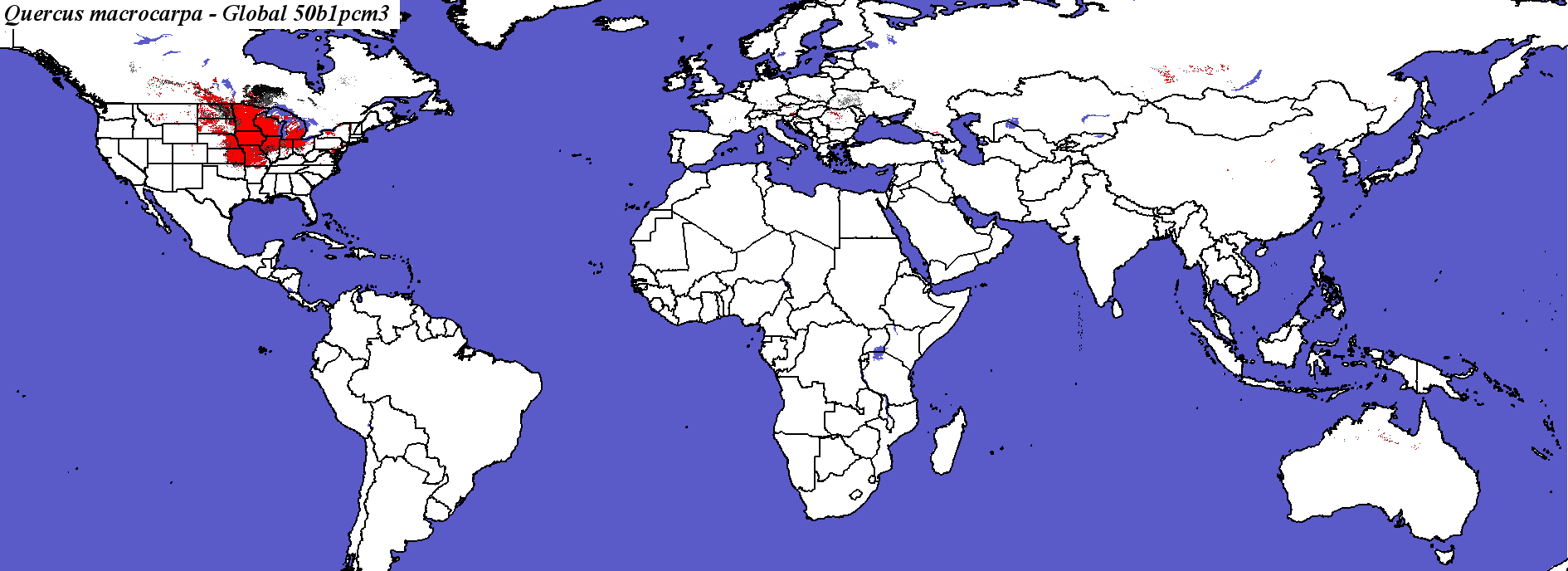

PCM, Scenario B1, 2050 - Quercus macrocarpa - Global
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

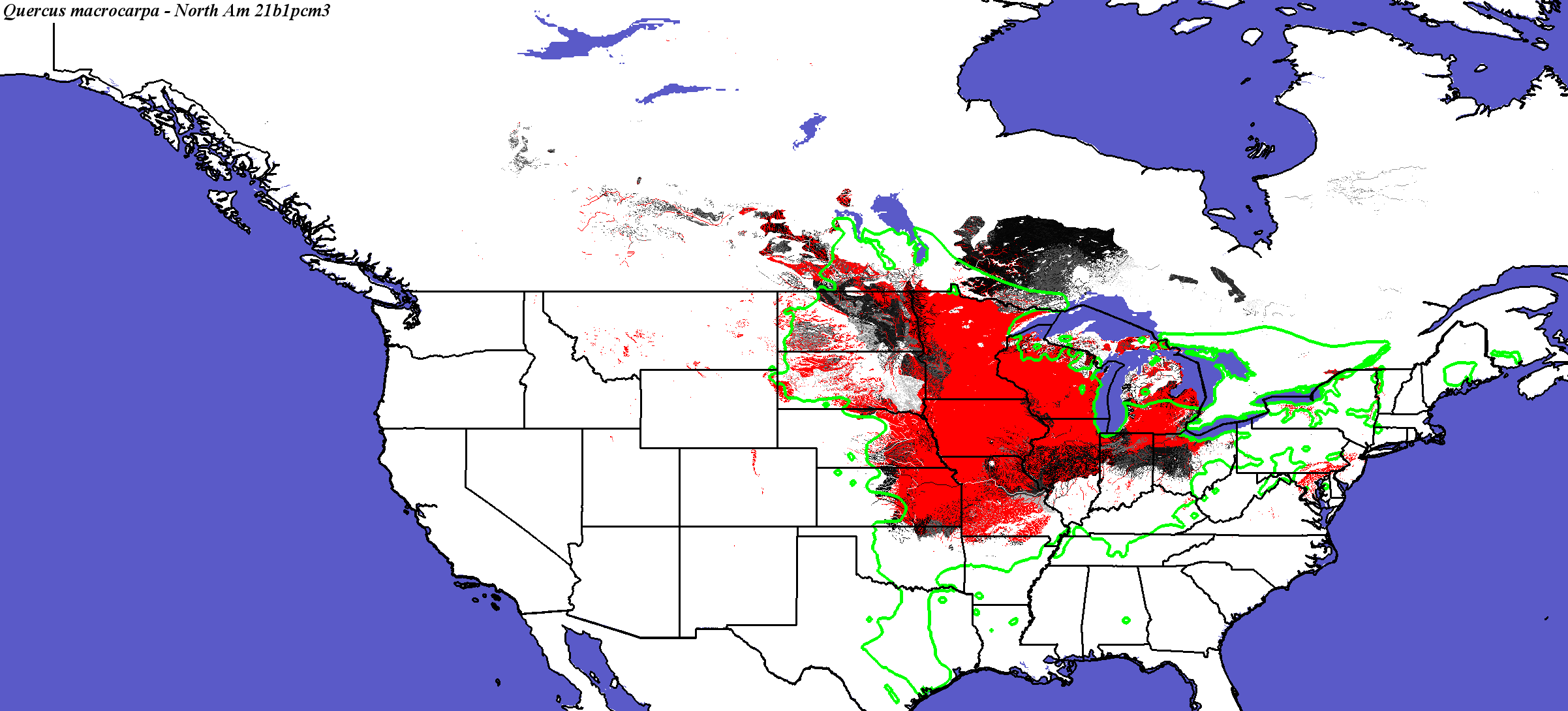

PCM, Scenario B1, 2100 - Quercus macrocarpa - CONUS
Compare with Quercus macrocarpa modeled for PCM B1 in 2100 by Iverson and Prasad

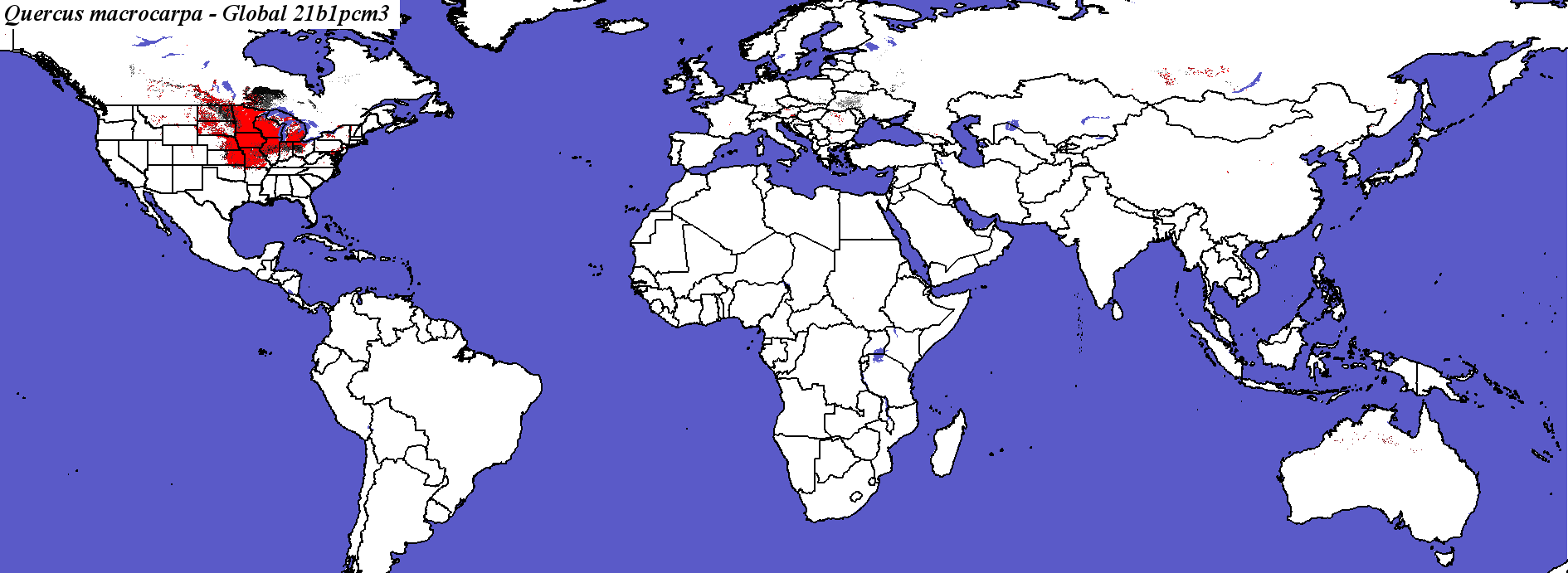

PCM, Scenario B1, 2100 - Quercus macrocarpa - Global

Hadley Climate Model
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

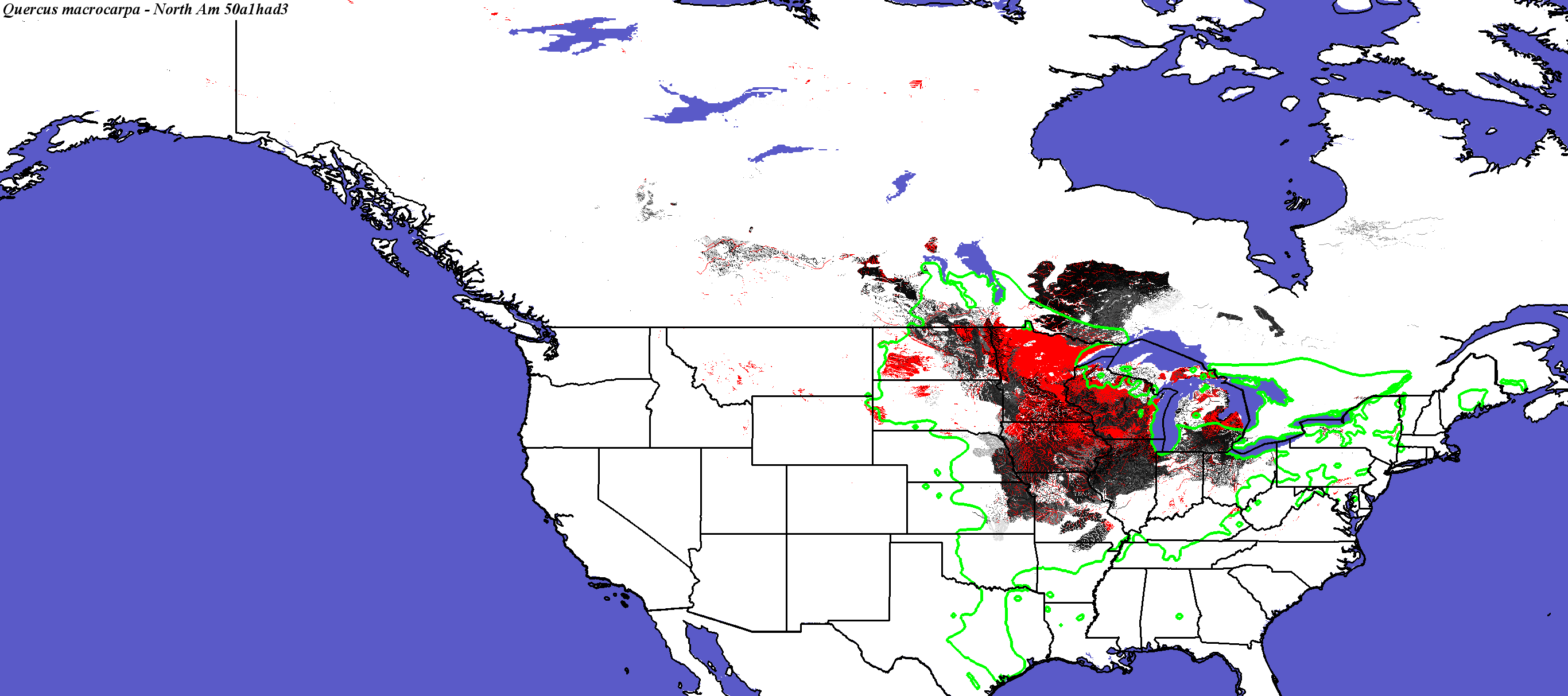

Hadley, Scenario A1FI, 2050 - Quercus macrocarpa - CONUS
Quercus macrocarpa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus macrocarpa - Global
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global.

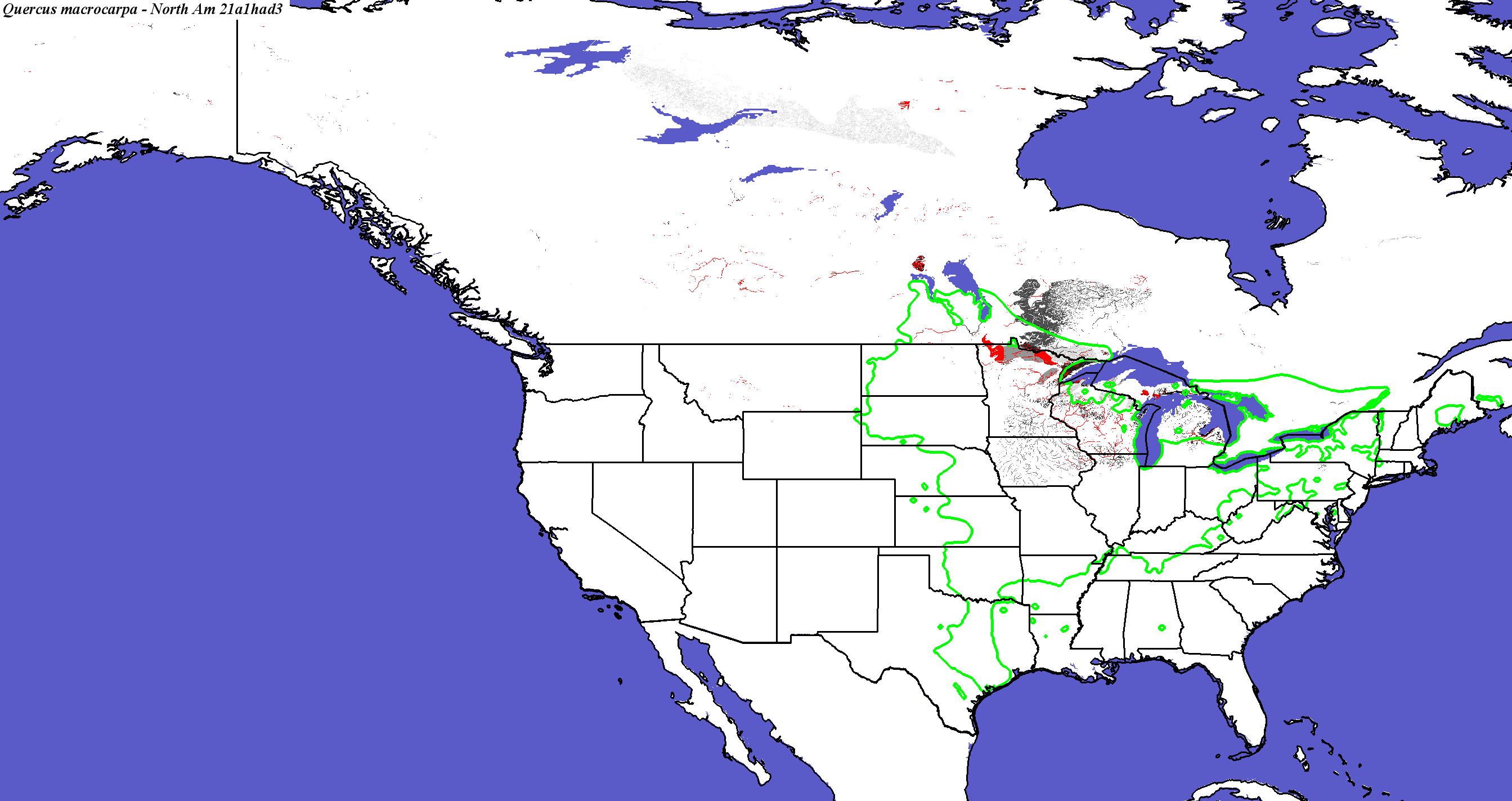

Hadley, Scenario A1FI, 2100 - Quercus macrocarpa - CONUS
Compare with Quercus macrocarpa modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus macrocarpa not modeled by Crookston and Rehfeldt
Quercus macrocarpa not modeled by Coops and Waring

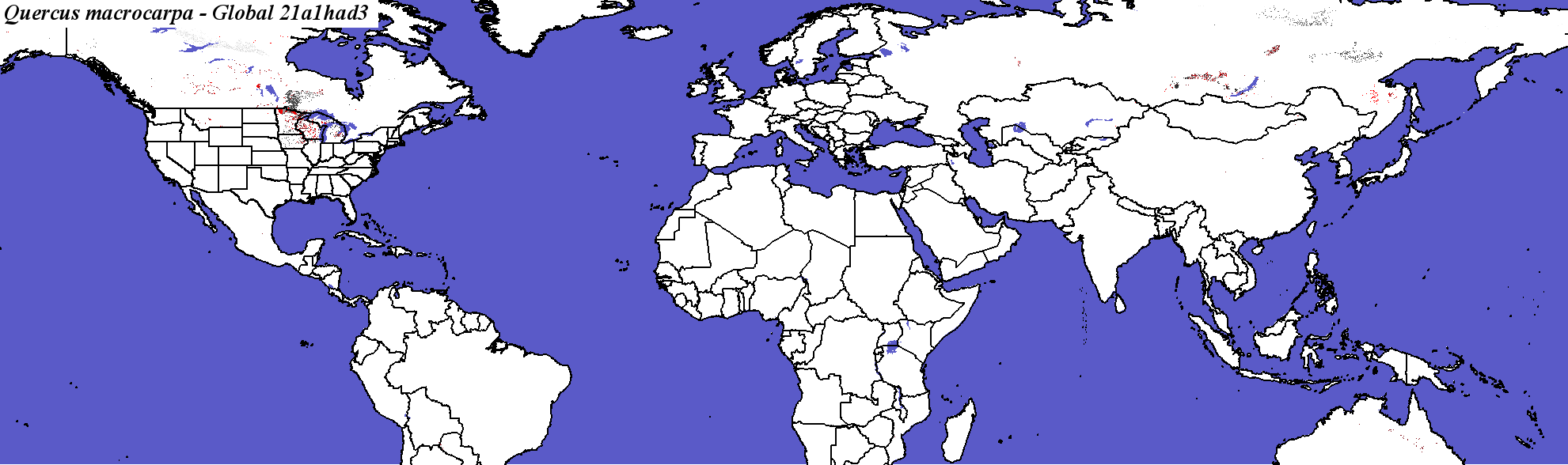

Hadley, Scenario A1FI, 2100 - Quercus macrocarpa - Global

Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global.

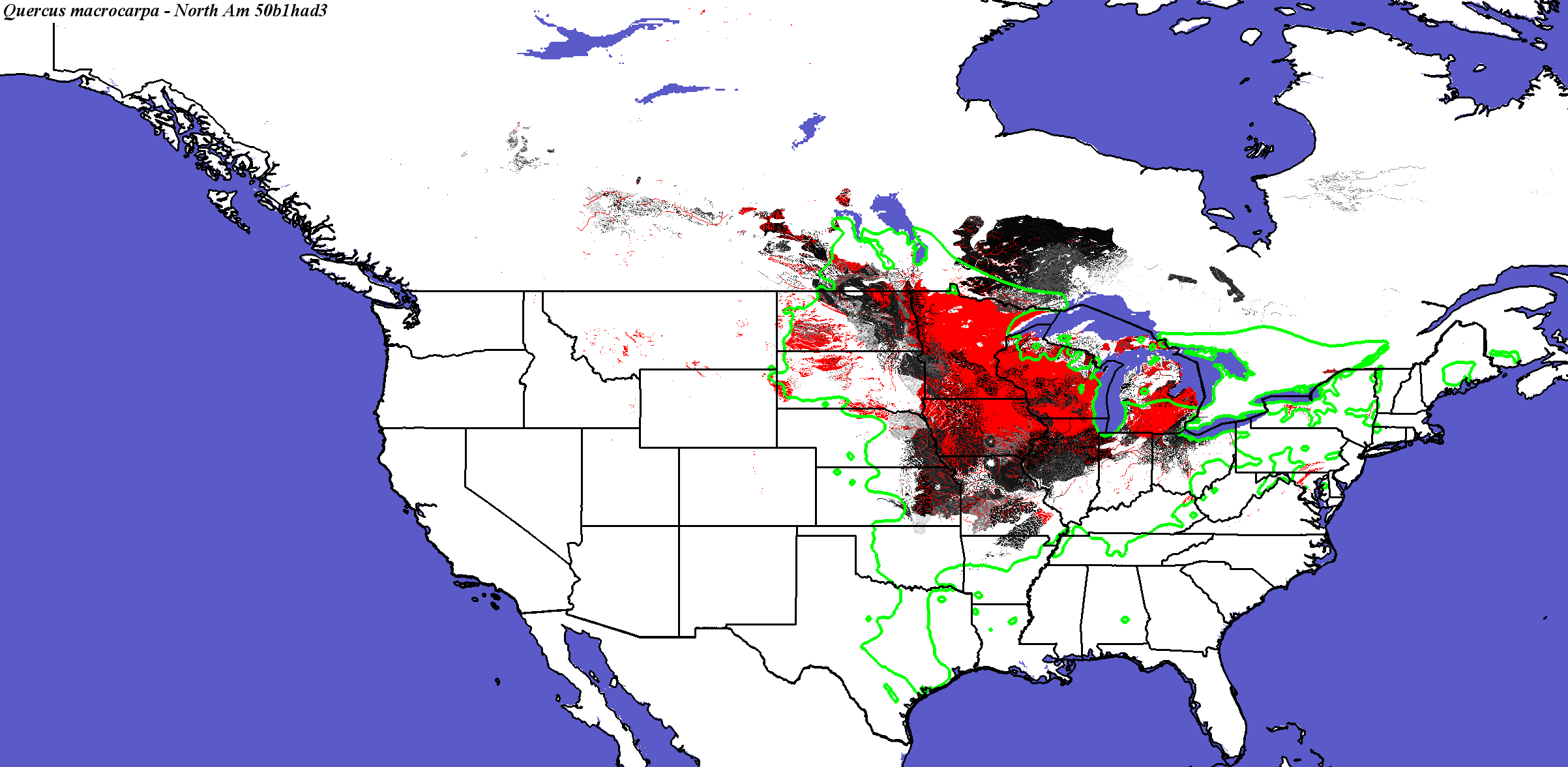

Hadley, Scenario B1, 2050 - Quercus macrocarpa - CONUS
Quercus macrocarpa not modeled by Crookston and Rehfeldt
Quercus macrocarpa not modeled by Coops and Waring

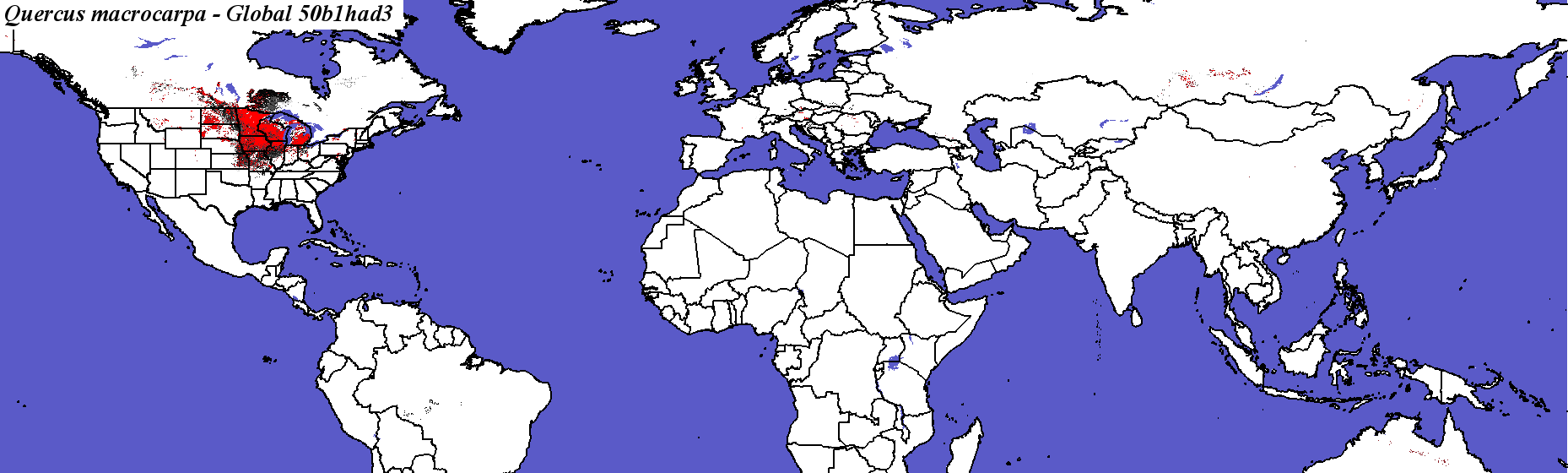

Hadley, Scenario B1, 2050 - Quercus macrocarpa - Global
Quercus_macrocarpa_final.4.conus
Quercus_macrocarpa_final.4.global

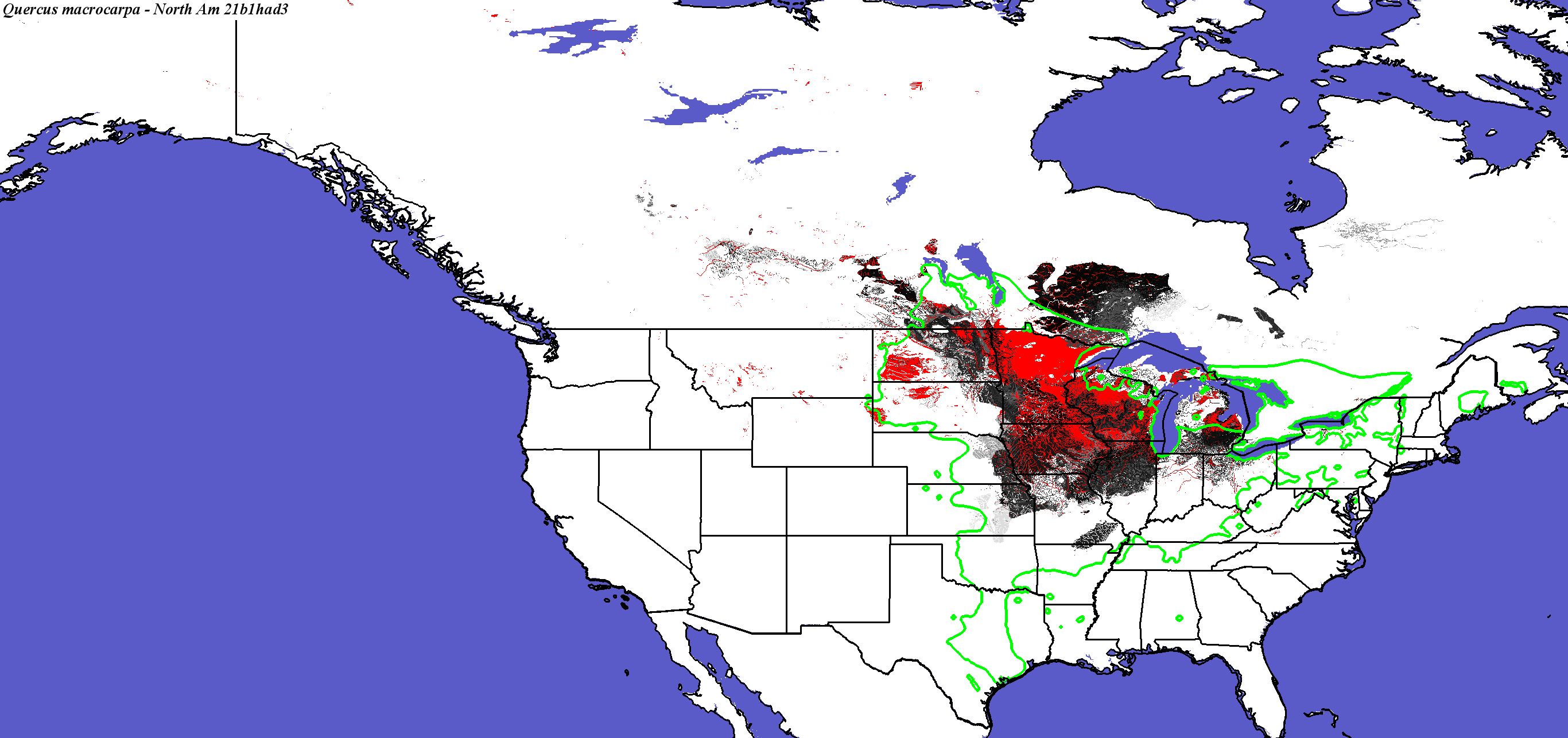

Hadley, Scenario B1, 2100 - Quercus macrocarpa - CONUS
Compare with Quercus macrocarpa modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus macrocarpa not modeled by Crookston and Rehfeldt

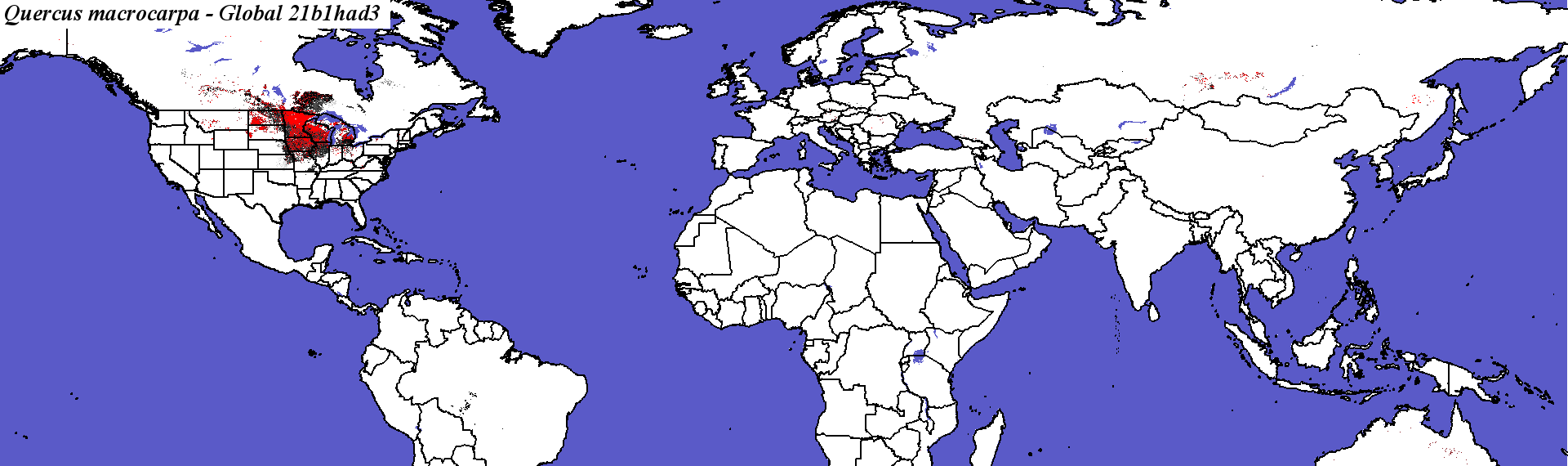

Hadley, Scenario B1, 2100 - Quercus macrocarpa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_macrocarpa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

123

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

16.7123

Area in Present Suitable Range (in km2)

1144129

Area in Future Suitable Range (Had B1 2050, in km2)

583881

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

516090

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

45.1000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

60.8219

Percent Change in Area of Suitable Range (Had B1 2050)

-48.9600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

79.726

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14774.1 +/- 28433

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

49.4521

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.89647 +/- 12.0826

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

52.1918

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

195.239 +/- 671.742

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

27.3973

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

65061

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.6800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

22.0548

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

302132

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

26.4000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

51.6438

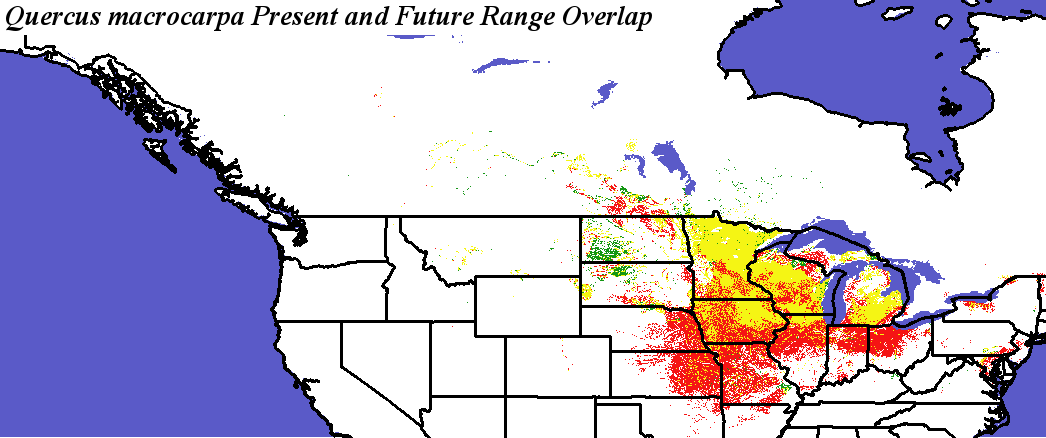

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus macrocarpa Quercus macrocarpa - Range Change Statistics

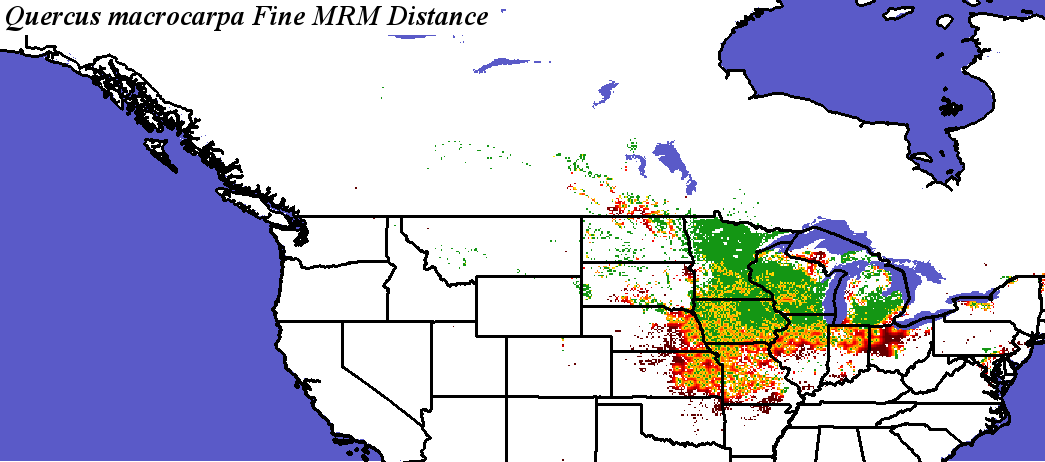

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_macrocarpa_final.elev Fine MRM Distance

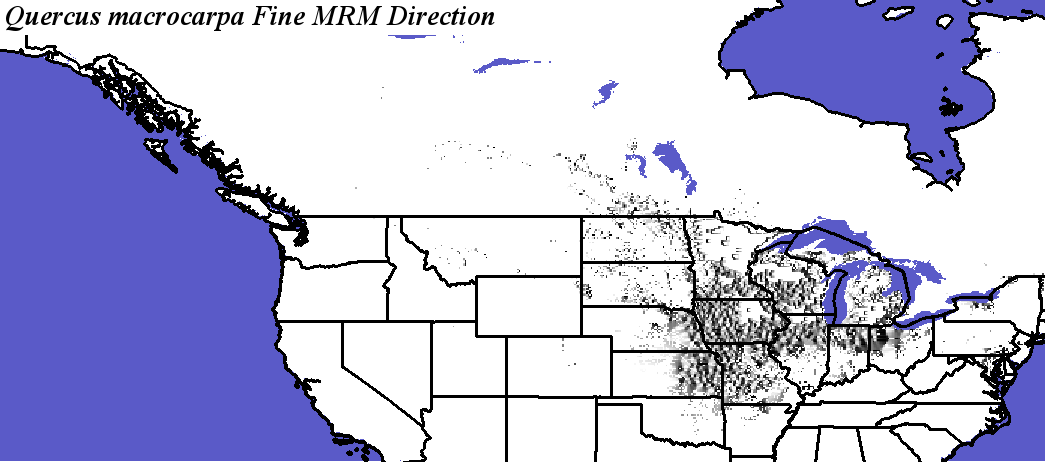

Quercus_macrocarpa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus macrocarpa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus macrocarpa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

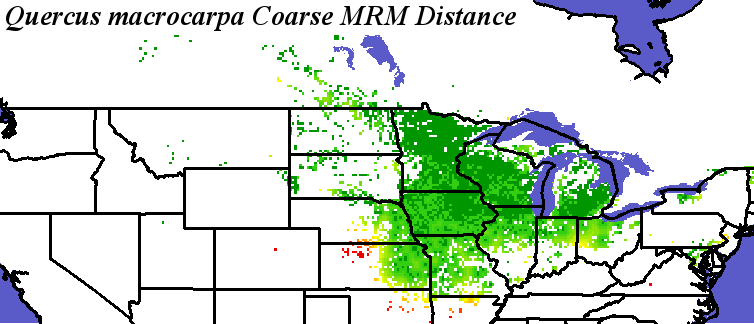

Quercus_macrocarpa_final.elev Coarse MRM Distance

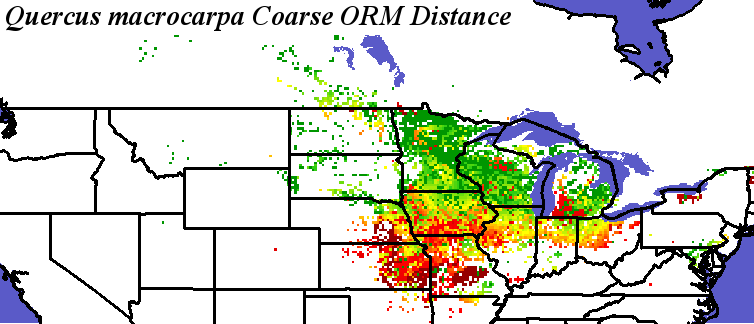

Quercus_macrocarpa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus macrocarpa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus macrocarpa
