Version 5 Tree Atlas


Quercus margarettae

dwarf post oak

elev

Quercus margarettae Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus margarettae

USDA Plants Database entry for Quercus margarettae
Silvics Manual entry for Quercus margarettae


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus margaretta; Q. stellata var. margaretta; Q. drummondii; Quercus stellata var. margarettiae17524199western portion of the range not well sampled

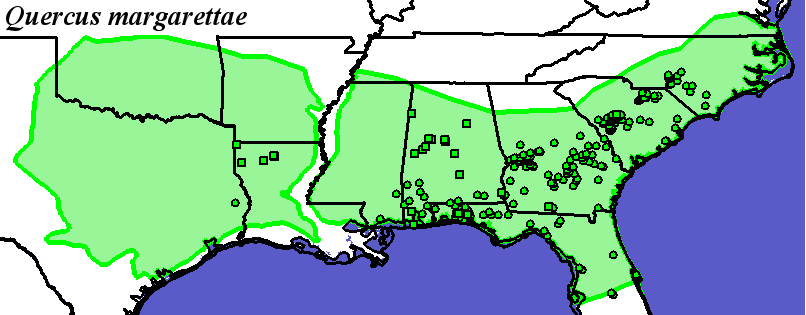

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_margarettae_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_margarettae_final

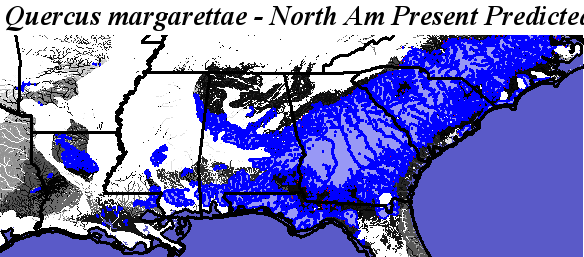

Quercus margarettae - Occurrence Locations Quercus margarettae - Hargrove's Present Suitable Range Outline

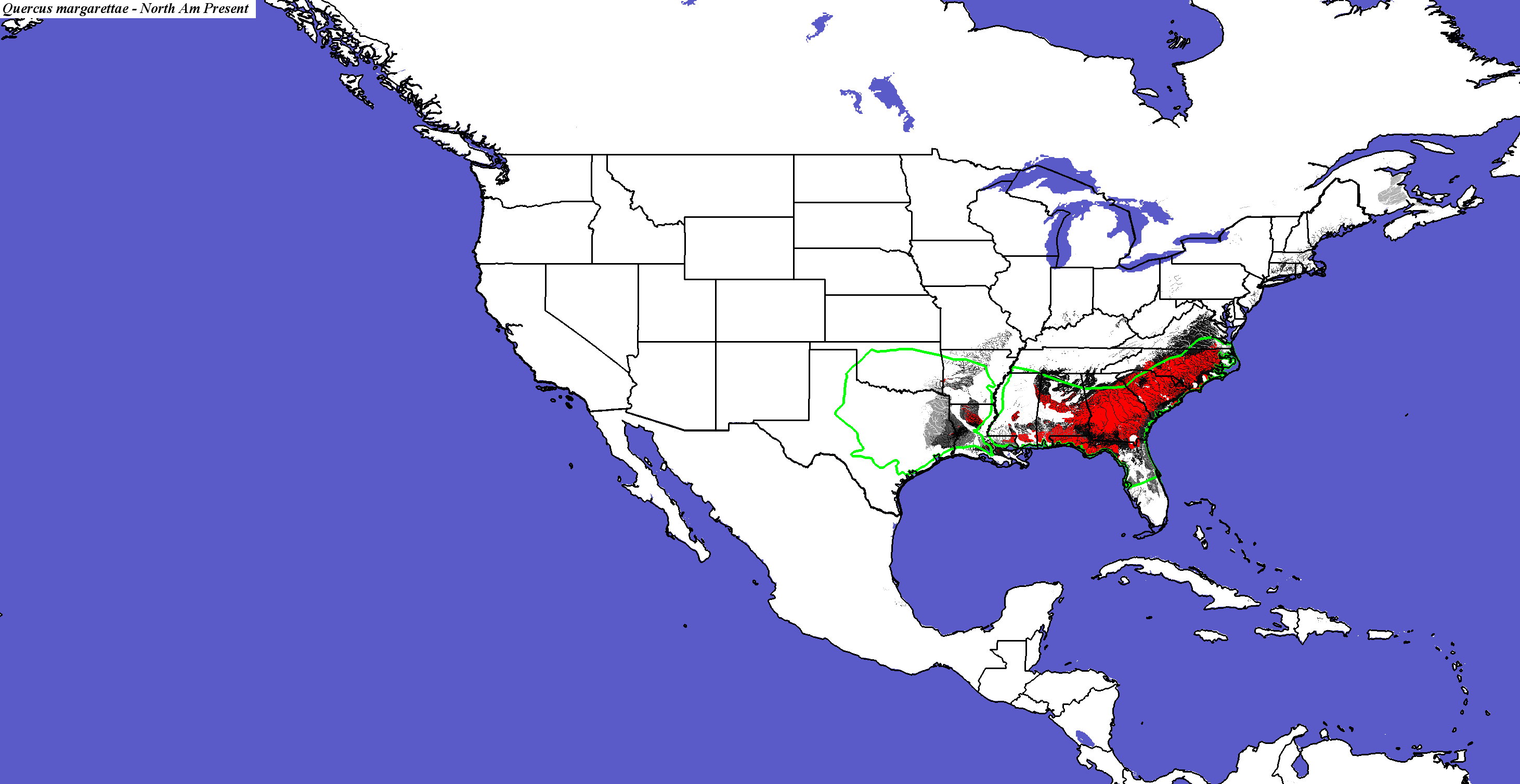

Present Conditions
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global
Quercus margarettae - CONUS
Compare with Current Range from the Silvics Manual for Quercus margarettae
Compare with Current Range from Biota of North America Program (BONAP) for Quercus margarettae

Quercus margarettae not modeled by Iverson and Prasad
Quercus margarettae not modeled by Crookston and Rehfeldt
Quercus margarettae not modeled by Coops and Waring

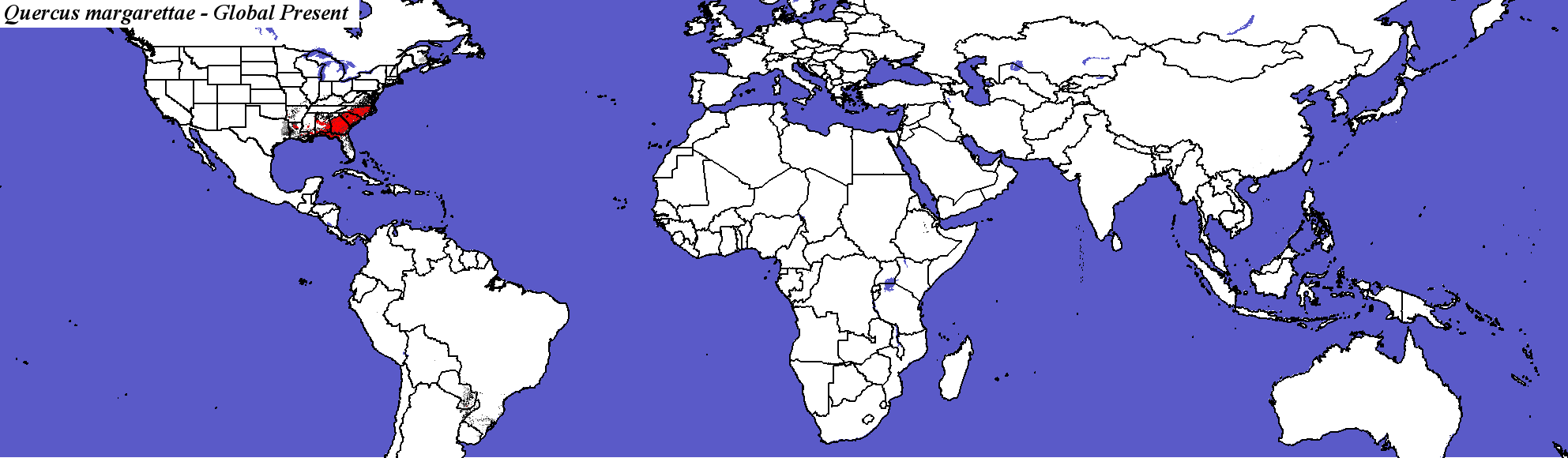

Quercus margarettae - Global

PCM - Parallel Climate Model
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global

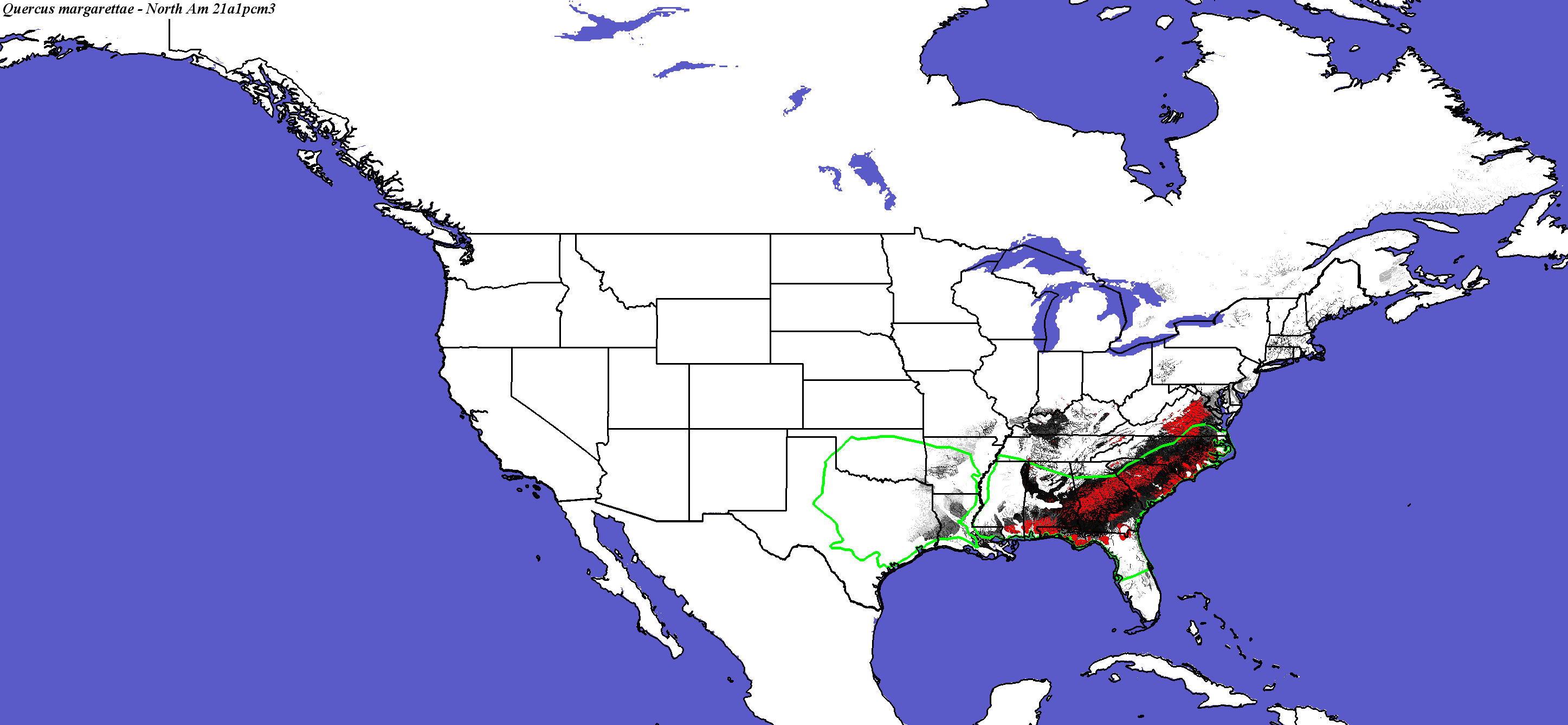

PCM, Scenario A1FI, 2050 - Quercus margarettae - CONUS
PCM, Scenario A1FI, 2050 - Quercus margarettae - Global
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global
PCM, Scenario A1FI, 2100 - Quercus margarettae - CONUS
Quercus margarettae species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus margarettae - Global

Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global

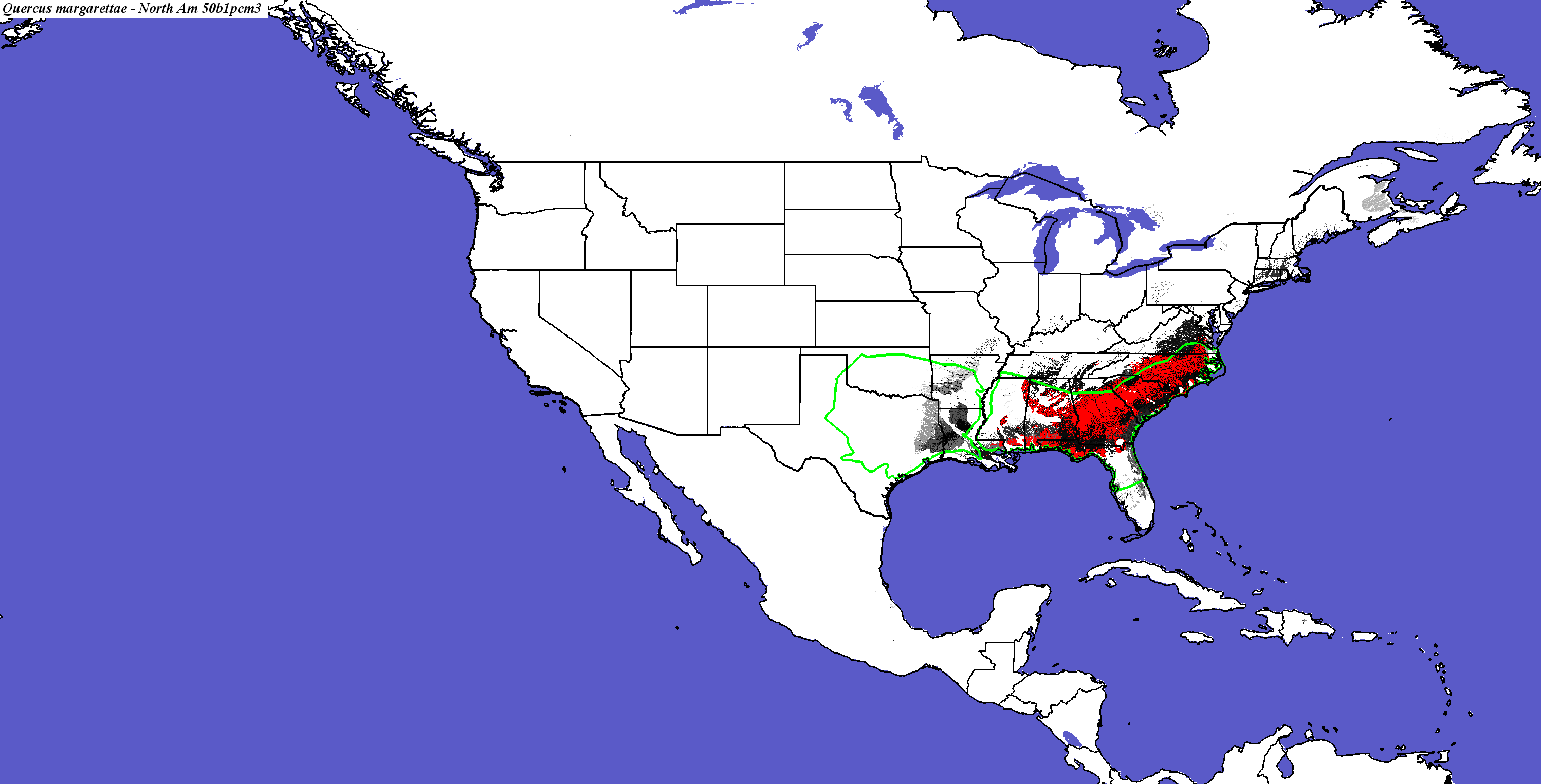

PCM, Scenario B1, 2050 - Quercus margarettae - CONUS
PCM, Scenario B1, 2050 - Quercus margarettae - Global
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global
PCM, Scenario B1, 2100 - Quercus margarettae - CONUS
Quercus margarettae not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus margarettae - Global

Hadley Climate Model
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus margarettae - CONUS
Quercus margarettae not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus margarettae - Global
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global.

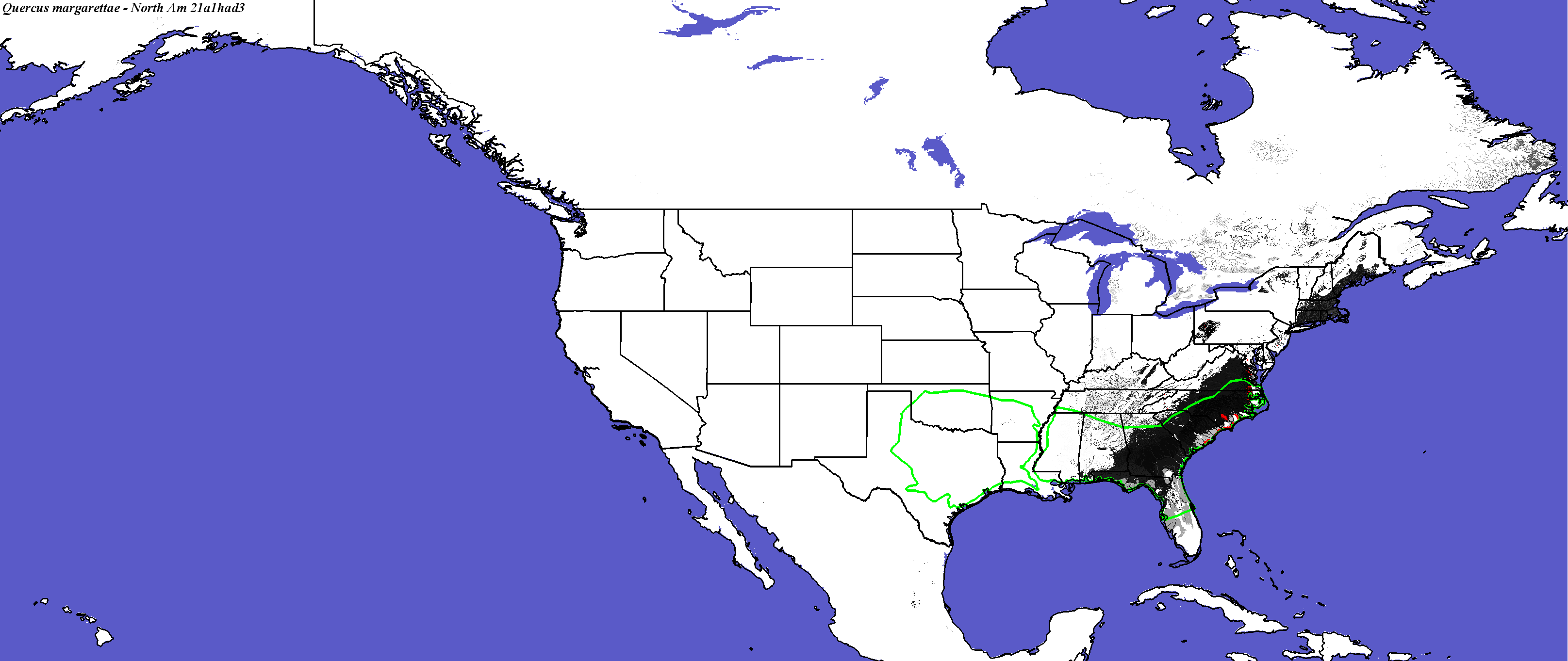

Hadley, Scenario A1FI, 2100 - Quercus margarettae - CONUS
Quercus margarettae not modeled by Iverson and Prasad
Quercus margarettae not modeled by Crookston and Rehfeldt
Quercus margarettae not modeled by Coops and Waring

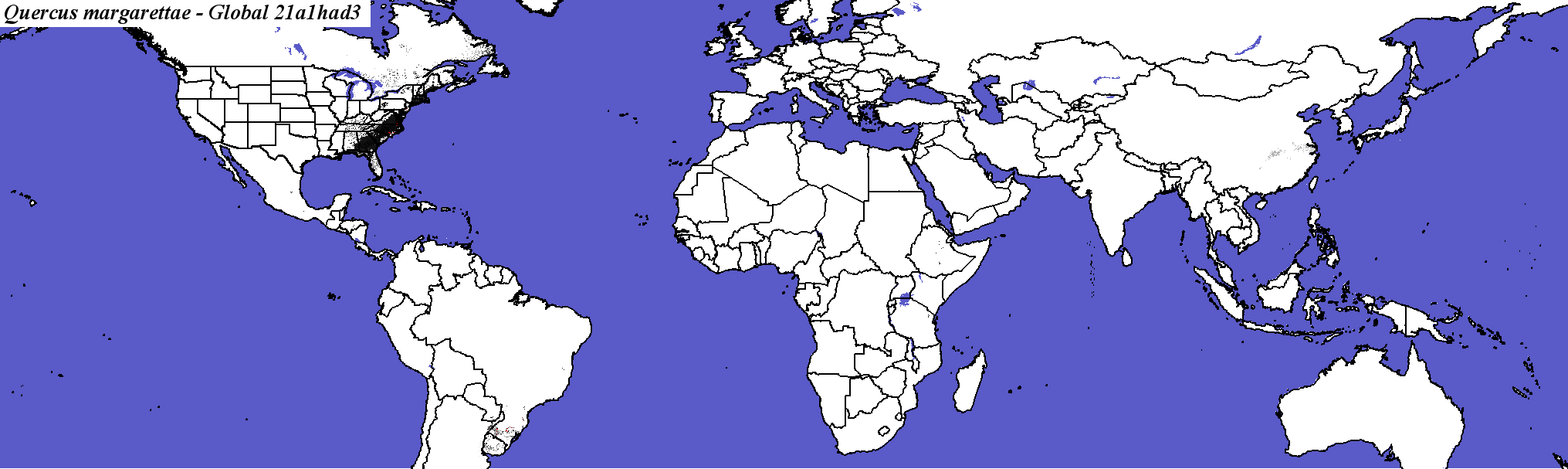

Hadley, Scenario A1FI, 2100 - Quercus margarettae - Global

Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global.

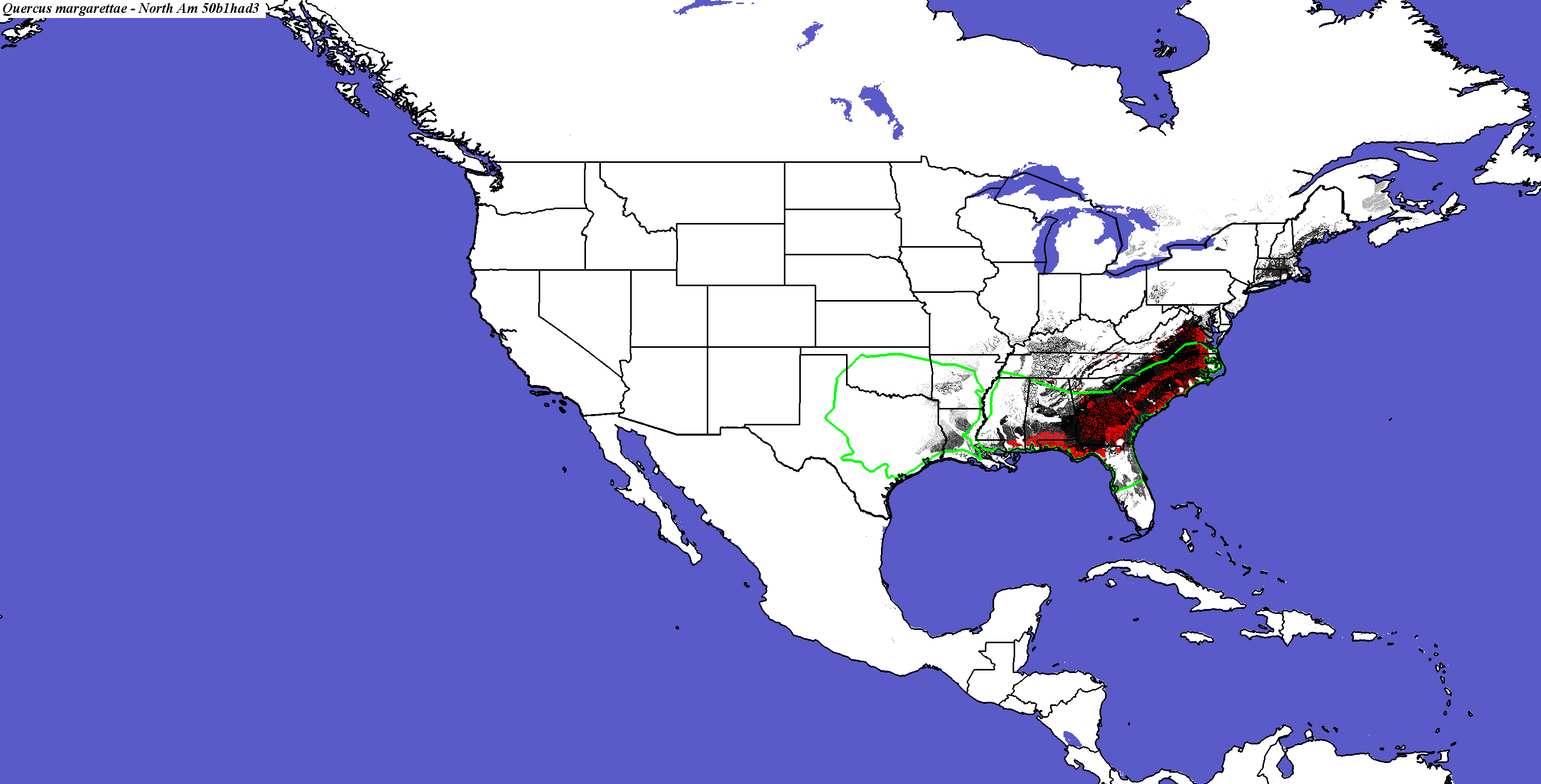

Hadley, Scenario B1, 2050 - Quercus margarettae - CONUS
Quercus margarettae not modeled by Crookston and Rehfeldt
Quercus margarettae not modeled by Coops and Waring

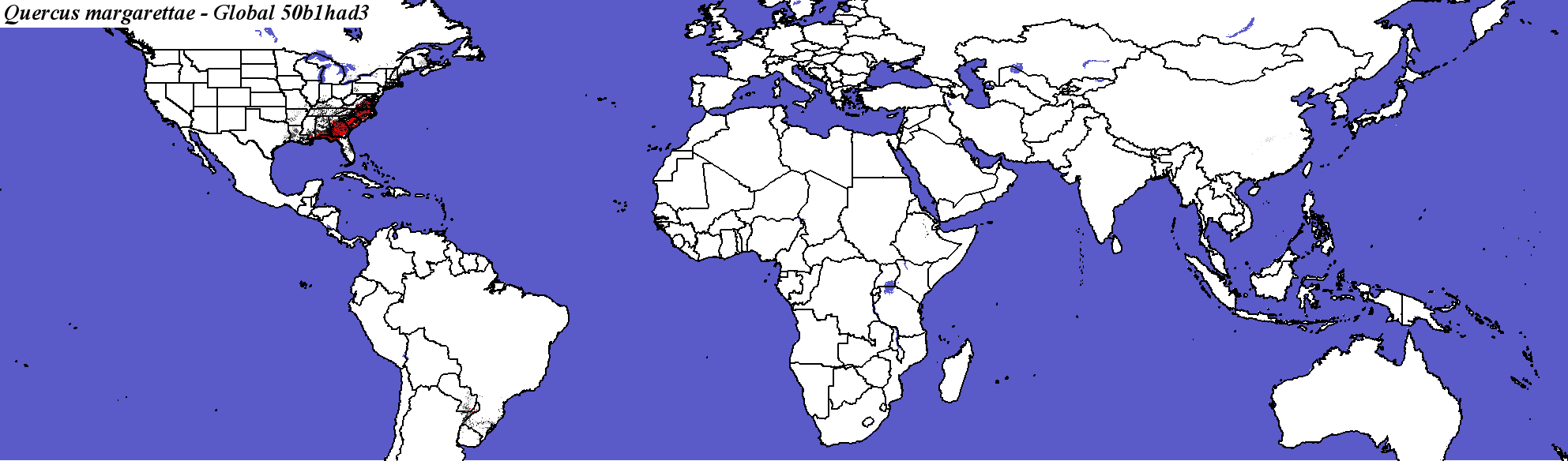

Hadley, Scenario B1, 2050 - Quercus margarettae - Global
Quercus_margarettae_final.3.conus
Quercus_margarettae_final.3.global

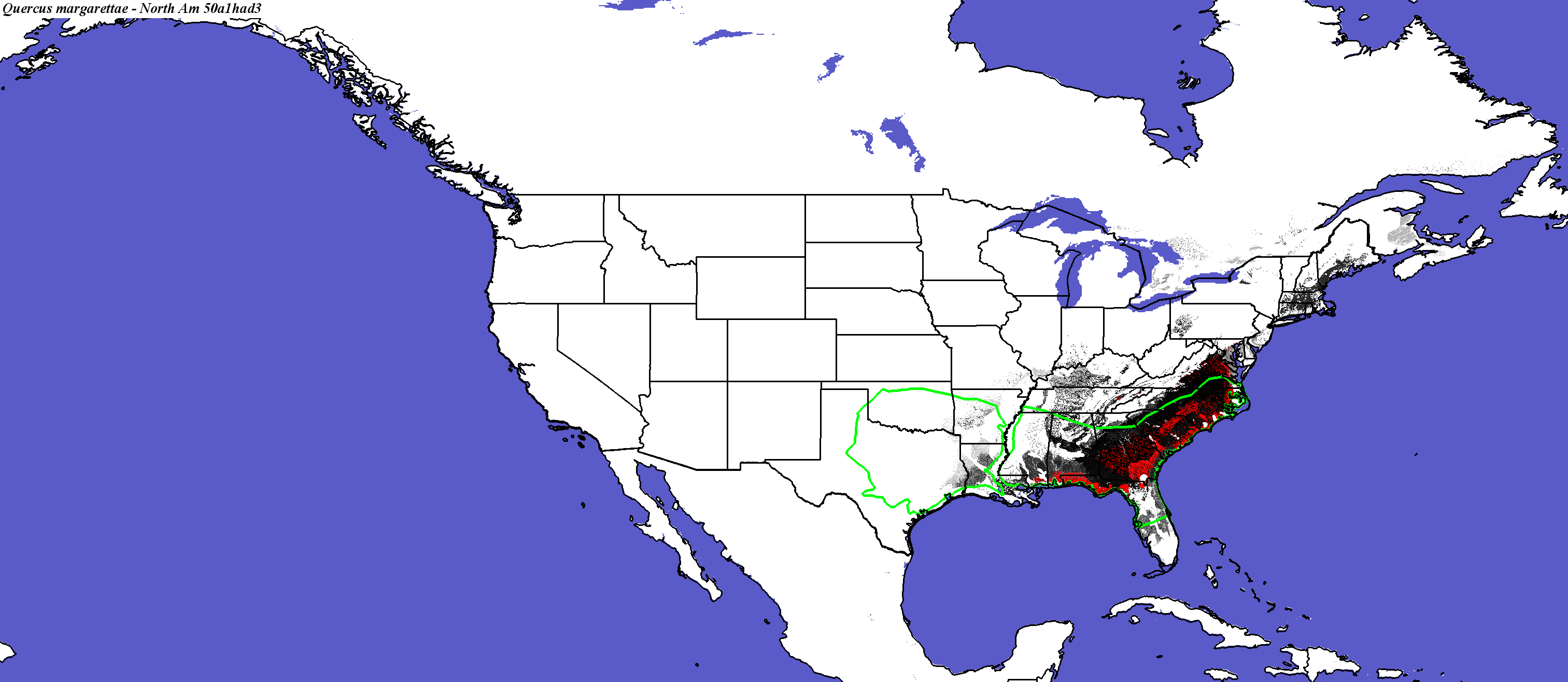

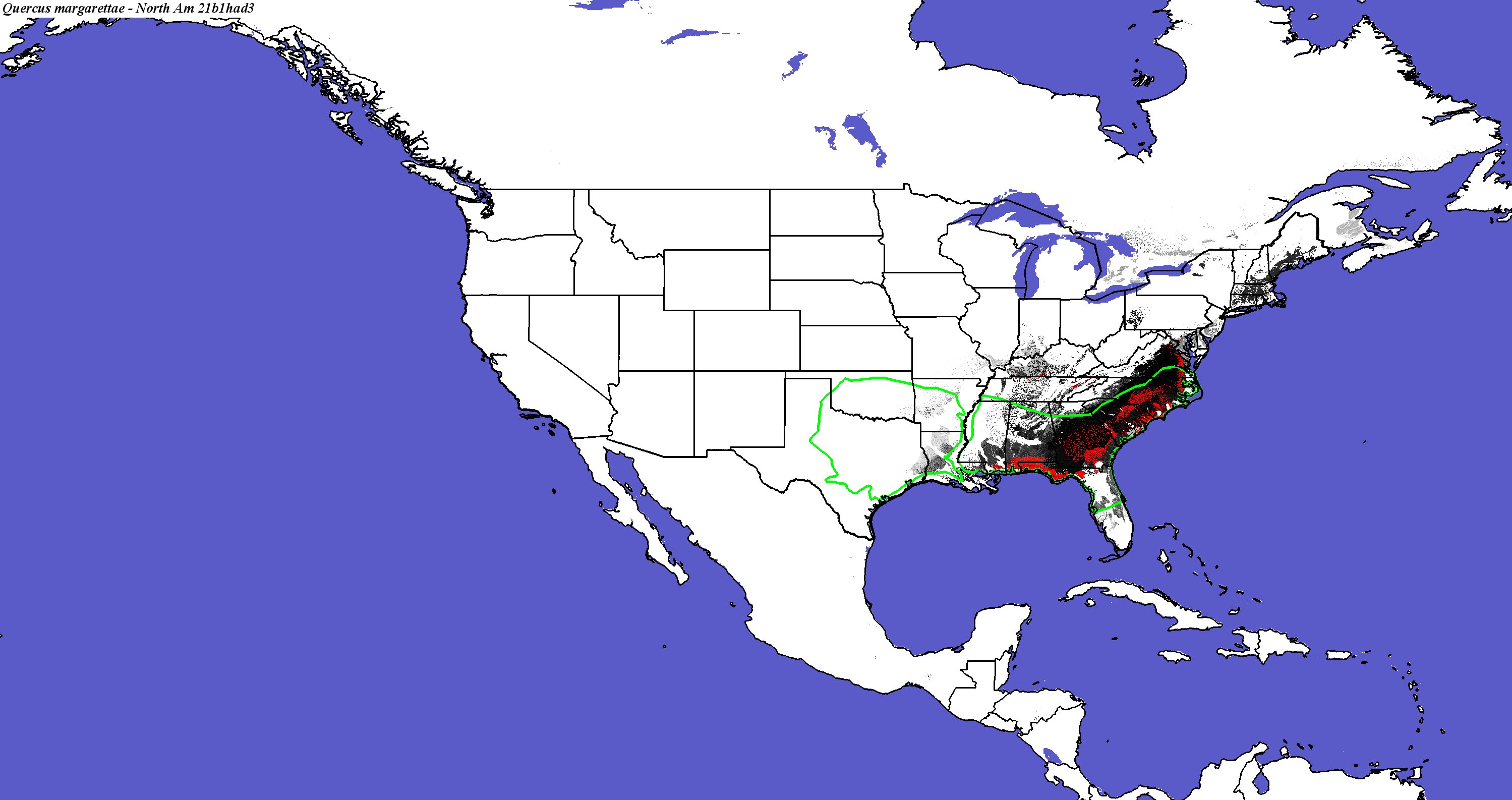

Hadley, Scenario B1, 2100 - Quercus margarettae - CONUS
Quercus margarettae not modeled by Iverson and Prasad
Quercus margarettae not modeled by Crookston and Rehfeldt

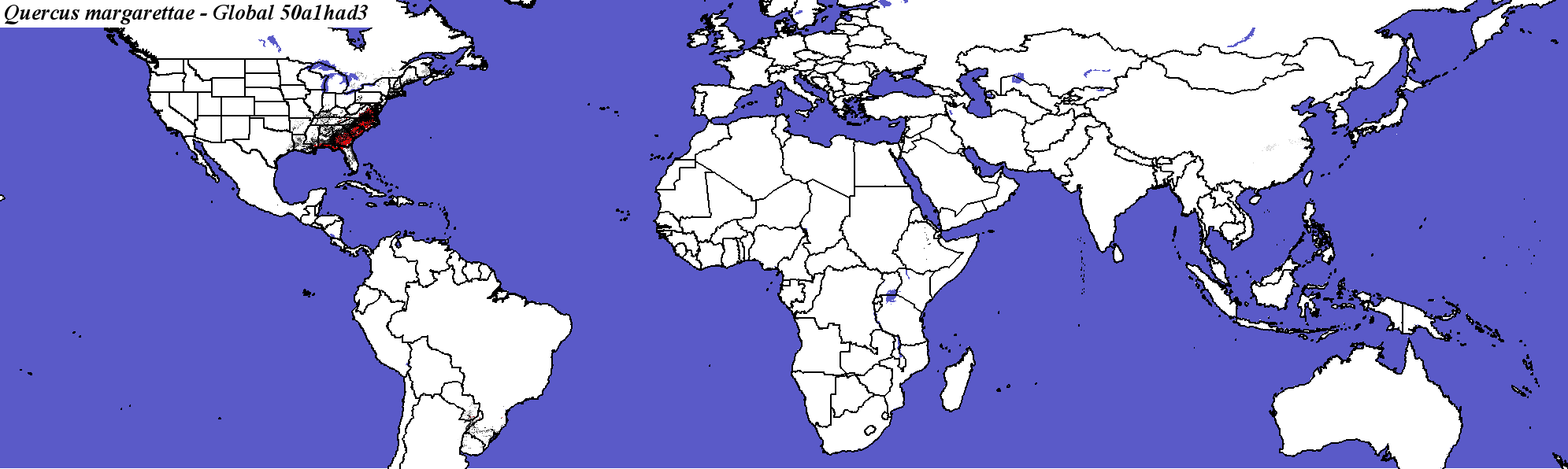

Hadley, Scenario B1, 2100 - Quercus margarettae - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_margarettae_final.elev

Number of Suitable Ecoregions (Niche Breadth)

18

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

66.0274

Area in Present Suitable Range (in km2)

243280

Area in Future Suitable Range (Had B1 2050, in km2)

108352

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

83232

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

34.2100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

79.1781

Percent Change in Area of Suitable Range (Had B1 2050)

-55.4600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.3973

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

30126 +/- 59413.6

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

21.9178

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

13.0619 +/- 26.6674

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

21.0959

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

291.623 +/- 837.955

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

14.5205

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

21594

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

8.8700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

10.137

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

66269

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

27.2300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

48.9041

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus margarettae Quercus margarettae - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_margarettae_final.elev Fine MRM Distance
Quercus_margarettae_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus margarettae Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus margarettae
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_margarettae_final.elev Coarse MRM Distance
Quercus_margarettae_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus margarettae Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus margarettae
