Version 5 Tree Atlas


Quercus michauxii

swamp chestnut oak

elev

Quercus michauxii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus michauxii

USDA Plants Database entry for Quercus michauxii
Silvics Manual entry for Quercus michauxii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
62444668TBD

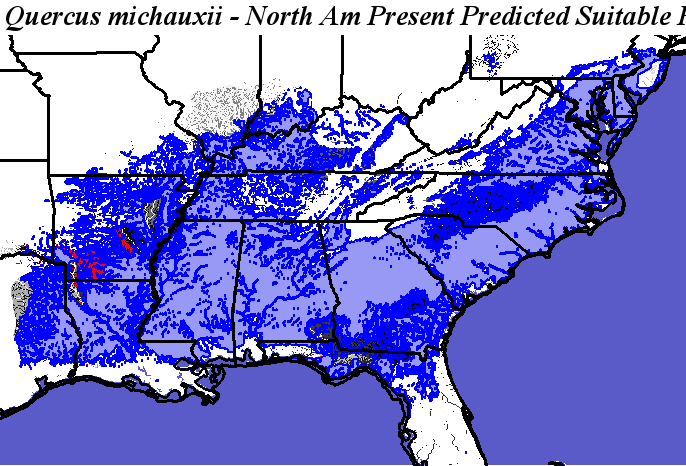

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_michauxii_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_michauxii_final
Quercus michauxii - Occurrence Locations Quercus michauxii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

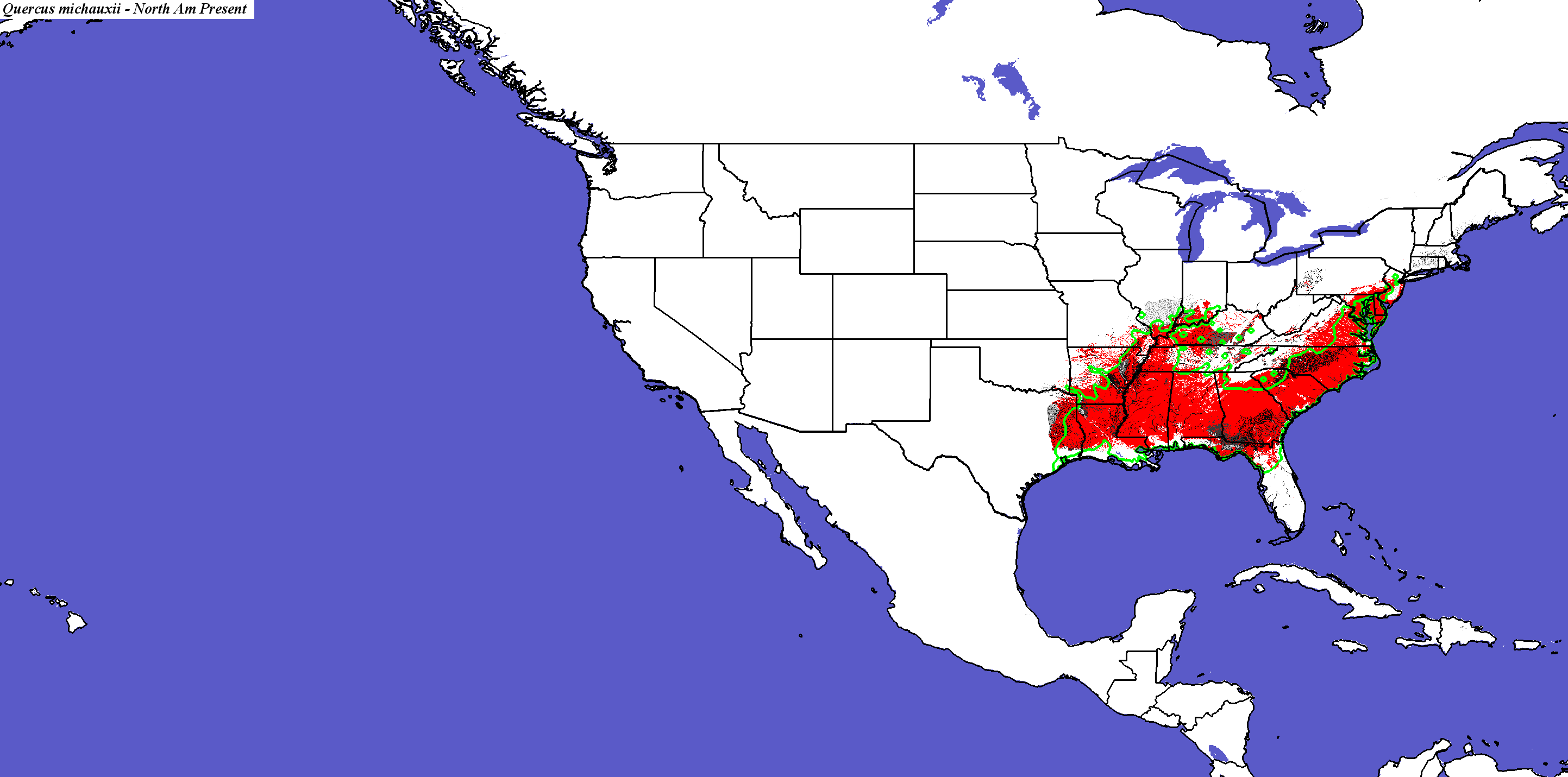

Quercus michauxii - CONUS
Compare with Current Range from the Silvics Manual for Quercus michauxii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus michauxii

Compare with Quercus michauxii modeled for Current conditions by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring

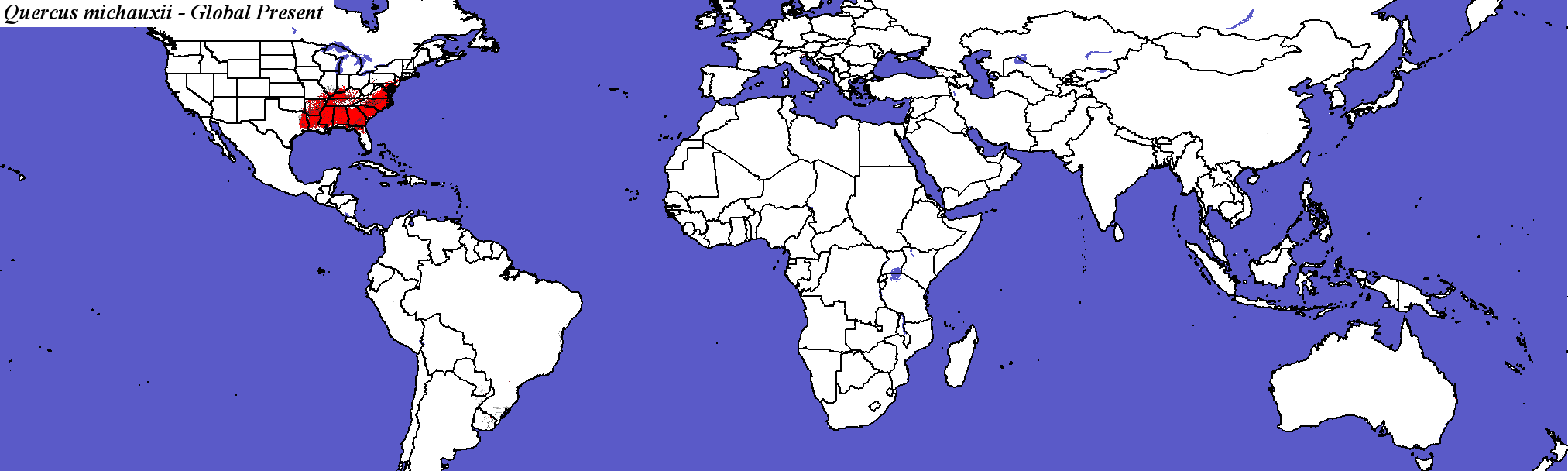

Quercus michauxii - Global

PCM - Parallel Climate Model
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

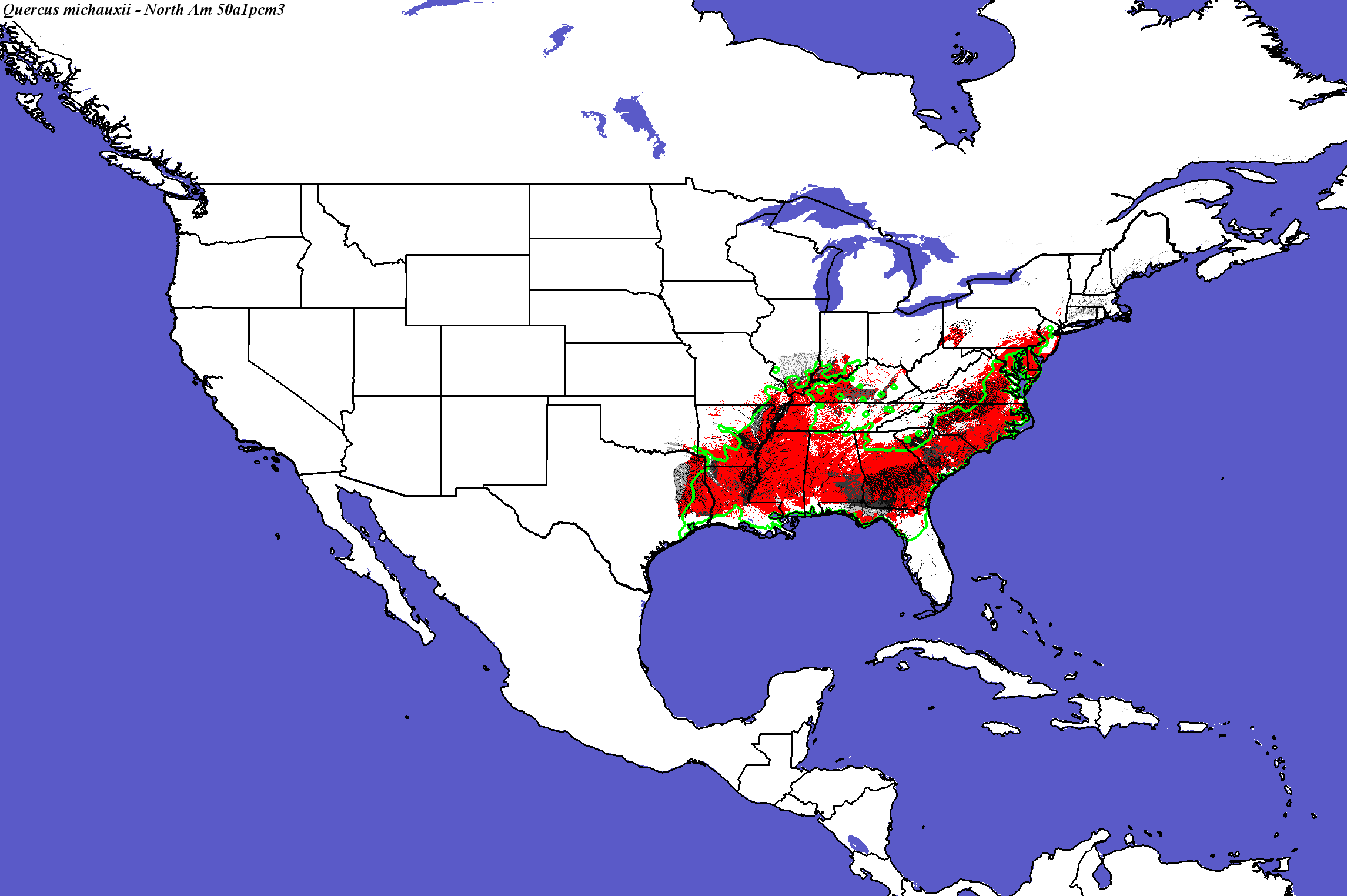

PCM, Scenario A1FI, 2050 - Quercus michauxii - CONUS
PCM, Scenario A1FI, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

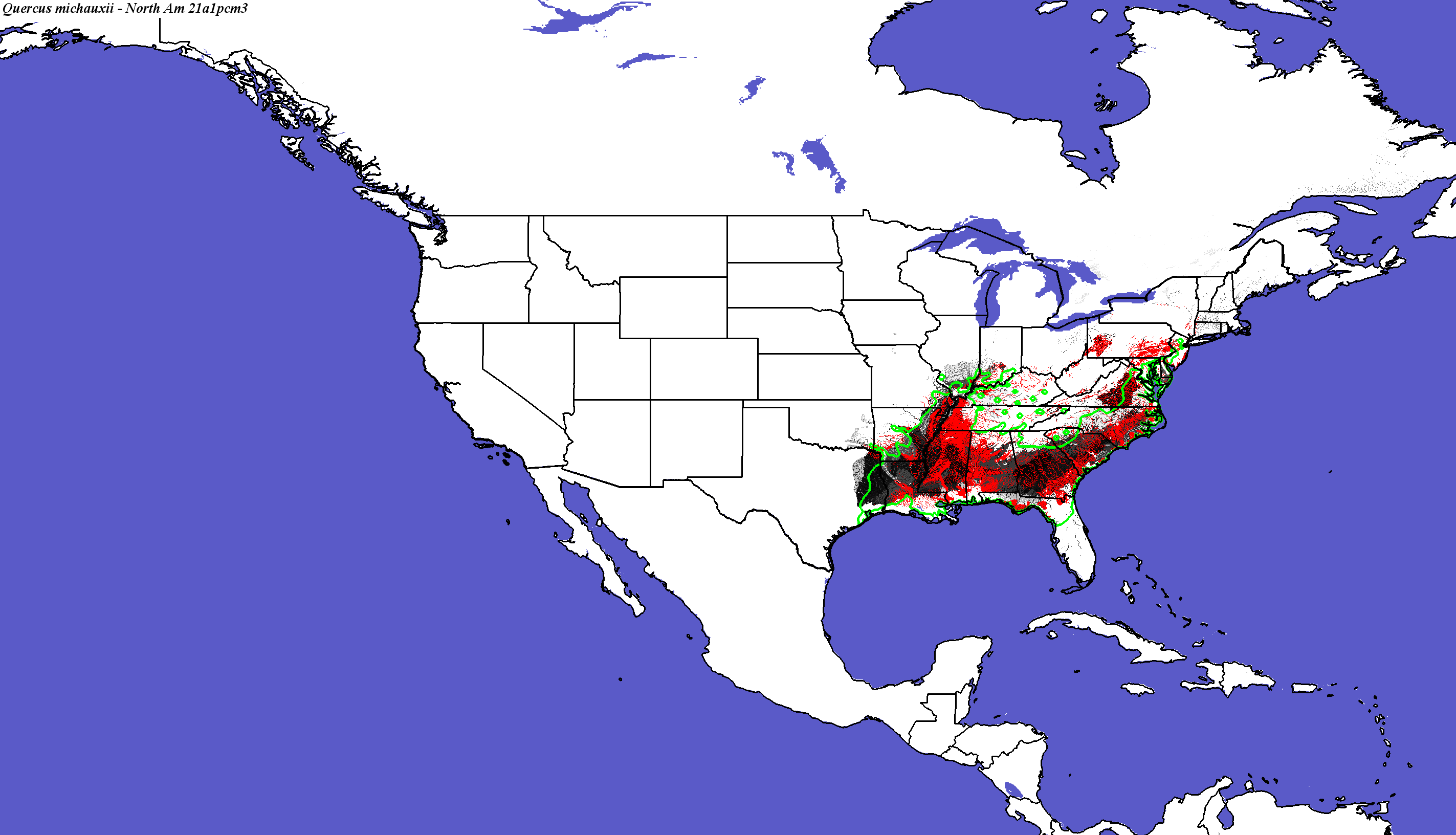

PCM, Scenario A1FI, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for PCM A1FI in 2100 by Iverson and Prasad

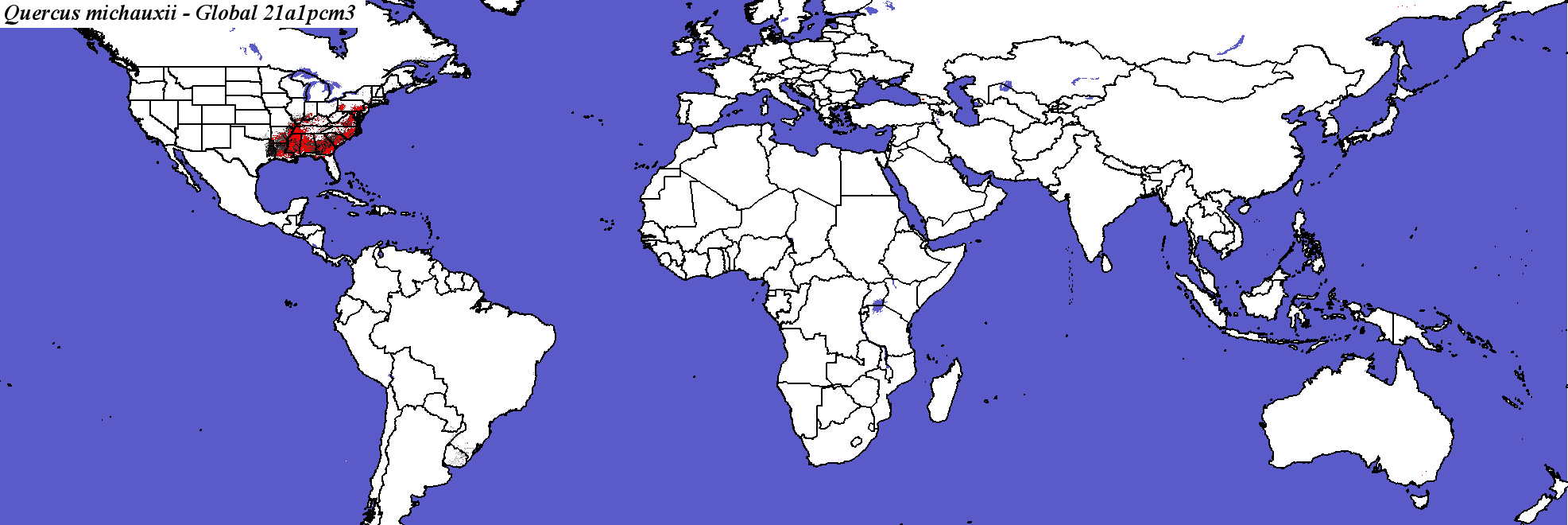

PCM, Scenario A1FI, 2100 - Quercus michauxii - Global

Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

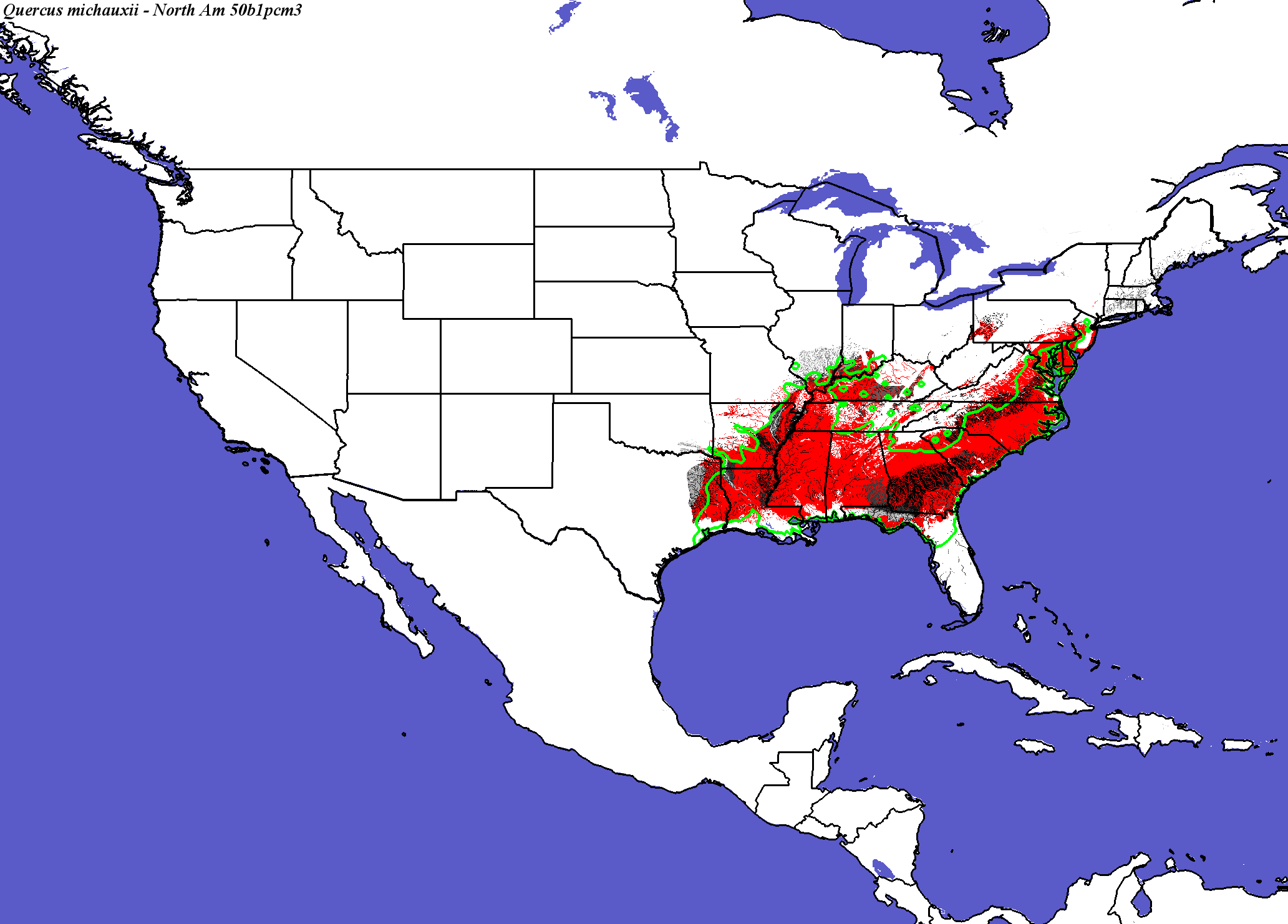

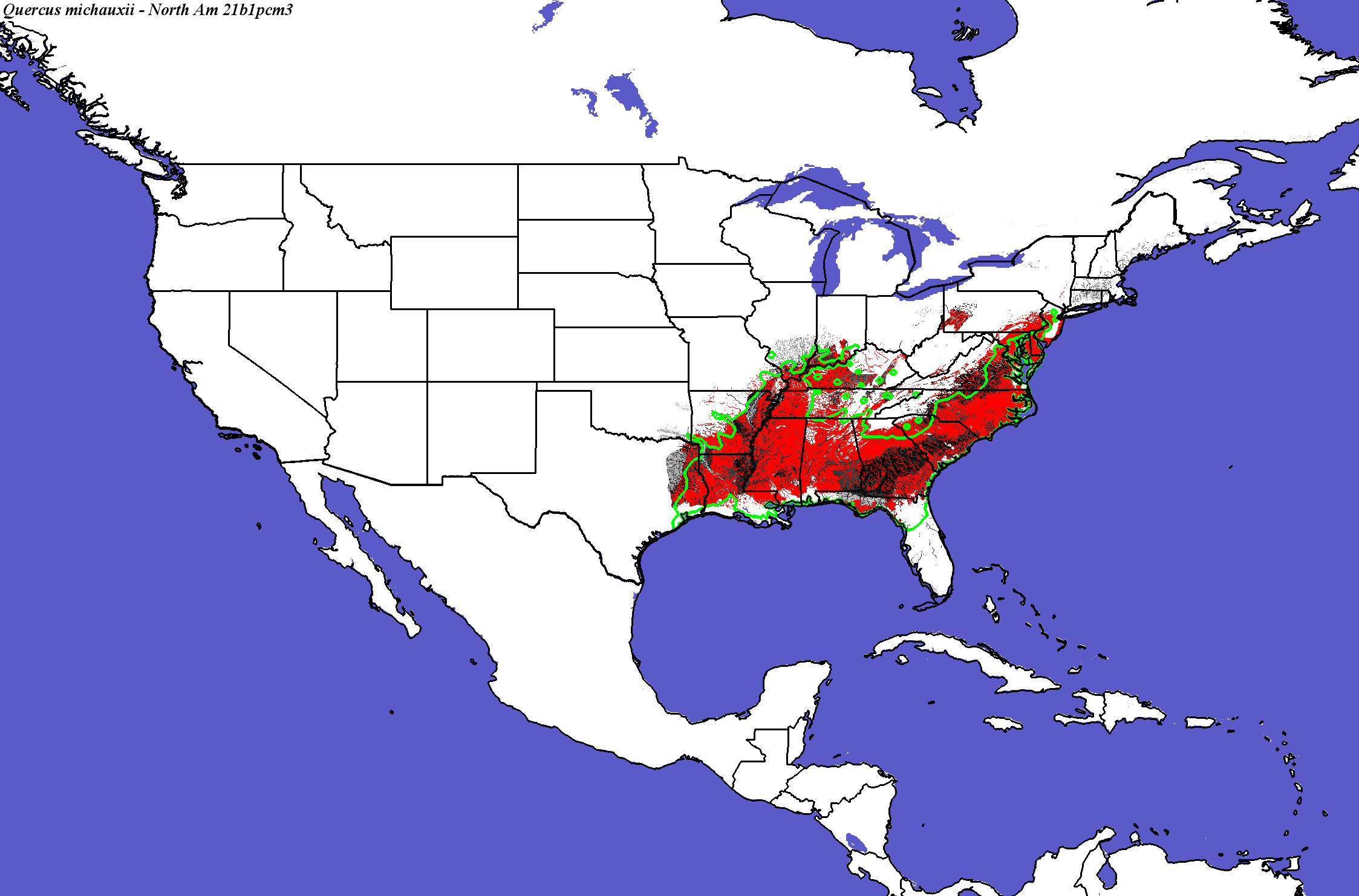

PCM, Scenario B1, 2050 - Quercus michauxii - CONUS

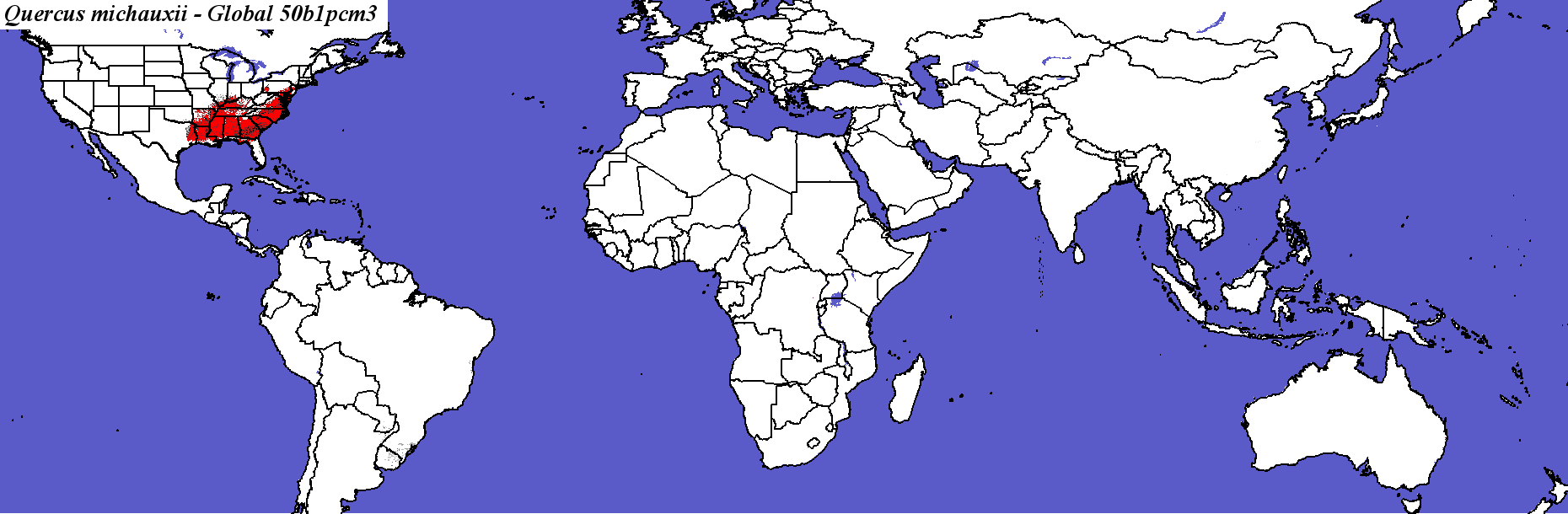

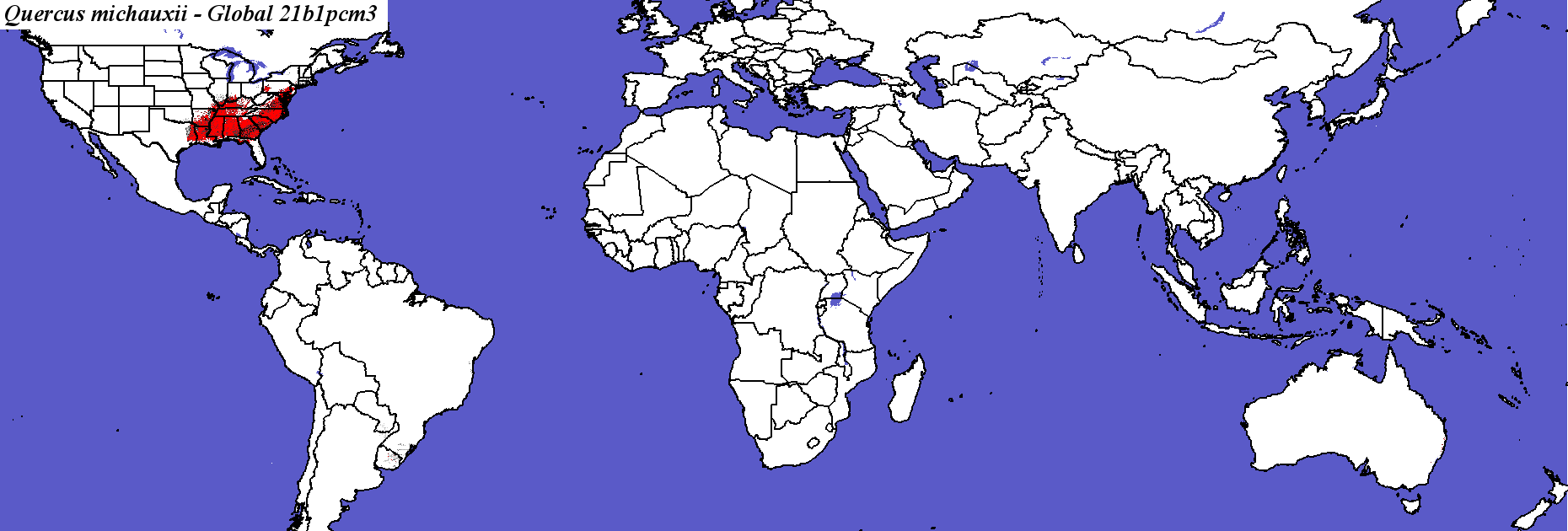

PCM, Scenario B1, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global
PCM, Scenario B1, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus michauxii - Global

Hadley Climate Model
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

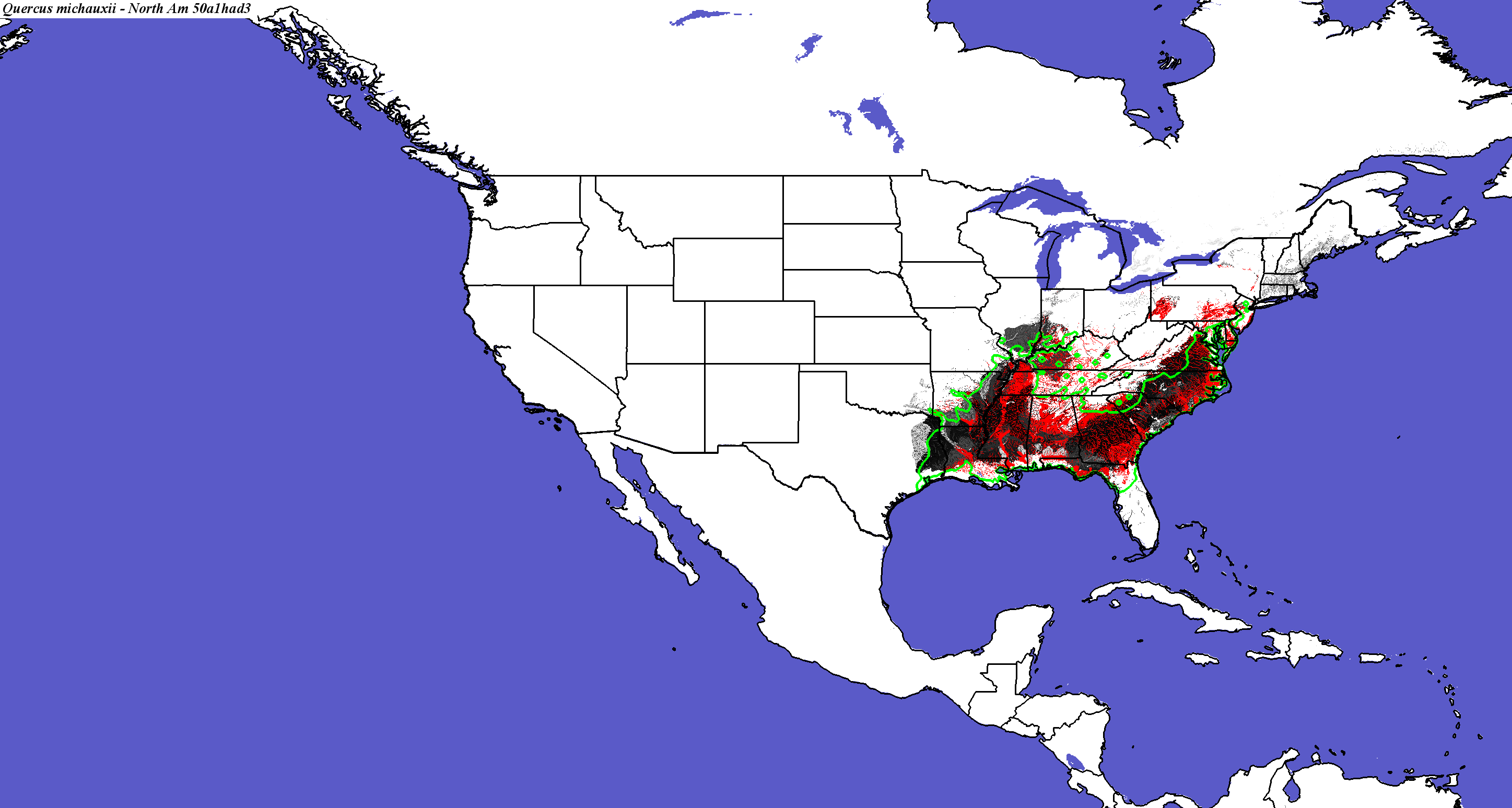

Hadley, Scenario A1FI, 2050 - Quercus michauxii - CONUS
Quercus michauxii not modeled by Crookston and Rehfeldt

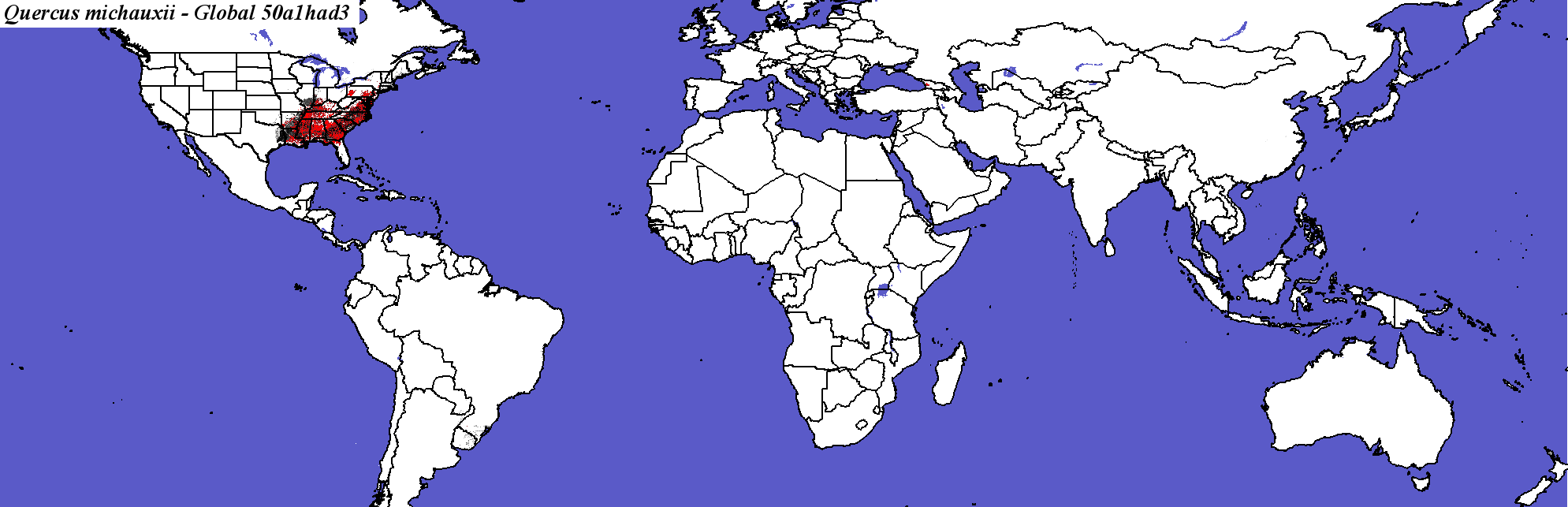

Hadley, Scenario A1FI, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global.

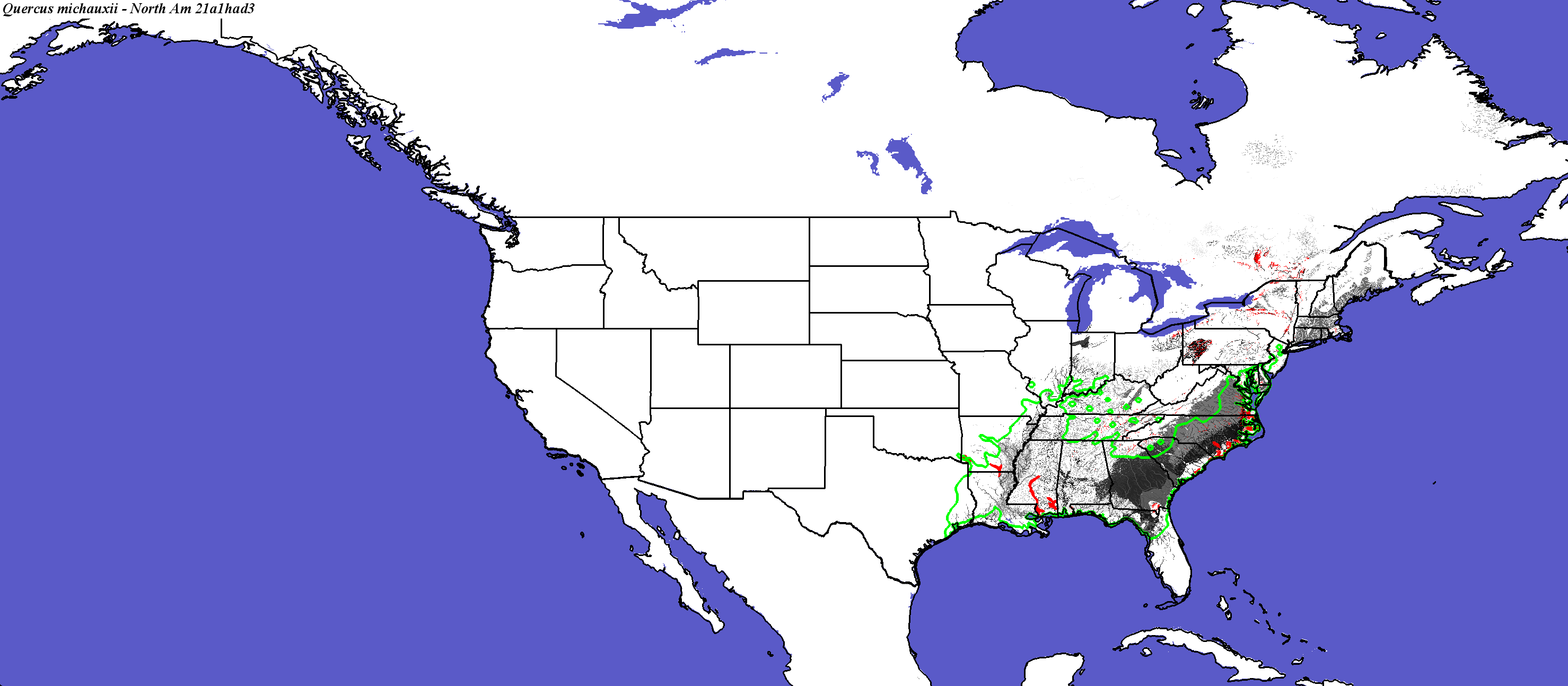

Hadley, Scenario A1FI, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus michauxii - Global

Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global.

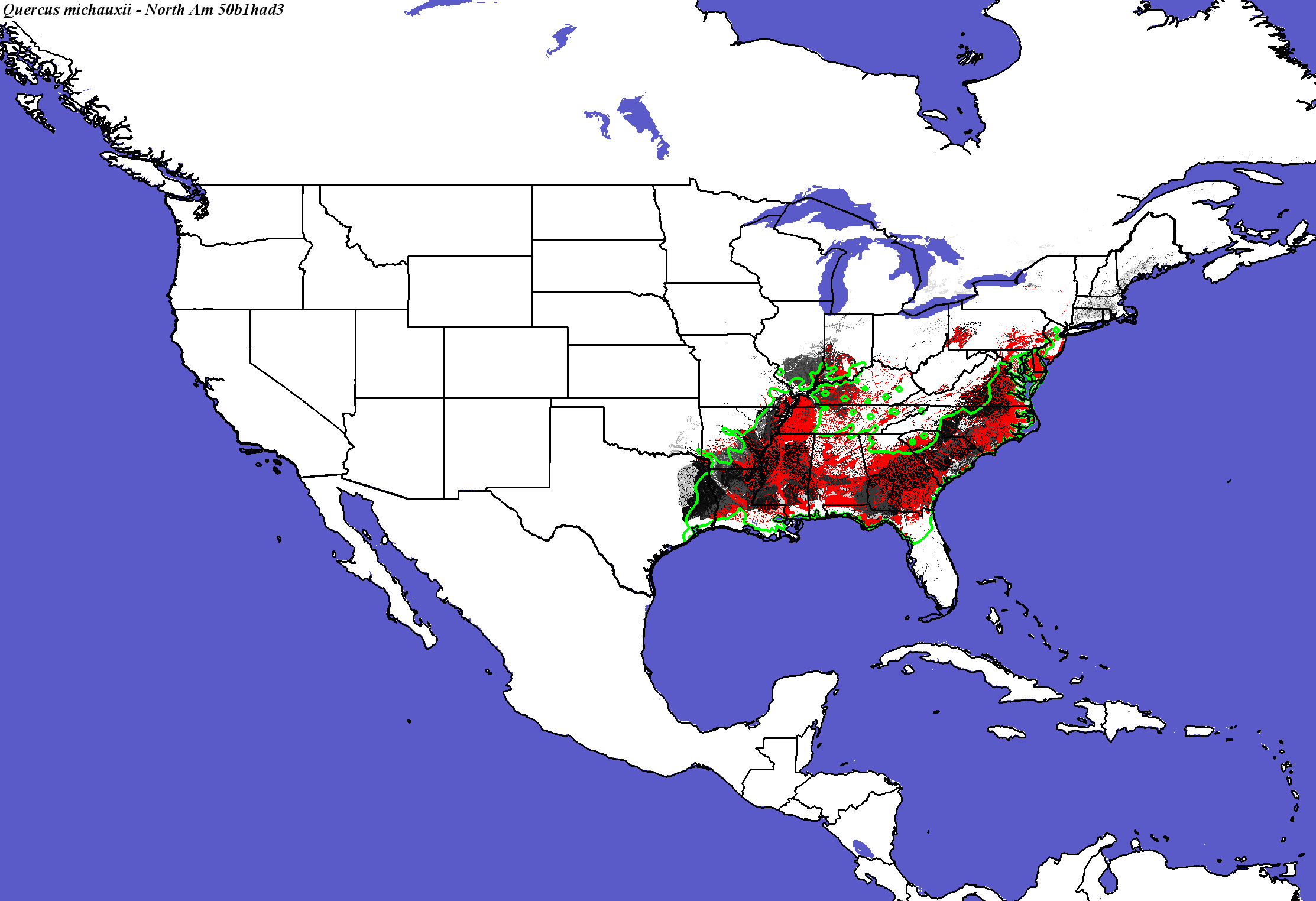

Hadley, Scenario B1, 2050 - Quercus michauxii - CONUS
Quercus michauxii not modeled by Crookston and Rehfeldt
Quercus michauxii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus michauxii - Global
Quercus_michauxii_final.3.conus
Quercus_michauxii_final.3.global

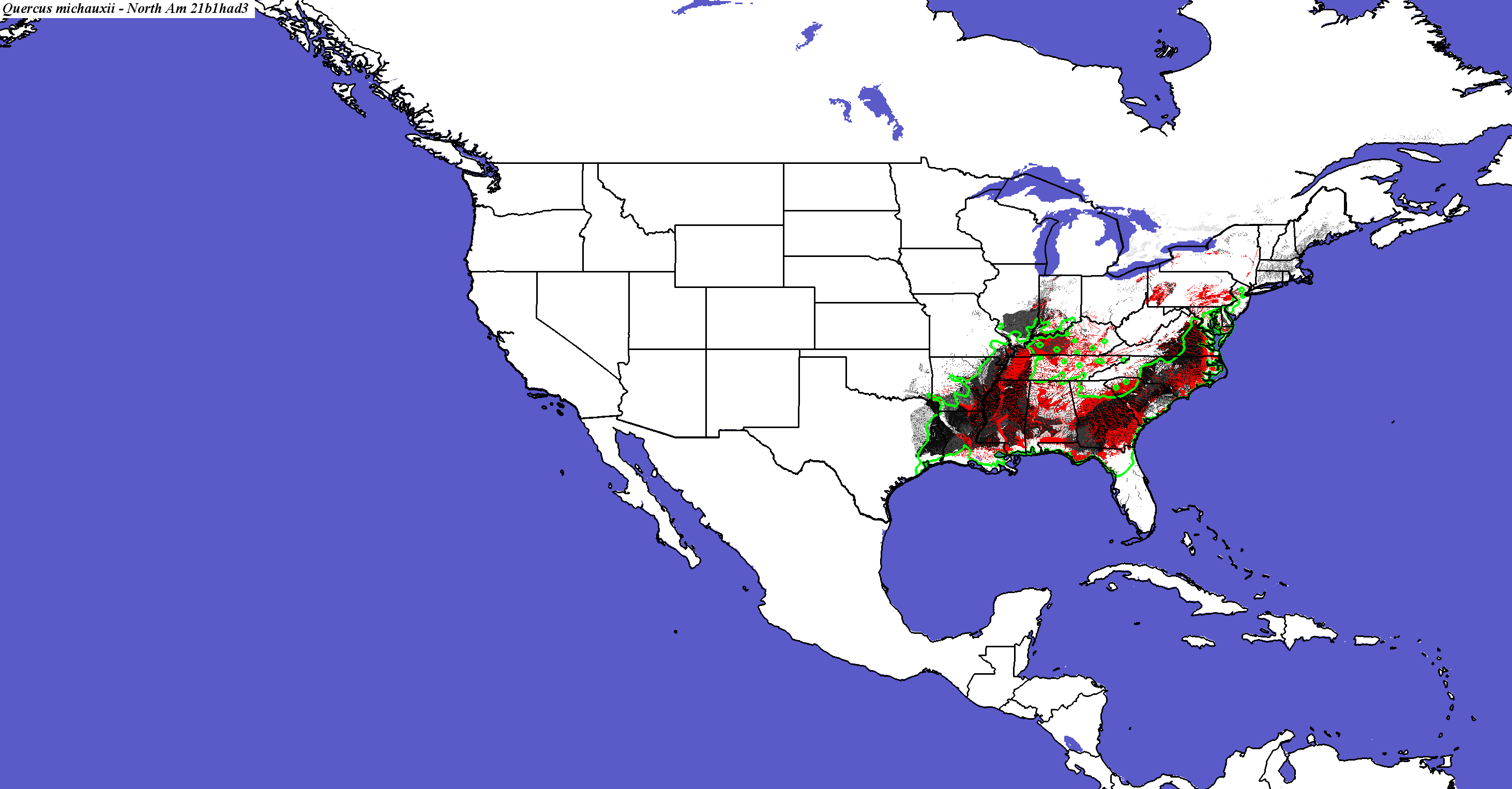

Hadley, Scenario B1, 2100 - Quercus michauxii - CONUS
Compare with Quercus michauxii modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus michauxii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus michauxii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_michauxii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

73

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

28.4932

Area in Present Suitable Range (in km2)

837219

Area in Future Suitable Range (Had B1 2050, in km2)

433976

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

349332

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

41.7200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

66.8493

Percent Change in Area of Suitable Range (Had B1 2050)

-48.1600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

79.0411

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

13697.3 +/- 25439.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

53.1507

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.44249 +/- 12.3929

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

54.2466

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

170.939 +/- 605.693

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

32.8767

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

36821

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.3900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

29.1781

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

176798

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

21.1100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

66.0274

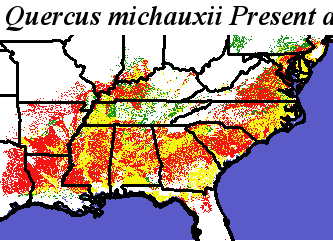

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus michauxii Quercus michauxii - Range Change Statistics

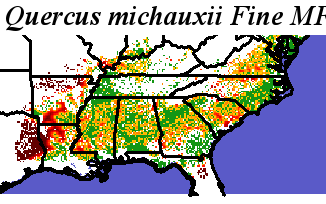

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_michauxii_final.elev Fine MRM Distance

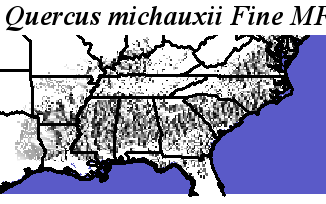

Quercus_michauxii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus michauxii

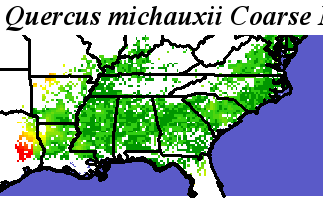

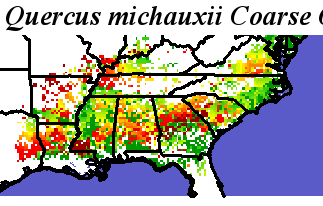

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_michauxii_final.elev Coarse MRM Distance
Quercus_michauxii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus michauxii
