Version 5 Tree Atlas


Quercus muehlenbergii

chinkapin oak

elev

Quercus muehlenbergii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus muehlenbergii

USDA Plants Database entry for Quercus muehlenbergii
Silvics Manual entry for Quercus muehlenbergii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus prinoides var. acuminata15481961744Canada and Mexico populations, some small disjuncts in NE

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_muehlenbergii_final Occurrences

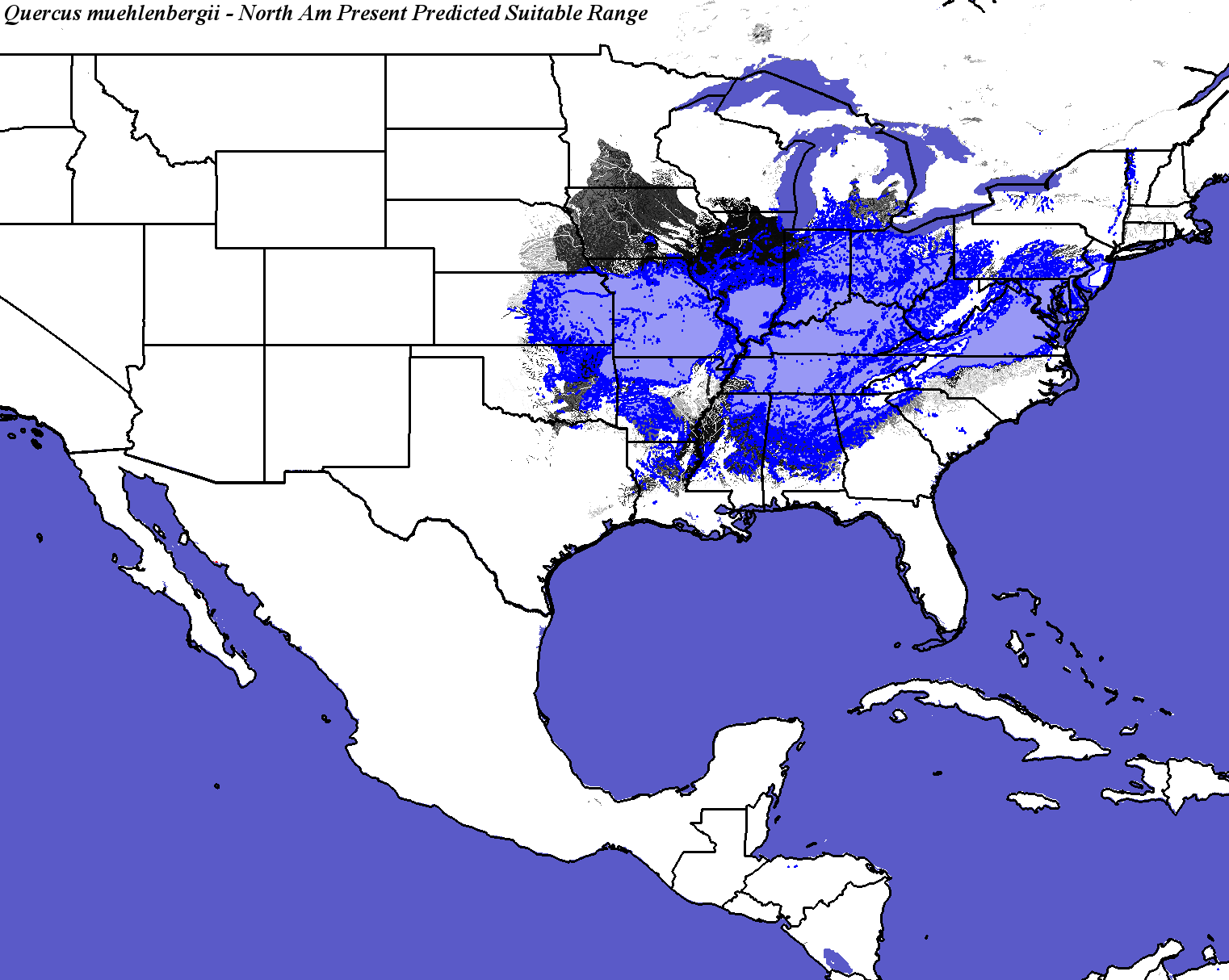

Hargroves Present Suitable Range Outline for Quercus_muehlenbergii_final
Quercus muehlenbergii - Occurrence Locations Quercus muehlenbergii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global

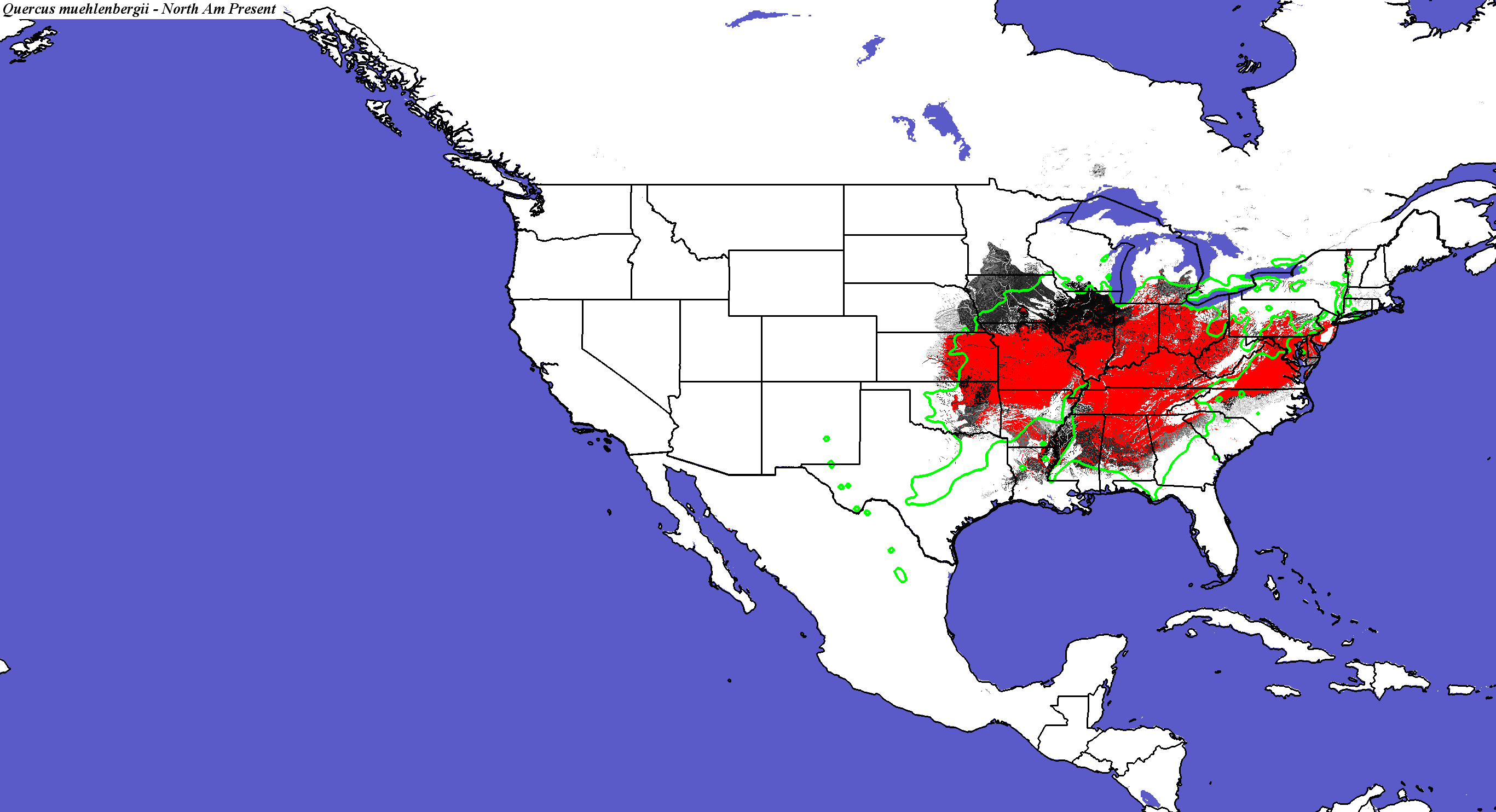

Quercus muehlenbergii - CONUS
Compare with Current Range from the Silvics Manual for Quercus muehlenbergii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus muehlenbergii

Compare with Quercus muehlenbergii modeled for Current conditions by Iverson and Prasad
Quercus muehlenbergii not modeled by Crookston and Rehfeldt
Quercus muehlenbergii not modeled by Coops and Waring

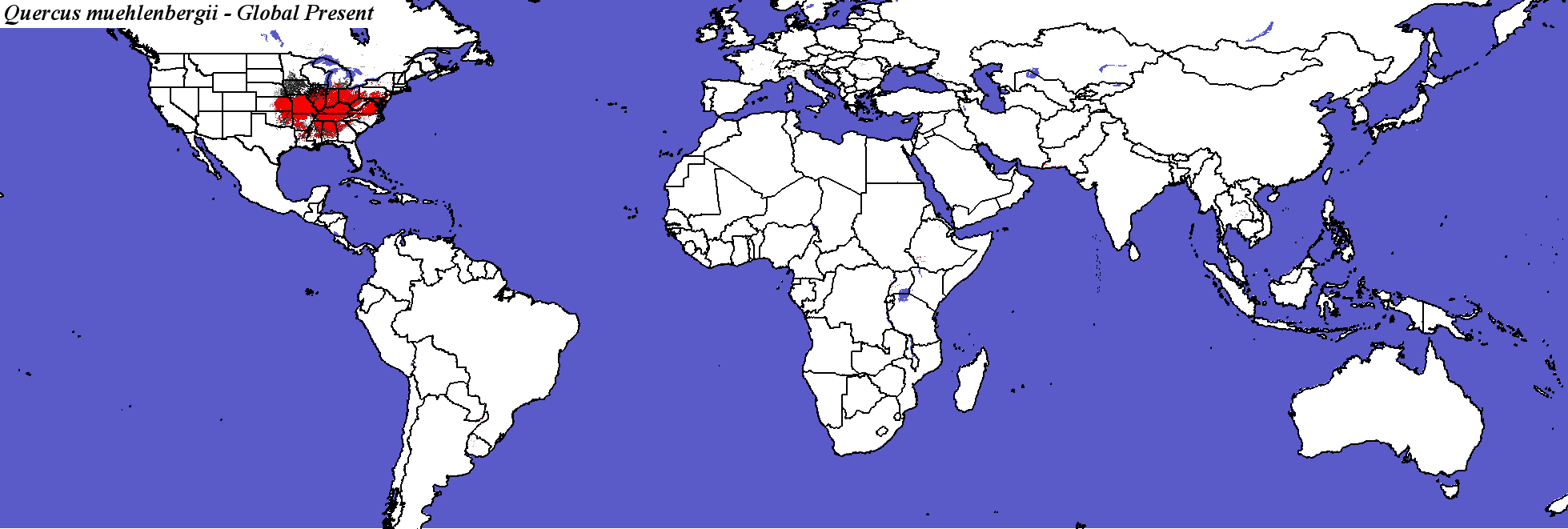

Quercus muehlenbergii - Global

PCM - Parallel Climate Model
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global

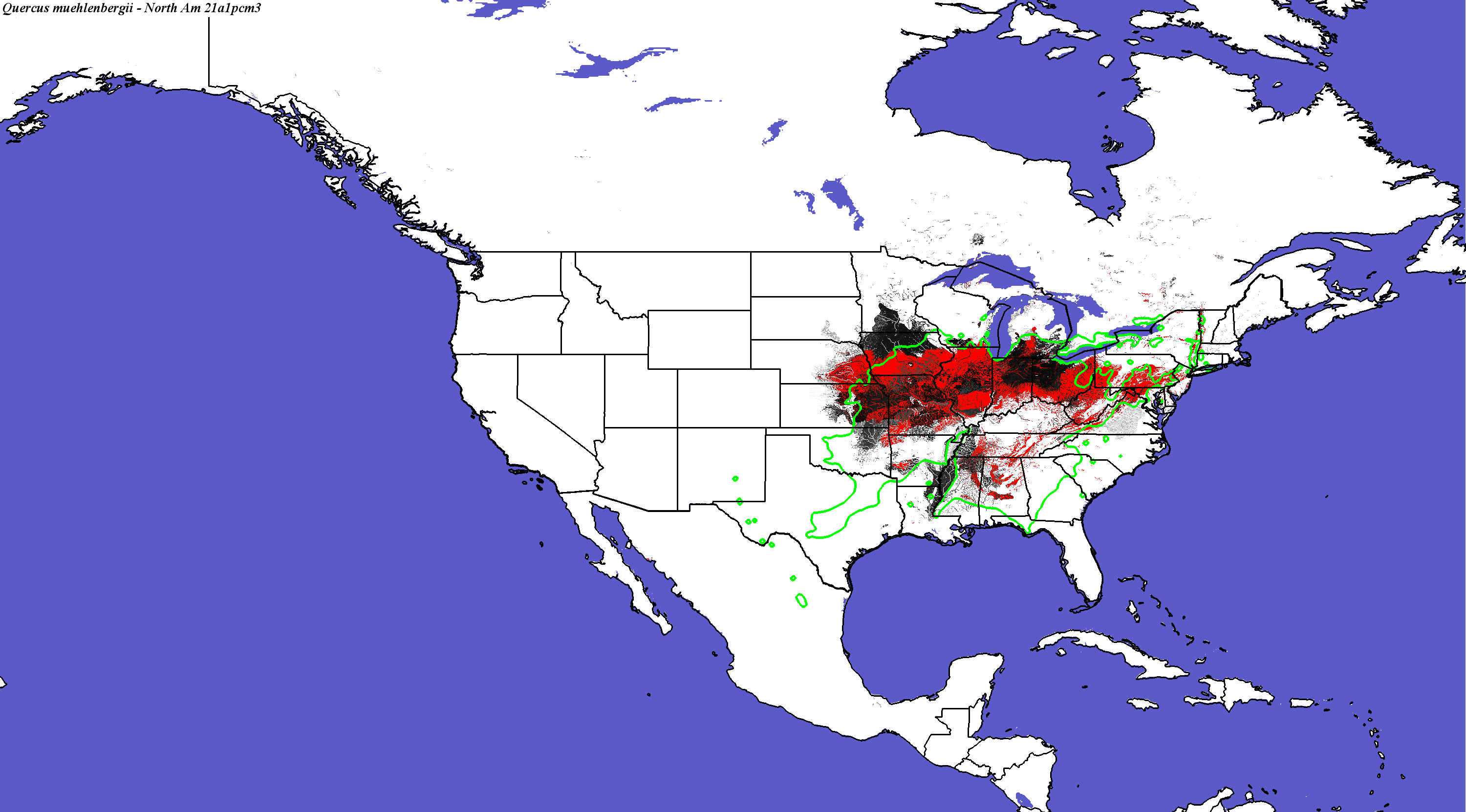

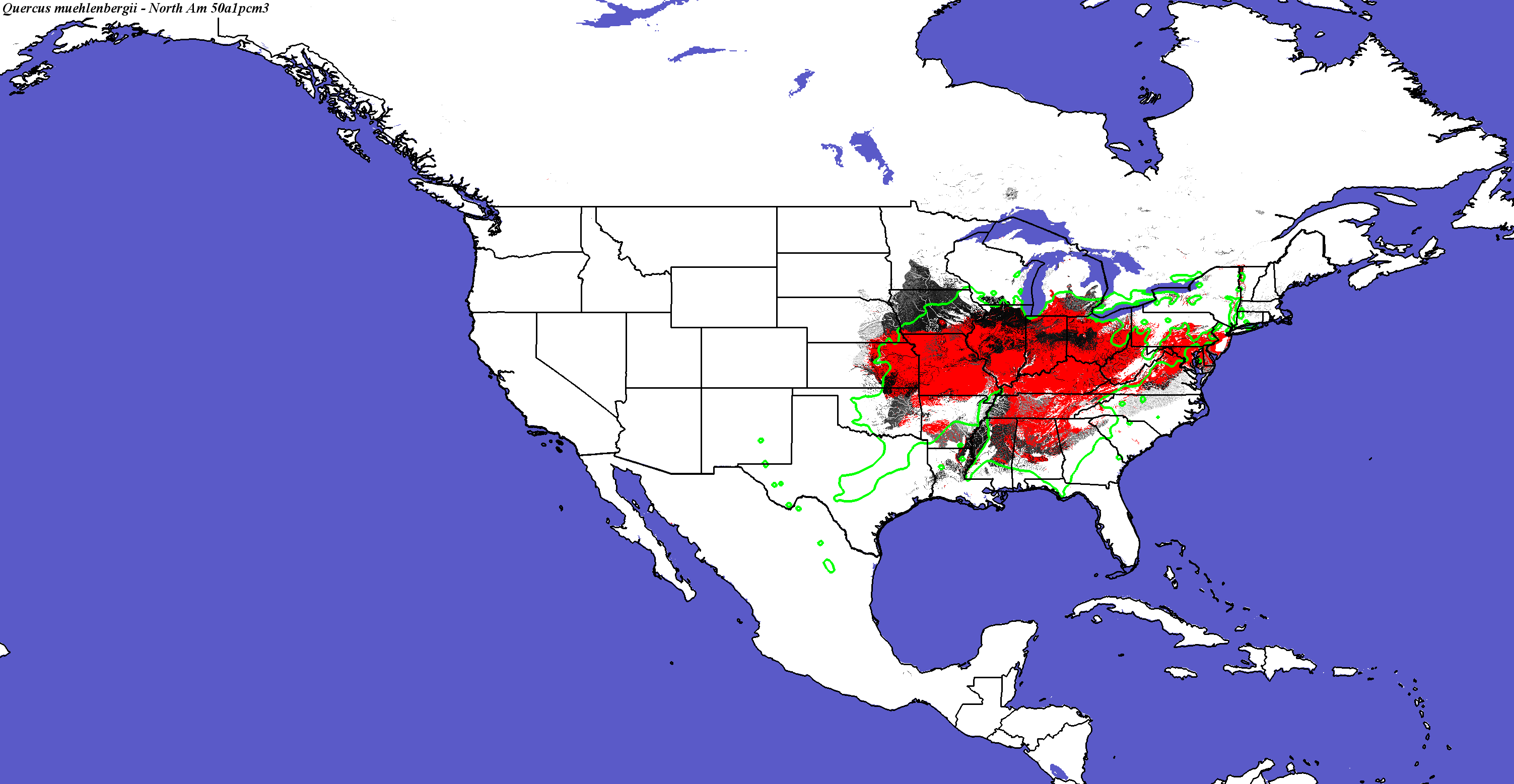

PCM, Scenario A1FI, 2050 - Quercus muehlenbergii - CONUS

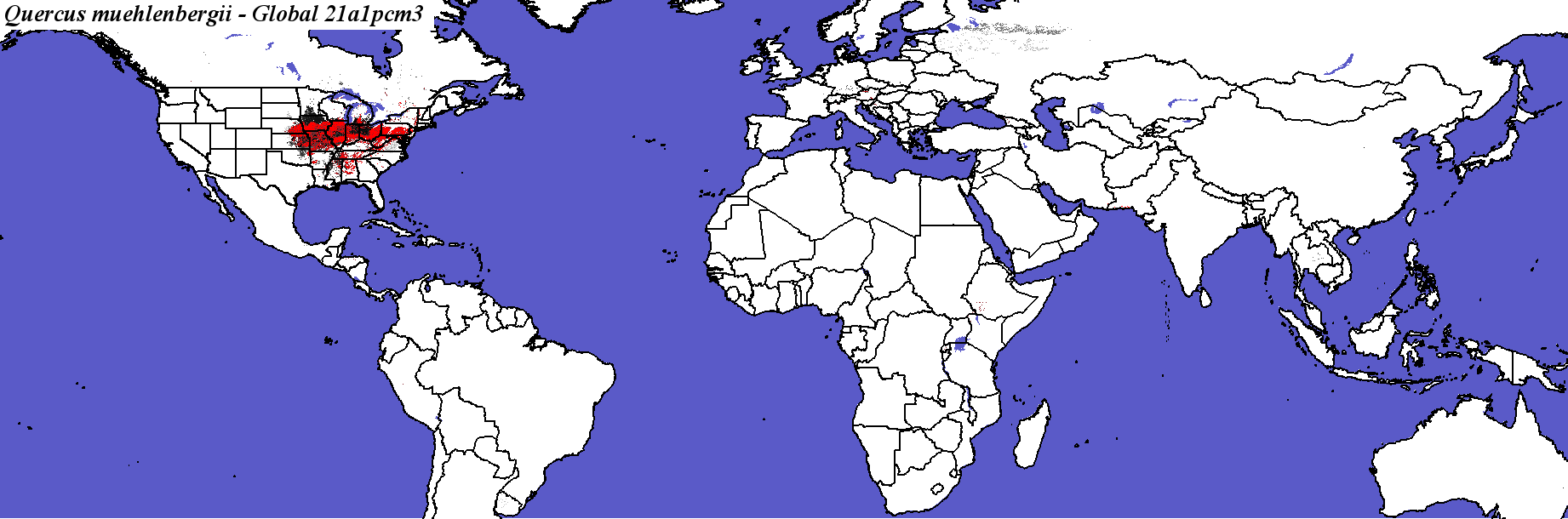

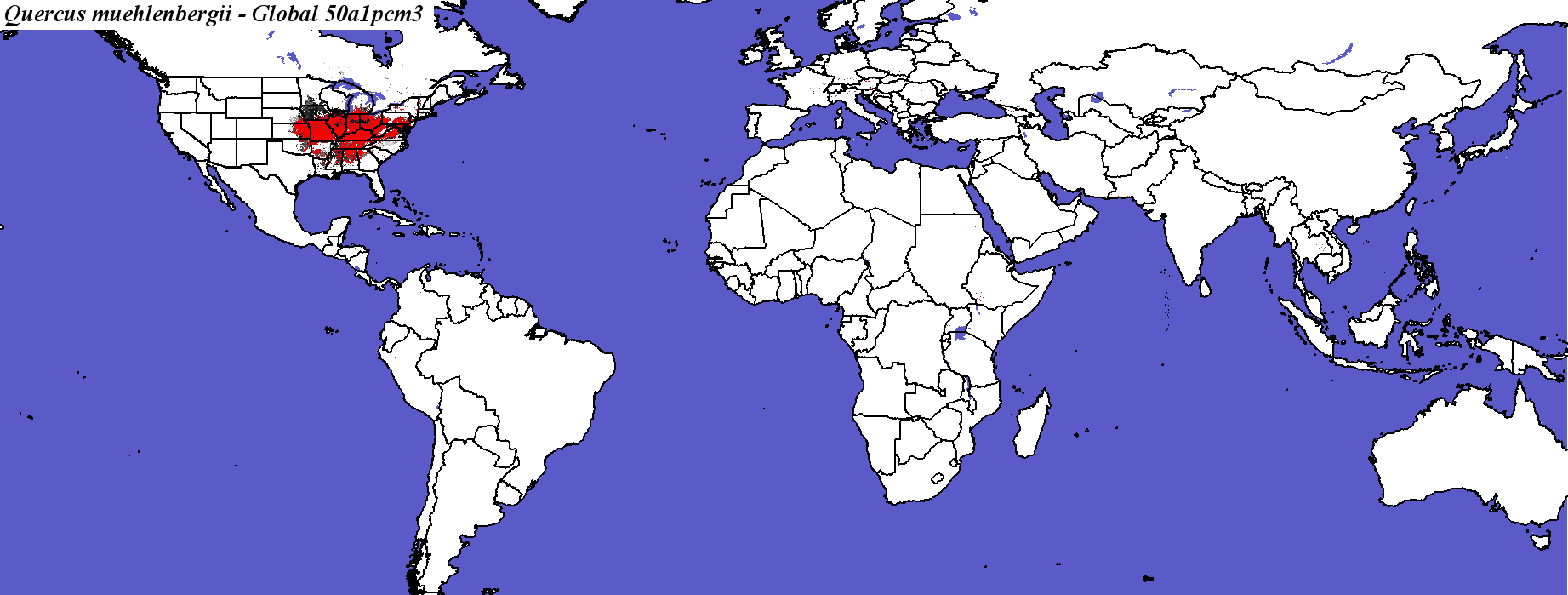

PCM, Scenario A1FI, 2050 - Quercus muehlenbergii - Global
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global
PCM, Scenario A1FI, 2100 - Quercus muehlenbergii - CONUS
Compare with Quercus muehlenbergii modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus muehlenbergii - Global

Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global

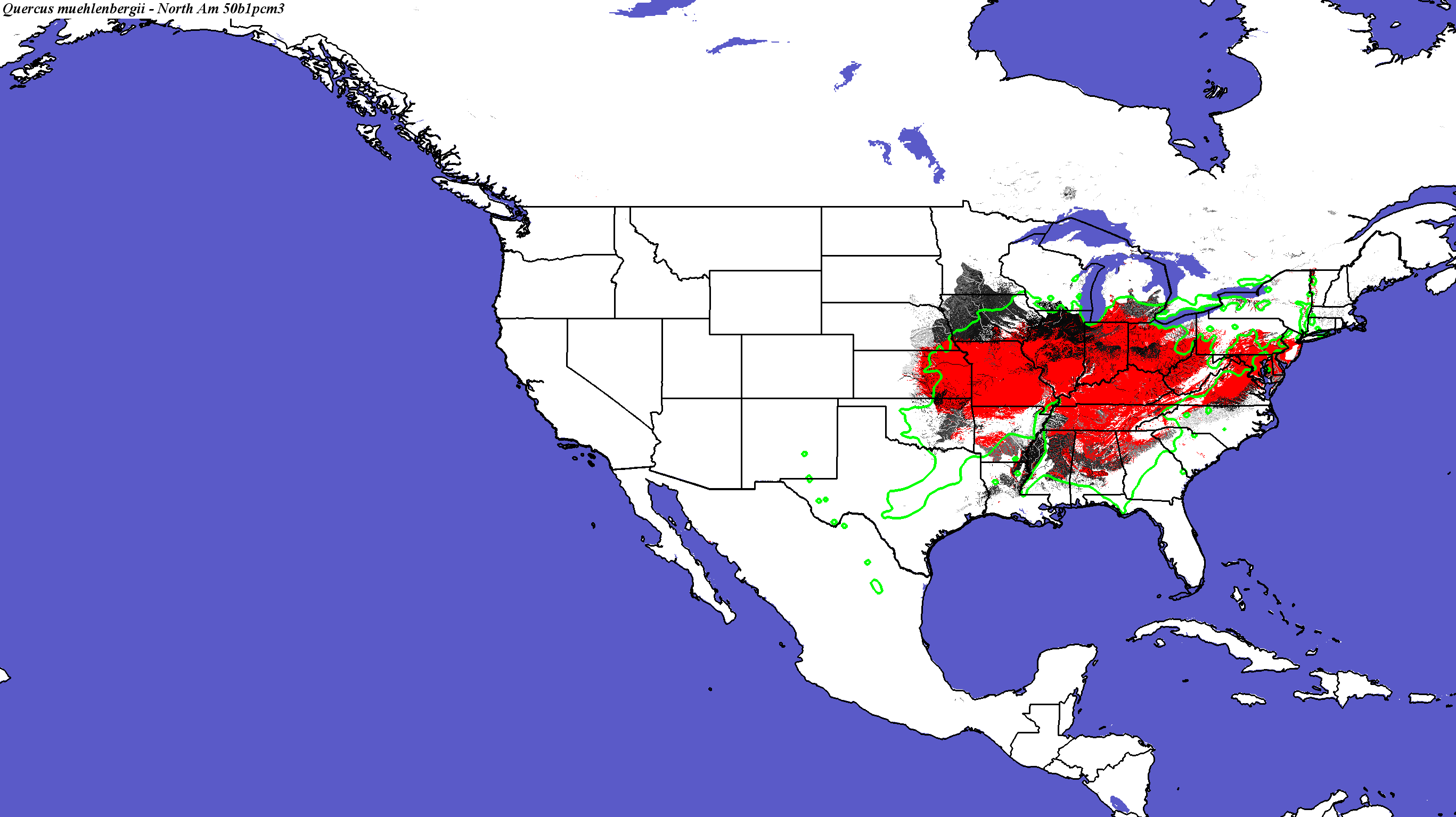

PCM, Scenario B1, 2050 - Quercus muehlenbergii - CONUS
PCM, Scenario B1, 2050 - Quercus muehlenbergii - Global
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global

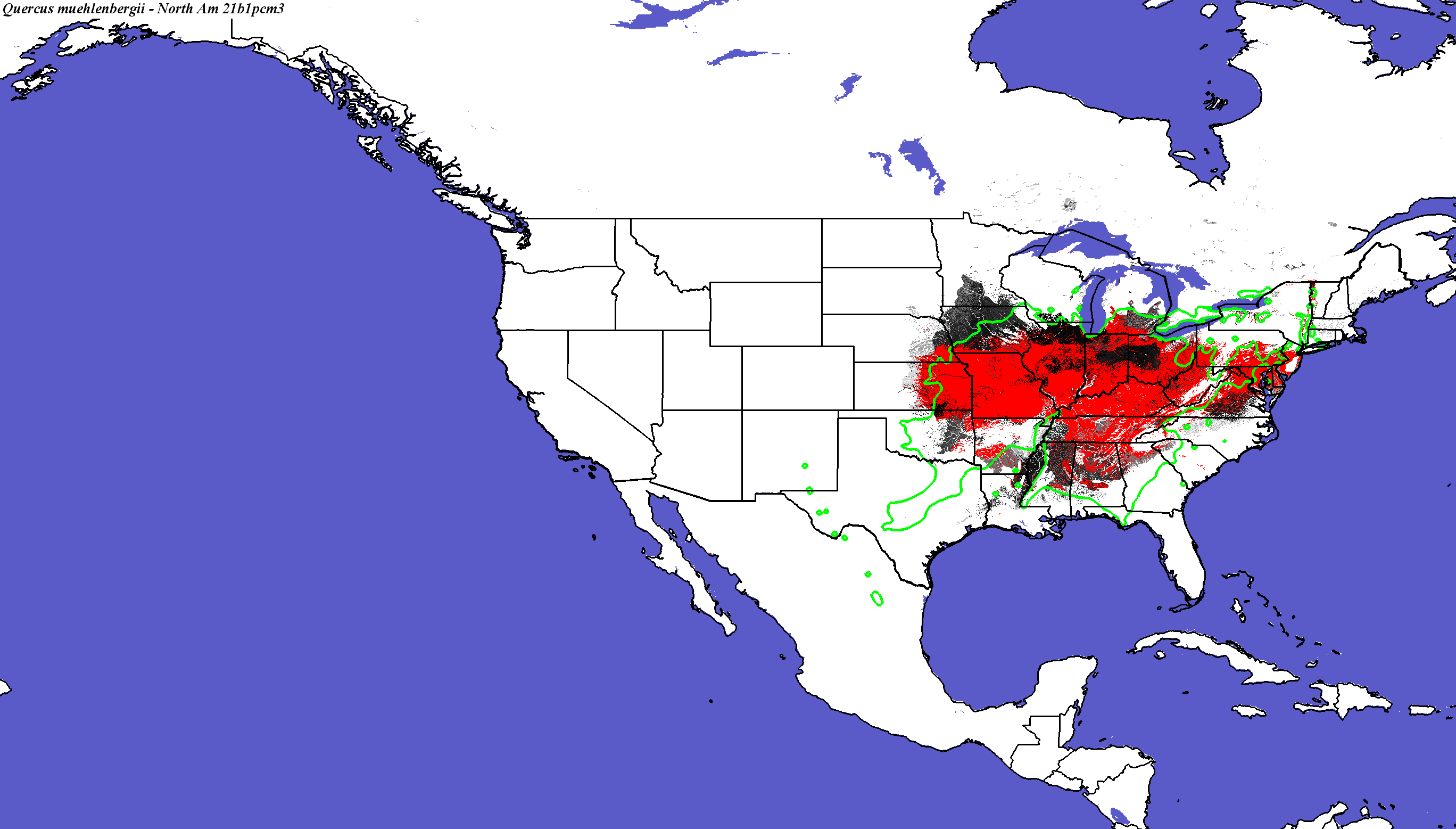

PCM, Scenario B1, 2100 - Quercus muehlenbergii - CONUS
Compare with Quercus muehlenbergii modeled for PCM B1 in 2100 by Iverson and Prasad

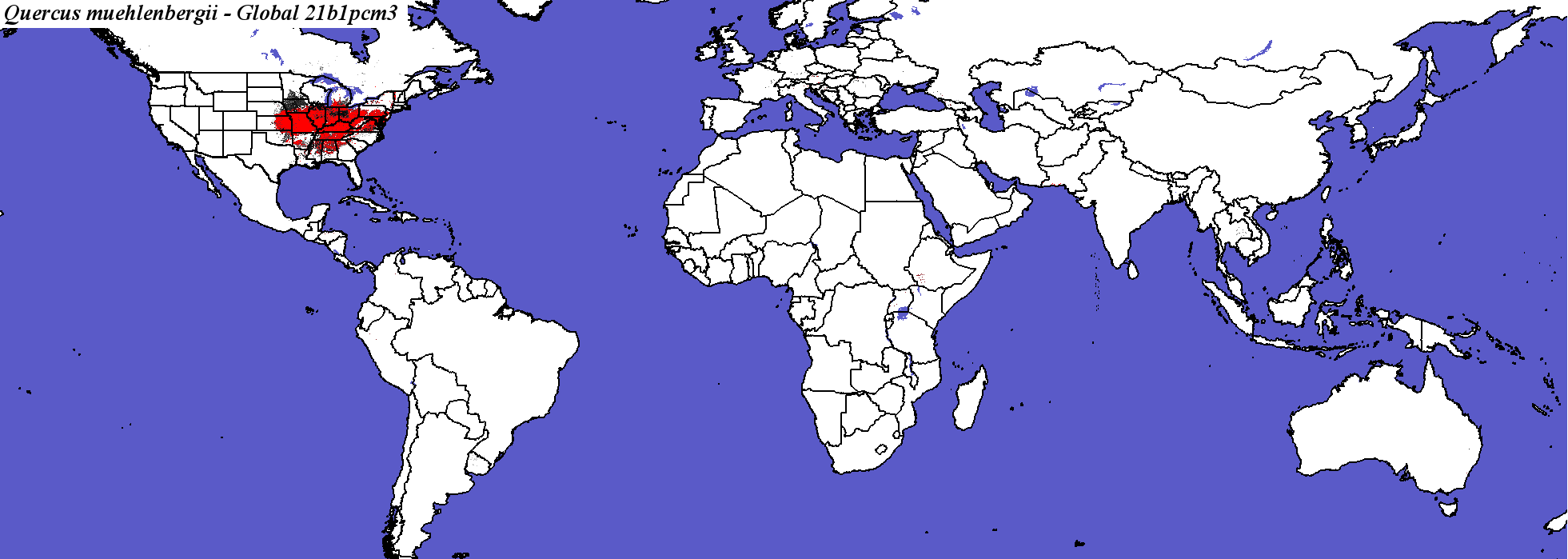

PCM, Scenario B1, 2100 - Quercus muehlenbergii - Global

Hadley Climate Model
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global

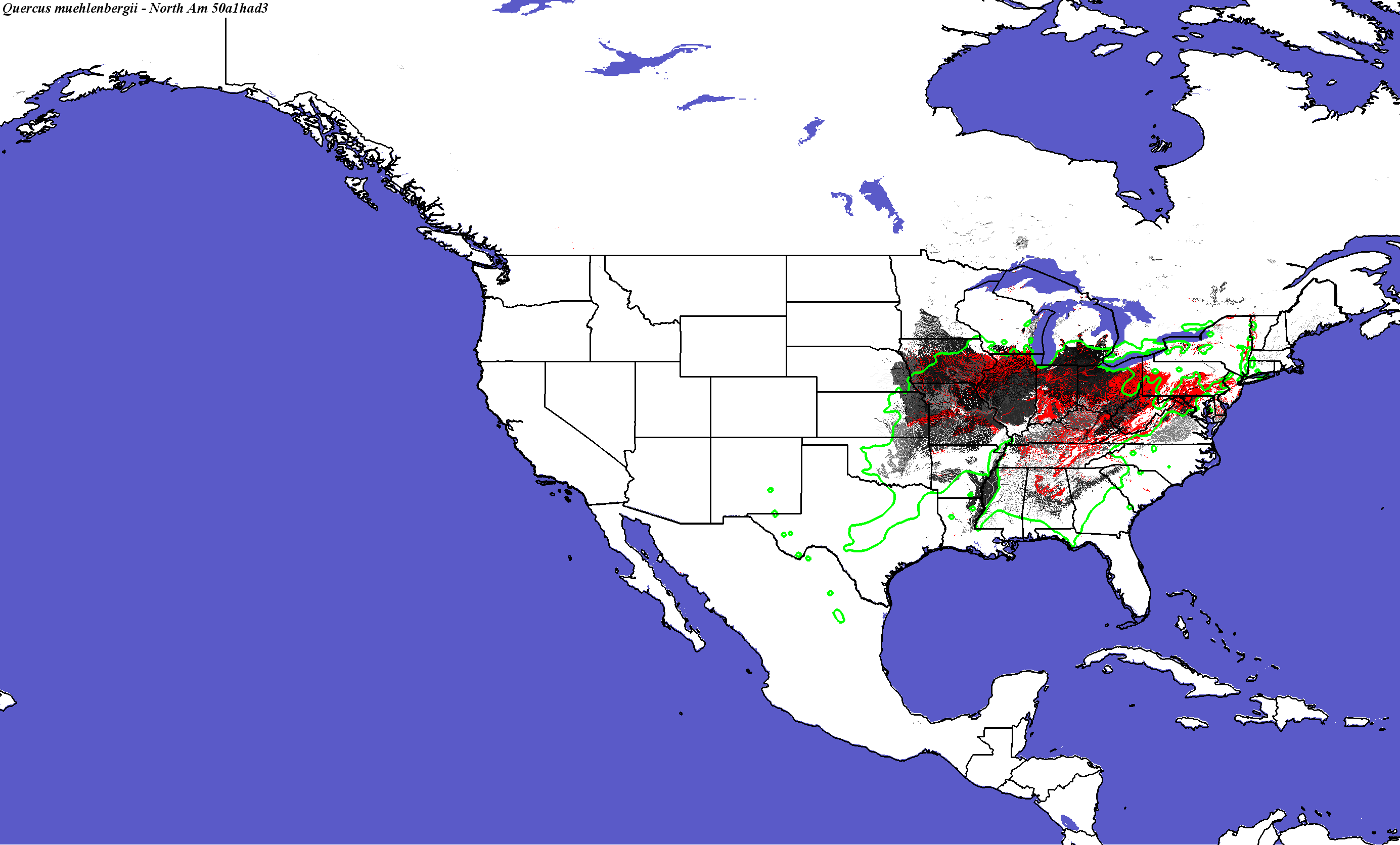

Hadley, Scenario A1FI, 2050 - Quercus muehlenbergii - CONUS
Quercus muehlenbergii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus muehlenbergii - Global
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global.

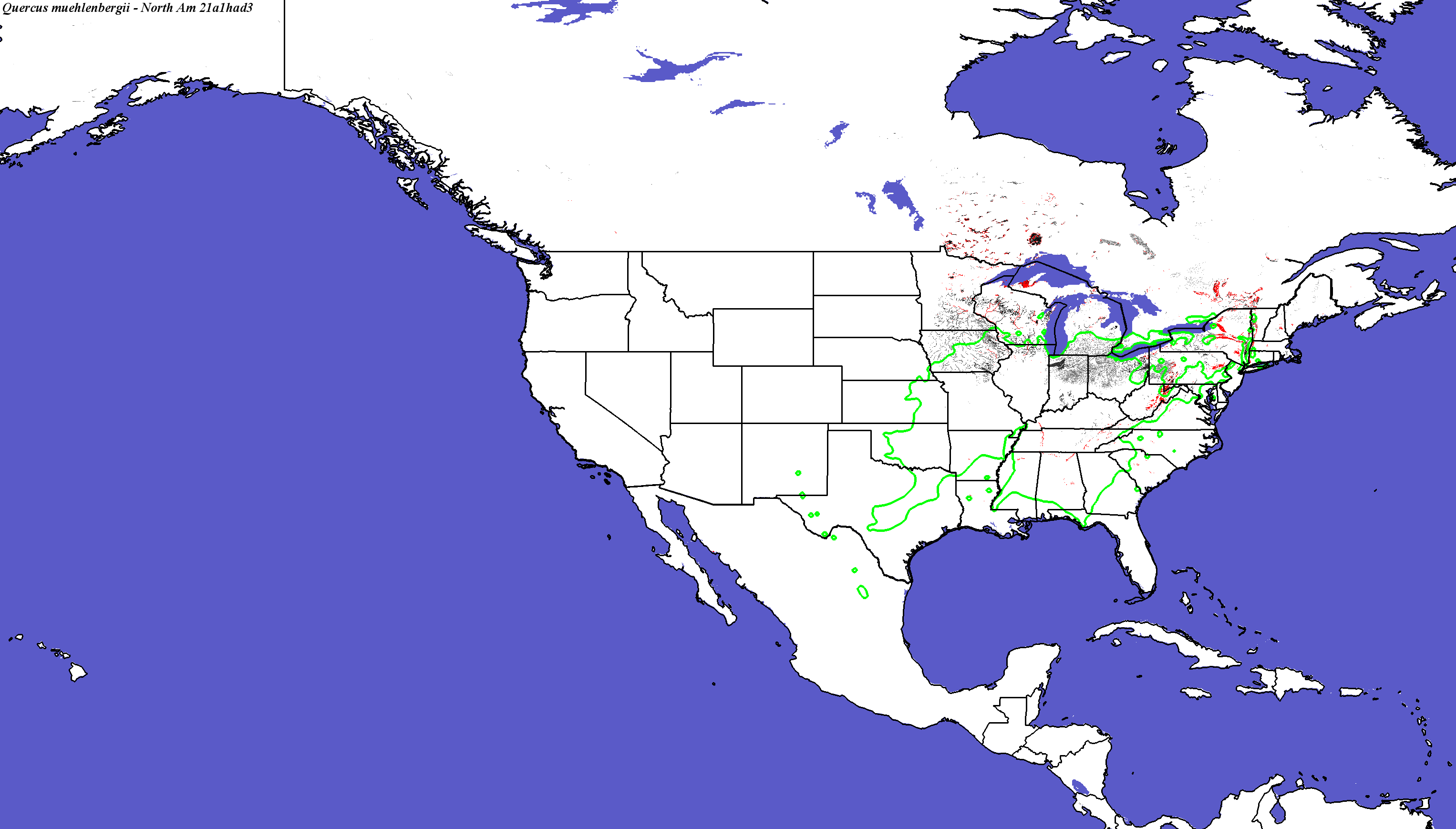

Hadley, Scenario A1FI, 2100 - Quercus muehlenbergii - CONUS
Compare with Quercus muehlenbergii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus muehlenbergii not modeled by Crookston and Rehfeldt
Quercus muehlenbergii not modeled by Coops and Waring

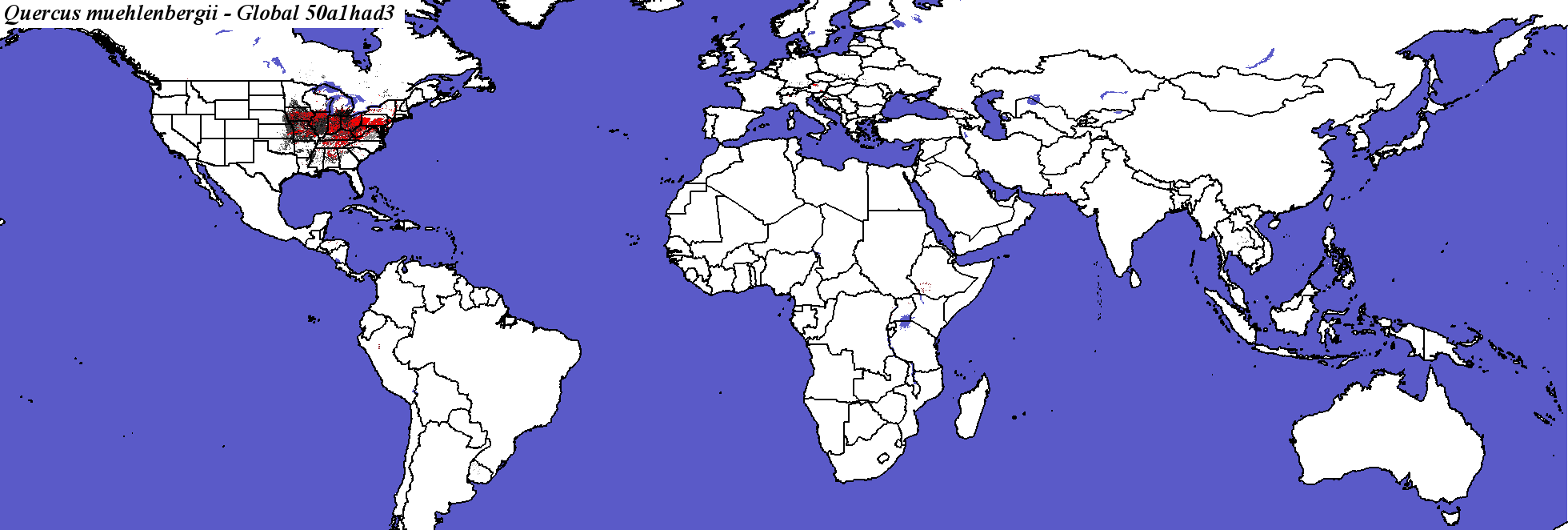

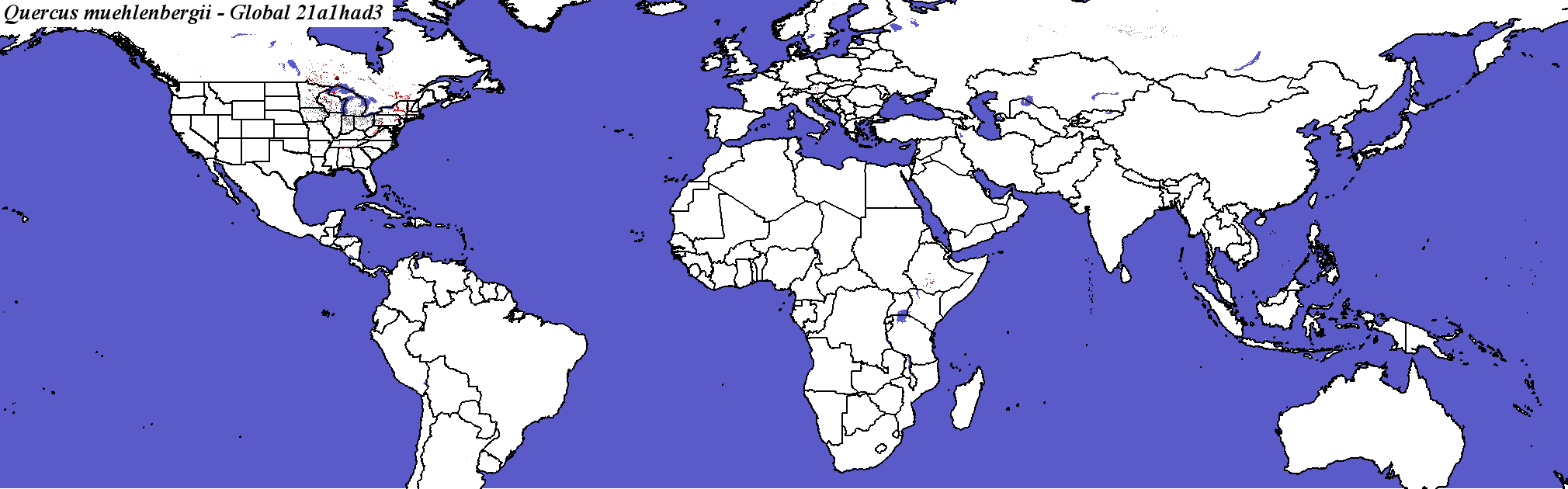

Hadley, Scenario A1FI, 2100 - Quercus muehlenbergii - Global

Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global.

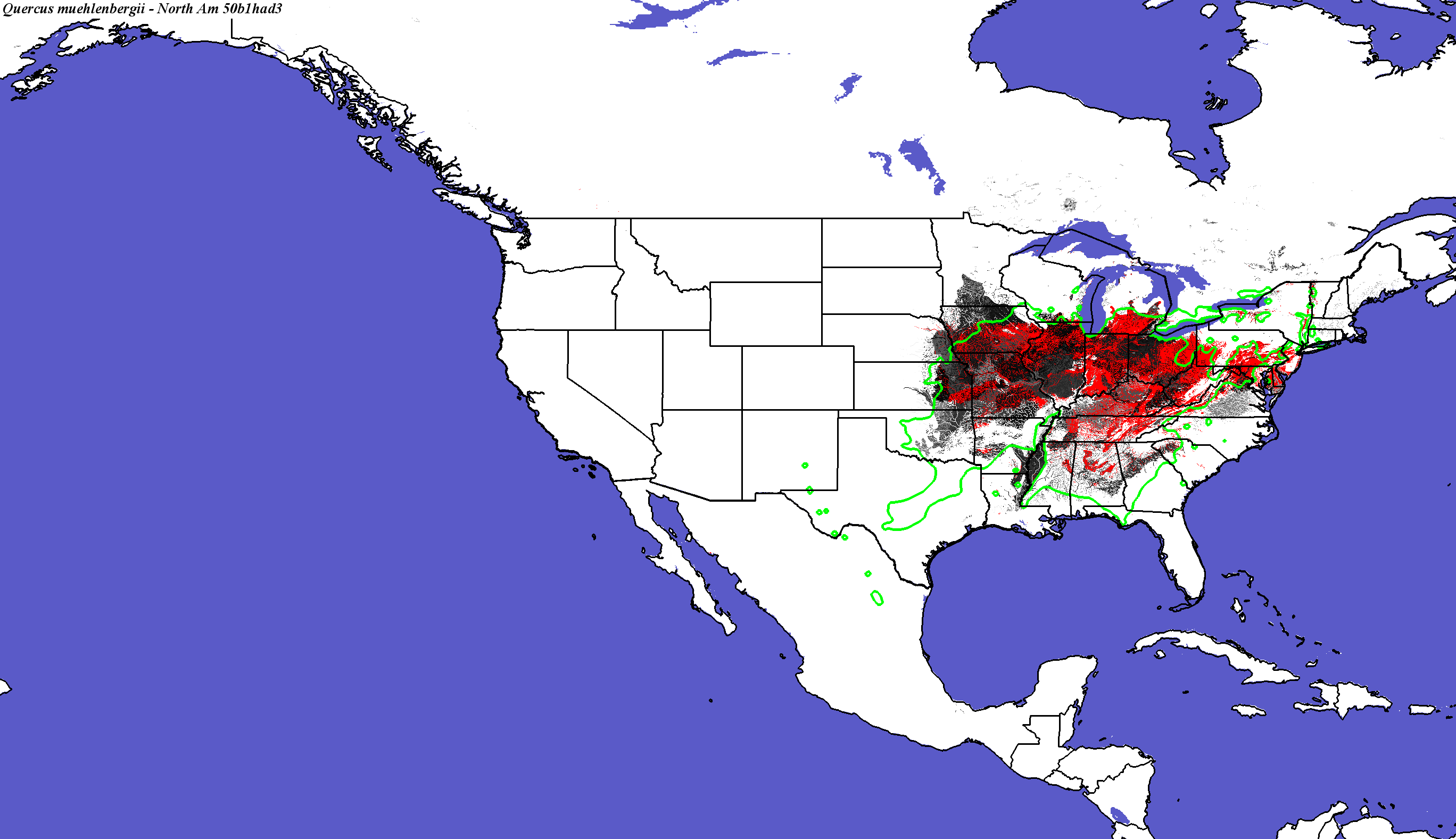

Hadley, Scenario B1, 2050 - Quercus muehlenbergii - CONUS
Quercus muehlenbergii not modeled by Crookston and Rehfeldt
Quercus muehlenbergii not modeled by Coops and Waring

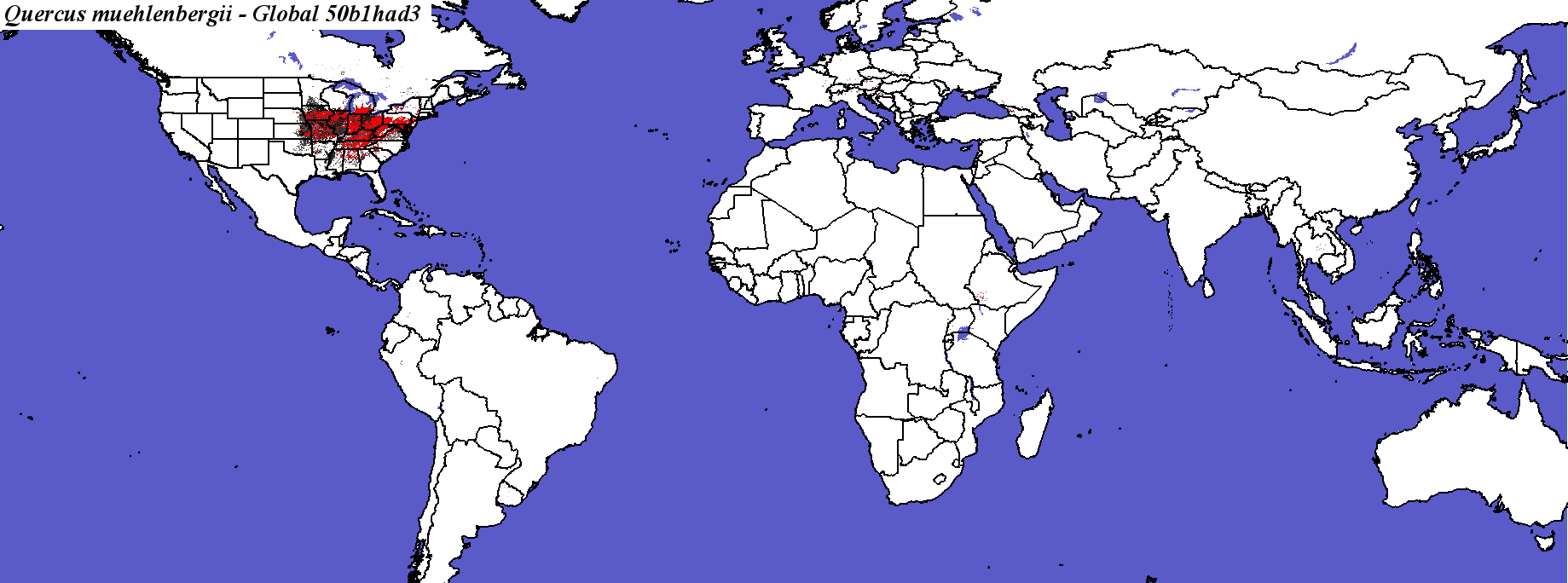

Hadley, Scenario B1, 2050 - Quercus muehlenbergii - Global
Quercus_muehlenbergii_final.4.conus
Quercus_muehlenbergii_final.4.global
Hadley, Scenario B1, 2100 - Quercus muehlenbergii - CONUS
Compare with Quercus muehlenbergii modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus muehlenbergii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus muehlenbergii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_muehlenbergii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

98

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

21.2329

Area in Present Suitable Range (in km2)

1011178

Area in Future Suitable Range (Had B1 2050, in km2)

464657

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

289714

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

28.6500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

85.8904

Percent Change in Area of Suitable Range (Had B1 2050)

-54.0400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

84.9315

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

22725.6 +/- 33651.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

32.0548

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

9.42805 +/- 14.5393

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

33.6986

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

199.864 +/- 648.012

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

27.1233

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

50483

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.9900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

25.6164

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

132802

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

13.1300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

86.1644

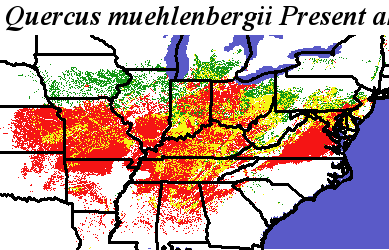

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus muehlenbergii Quercus muehlenbergii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

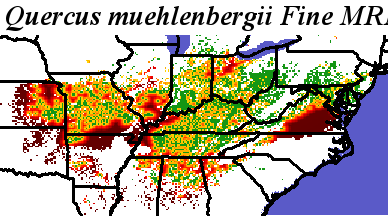

Quercus_muehlenbergii_final.elev Fine MRM Distance

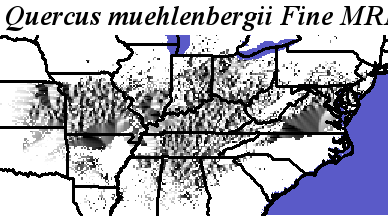

Quercus_muehlenbergii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus muehlenbergii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus muehlenbergii

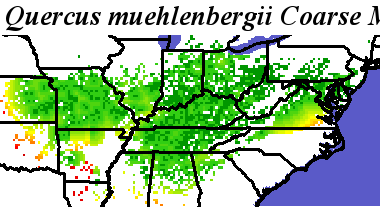

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

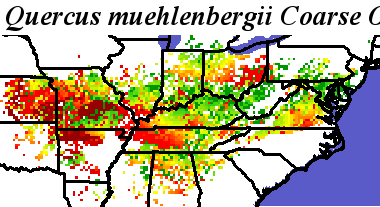

Quercus_muehlenbergii_final.elev Coarse MRM Distance
Quercus_muehlenbergii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus muehlenbergii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus muehlenbergii
