Version 5 Tree Atlas


Quercus nigra

Water oak

elev

Quercus nigra Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus nigra

USDA Plants Database entry for Quercus nigra
Silvics Manual entry for Quercus nigra


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus nigra var. heterophylla7586607646TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_nigra_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_nigra_final
Quercus nigra - Occurrence Locations Quercus nigra - Hargrove's Present Suitable Range Outline

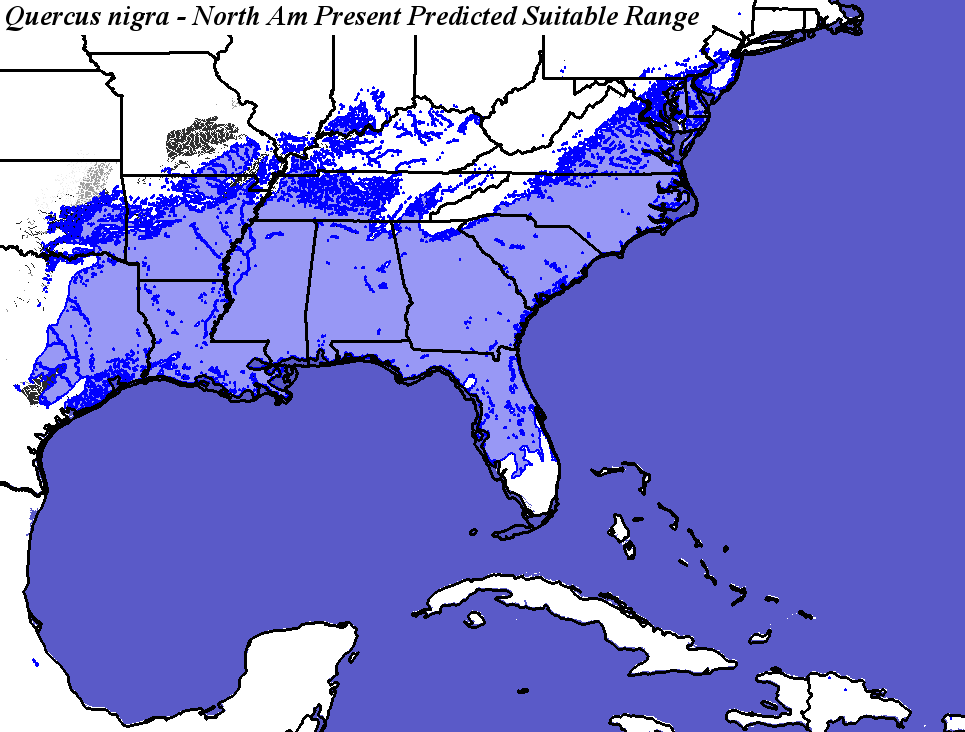

Present Conditions
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
Quercus nigra - CONUS
Compare with Current Range from the Silvics Manual for Quercus nigra
Compare with Current Range from Biota of North America Program (BONAP) for Quercus nigra

Compare with Quercus nigra modeled for Current conditions by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring
Quercus nigra - Global

PCM - Parallel Climate Model
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

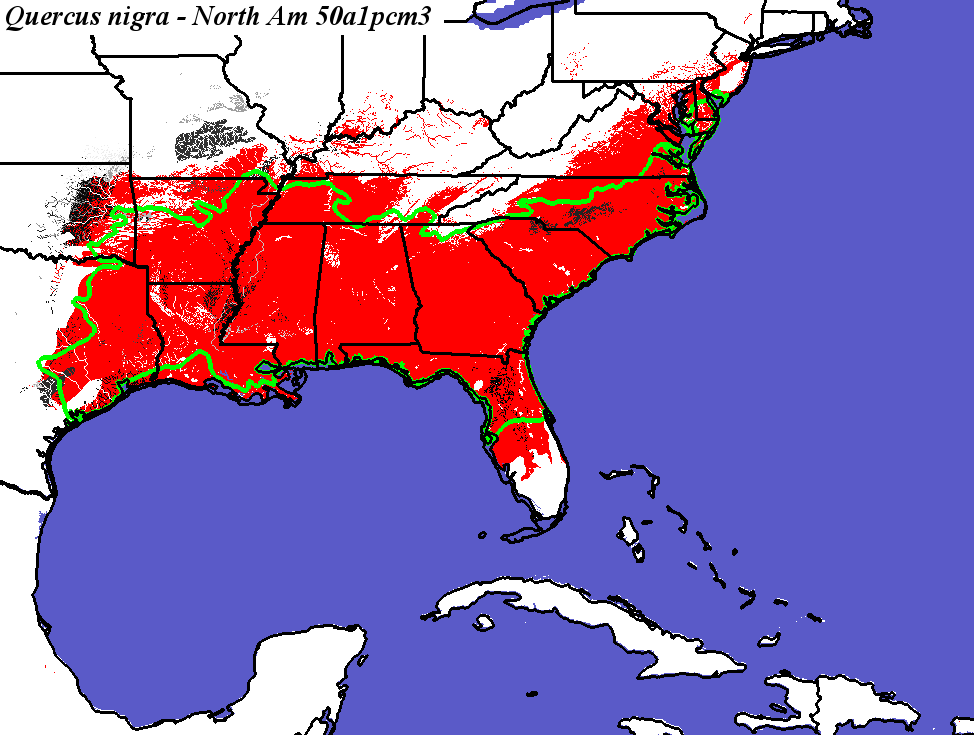

PCM, Scenario A1FI, 2050 - Quercus nigra - CONUS

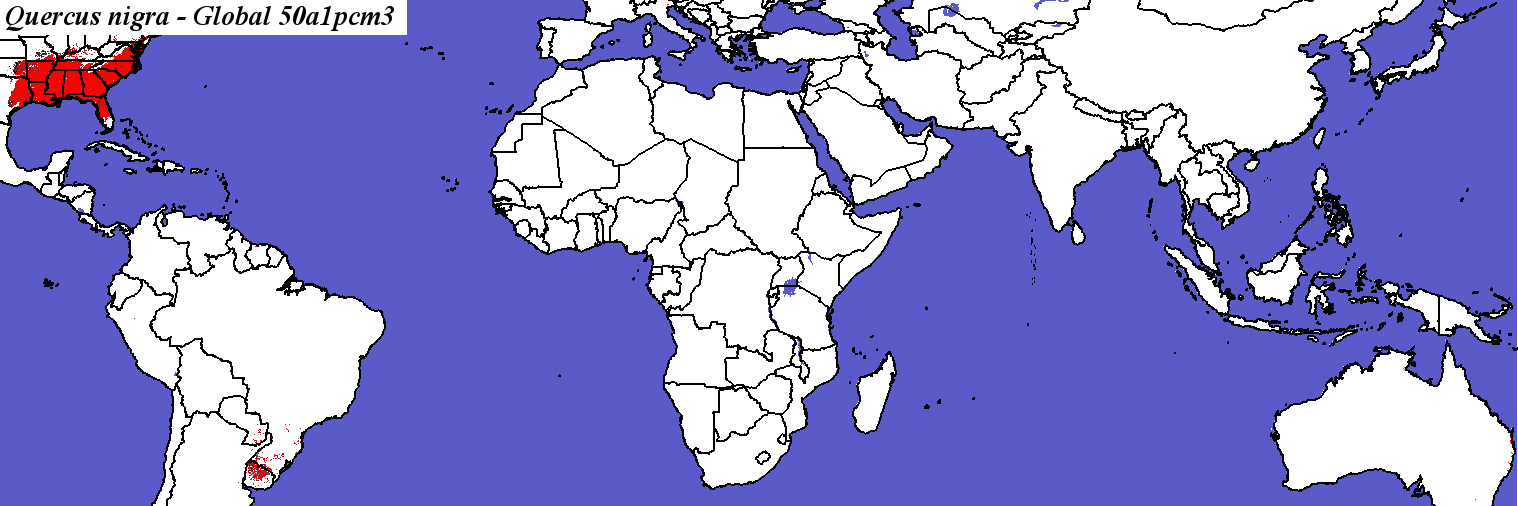

PCM, Scenario A1FI, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
PCM, Scenario A1FI, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus nigra - Global

Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
PCM, Scenario B1, 2050 - Quercus nigra - CONUS
PCM, Scenario B1, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global

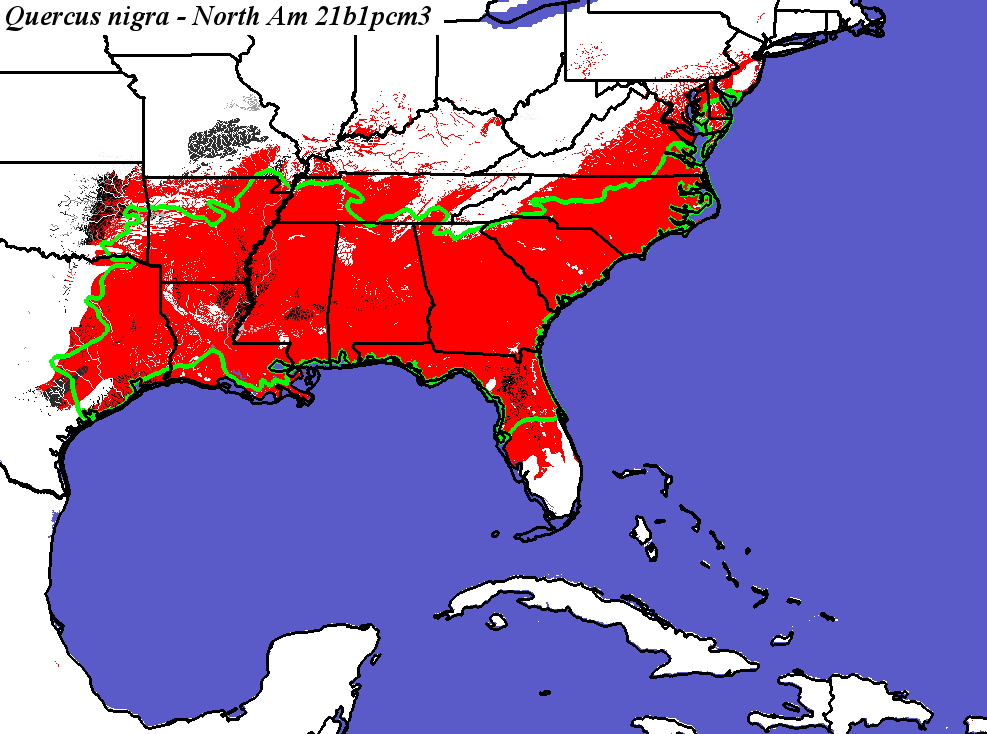

PCM, Scenario B1, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for PCM B1 in 2100 by Iverson and Prasad

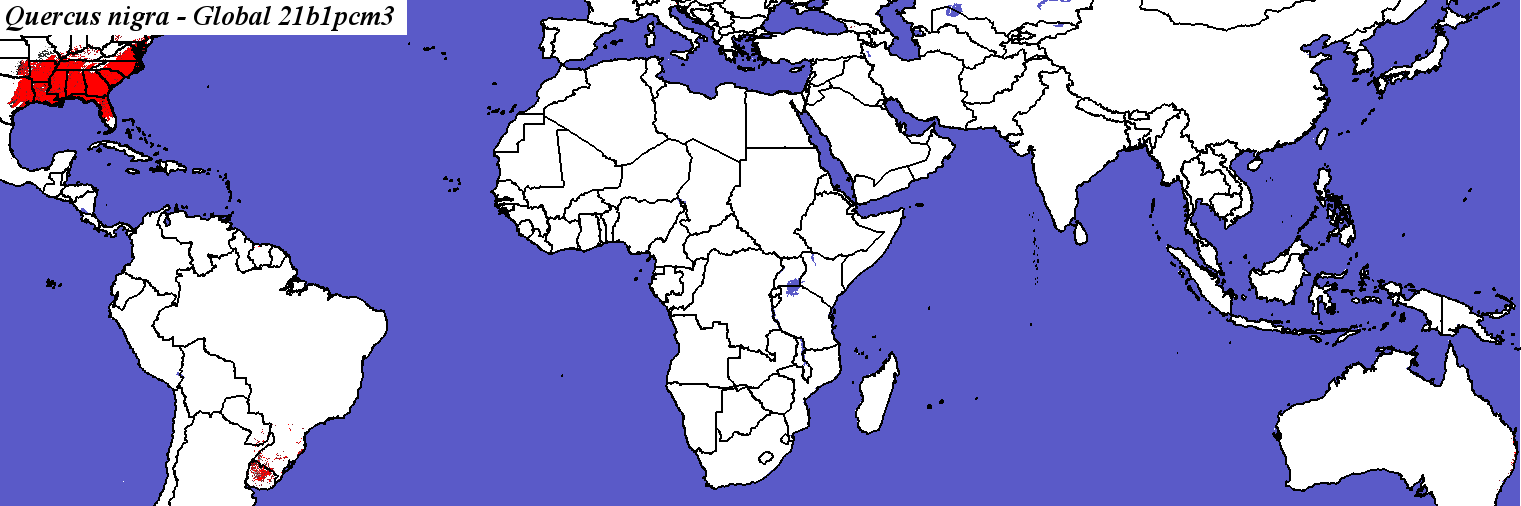

PCM, Scenario B1, 2100 - Quercus nigra - Global

Hadley Climate Model
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus nigra - CONUS
Quercus nigra not modeled by Crookston and Rehfeldt

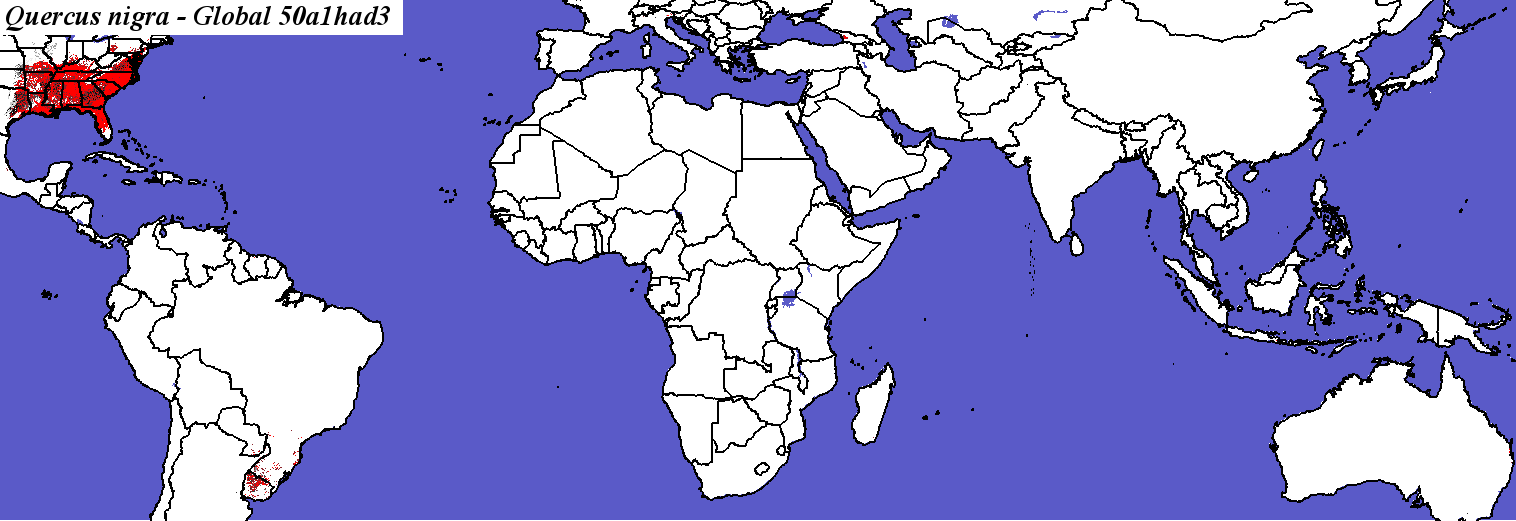

Hadley, Scenario A1FI, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global.
Hadley, Scenario A1FI, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus nigra - Global

Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global.
Hadley, Scenario B1, 2050 - Quercus nigra - CONUS
Quercus nigra not modeled by Crookston and Rehfeldt
Quercus nigra not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus nigra - Global
Quercus_nigra_final.4.conus
Quercus_nigra_final.4.global
Hadley, Scenario B1, 2100 - Quercus nigra - CONUS
Compare with Quercus nigra modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus nigra not modeled by Crookston and Rehfeldt

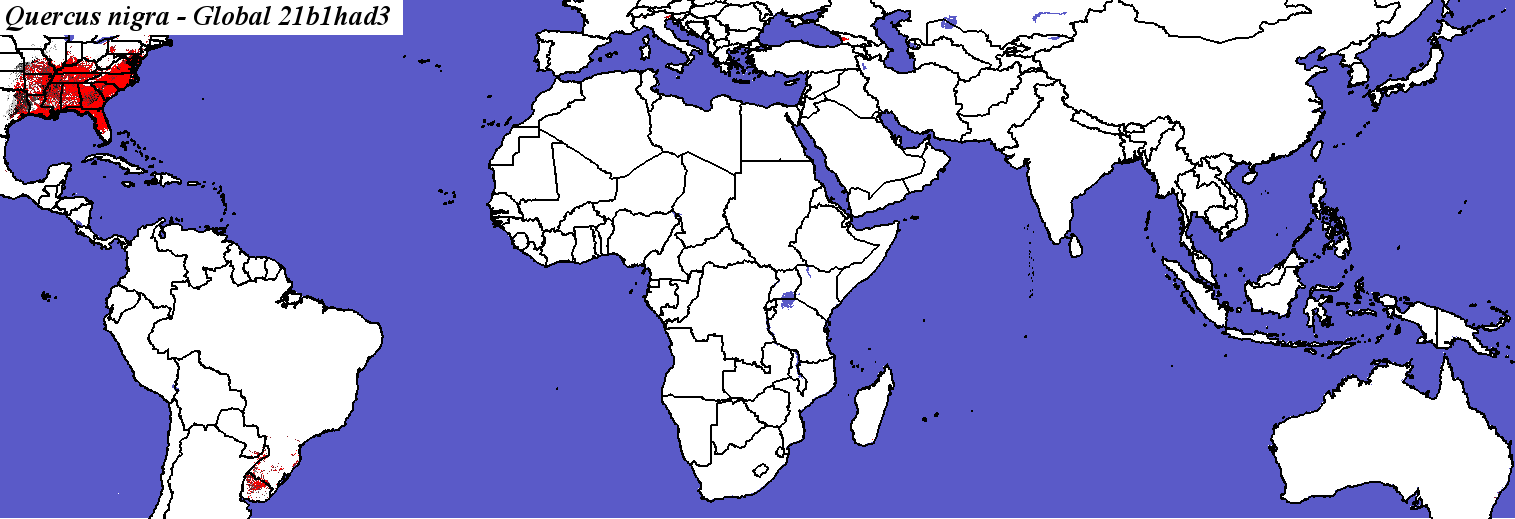

Hadley, Scenario B1, 2100 - Quercus nigra - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_nigra_final.elev

Number of Suitable Ecoregions (Niche Breadth)

169

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

11.0959

Area in Present Suitable Range (in km2)

1229309

Area in Future Suitable Range (Had B1 2050, in km2)

1036918

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

834444

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

67.8700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

11.3699

Percent Change in Area of Suitable Range (Had B1 2050)

-15.6500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

25.0685

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

4303.09 +/- 7918.79

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

92.7397

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.11247 +/- 4.15092

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

92.8767

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

136.379 +/- 543.284

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

38.7671

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

40905

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.3200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

34.6575

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

348998

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

28.3800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

46.9863

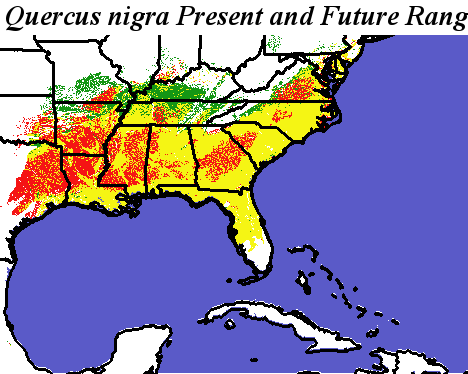

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus nigra Quercus nigra - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

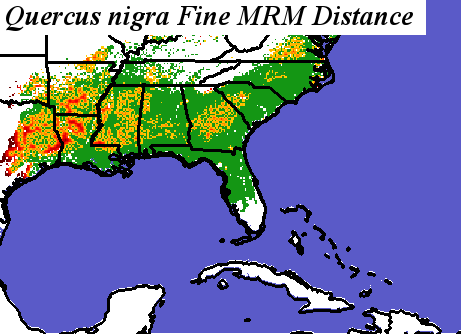

Quercus_nigra_final.elev Fine MRM Distance

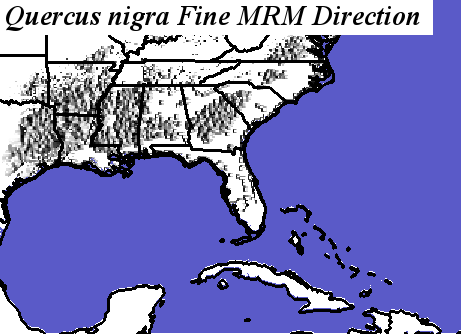

Quercus_nigra_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus nigra

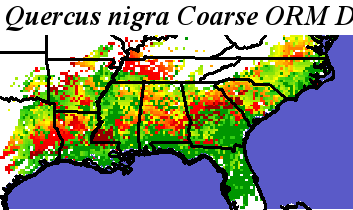

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

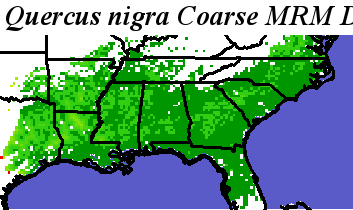

Quercus_nigra_final.elev Coarse MRM Distance
Quercus_nigra_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus nigra
