Version 5 Tree Atlas


Quercus pagoda

cherrybark oak

elev

Quercus pagoda Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus pagoda

USDA Plants Database entry for Quercus pagoda
Silvics Manual entry for Quercus pagoda


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus falcata var. pagodifolia; Quercus pagodifolia; Quercus falcata var. pagodaefolia1706271733TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_pagoda_final Occurrences

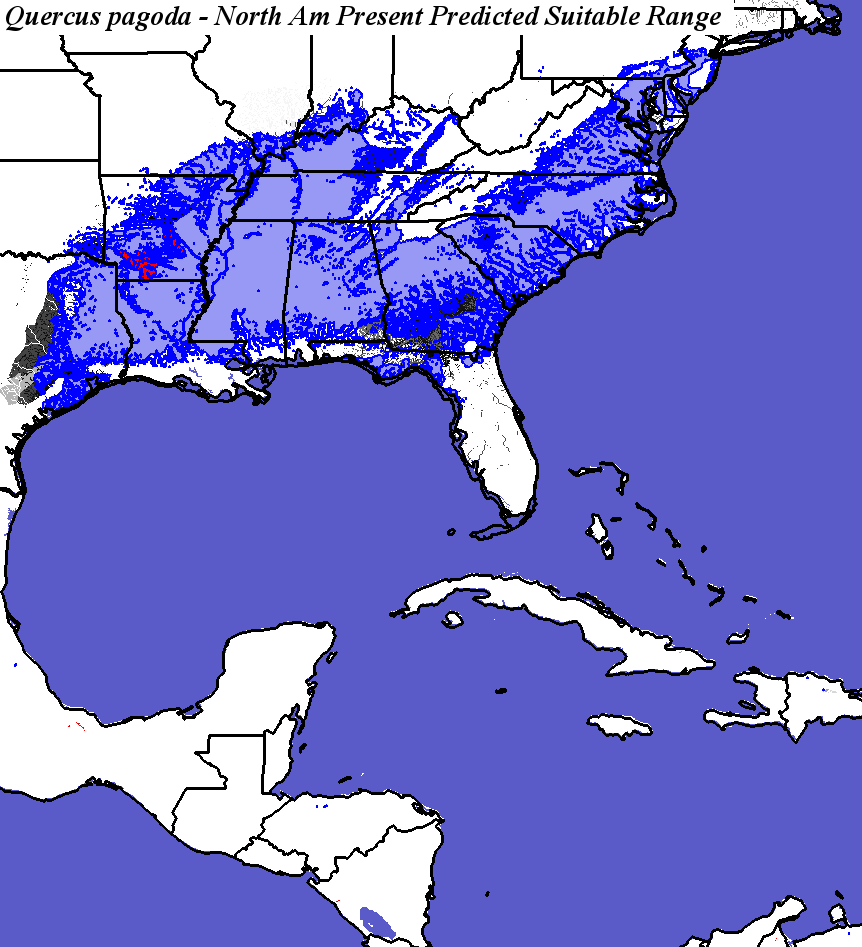

Hargroves Present Suitable Range Outline for Quercus_pagoda_final
Quercus pagoda - Occurrence Locations Quercus pagoda - Hargrove's Present Suitable Range Outline

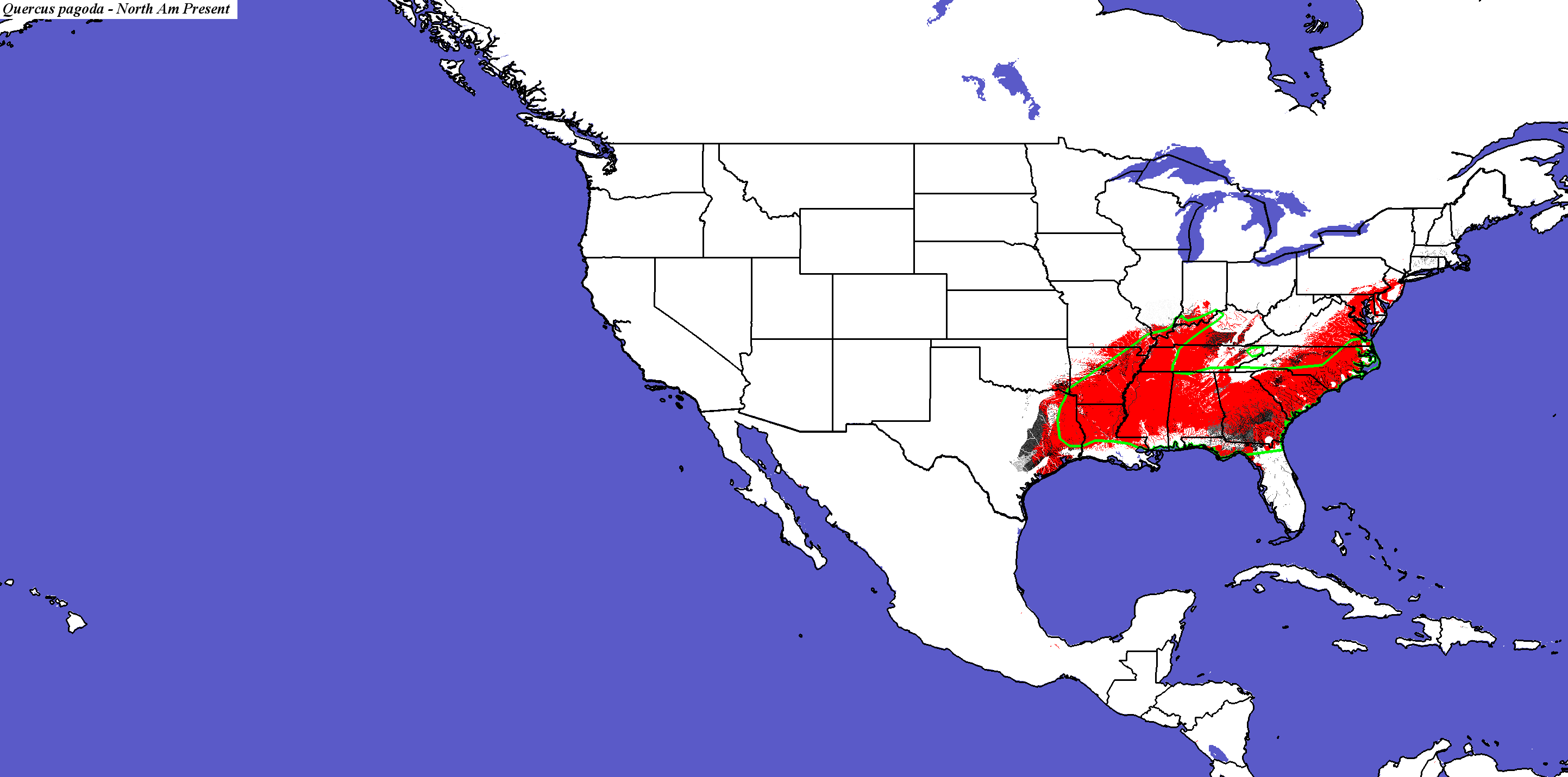

Present Conditions
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global
Quercus pagoda - CONUS
Compare with Current Range from the Silvics Manual for Quercus pagoda
Compare with Current Range from Biota of North America Program (BONAP) for Quercus pagoda

Quercus pagoda not modeled by Iverson and Prasad
Quercus pagoda not modeled by Crookston and Rehfeldt
Quercus pagoda not modeled by Coops and Waring
Quercus pagoda - Global

PCM - Parallel Climate Model
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global

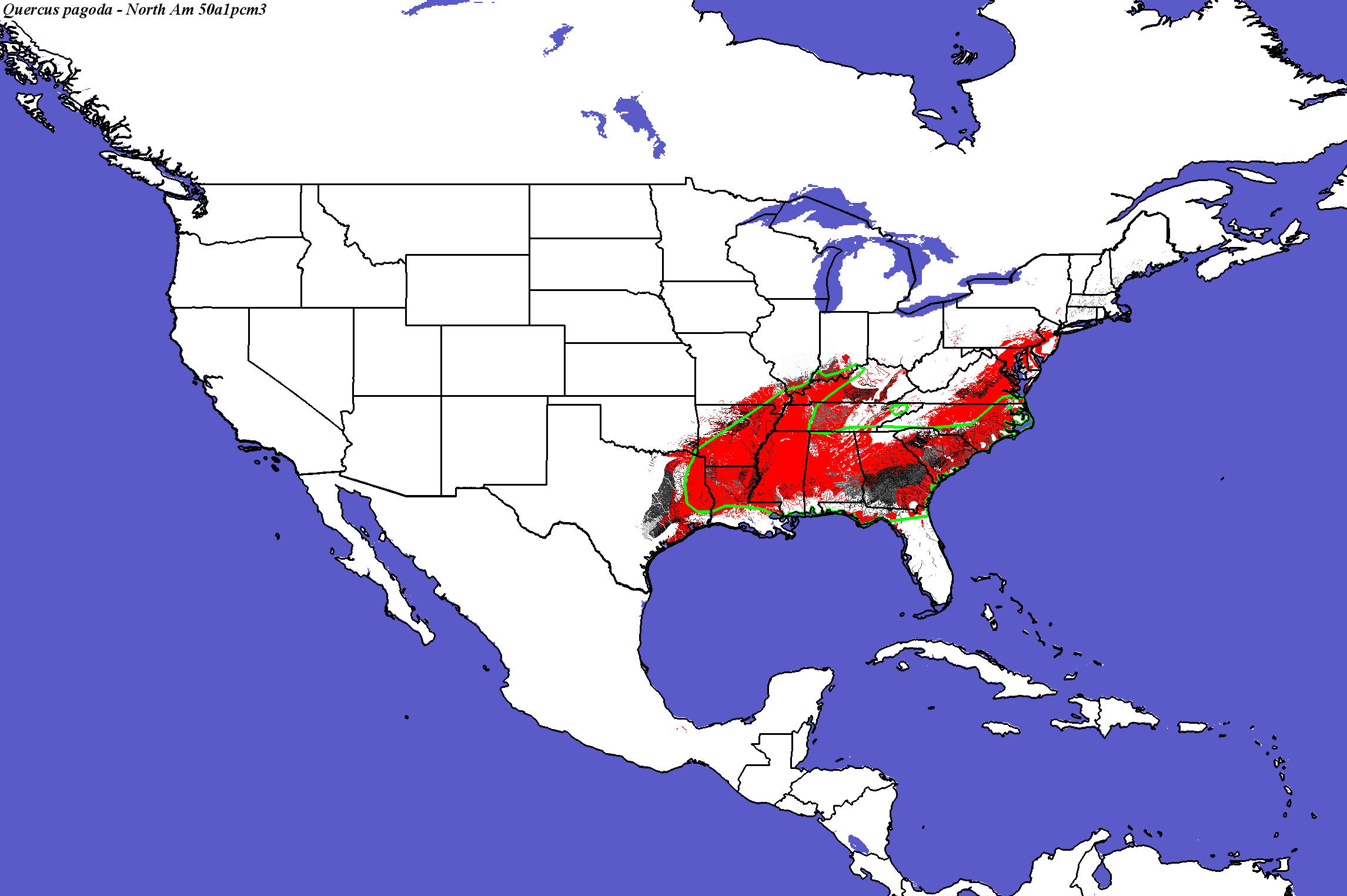

PCM, Scenario A1FI, 2050 - Quercus pagoda - CONUS

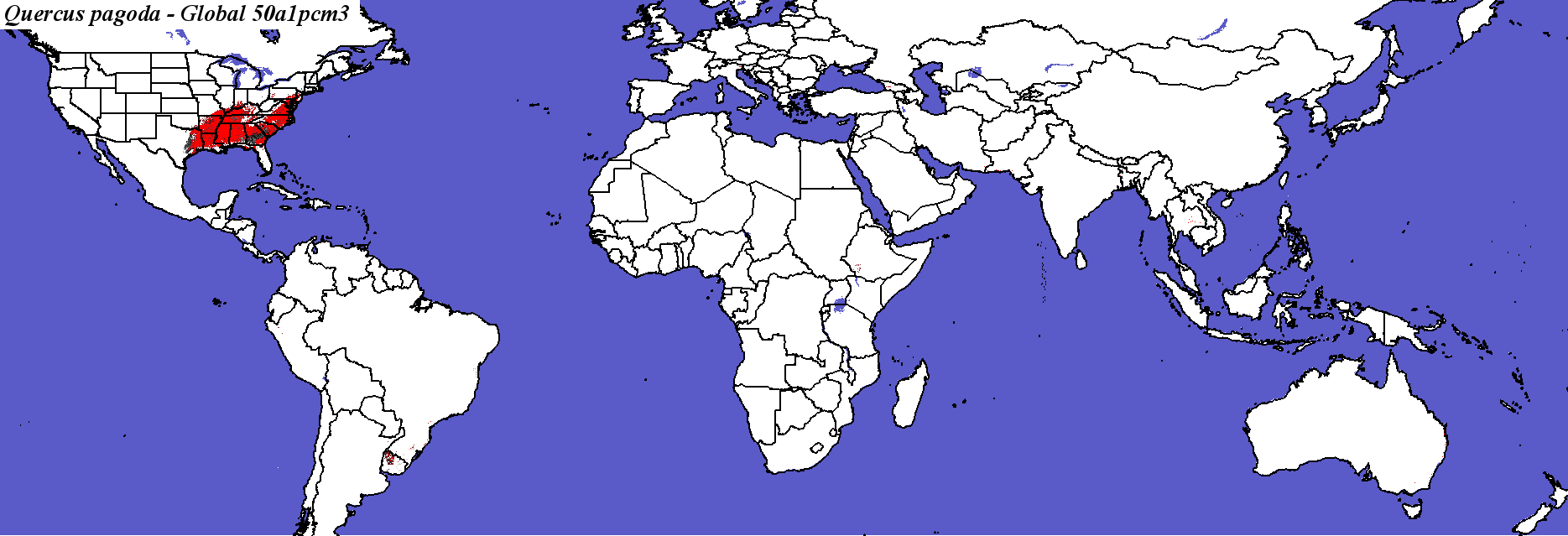

PCM, Scenario A1FI, 2050 - Quercus pagoda - Global
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global

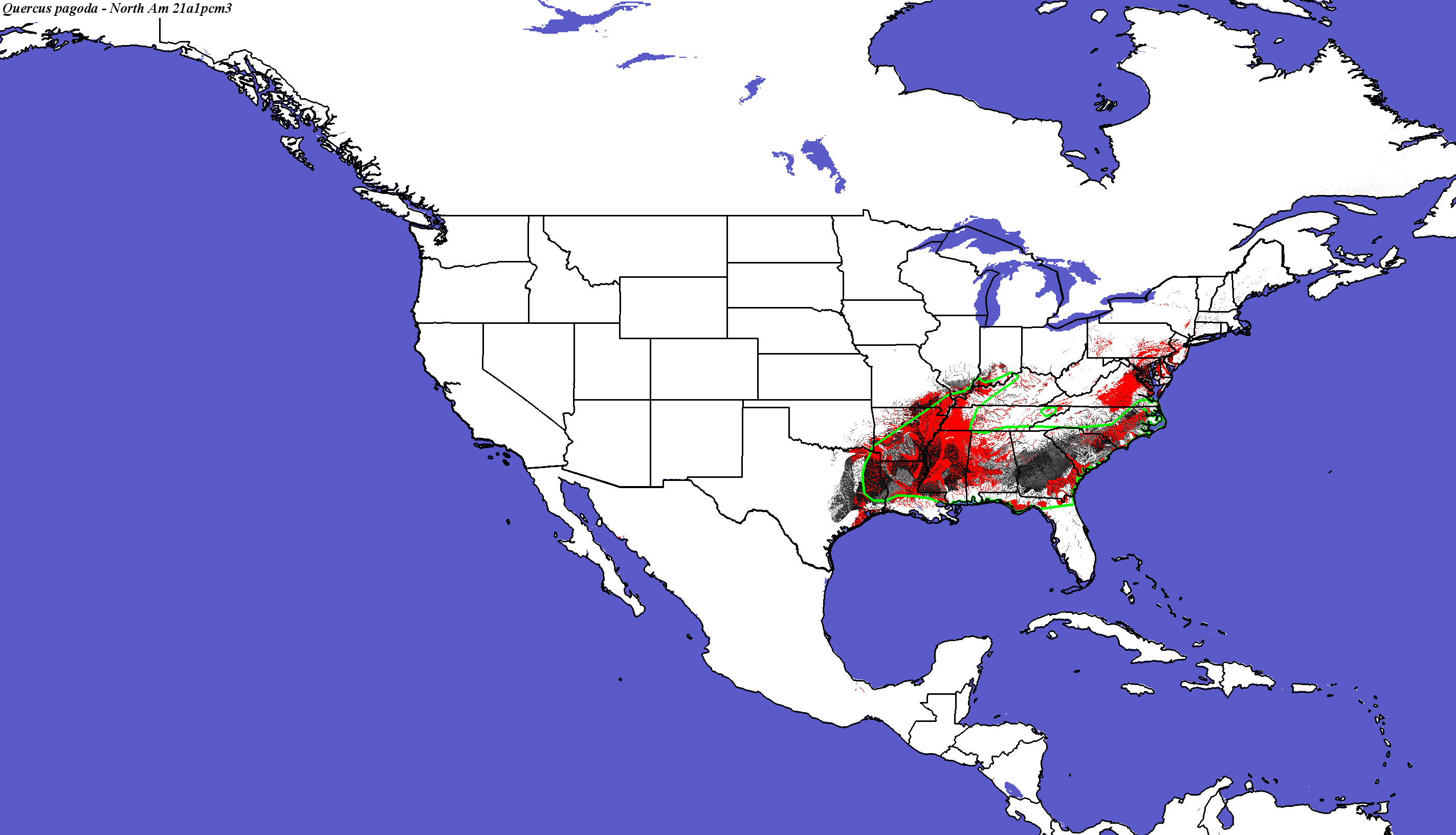

PCM, Scenario A1FI, 2100 - Quercus pagoda - CONUS
Quercus pagoda species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus pagoda - Global

Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global

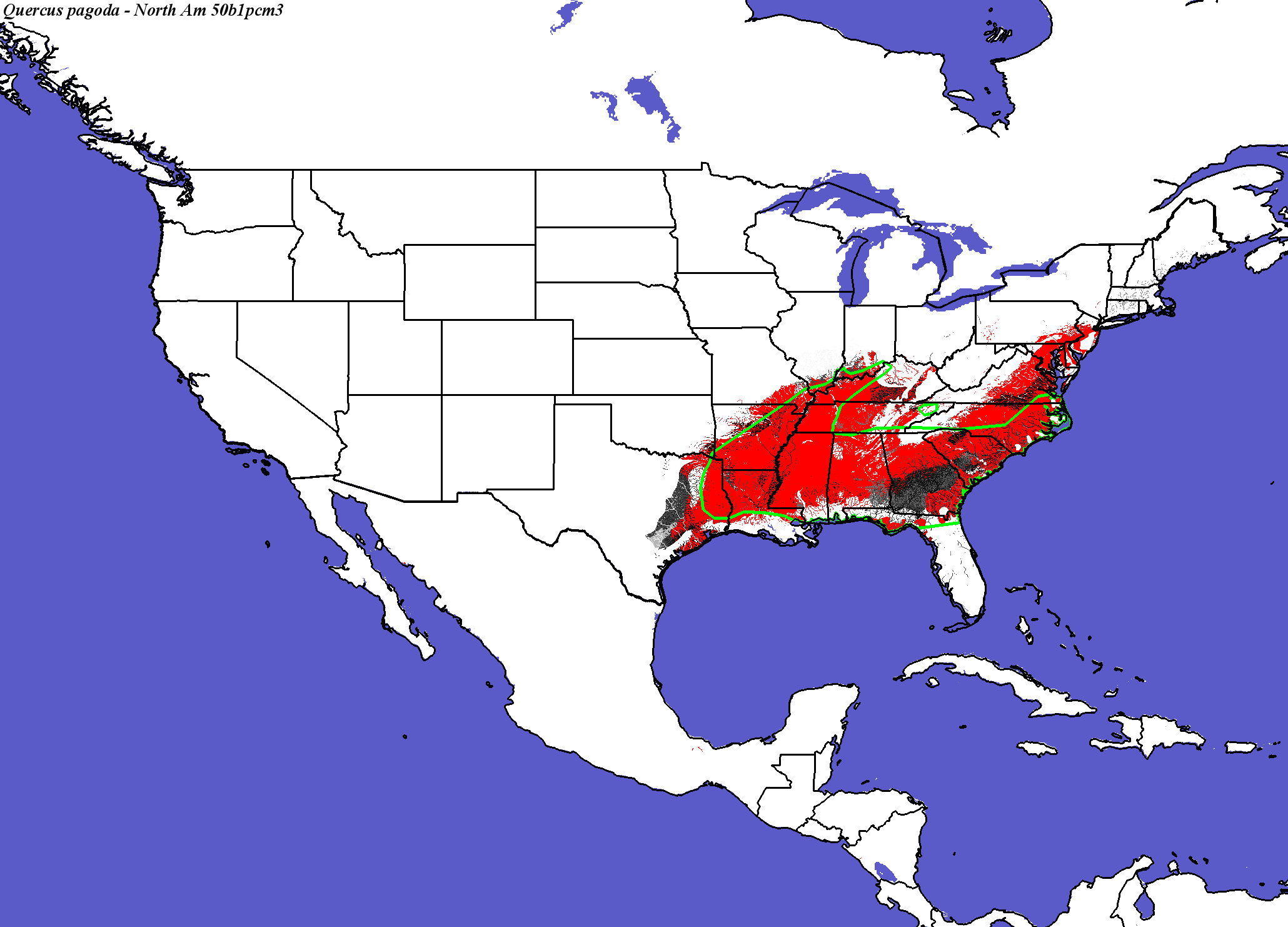

PCM, Scenario B1, 2050 - Quercus pagoda - CONUS

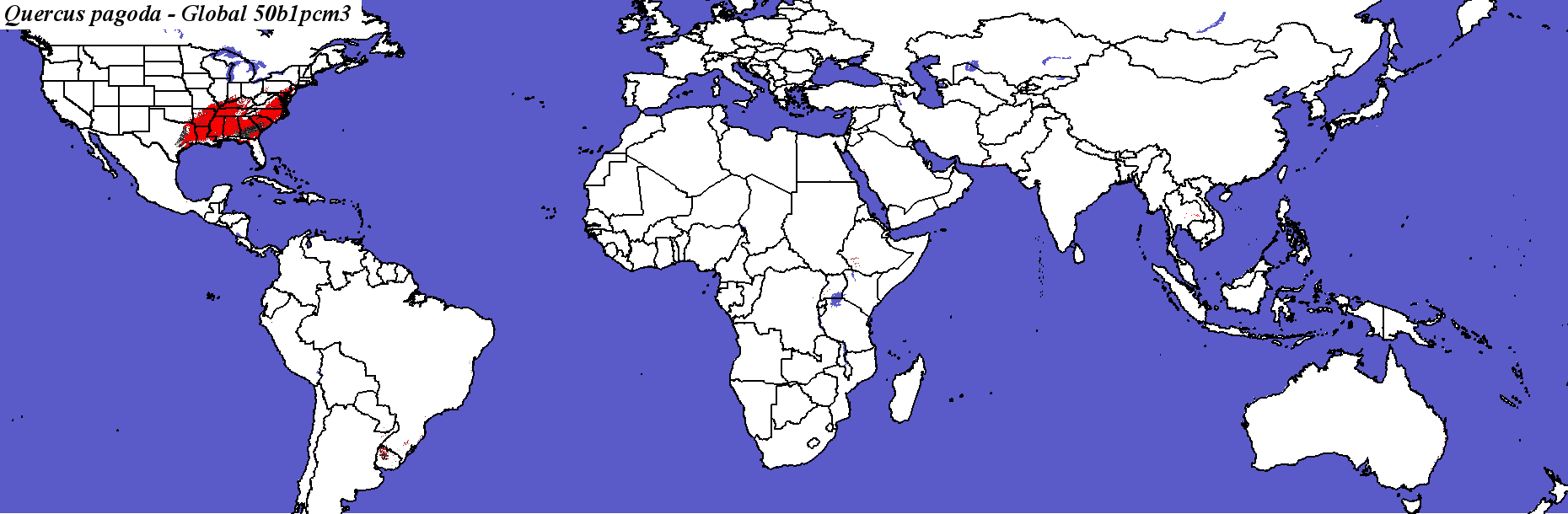

PCM, Scenario B1, 2050 - Quercus pagoda - Global
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global

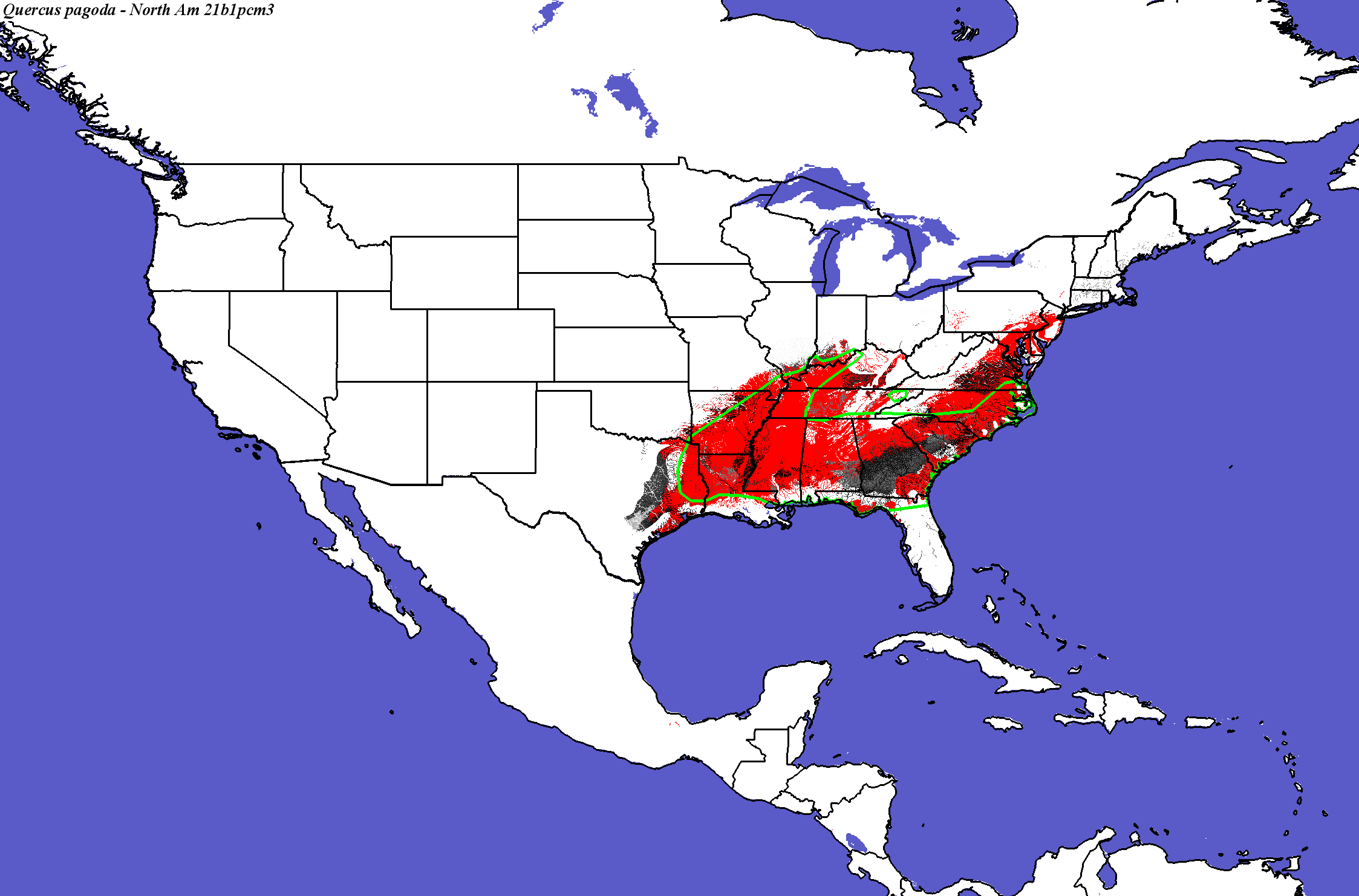

PCM, Scenario B1, 2100 - Quercus pagoda - CONUS
Quercus pagoda not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus pagoda - Global

Hadley Climate Model
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global

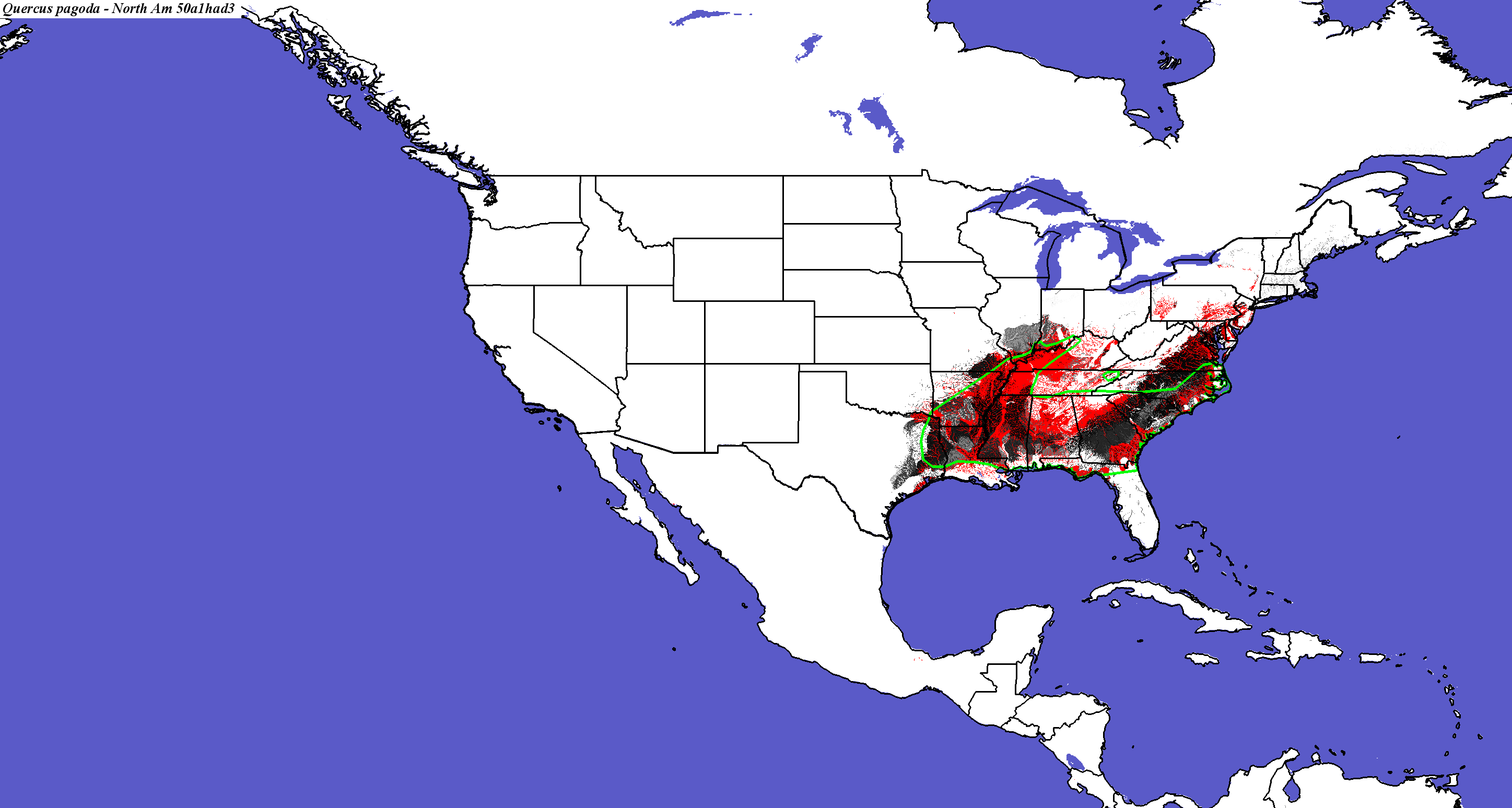

Hadley, Scenario A1FI, 2050 - Quercus pagoda - CONUS
Quercus pagoda not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus pagoda - Global
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global.

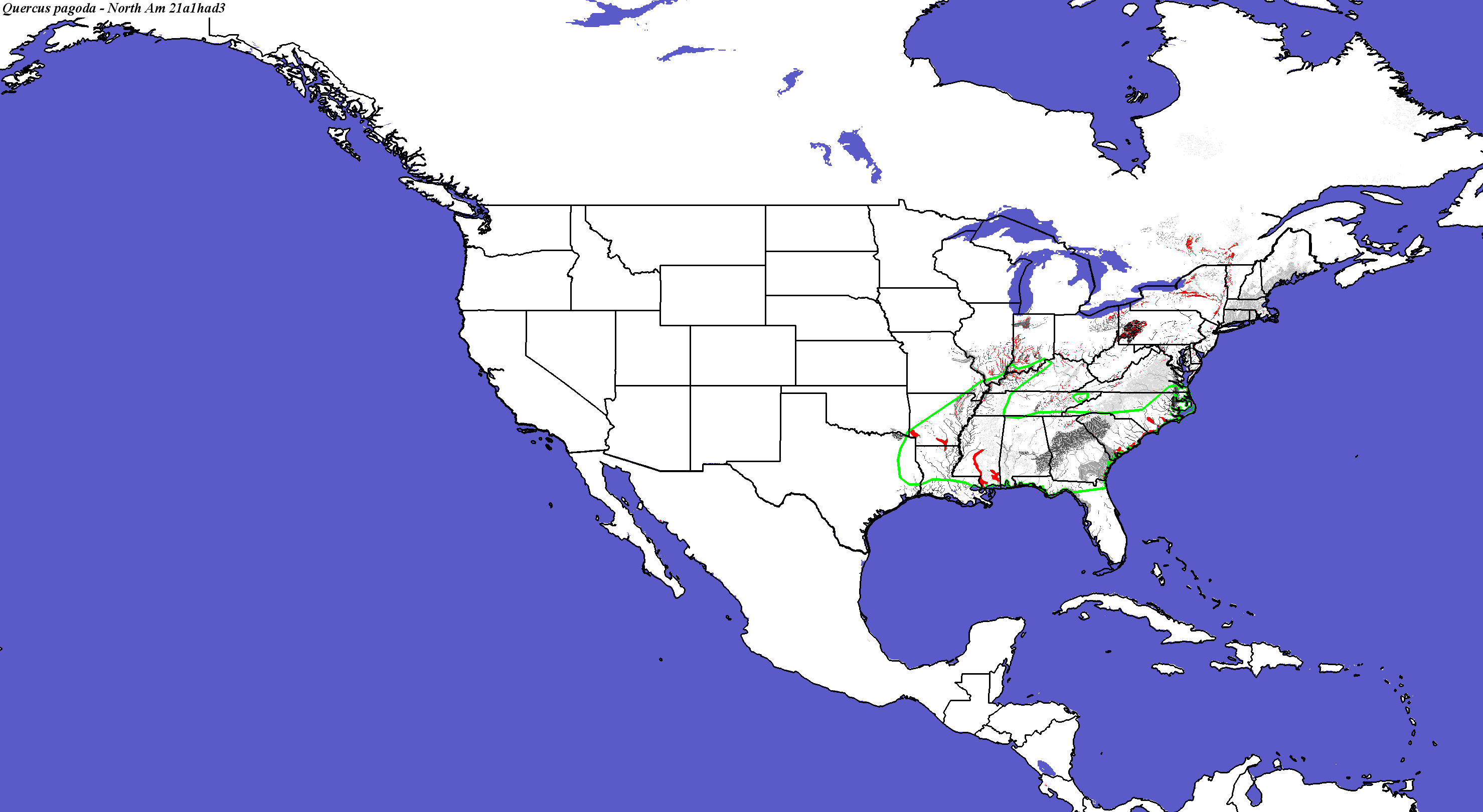

Hadley, Scenario A1FI, 2100 - Quercus pagoda - CONUS
Quercus pagoda not modeled by Iverson and Prasad
Quercus pagoda not modeled by Crookston and Rehfeldt
Quercus pagoda not modeled by Coops and Waring

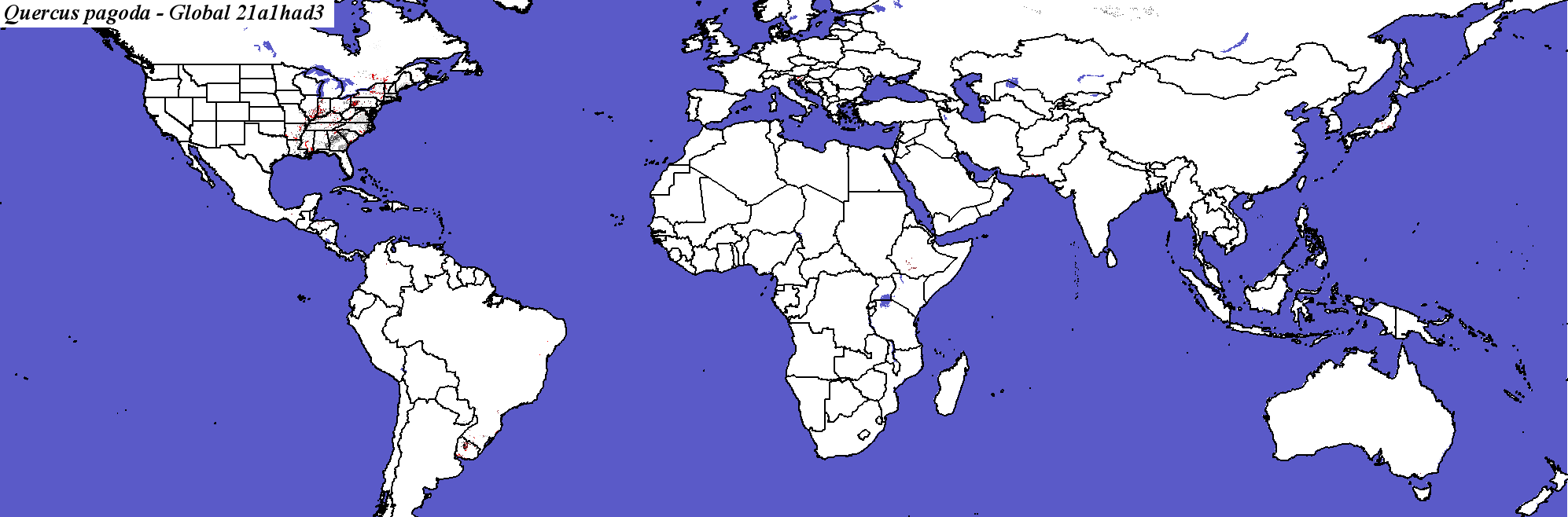

Hadley, Scenario A1FI, 2100 - Quercus pagoda - Global

Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global.

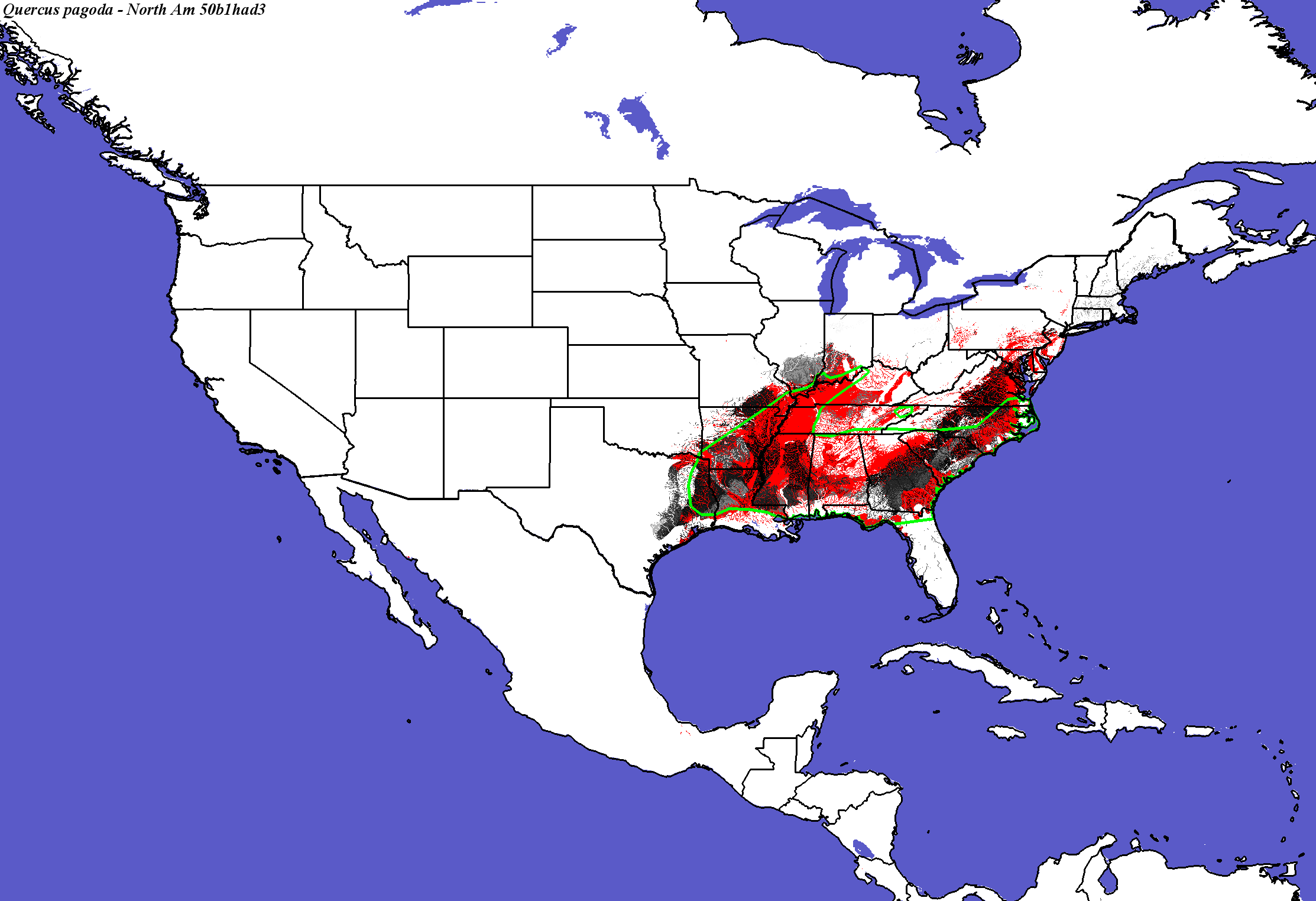

Hadley, Scenario B1, 2050 - Quercus pagoda - CONUS
Quercus pagoda not modeled by Crookston and Rehfeldt
Quercus pagoda not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus pagoda - Global
Quercus_pagoda_final.4.conus
Quercus_pagoda_final.4.global
Hadley, Scenario B1, 2100 - Quercus pagoda - CONUS
Quercus pagoda not modeled by Iverson and Prasad
Quercus pagoda not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus pagoda - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_pagoda_final.elev

Number of Suitable Ecoregions (Niche Breadth)

91

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

23.2877

Area in Present Suitable Range (in km2)

919290

Area in Future Suitable Range (Had B1 2050, in km2)

525283

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

443504

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

48.2400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

55.2055

Percent Change in Area of Suitable Range (Had B1 2050)

-42.8500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

72.4658

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8330.33 +/- 12239

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

74.7945

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.9223 +/- 5.18701

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

74.9315

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

165.368 +/- 594.202

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

33.9726

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

38601

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.1900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

30.8219

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

164904

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

17.9300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

75.8904

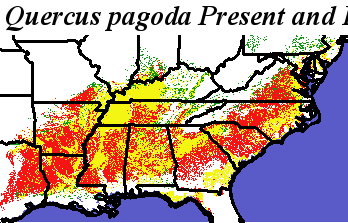

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus pagoda Quercus pagoda - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

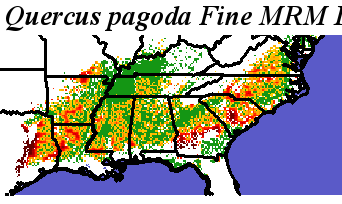

Quercus_pagoda_final.elev Fine MRM Distance

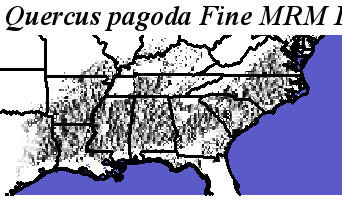

Quercus_pagoda_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus pagoda Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus pagoda
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

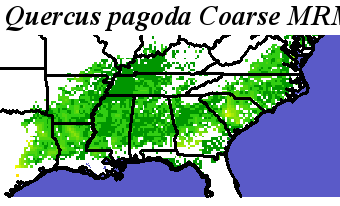

Quercus_pagoda_final.elev Coarse MRM Distance
Quercus_pagoda_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus pagoda Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus pagoda
