Version 5 Tree Atlas


Quercus phellos

willow oak

elev

Quercus phellos Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus phellos

USDA Plants Database entry for Quercus phellos
Silvics Manual entry for Quercus phellos


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
1692611753TBD

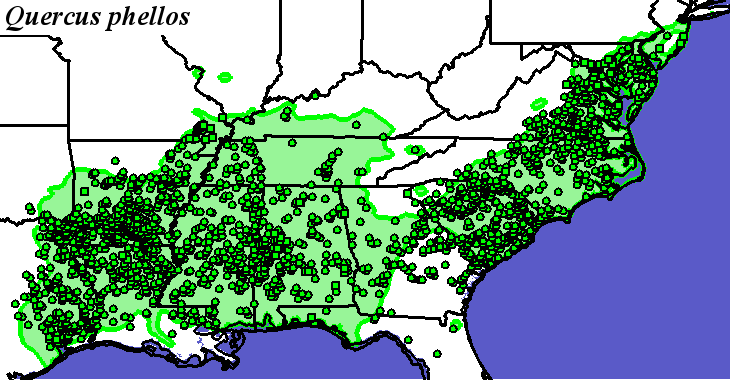

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_phellos_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_phellos_final

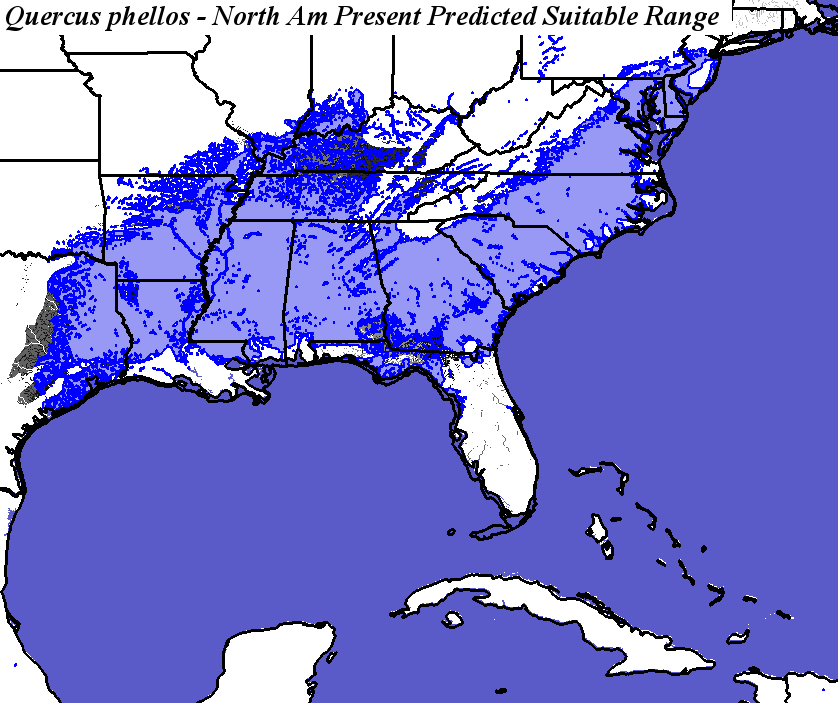

Quercus phellos - Occurrence Locations Quercus phellos - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global

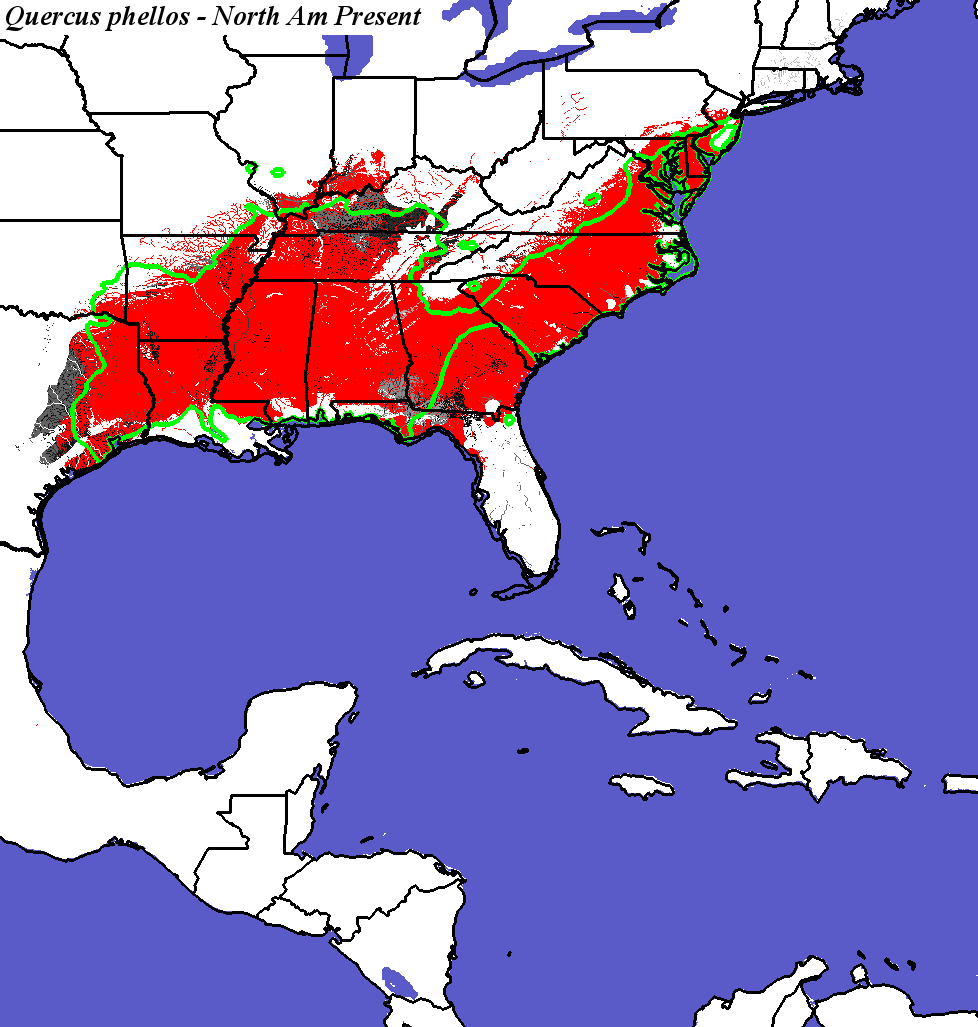

Quercus phellos - CONUS
Compare with Current Range from the Silvics Manual for Quercus phellos
Compare with Current Range from Biota of North America Program (BONAP) for Quercus phellos

Compare with Quercus phellos modeled for Current conditions by Iverson and Prasad
Quercus phellos not modeled by Crookston and Rehfeldt
Quercus phellos not modeled by Coops and Waring

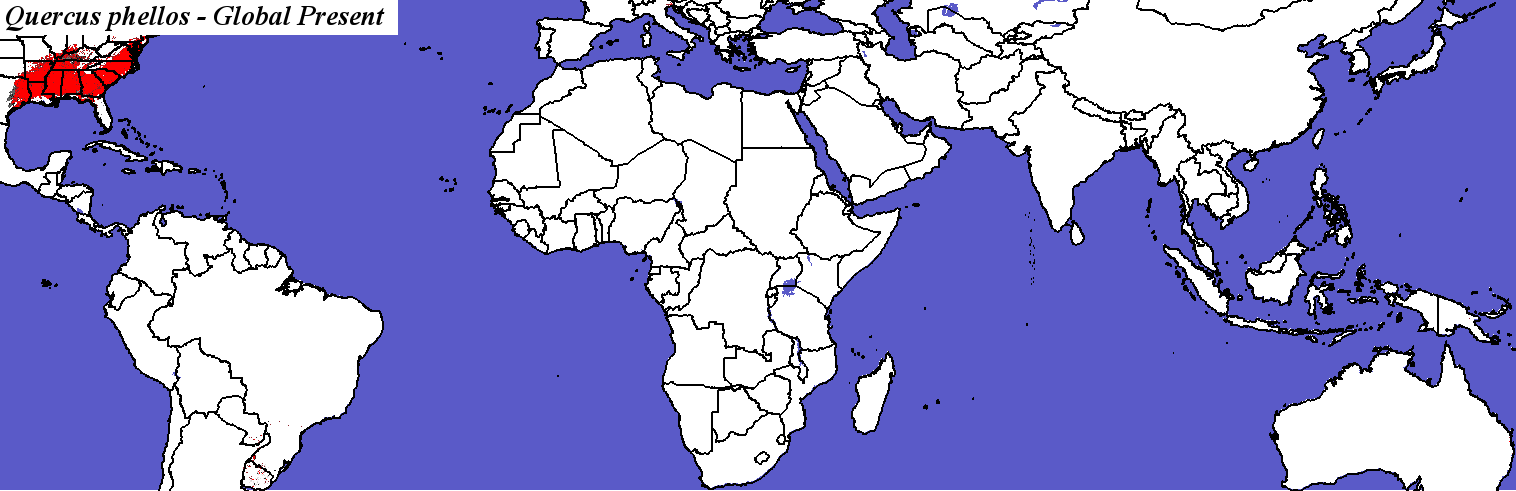

Quercus phellos - Global

PCM - Parallel Climate Model
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global

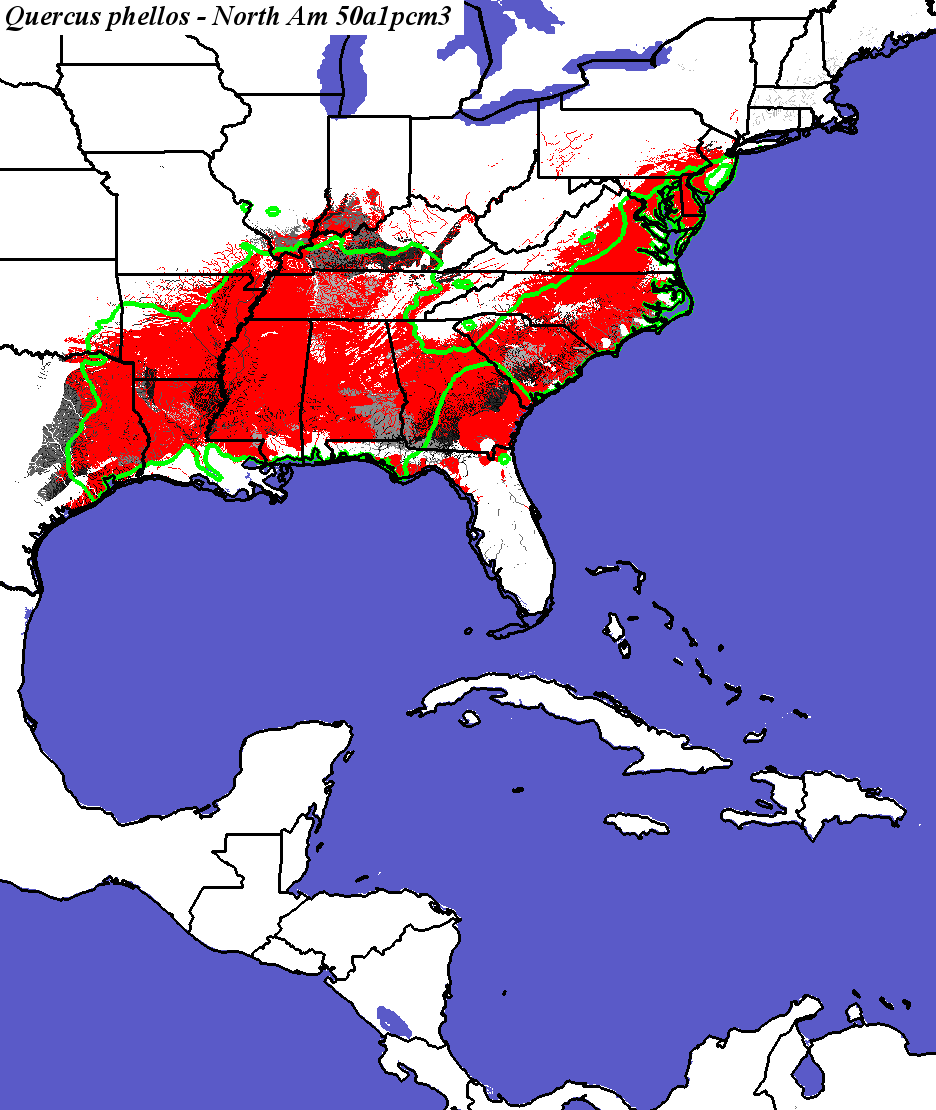

PCM, Scenario A1FI, 2050 - Quercus phellos - CONUS
PCM, Scenario A1FI, 2050 - Quercus phellos - Global
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global

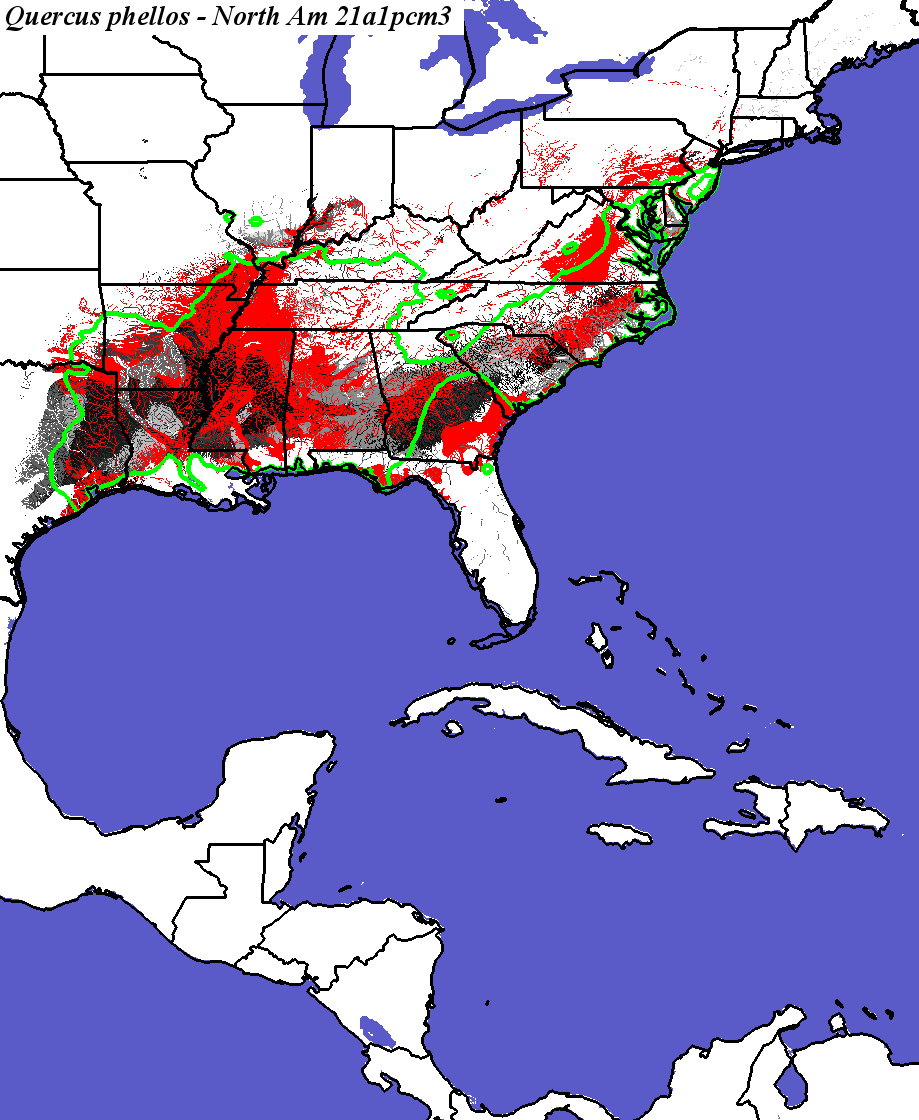

PCM, Scenario A1FI, 2100 - Quercus phellos - CONUS
Compare with Quercus phellos modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus phellos - Global

Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global
PCM, Scenario B1, 2050 - Quercus phellos - CONUS

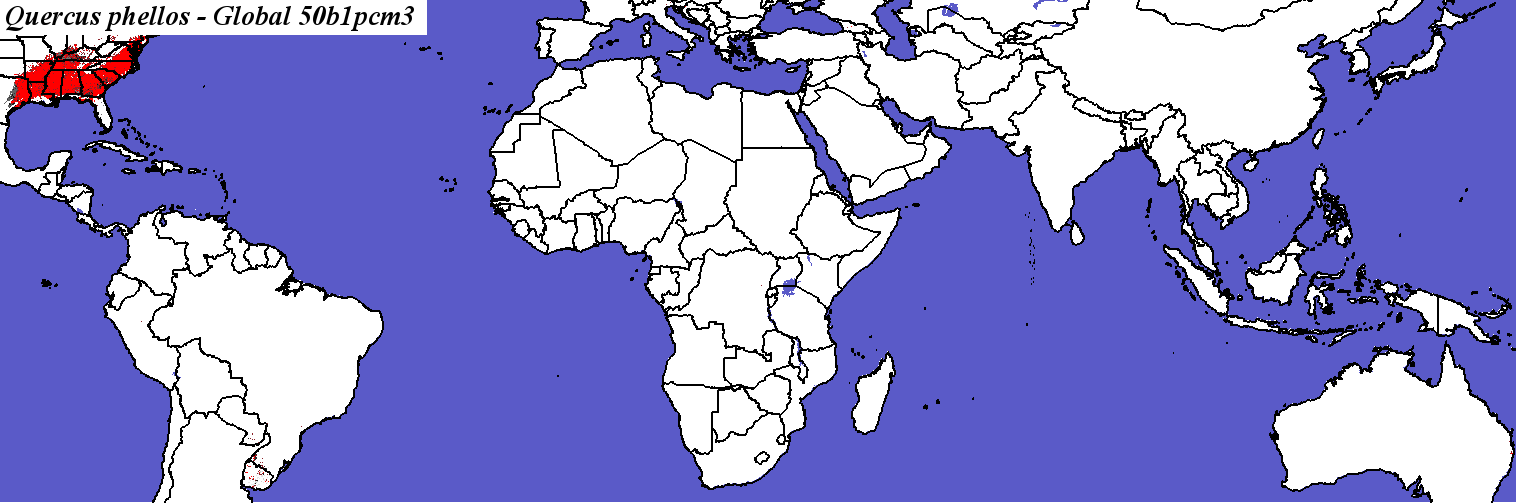

PCM, Scenario B1, 2050 - Quercus phellos - Global
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global

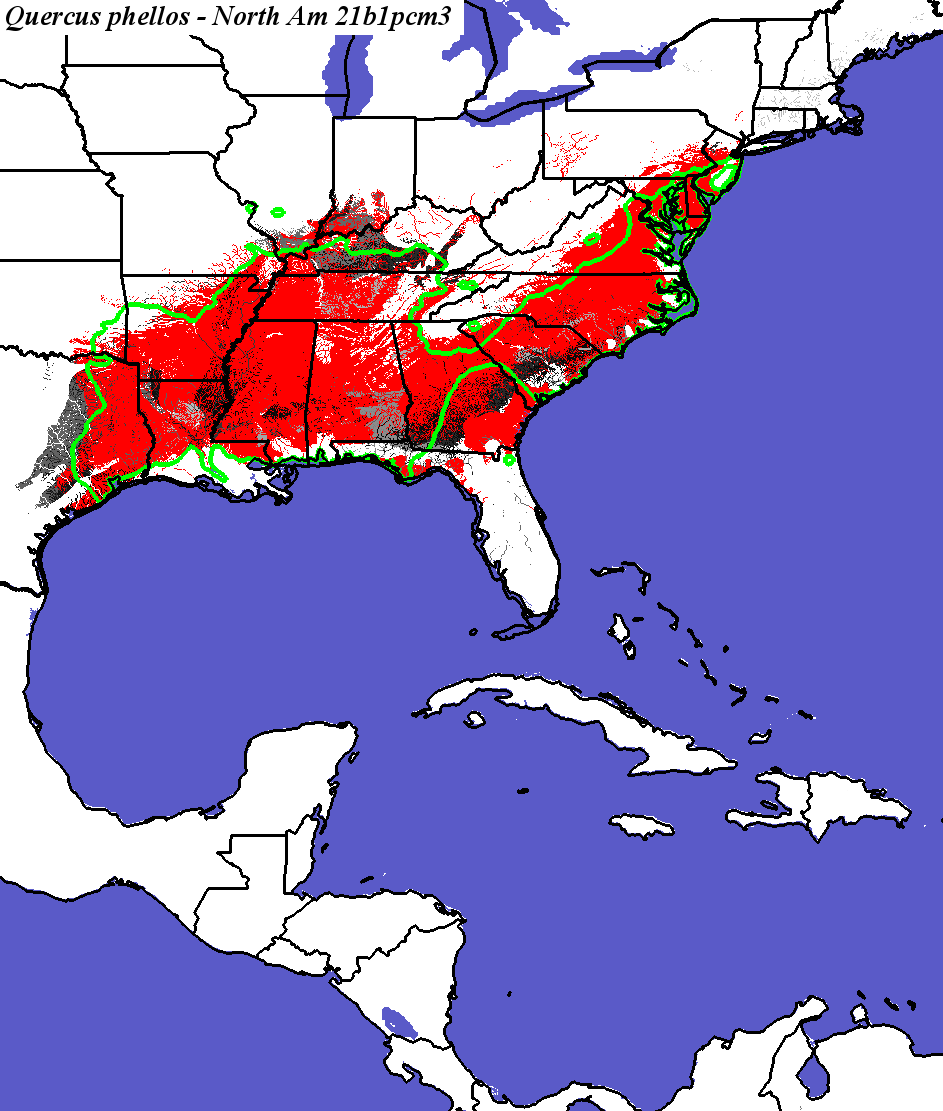

PCM, Scenario B1, 2100 - Quercus phellos - CONUS
Compare with Quercus phellos modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus phellos - Global

Hadley Climate Model
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus phellos - CONUS
Quercus phellos not modeled by Crookston and Rehfeldt

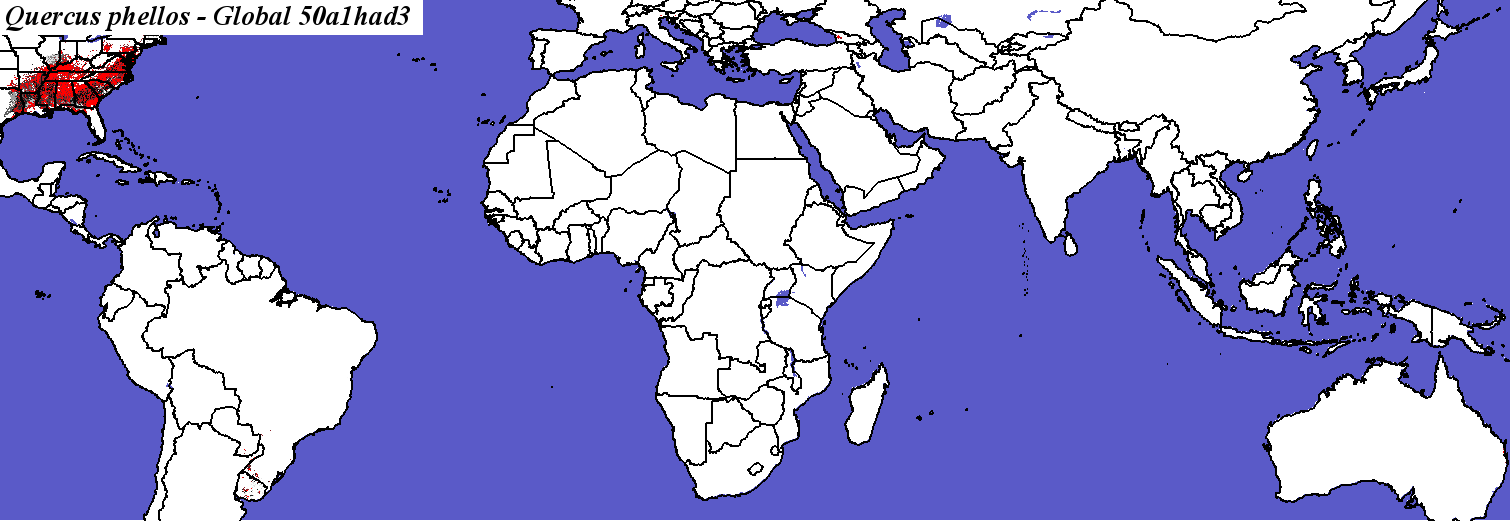

Hadley, Scenario A1FI, 2050 - Quercus phellos - Global
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global.
Hadley, Scenario A1FI, 2100 - Quercus phellos - CONUS
Compare with Quercus phellos modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus phellos not modeled by Crookston and Rehfeldt
Quercus phellos not modeled by Coops and Waring

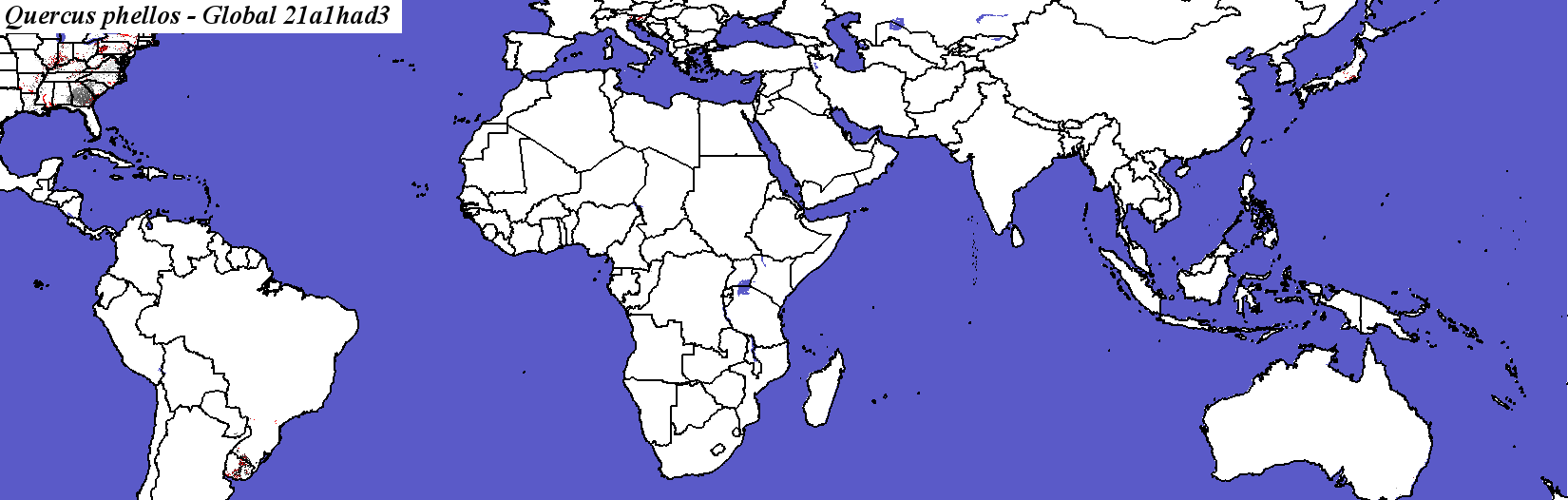

Hadley, Scenario A1FI, 2100 - Quercus phellos - Global

Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global.
Hadley, Scenario B1, 2050 - Quercus phellos - CONUS
Quercus phellos not modeled by Crookston and Rehfeldt
Quercus phellos not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus phellos - Global
Quercus_phellos_final.4.conus
Quercus_phellos_final.4.global

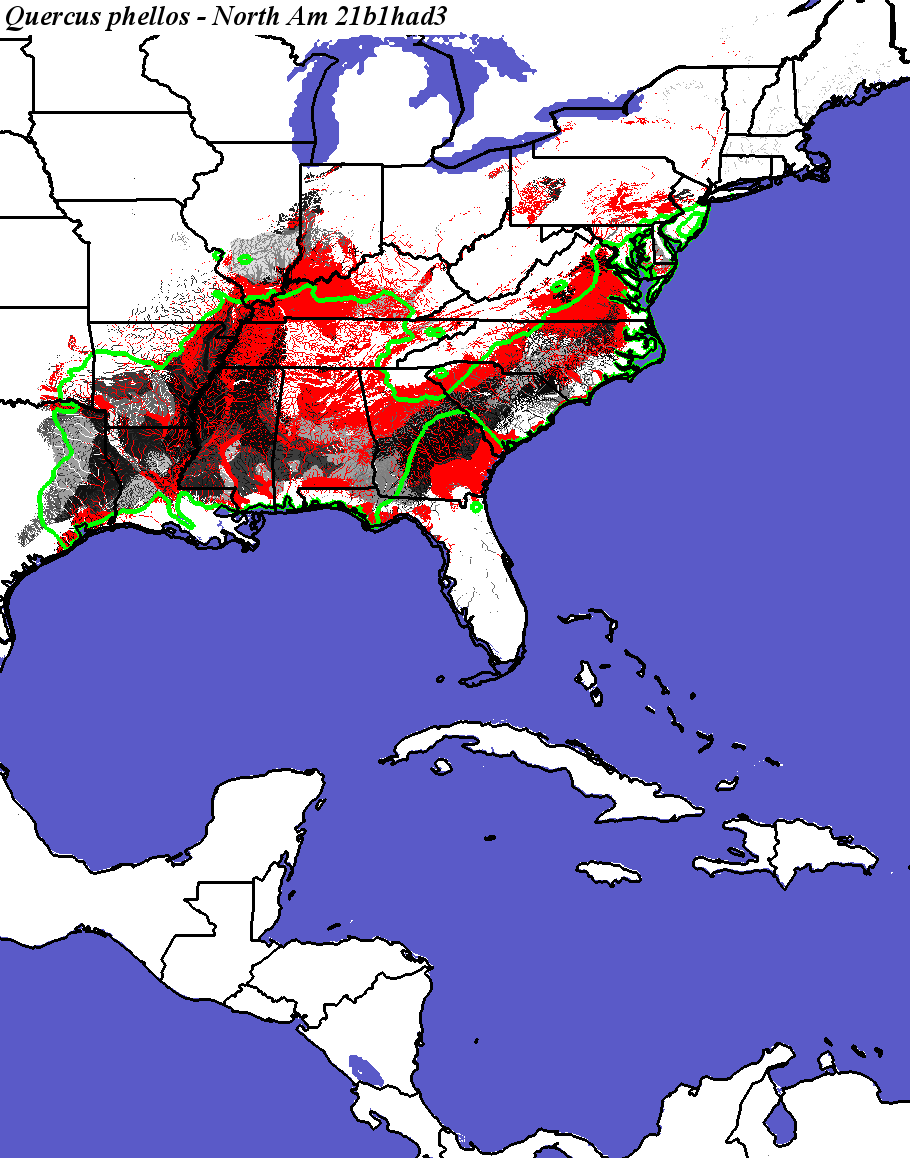

Hadley, Scenario B1, 2100 - Quercus phellos - CONUS
Compare with Quercus phellos modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus phellos not modeled by Crookston and Rehfeldt

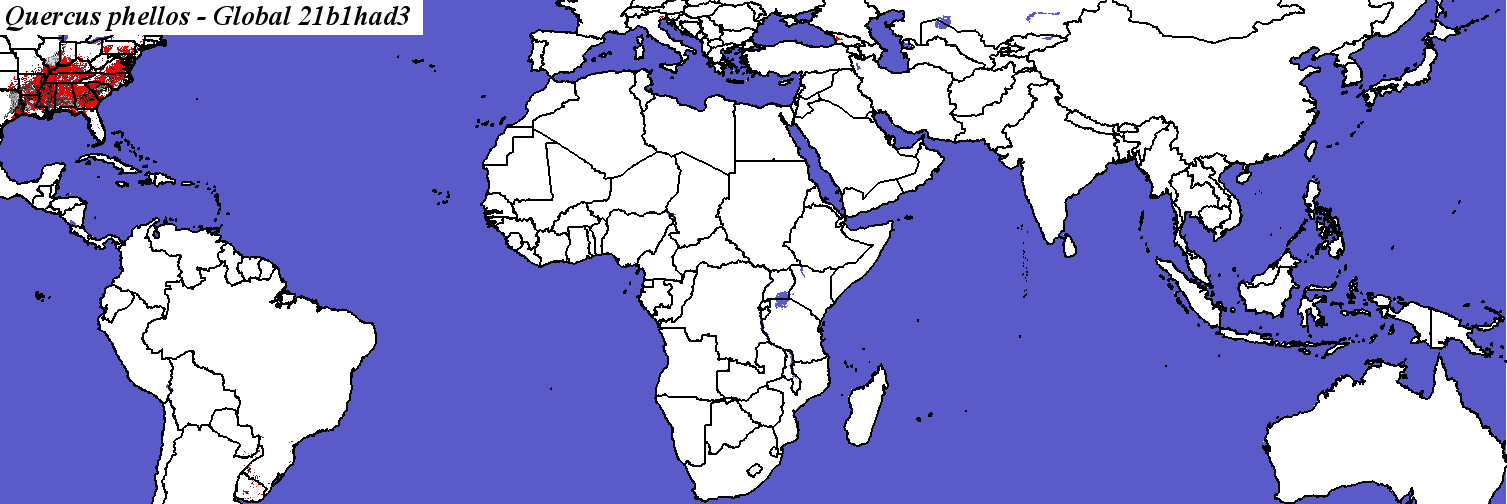

Hadley, Scenario B1, 2100 - Quercus phellos - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_phellos_final.elev

Number of Suitable Ecoregions (Niche Breadth)

106

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

19.589

Area in Present Suitable Range (in km2)

1006716

Area in Future Suitable Range (Had B1 2050, in km2)

646333

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

537908

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.4300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

43.4247

Percent Change in Area of Suitable Range (Had B1 2050)

-35.7900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

61.0959

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

6966.07 +/- 11264.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

81.0959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.16217 +/- 4.54583

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

82.8767

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

146.293 +/- 556.658

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

37.3973

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

36821

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.6500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

33.4247

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

223092

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

22.1600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

63.5616

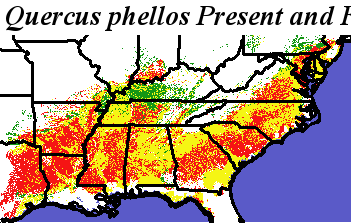

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus phellos Quercus phellos - Range Change Statistics

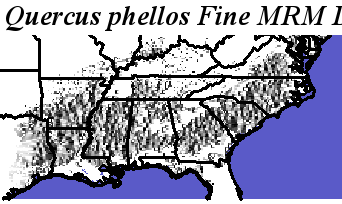

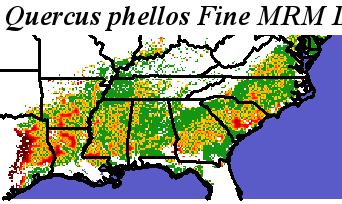

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_phellos_final.elev Fine MRM Distance
Quercus_phellos_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus phellos Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus phellos

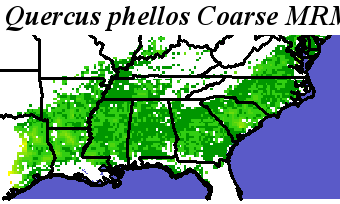

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_phellos_final.elev Coarse MRM Distance
Quercus_phellos_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus phellos Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus phellos
