Version 5 Tree Atlas


Quercus prinoides

dwarf chinkapin oak

elev

Quercus prinoides Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus prinoides

USDA Plants Database entry for Quercus prinoides
Silvics Manual entry for Quercus prinoides


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus muehlenbergii var. prinoides; Quercus prinoides var. rufescens2120122most of range not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_prinoides_final Occurrences

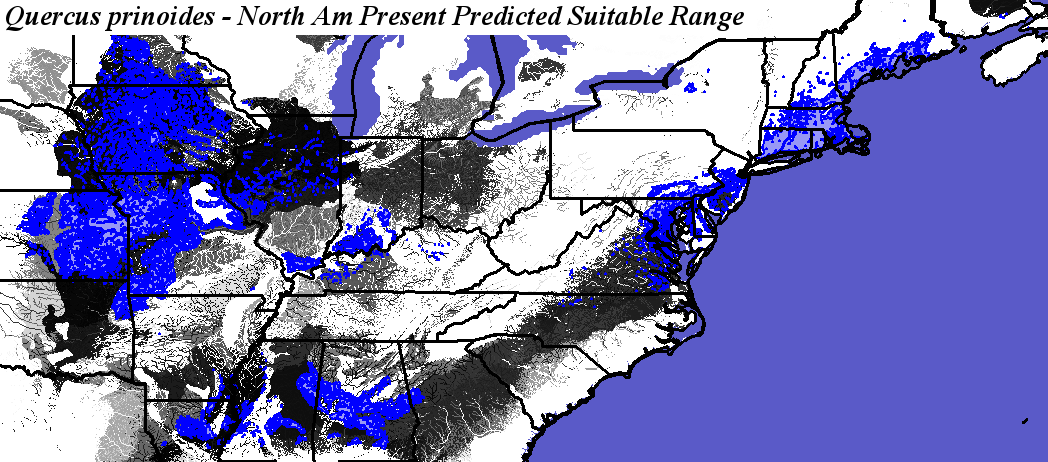

Hargroves Present Suitable Range Outline for Quercus_prinoides_final
Quercus prinoides - Occurrence Locations Quercus prinoides - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global

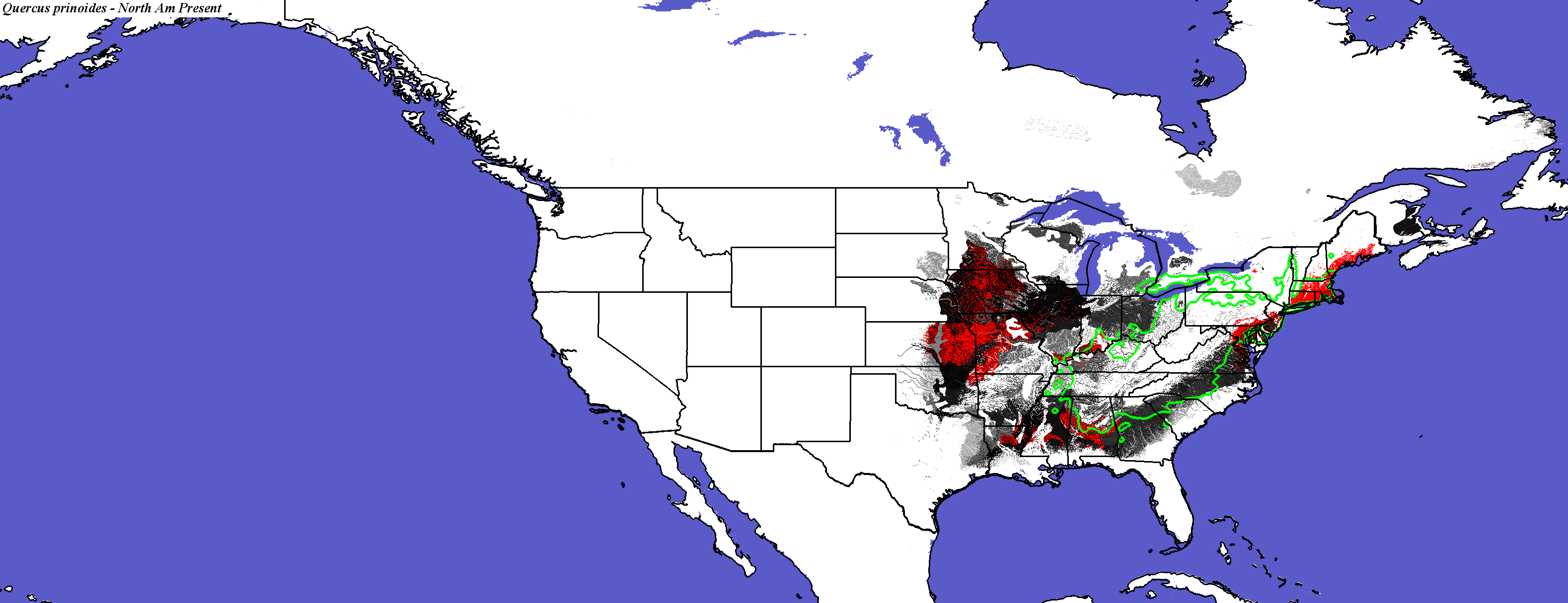

Quercus prinoides - CONUS
Compare with Current Range from the Silvics Manual for Quercus prinoides
Compare with Current Range from Biota of North America Program (BONAP) for Quercus prinoides

Quercus prinoides not modeled by Iverson and Prasad
Quercus prinoides not modeled by Crookston and Rehfeldt
Quercus prinoides not modeled by Coops and Waring

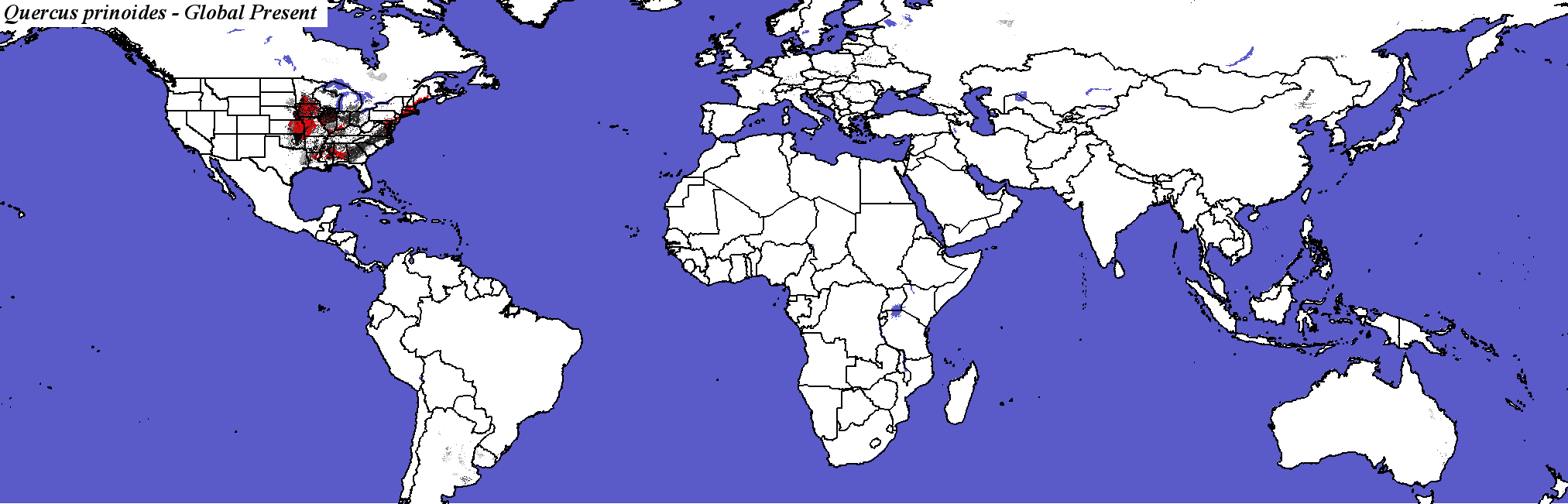

Quercus prinoides - Global

PCM - Parallel Climate Model
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global
PCM, Scenario A1FI, 2050 - Quercus prinoides - CONUS

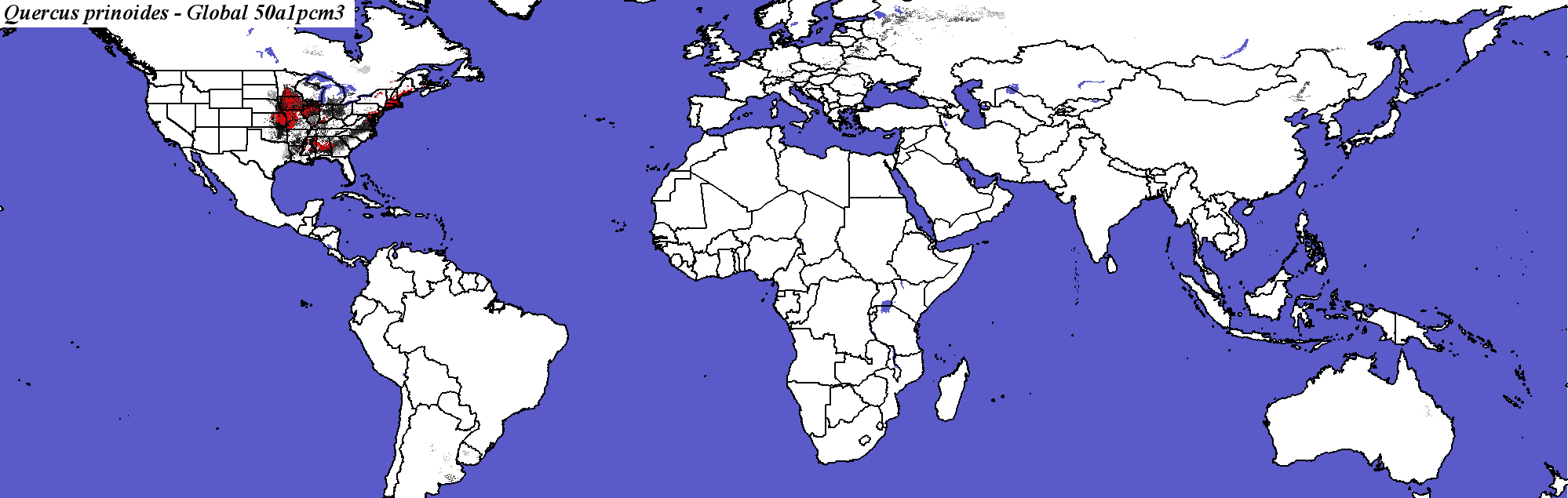

PCM, Scenario A1FI, 2050 - Quercus prinoides - Global
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global

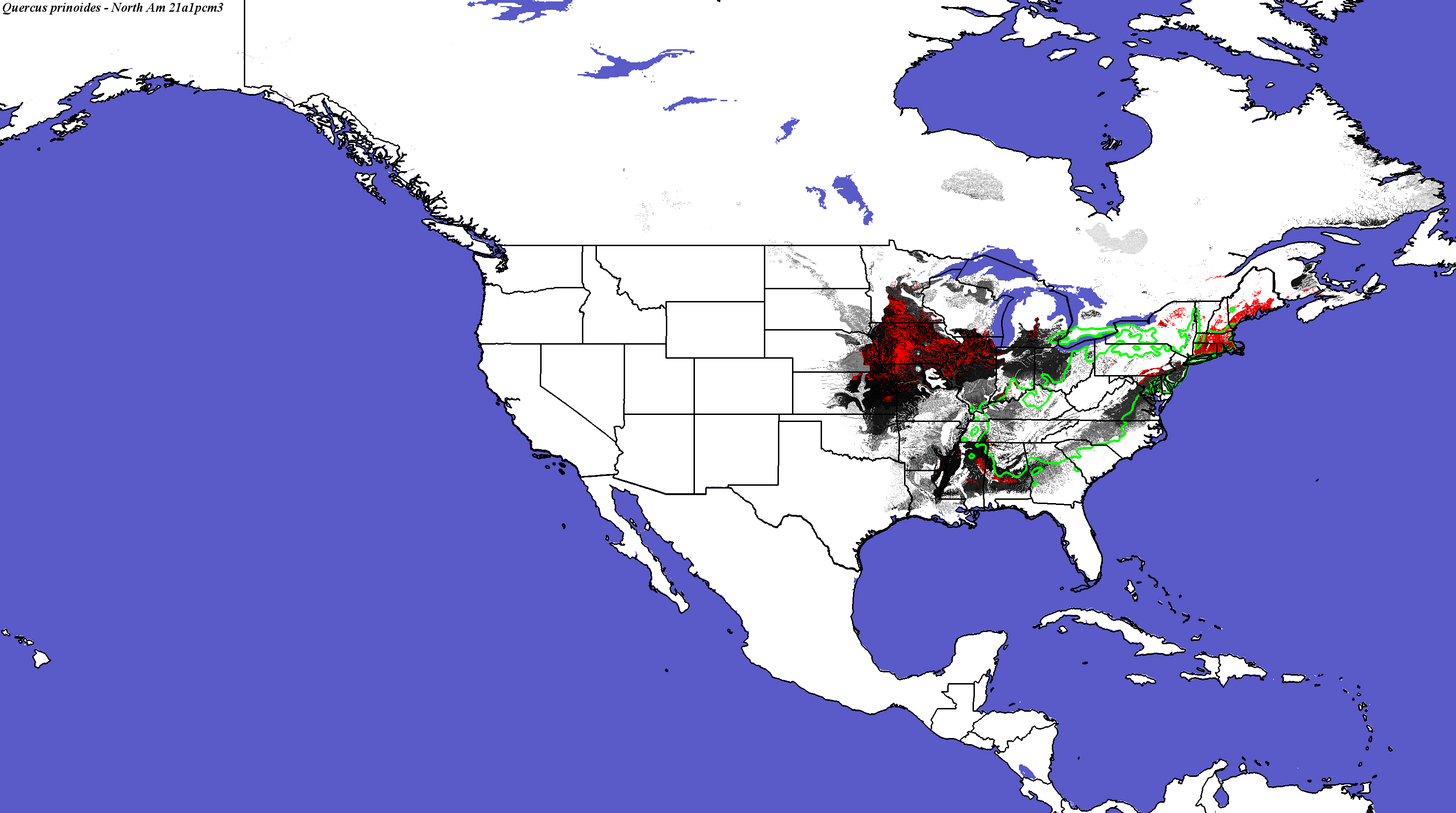

PCM, Scenario A1FI, 2100 - Quercus prinoides - CONUS
Quercus prinoides species not modeled by Iverson and Prasad

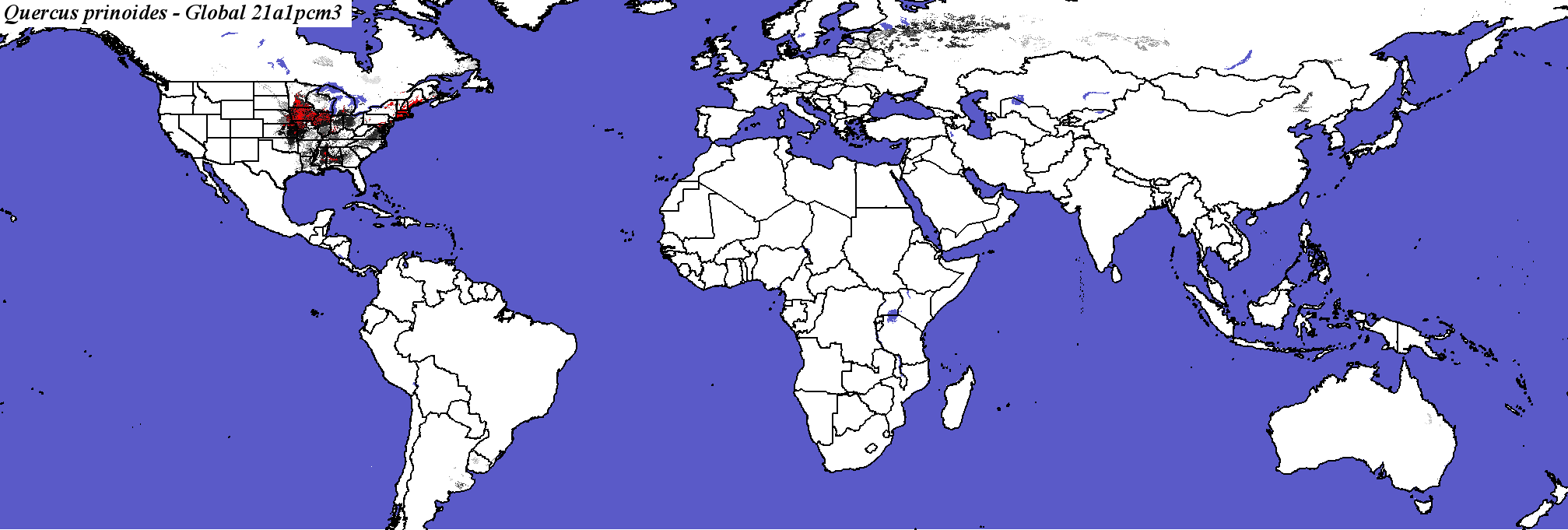

PCM, Scenario A1FI, 2100 - Quercus prinoides - Global

Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global

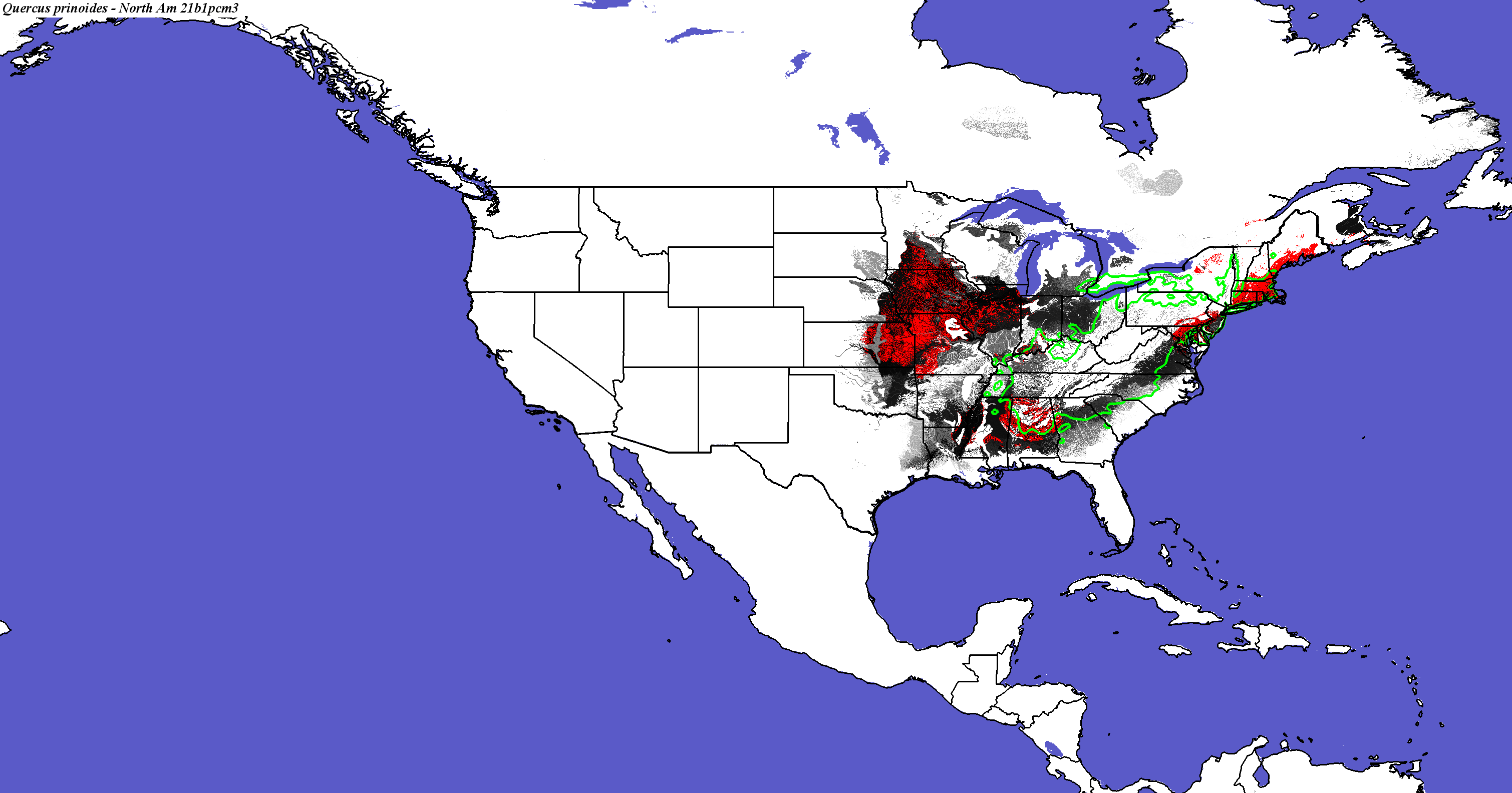

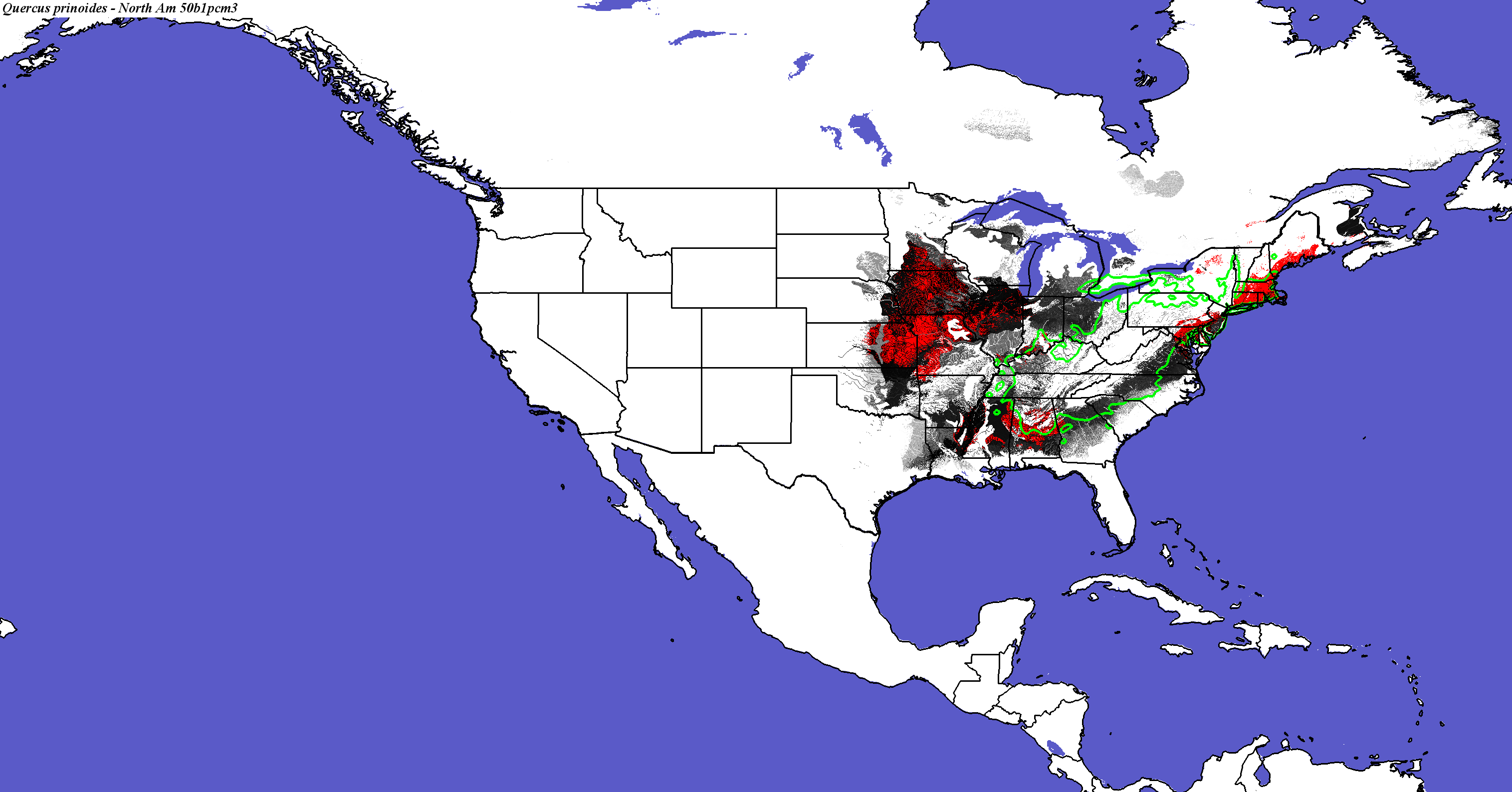

PCM, Scenario B1, 2050 - Quercus prinoides - CONUS
PCM, Scenario B1, 2050 - Quercus prinoides - Global
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global
PCM, Scenario B1, 2100 - Quercus prinoides - CONUS
Quercus prinoides not modeled by Iverson and Prasad

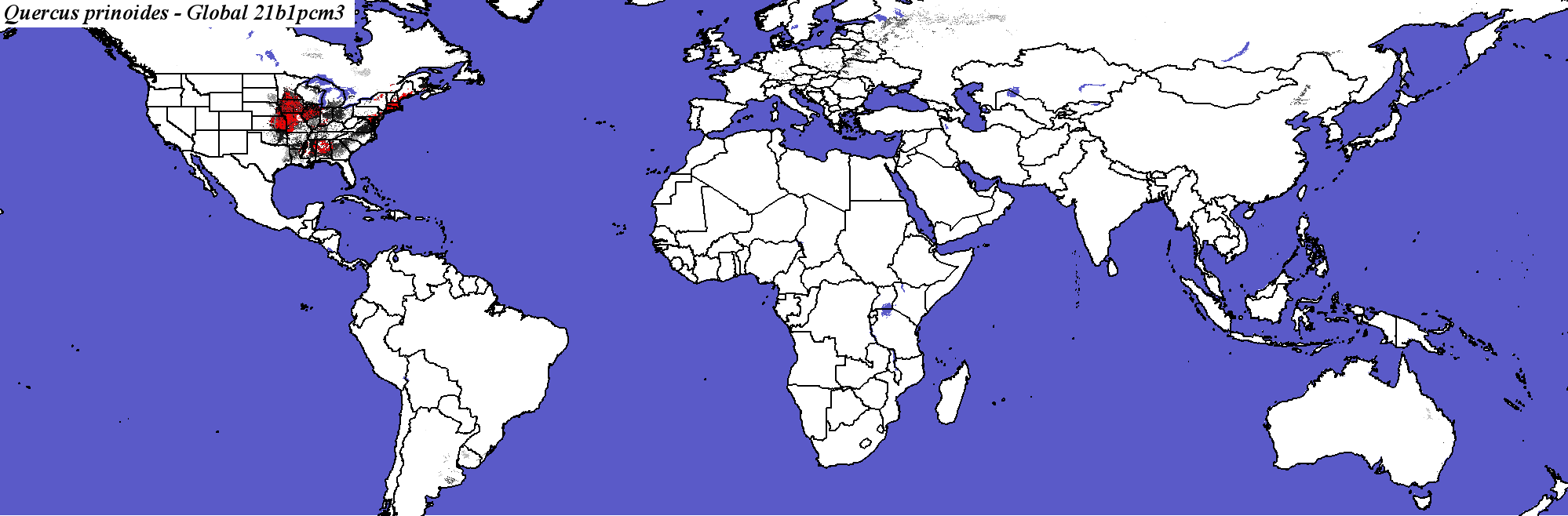

PCM, Scenario B1, 2100 - Quercus prinoides - Global

Hadley Climate Model
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global

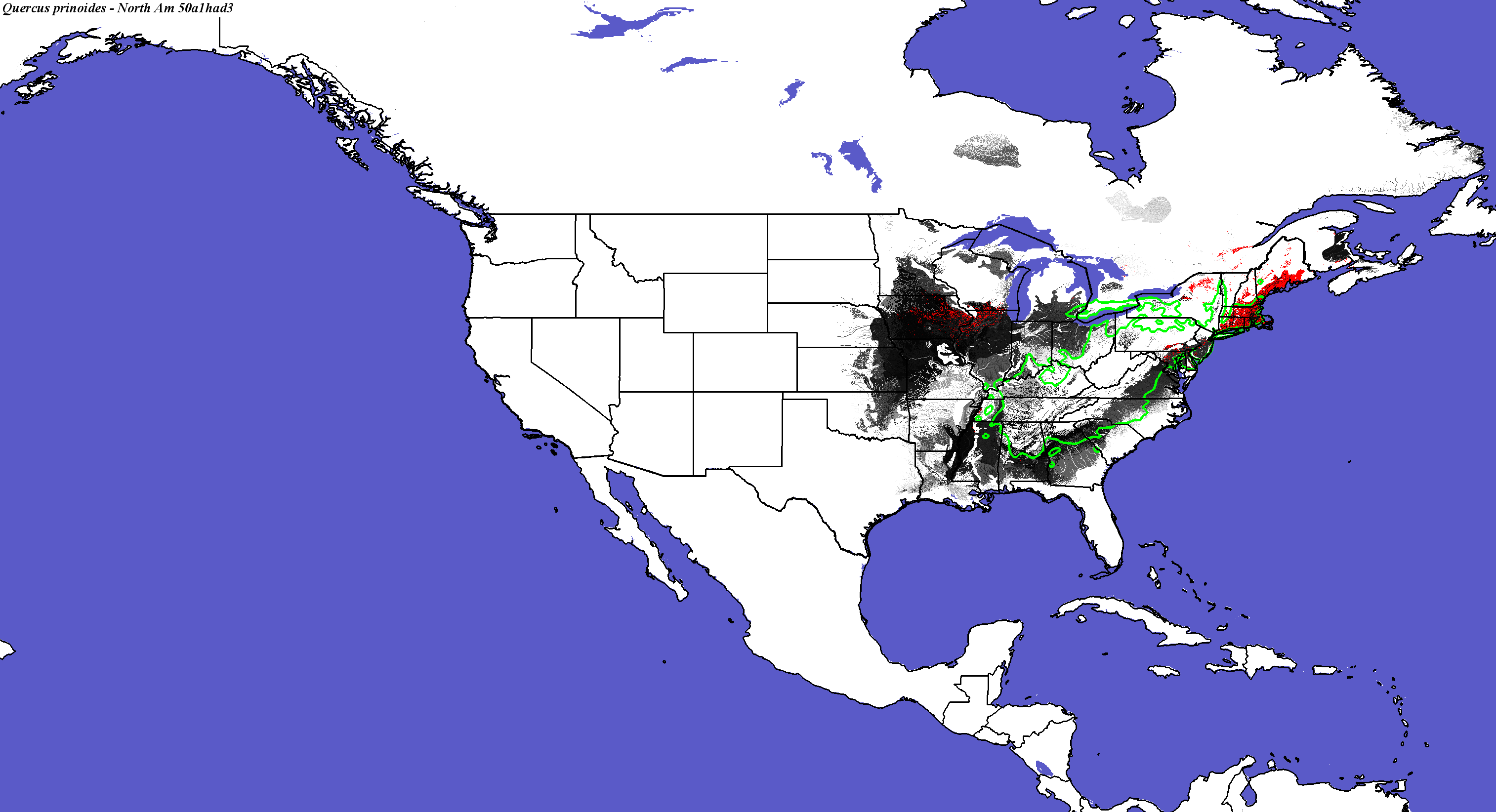

Hadley, Scenario A1FI, 2050 - Quercus prinoides - CONUS
Quercus prinoides not modeled by Crookston and Rehfeldt

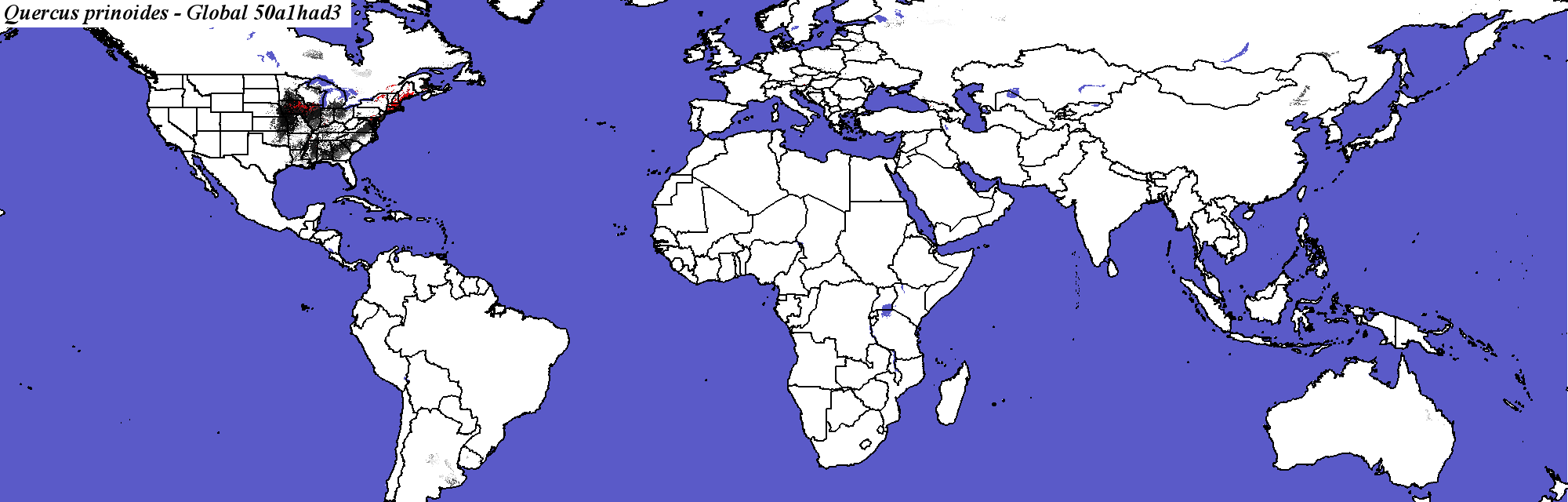

Hadley, Scenario A1FI, 2050 - Quercus prinoides - Global
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global.

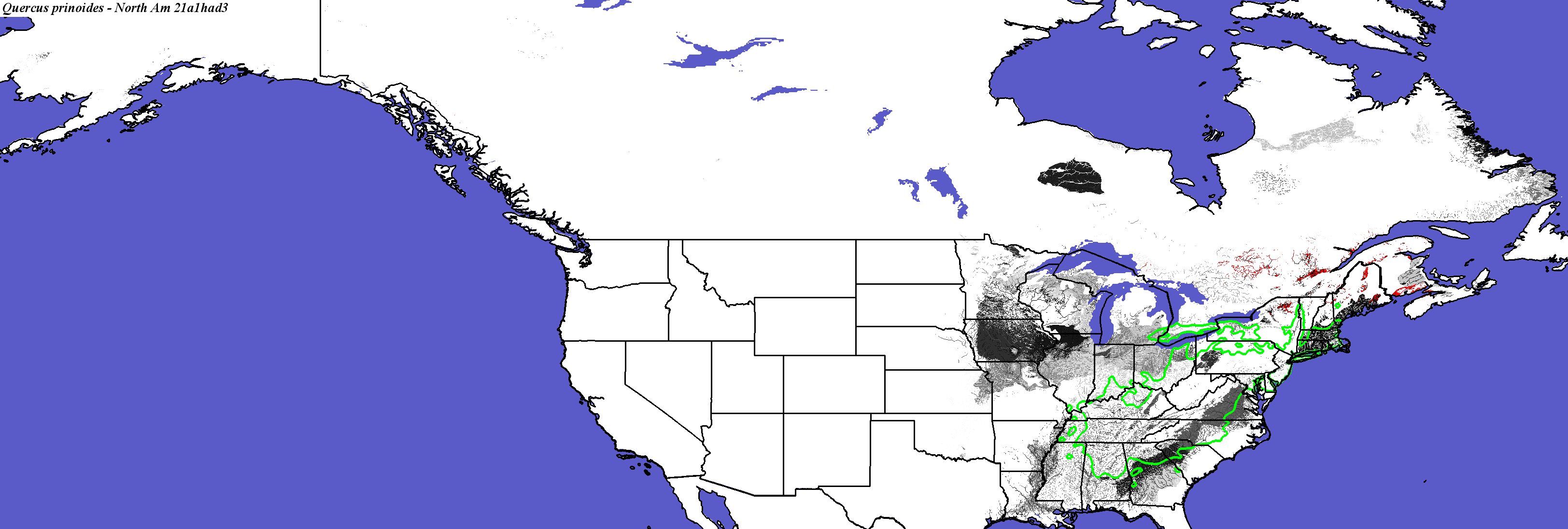

Hadley, Scenario A1FI, 2100 - Quercus prinoides - CONUS
Quercus prinoides not modeled by Iverson and Prasad
Quercus prinoides not modeled by Crookston and Rehfeldt
Quercus prinoides not modeled by Coops and Waring

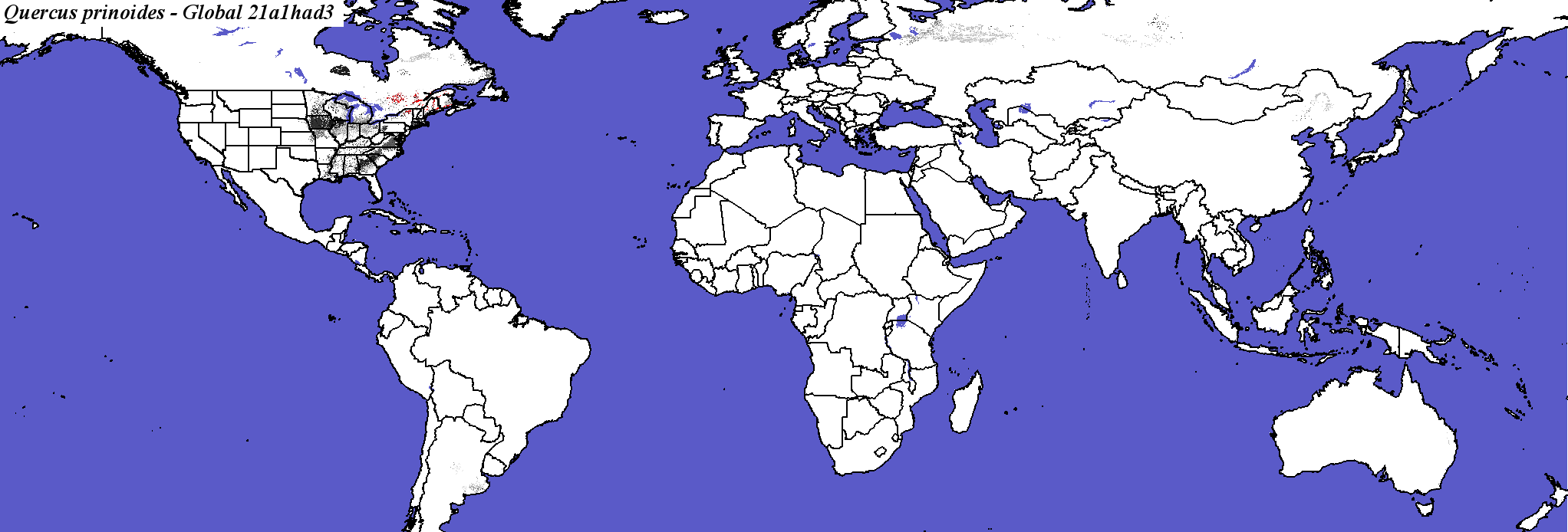

Hadley, Scenario A1FI, 2100 - Quercus prinoides - Global

Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global.

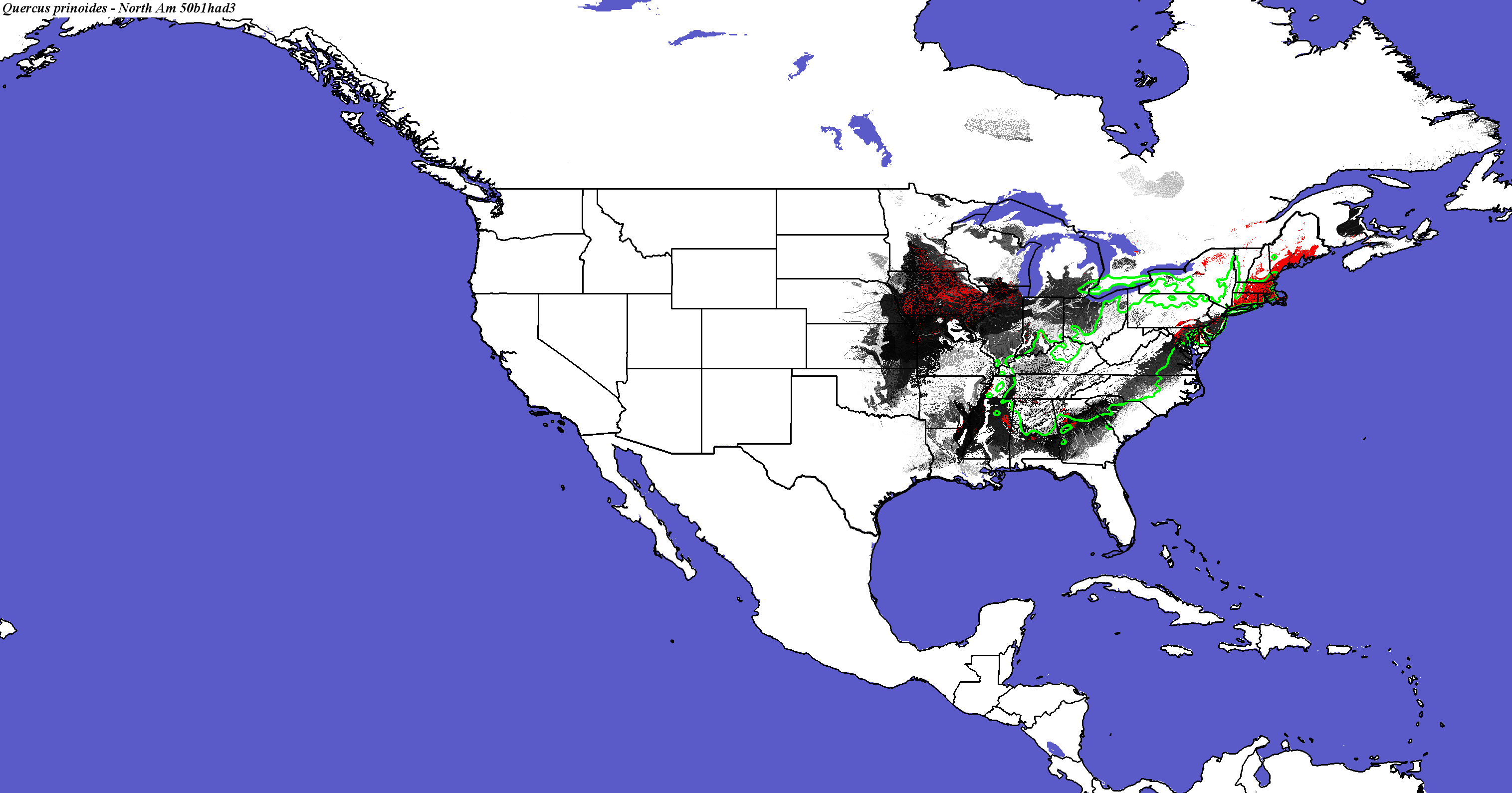

Hadley, Scenario B1, 2050 - Quercus prinoides - CONUS
Quercus prinoides not modeled by Crookston and Rehfeldt
Quercus prinoides not modeled by Coops and Waring

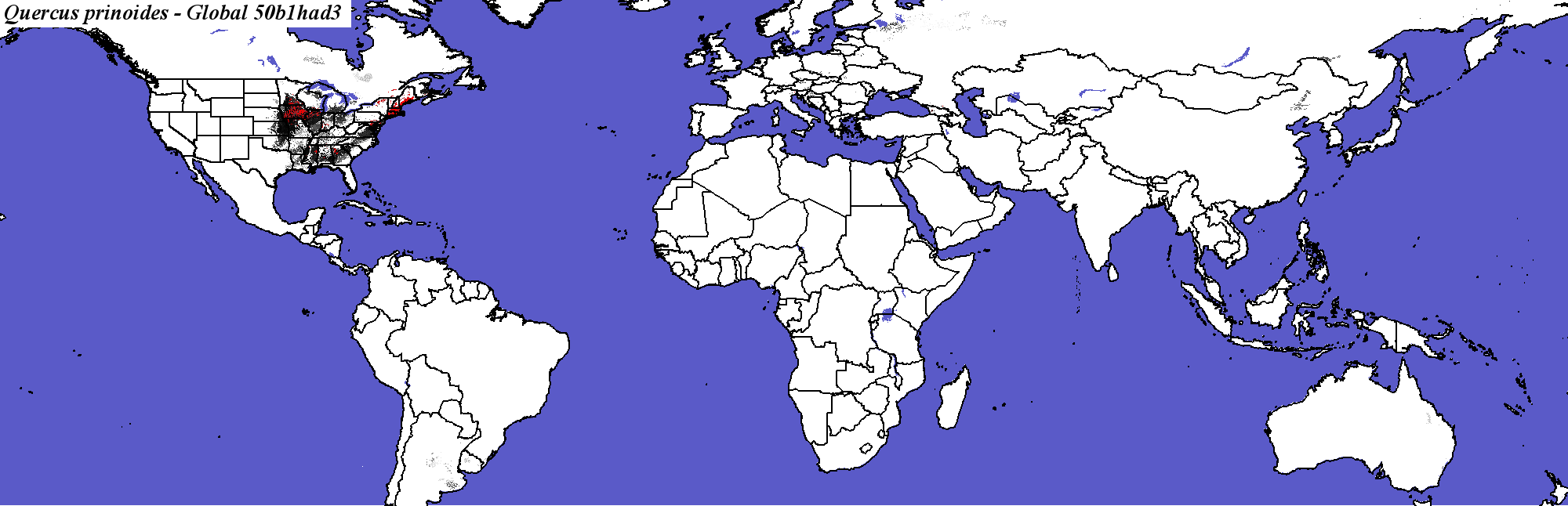

Hadley, Scenario B1, 2050 - Quercus prinoides - Global
Quercus_prinoides_final.2.conus
Quercus_prinoides_final.2.global

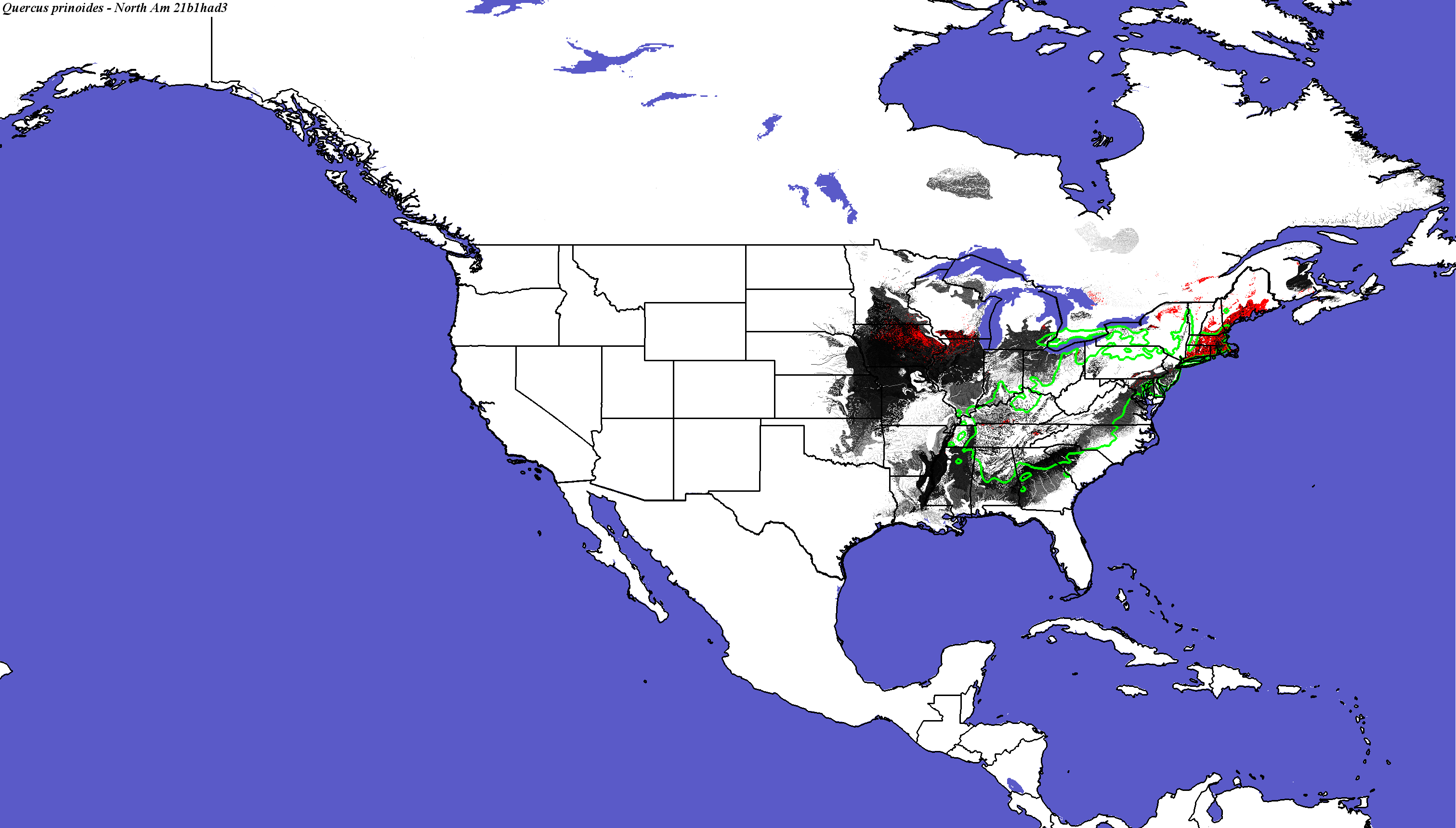

Hadley, Scenario B1, 2100 - Quercus prinoides - CONUS
Quercus prinoides not modeled by Iverson and Prasad
Quercus prinoides not modeled by Crookston and Rehfeldt

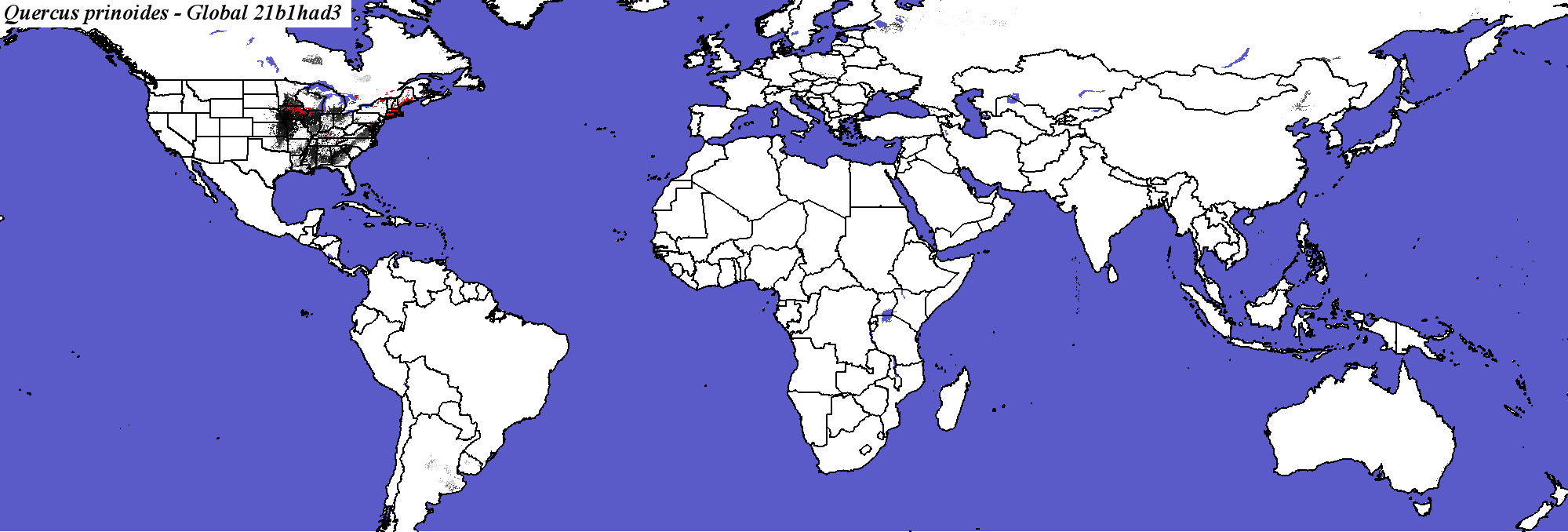

Hadley, Scenario B1, 2100 - Quercus prinoides - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_prinoides_final.elev

Number of Suitable Ecoregions (Niche Breadth)

23

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

56.9863

Area in Present Suitable Range (in km2)

214252

Area in Future Suitable Range (Had B1 2050, in km2)

95295

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

51937

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

24.2400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

90.411

Percent Change in Area of Suitable Range (Had B1 2050)

-55.5200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.5342

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

75287.4 +/- 81351.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

2.60274

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

34.1598 +/- 37.8199

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

2.05479

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

160.654 +/- 550.518

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

34.7945

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

7616

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.5500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

33.9726

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

25925

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.1000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

89.0411

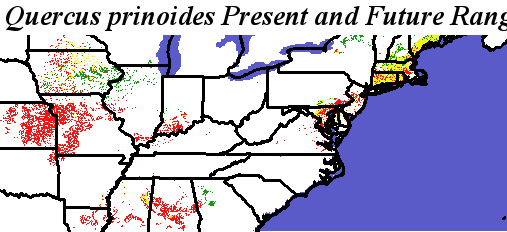

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus prinoides Quercus prinoides - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

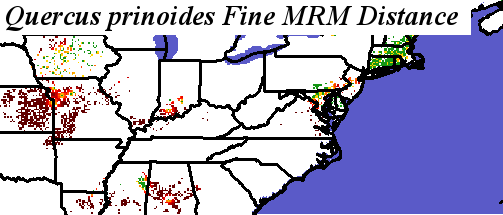

Quercus_prinoides_final.elev Fine MRM Distance

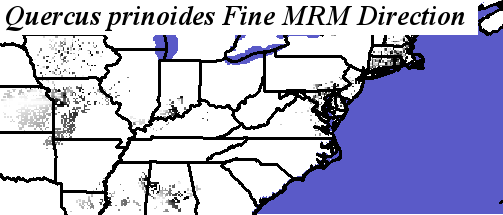

Quercus_prinoides_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus prinoides Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus prinoides
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

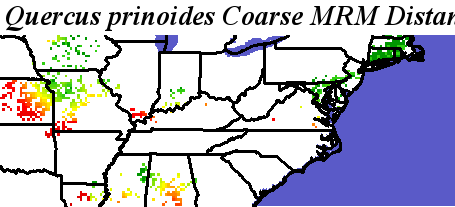

Quercus_prinoides_final.elev Coarse MRM Distance

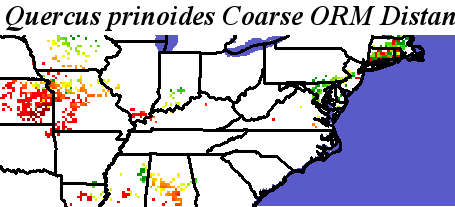

Quercus_prinoides_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus prinoides Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus prinoides
