Version 5 Tree Atlas


Quercus rugosa

netleaf oak

elev

Quercus rugosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus rugosa

USDA Plants Database entry for Quercus rugosa
Silvics Manual entry for Quercus rugosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
19395414range mostly well-represented; some disjuncts missing

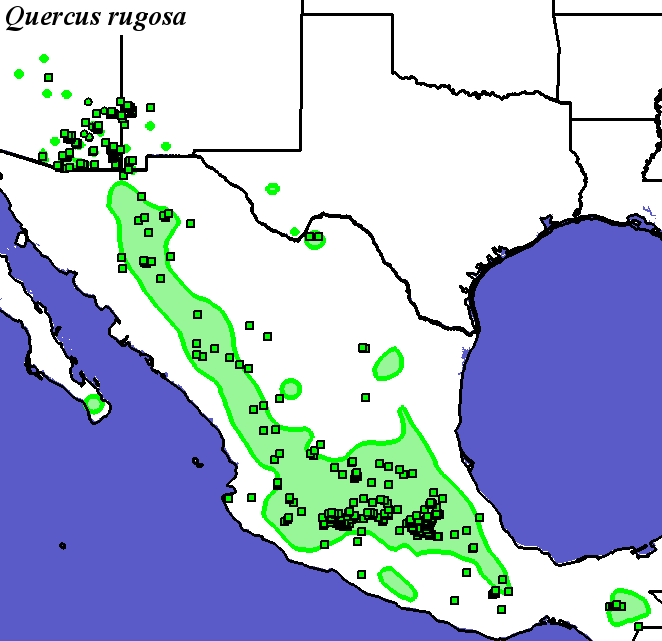

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_rugosa_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_rugosa_final
Quercus rugosa - Occurrence Locations Quercus rugosa - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

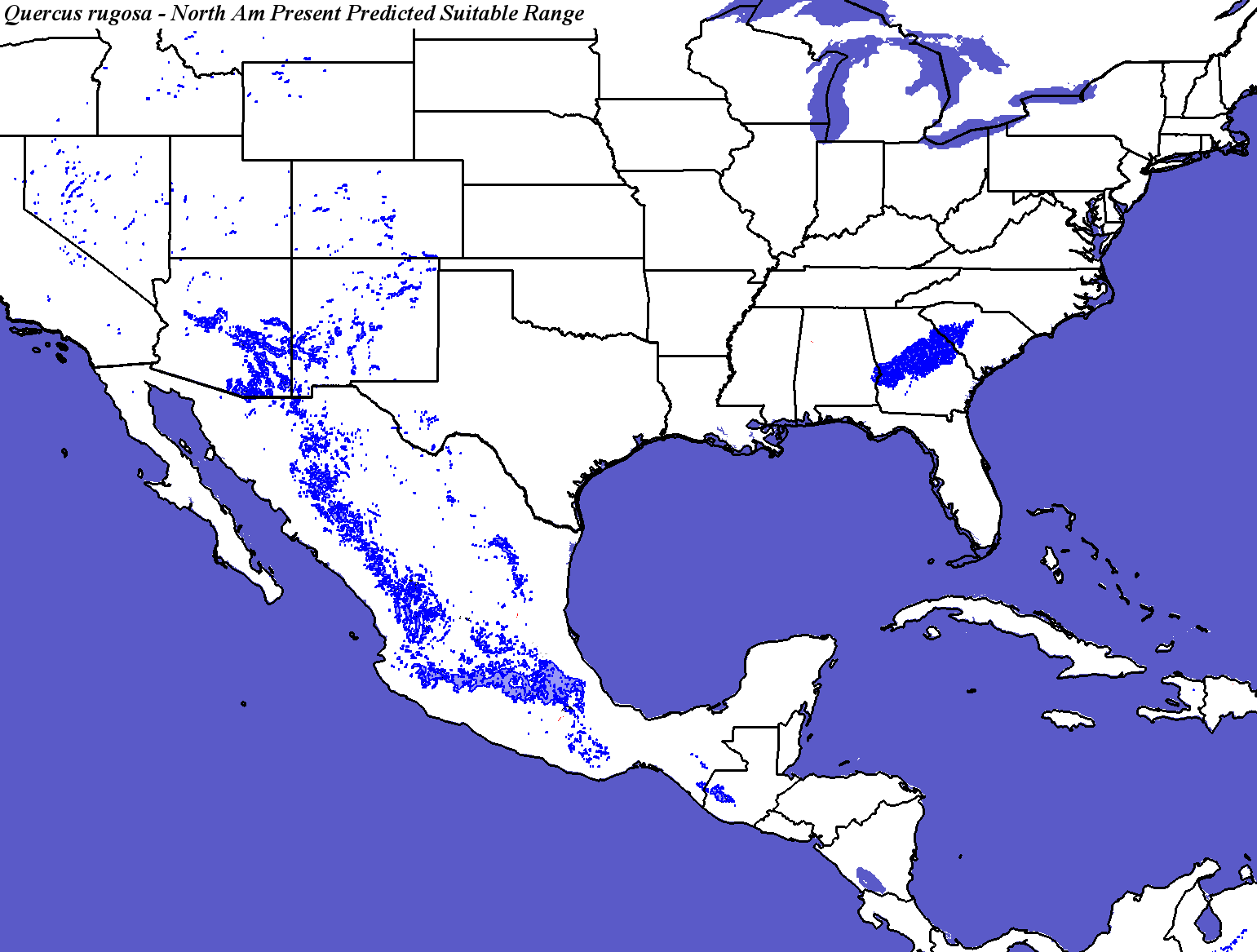

Quercus rugosa - CONUS
Compare with Current Range from the Silvics Manual for Quercus rugosa
Compare with Current Range from Biota of North America Program (BONAP) for Quercus rugosa

Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring

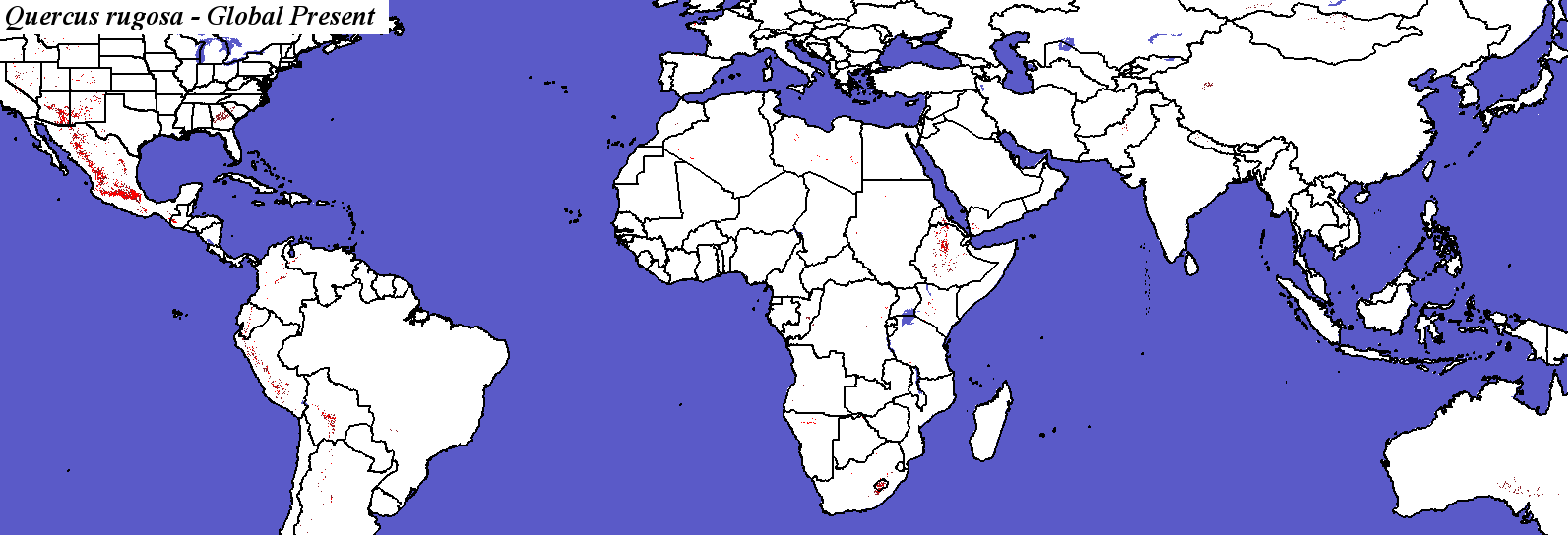

Quercus rugosa - Global

PCM - Parallel Climate Model
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
PCM, Scenario A1FI, 2050 - Quercus rugosa - CONUS
PCM, Scenario A1FI, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
PCM, Scenario A1FI, 2100 - Quercus rugosa - CONUS
Quercus rugosa species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus rugosa - Global

Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
PCM, Scenario B1, 2050 - Quercus rugosa - CONUS
PCM, Scenario B1, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
PCM, Scenario B1, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus rugosa - Global

Hadley Climate Model
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus rugosa - Global

Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global.

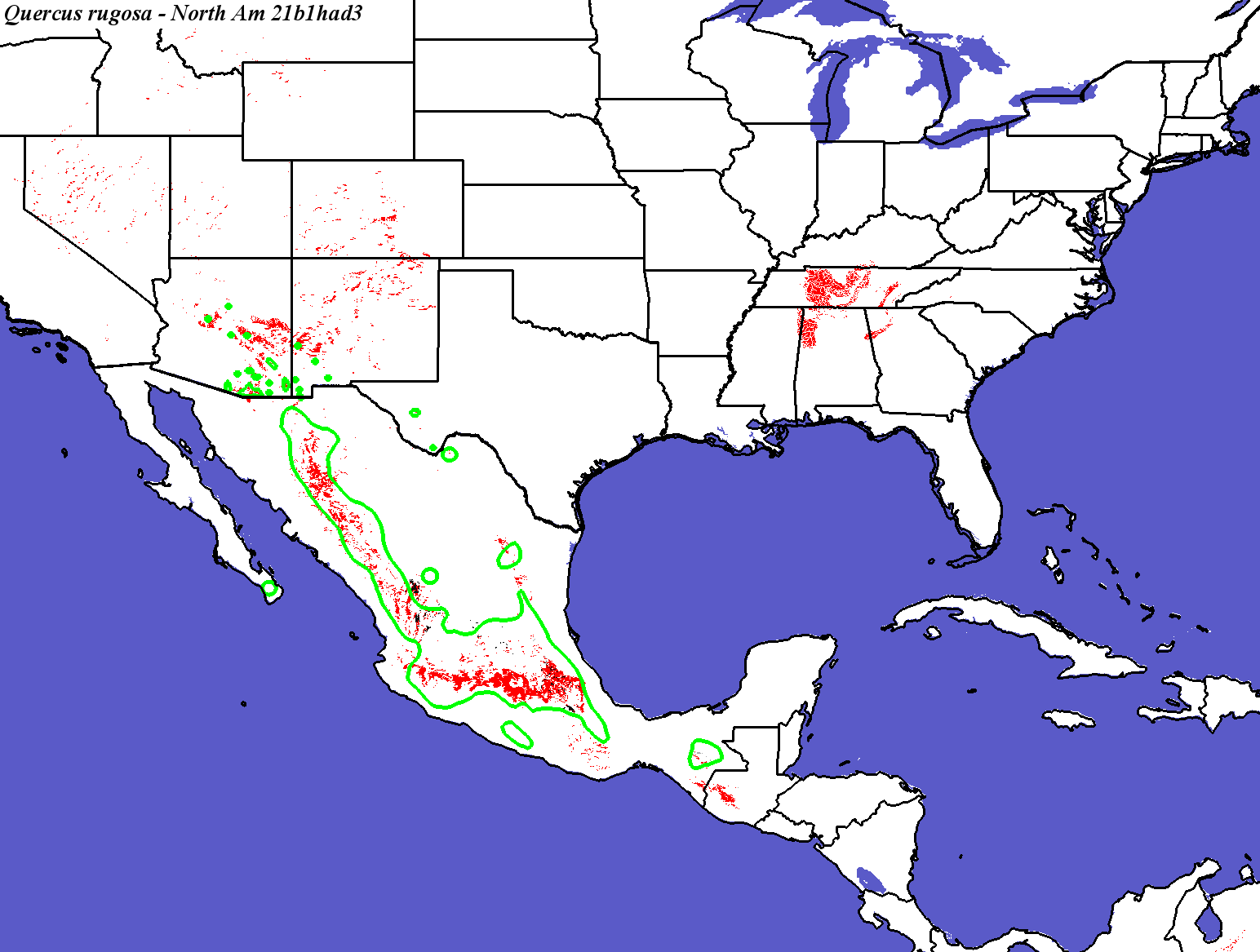

Hadley, Scenario B1, 2050 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Crookston and Rehfeldt
Quercus rugosa not modeled by Coops and Waring

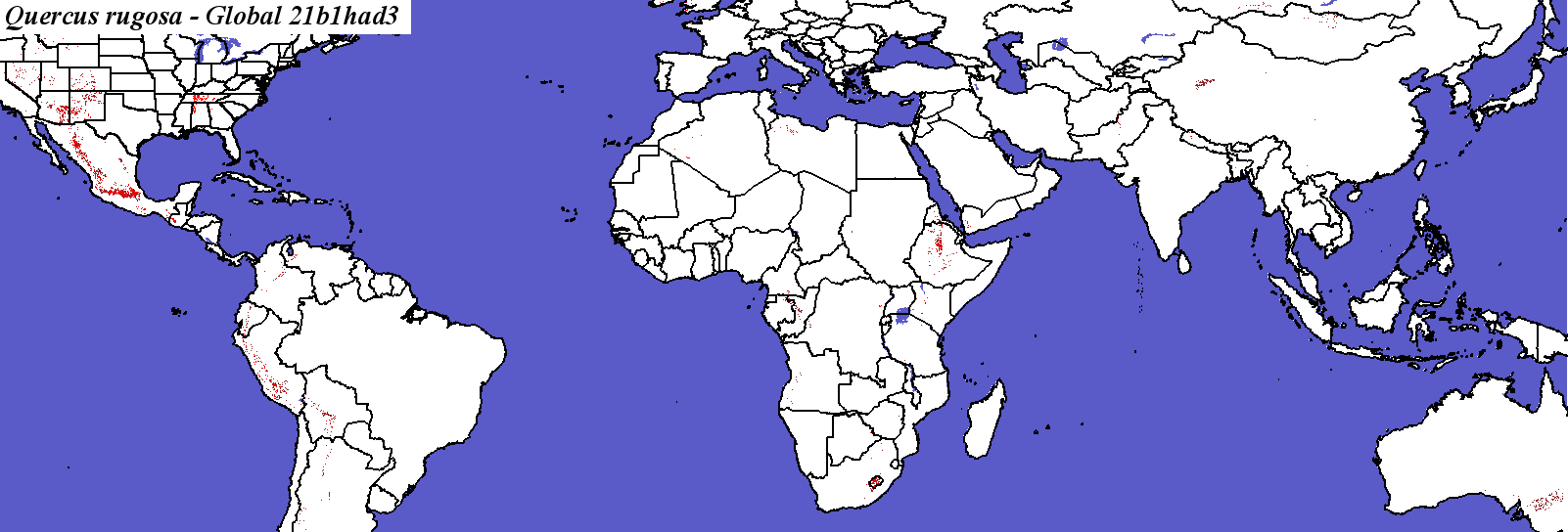

Hadley, Scenario B1, 2050 - Quercus rugosa - Global
Quercus_rugosa_final.3.conus
Quercus_rugosa_final.3.global

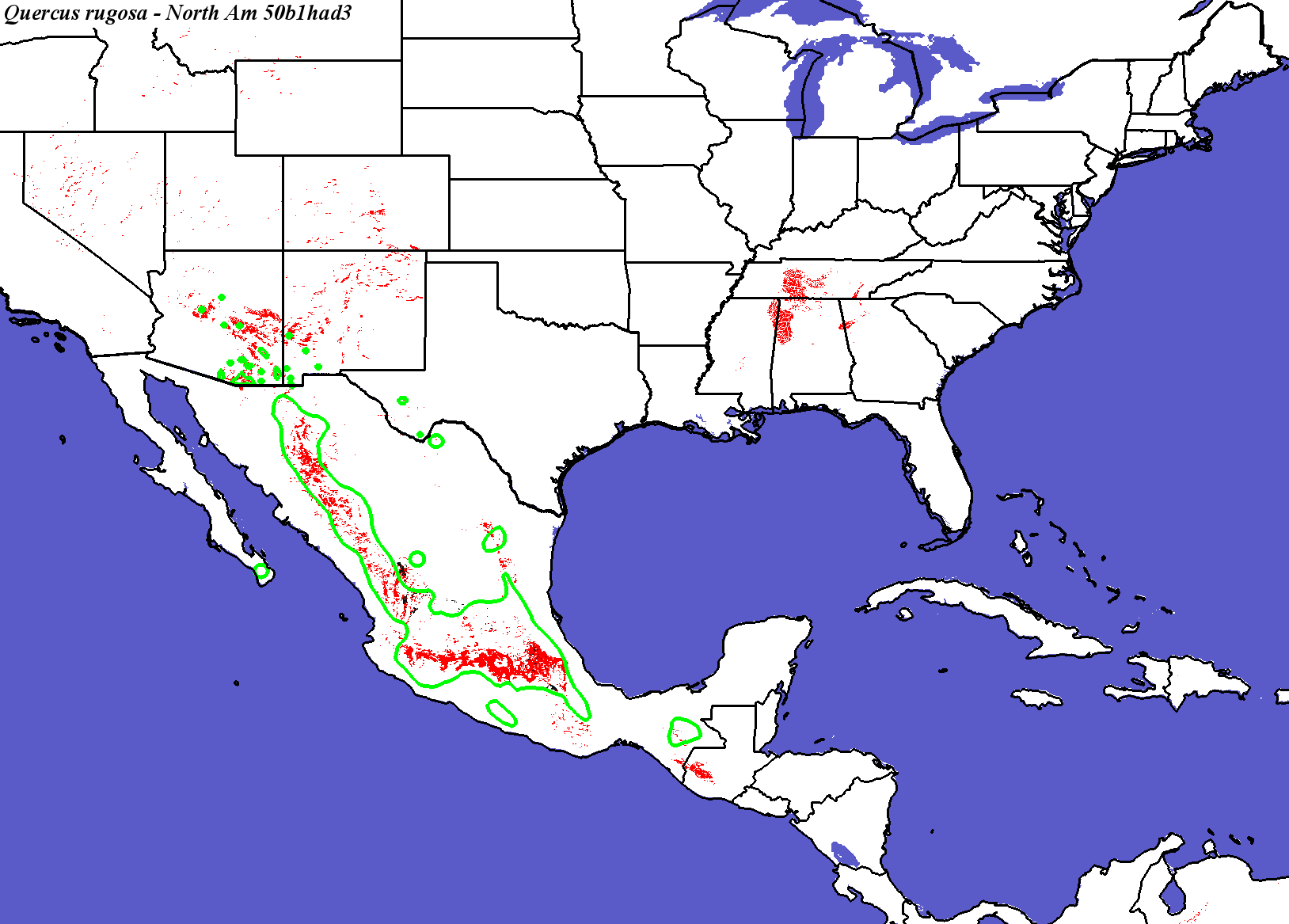

Hadley, Scenario B1, 2100 - Quercus rugosa - CONUS
Quercus rugosa not modeled by Iverson and Prasad
Quercus rugosa not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus rugosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_rugosa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

50

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

38.3562

Area in Present Suitable Range (in km2)

229807

Area in Future Suitable Range (Had B1 2050, in km2)

198347

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

154066

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

67.0400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

12.8767

Percent Change in Area of Suitable Range (Had B1 2050)

-13.6800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

22.3288

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7115.99 +/- 18187.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

80.137

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.13992 +/- 8.92543

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

73.4247

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

44.6826 +/- 293.332

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

60

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1493

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.6400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

54.5205

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

79967

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

34.7900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

32.1918

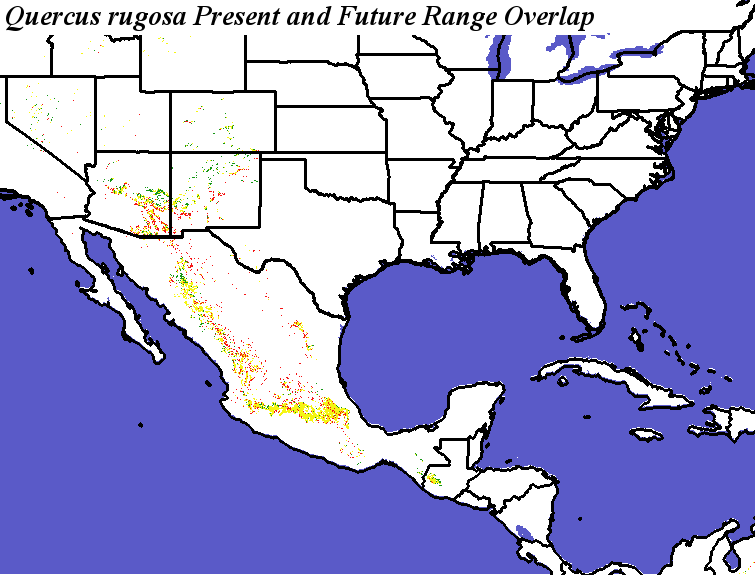

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus rugosa Quercus rugosa - Range Change Statistics

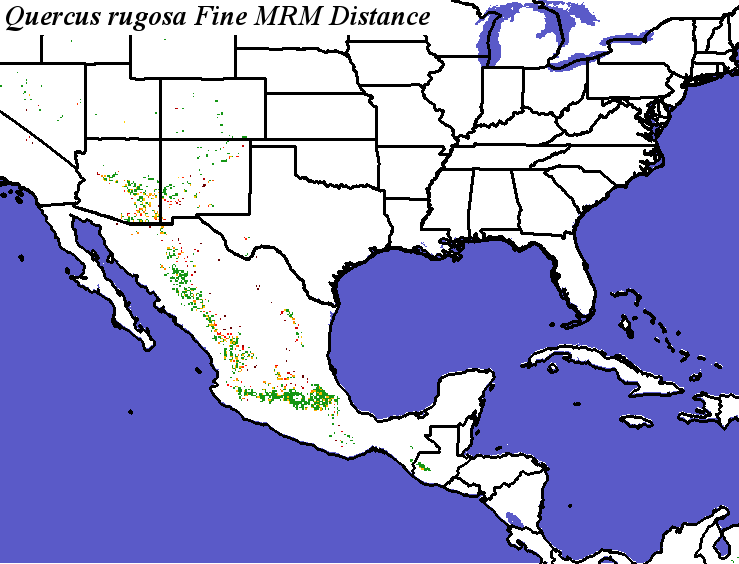

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_rugosa_final.elev Fine MRM Distance
Quercus_rugosa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus rugosa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_rugosa_final.elev Coarse MRM Distance
Quercus_rugosa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus rugosa
