Version 5 Tree Atlas


Quercus shumardii

Shumard oak

elev

Quercus shumardii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus shumardii

USDA Plants Database entry for Quercus shumardii
Silvics Manual entry for Quercus shumardii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus shumardii var. stenocarpa442106548TBD

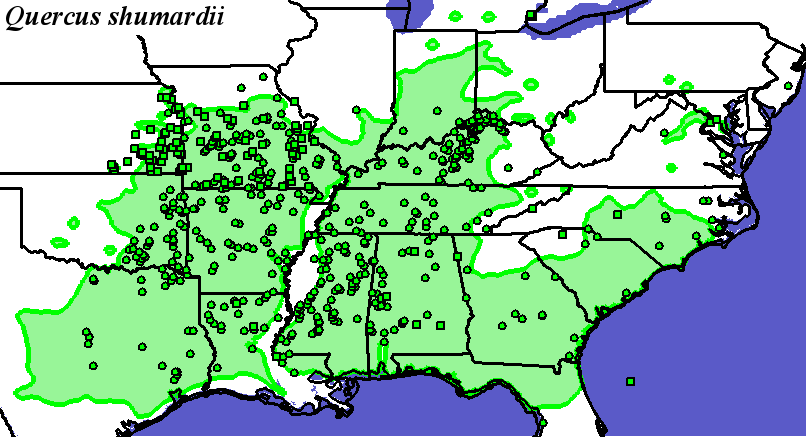

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_shumardii_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_shumardii_final
Quercus shumardii - Occurrence Locations Quercus shumardii - Hargrove's Present Suitable Range Outline

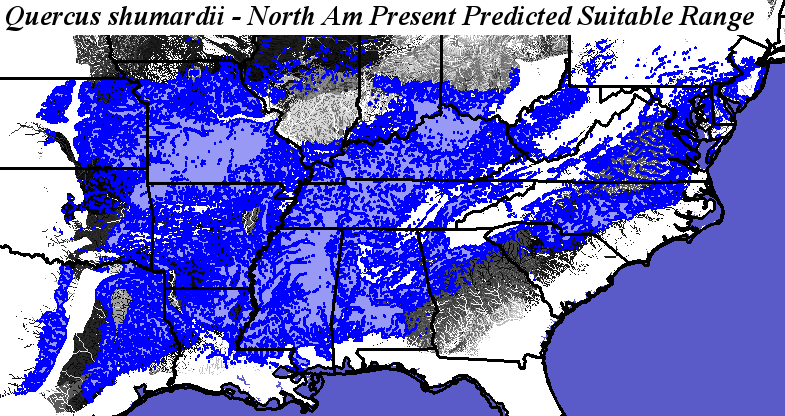

Present Conditions
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global

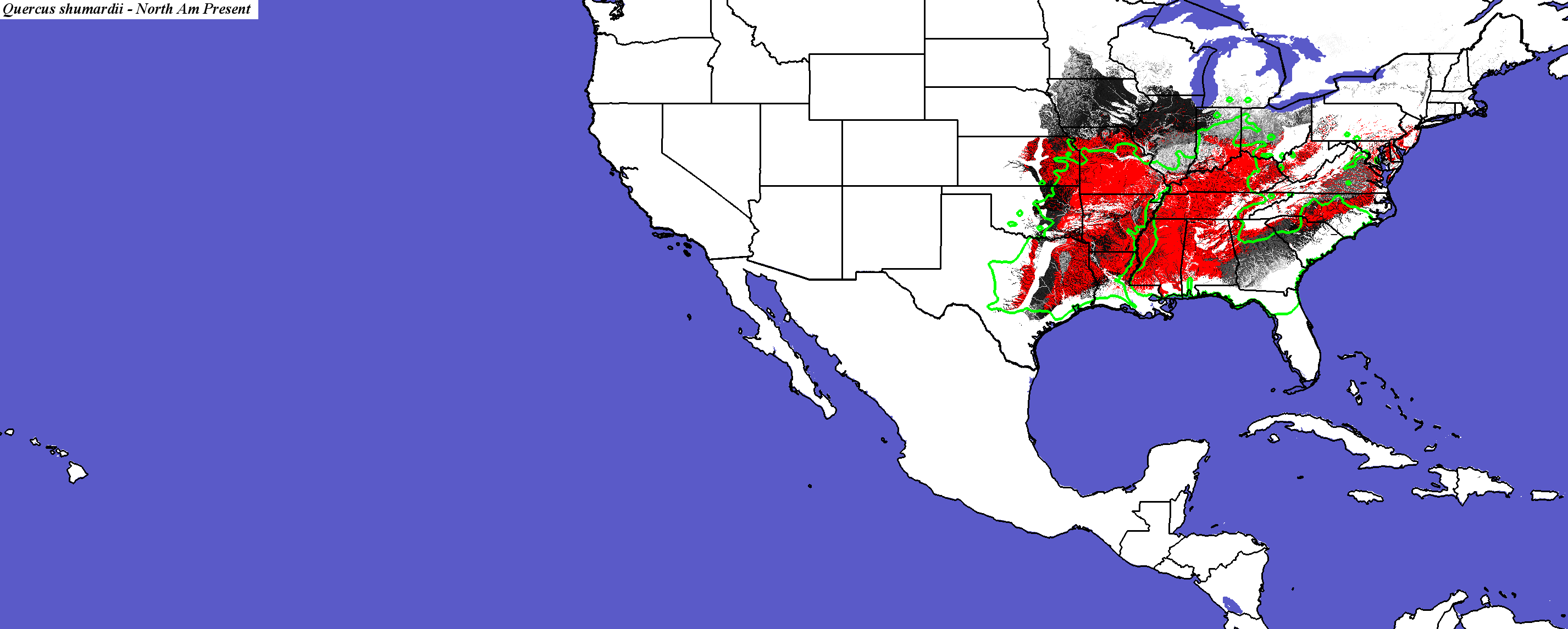

Quercus shumardii - CONUS
Compare with Current Range from the Silvics Manual for Quercus shumardii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus shumardii

Compare with Quercus shumardii modeled for Current conditions by Iverson and Prasad
Quercus shumardii not modeled by Crookston and Rehfeldt
Quercus shumardii not modeled by Coops and Waring

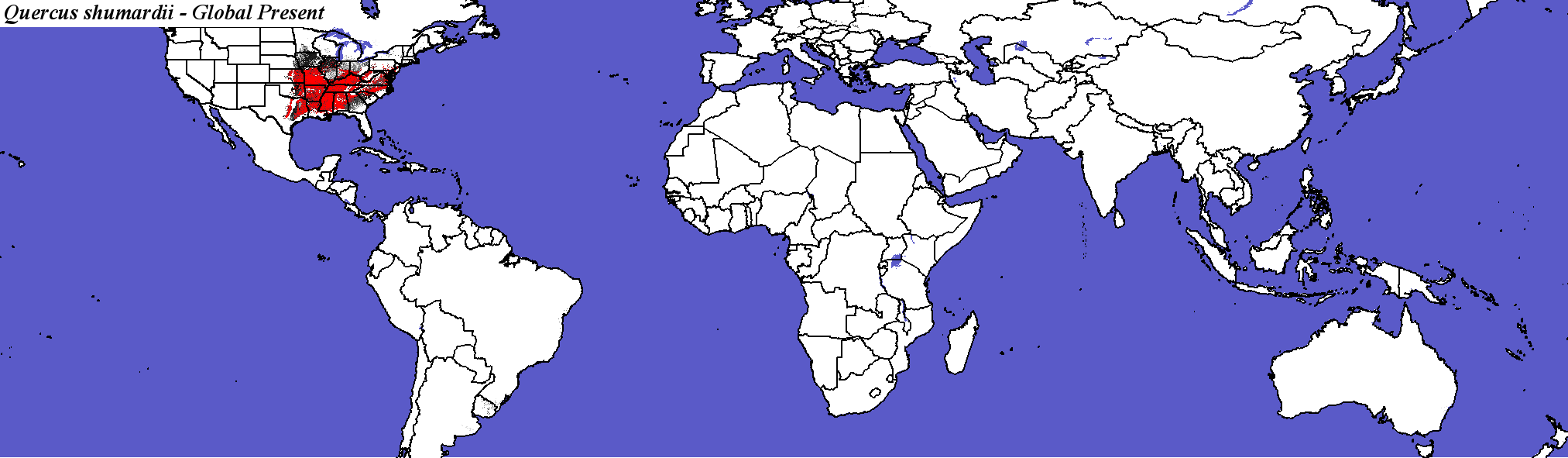

Quercus shumardii - Global

PCM - Parallel Climate Model
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
PCM, Scenario A1FI, 2050 - Quercus shumardii - CONUS
PCM, Scenario A1FI, 2050 - Quercus shumardii - Global
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
PCM, Scenario A1FI, 2100 - Quercus shumardii - CONUS
Compare with Quercus shumardii modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus shumardii - Global

Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
PCM, Scenario B1, 2050 - Quercus shumardii - CONUS
PCM, Scenario B1, 2050 - Quercus shumardii - Global
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
PCM, Scenario B1, 2100 - Quercus shumardii - CONUS
Compare with Quercus shumardii modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus shumardii - Global

Hadley Climate Model
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus shumardii - CONUS
Quercus shumardii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus shumardii - Global
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global.

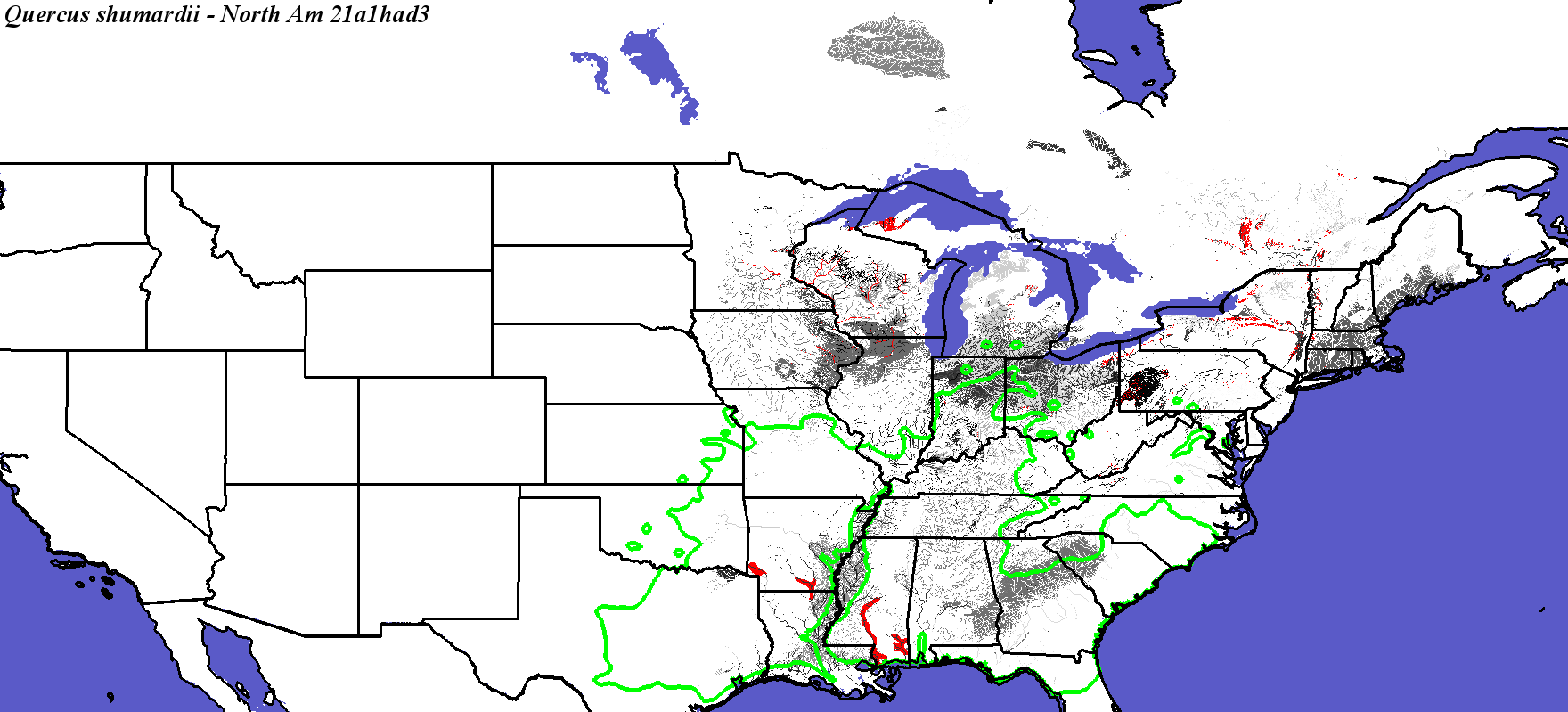

Hadley, Scenario A1FI, 2100 - Quercus shumardii - CONUS
Compare with Quercus shumardii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus shumardii not modeled by Crookston and Rehfeldt
Quercus shumardii not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus shumardii - Global

Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global.
Hadley, Scenario B1, 2050 - Quercus shumardii - CONUS
Quercus shumardii not modeled by Crookston and Rehfeldt
Quercus shumardii not modeled by Coops and Waring

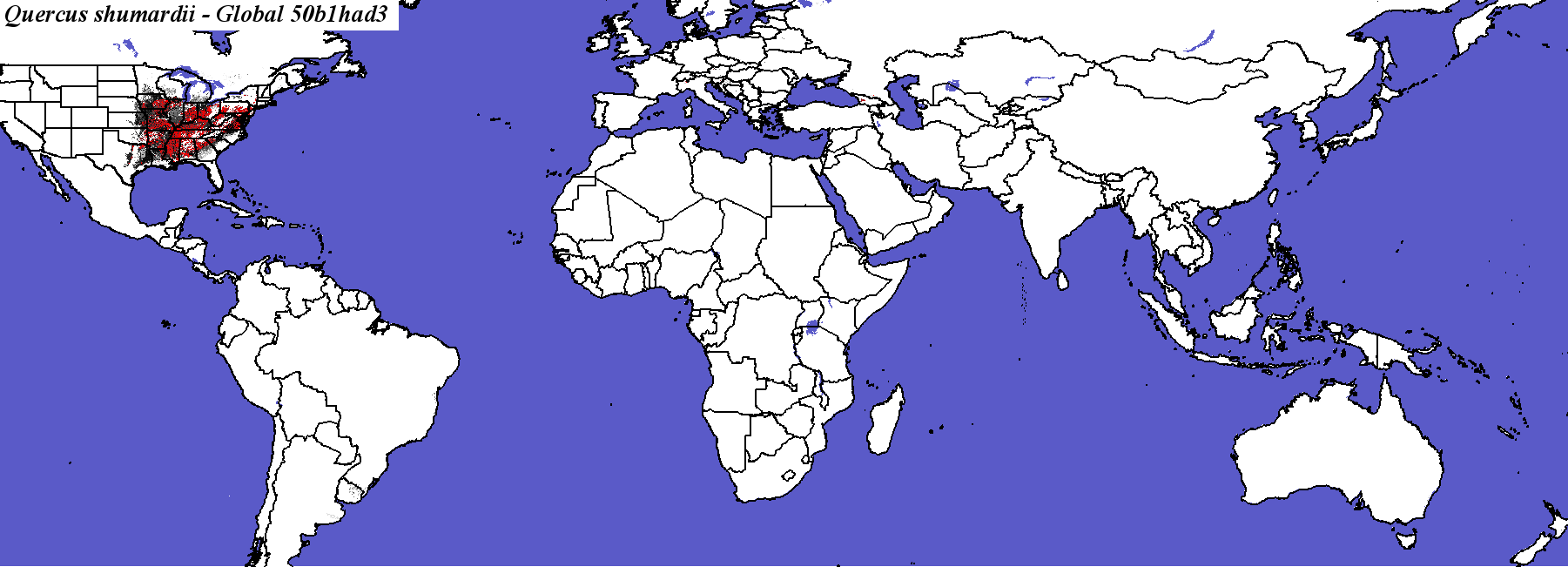

Hadley, Scenario B1, 2050 - Quercus shumardii - Global
Quercus_shumardii_final.3.conus
Quercus_shumardii_final.3.global
Hadley, Scenario B1, 2100 - Quercus shumardii - CONUS
Compare with Quercus shumardii modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus shumardii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus shumardii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_shumardii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

70

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

30.274

Area in Present Suitable Range (in km2)

813725

Area in Future Suitable Range (Had B1 2050, in km2)

333745

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

198304

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

24.3600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

90.274

Percent Change in Area of Suitable Range (Had B1 2050)

-58.9800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

90.274

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

23808.1 +/- 35004.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

29.863

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

11.1932 +/- 17.5608

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

27.6712

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

246.127 +/- 740.557

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

20.6849

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

54659

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.7100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

17.2603

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

100987

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.4100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

88.2192

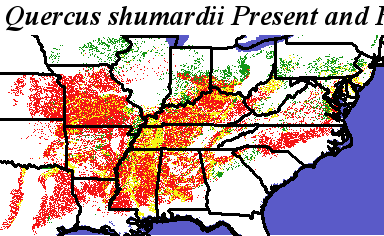

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus shumardii Quercus shumardii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_shumardii_final.elev Fine MRM Distance

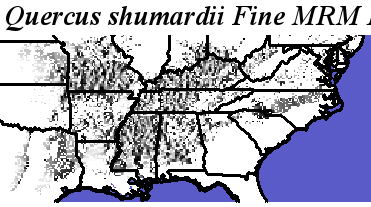

Quercus_shumardii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus shumardii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus shumardii

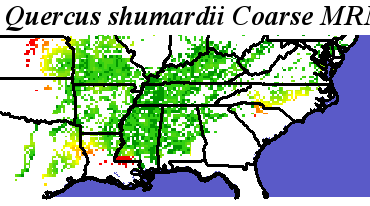

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_shumardii_final.elev Coarse MRM Distance

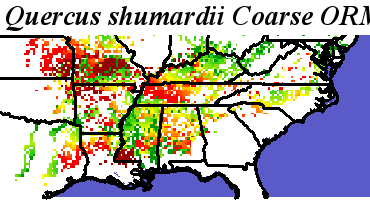

Quercus_shumardii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus shumardii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus shumardii
