Version 5 Tree Atlas


Quercus similis

Delta post oak

elev

Quercus similis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus similis

USDA Plants Database entry for Quercus similis
Silvics Manual entry for Quercus similis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus stellata var. paludosa25025downloaded occurrence search is text file not excel file

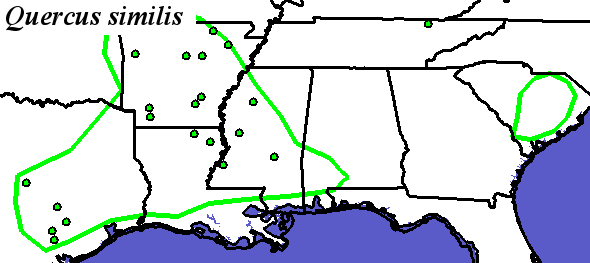

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_similis_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_similis_final

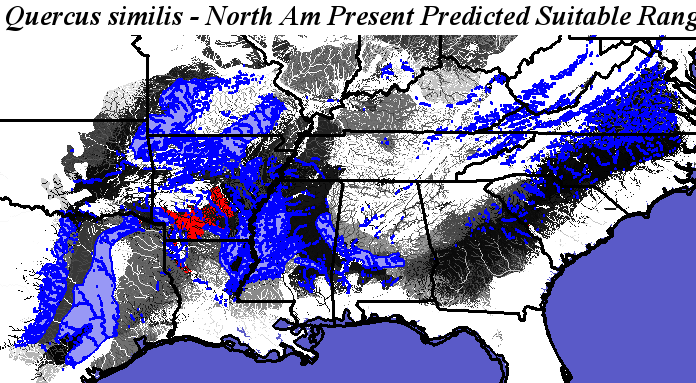

Quercus similis - Occurrence Locations Quercus similis - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

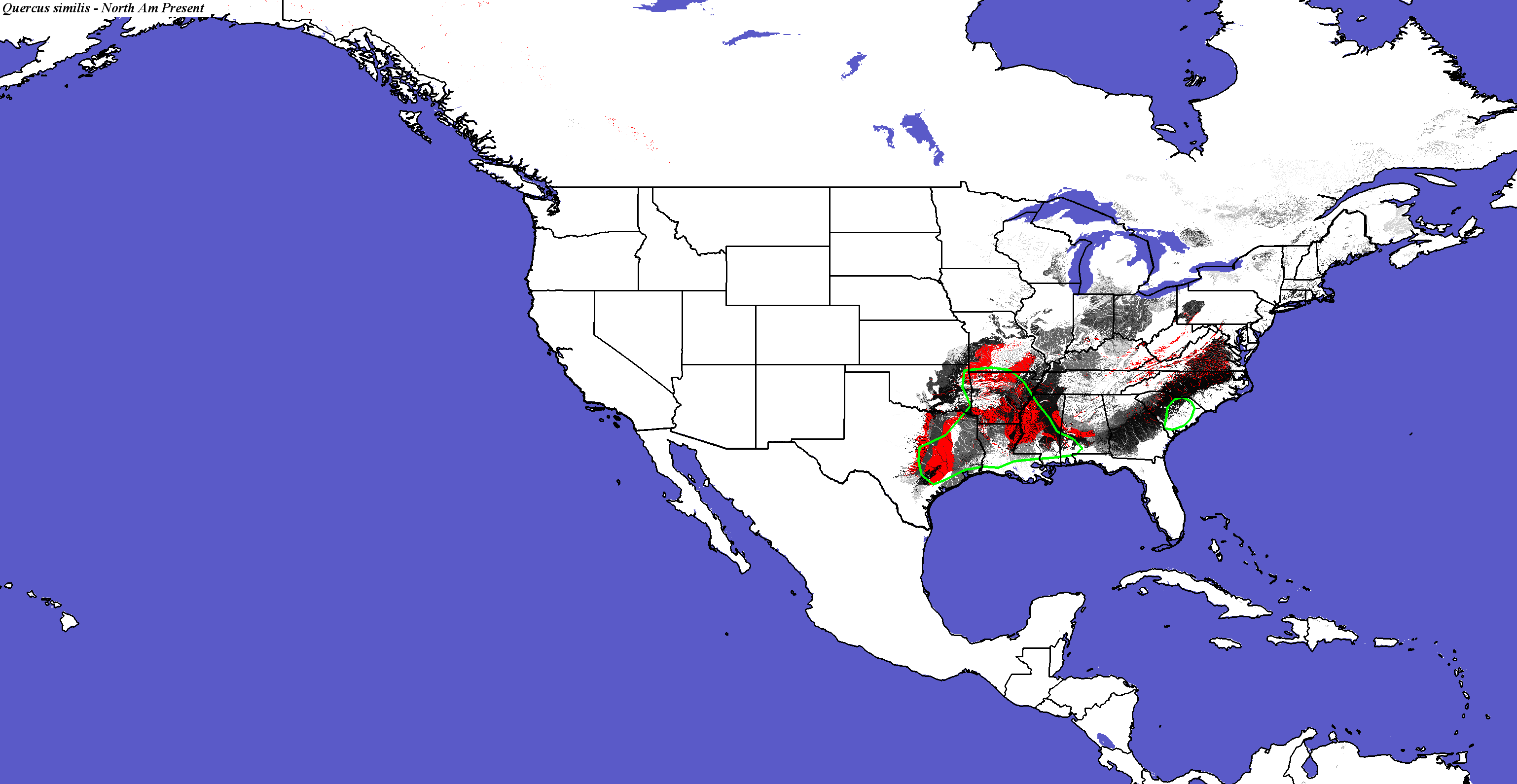

Quercus similis - CONUS
Compare with Current Range from the Silvics Manual for Quercus similis
Compare with Current Range from Biota of North America Program (BONAP) for Quercus similis

Quercus similis not modeled by Iverson and Prasad
Quercus similis not modeled by Crookston and Rehfeldt
Quercus similis not modeled by Coops and Waring

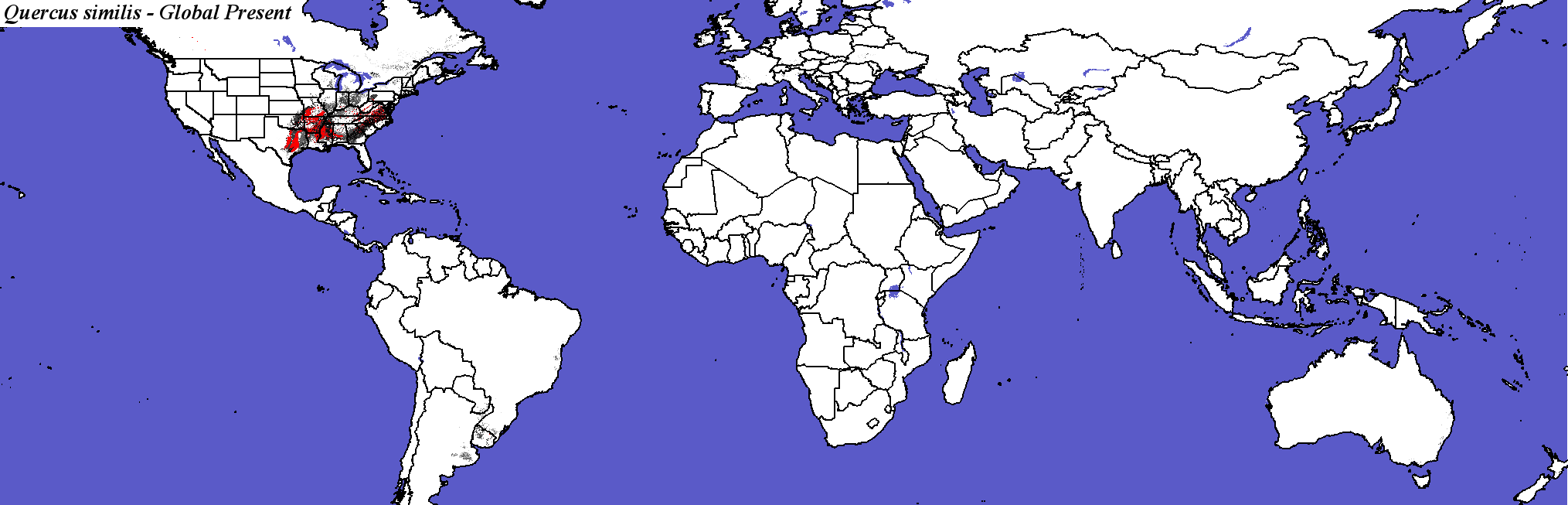

Quercus similis - Global

PCM - Parallel Climate Model
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

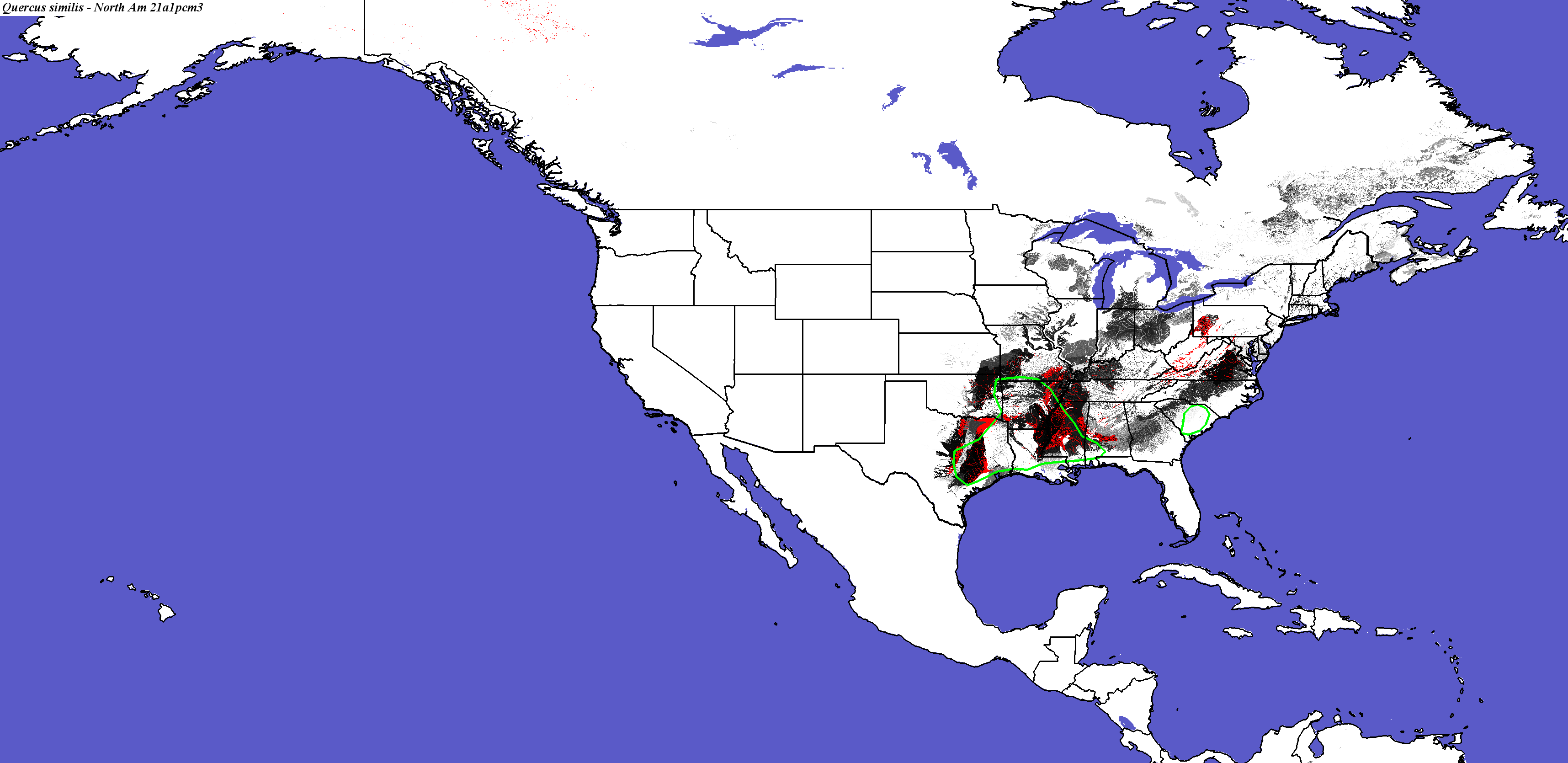

PCM, Scenario A1FI, 2050 - Quercus similis - CONUS
PCM, Scenario A1FI, 2050 - Quercus similis - Global
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

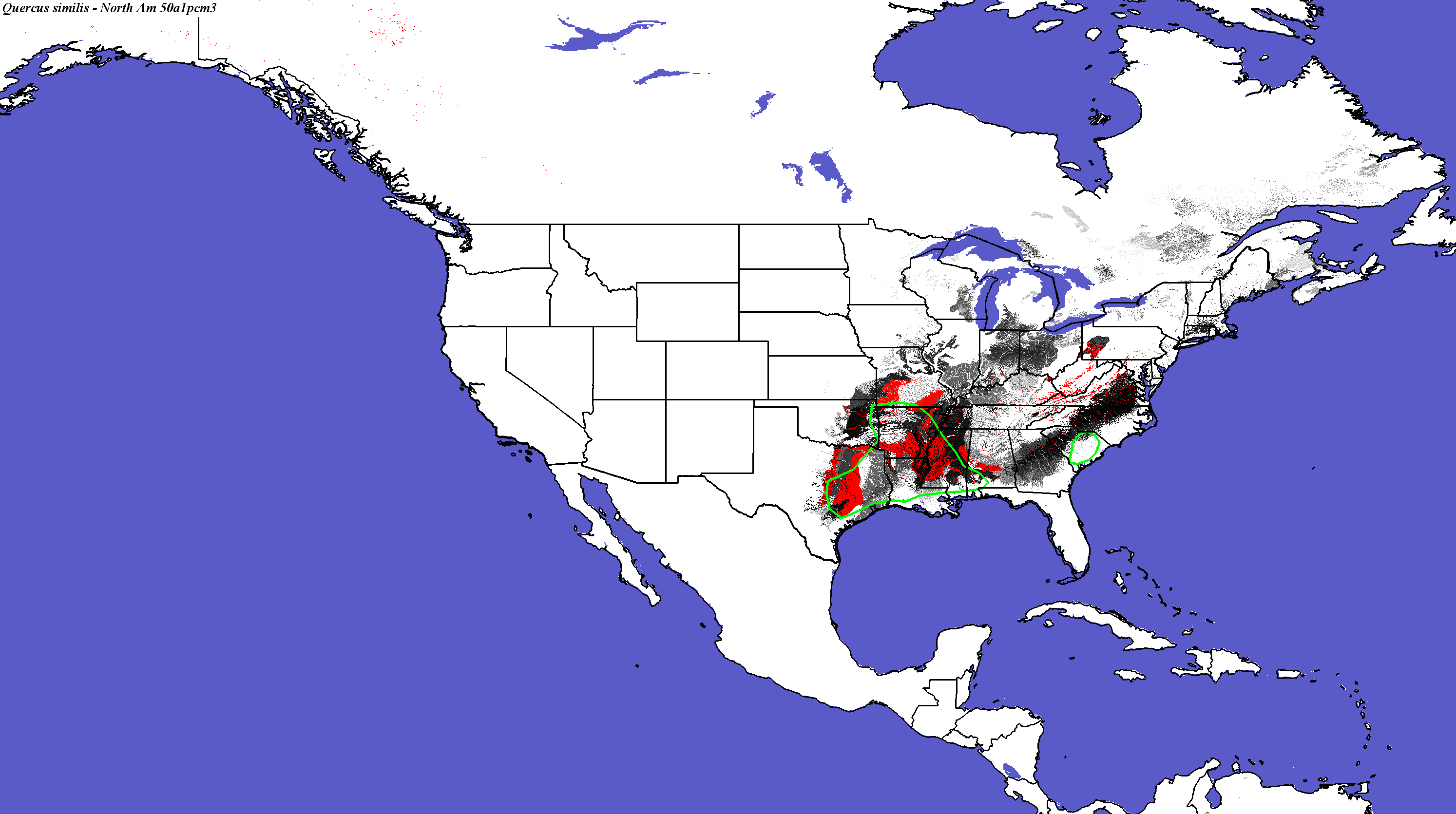

PCM, Scenario A1FI, 2100 - Quercus similis - CONUS
Quercus similis species not modeled by Iverson and Prasad

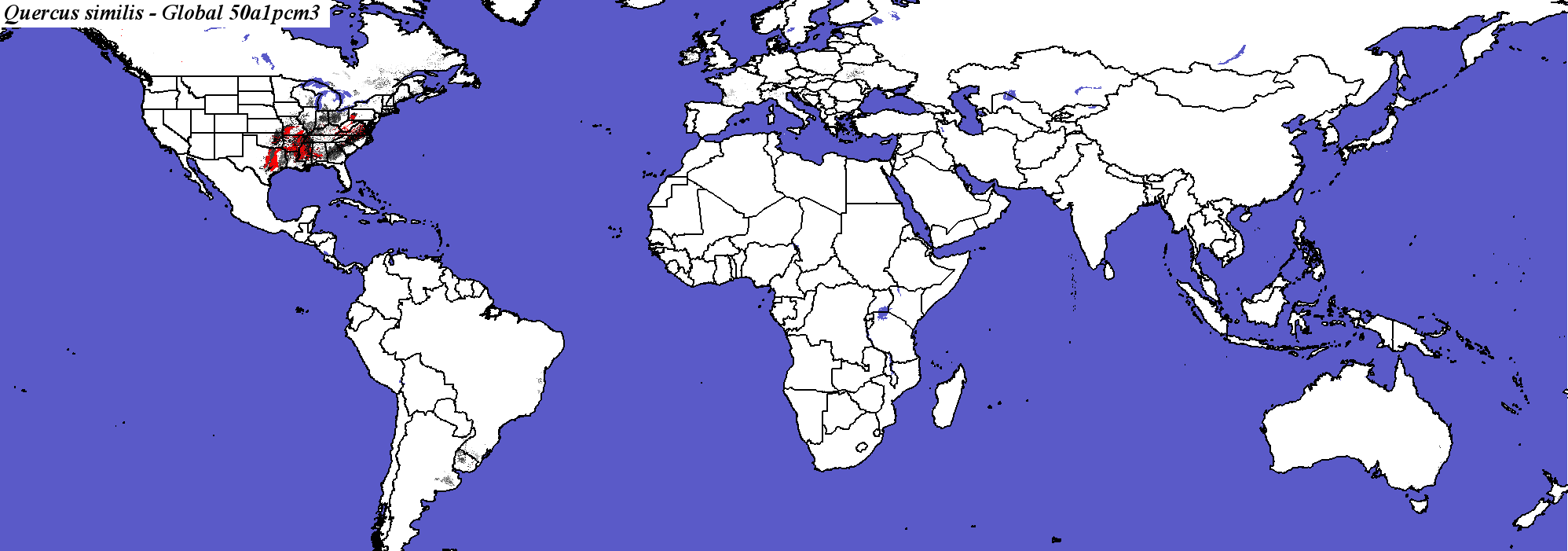

PCM, Scenario A1FI, 2100 - Quercus similis - Global

Quercus_similis_final.1.conus
Quercus_similis_final.1.global

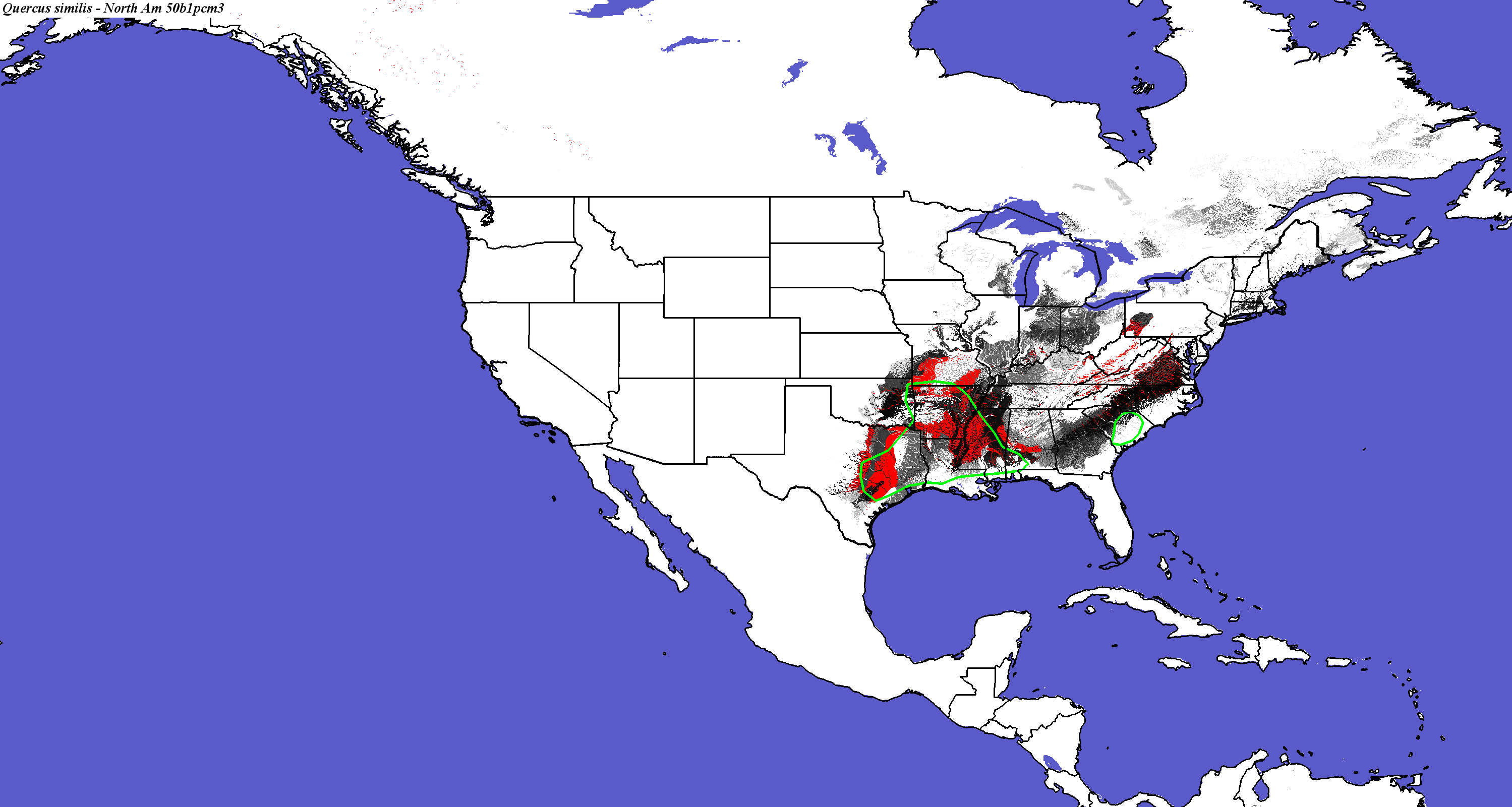

PCM, Scenario B1, 2050 - Quercus similis - CONUS

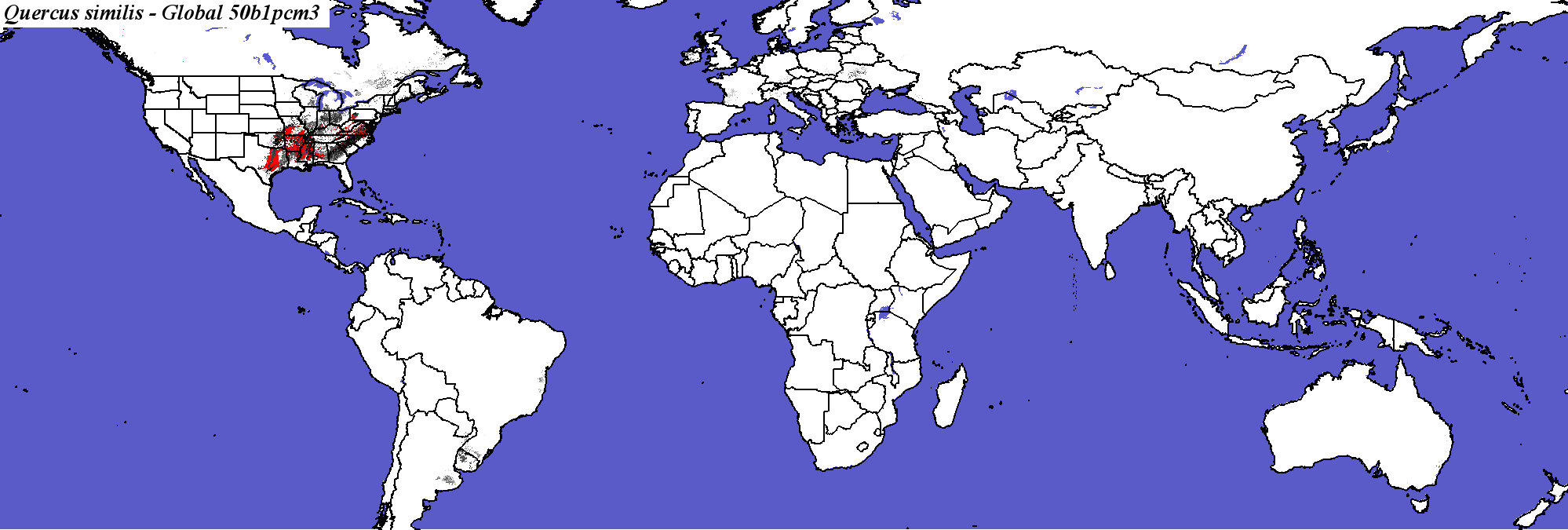

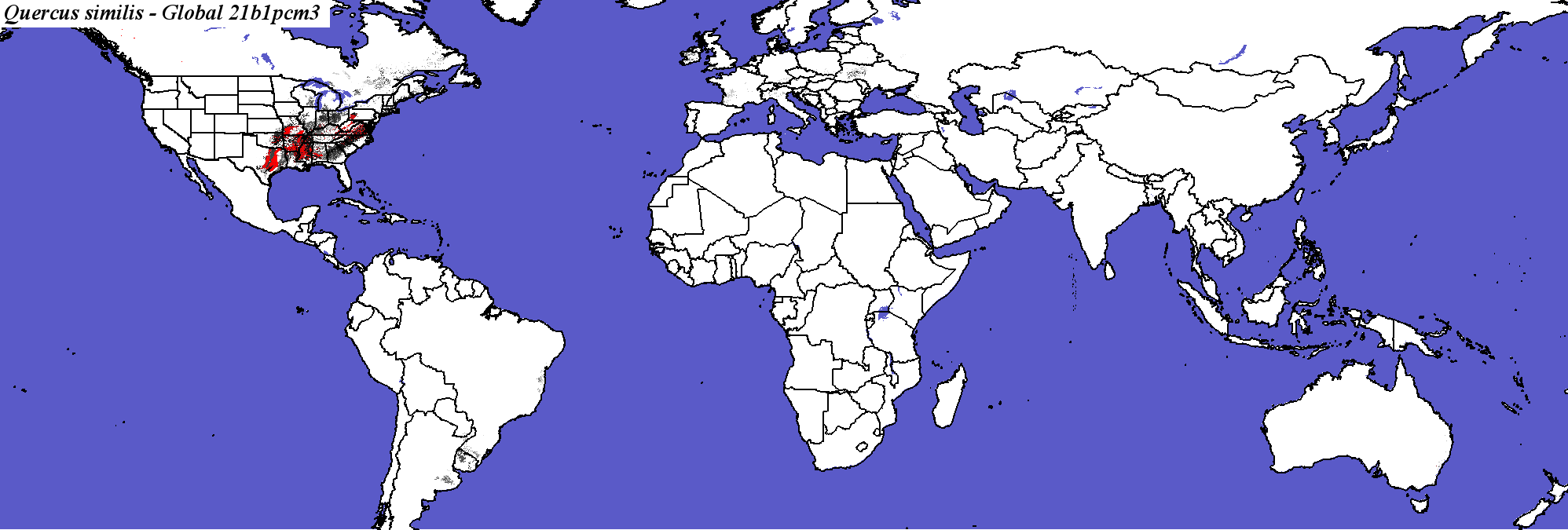

PCM, Scenario B1, 2050 - Quercus similis - Global
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

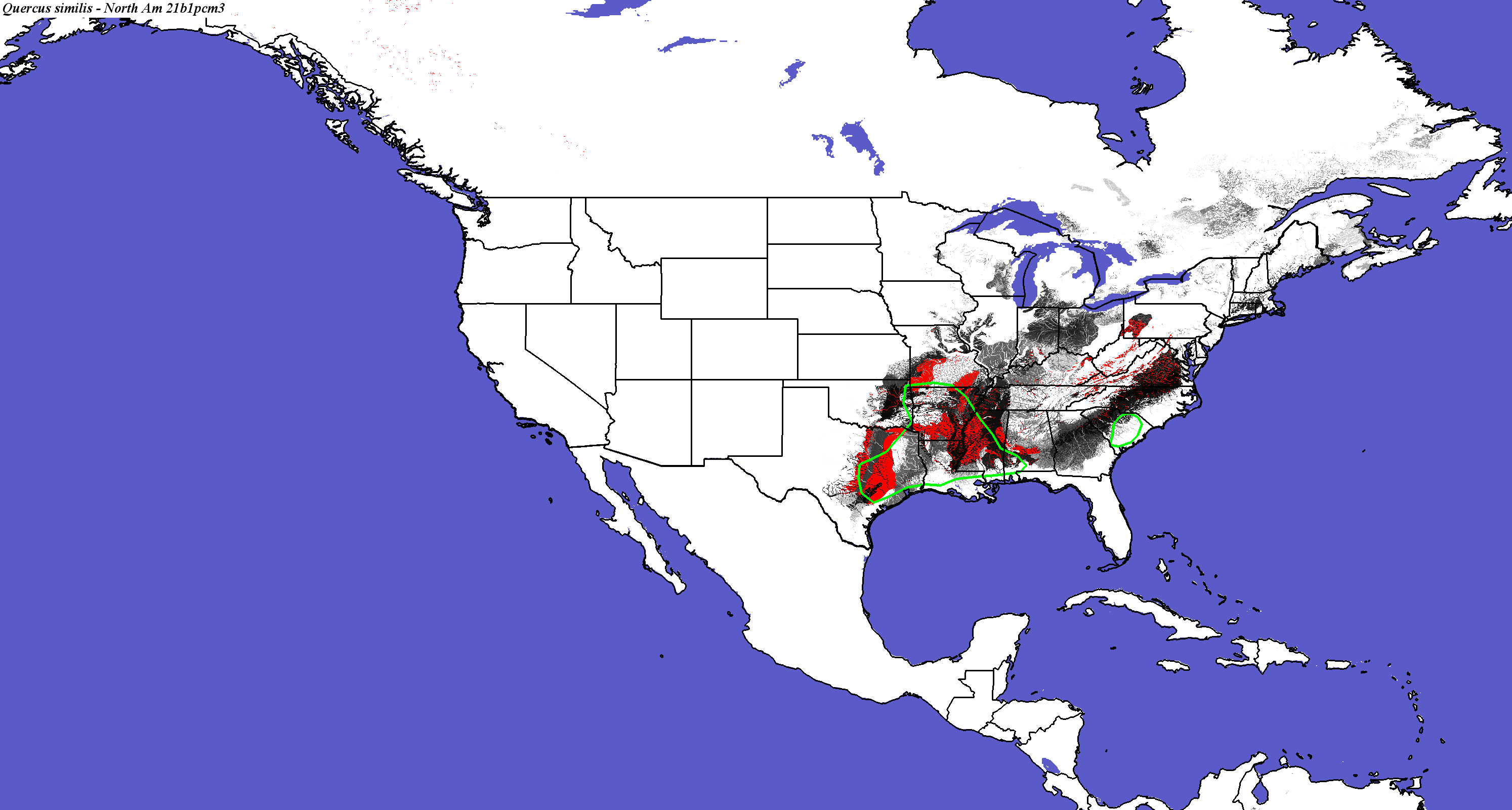

PCM, Scenario B1, 2100 - Quercus similis - CONUS
Quercus similis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus similis - Global

Hadley Climate Model
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

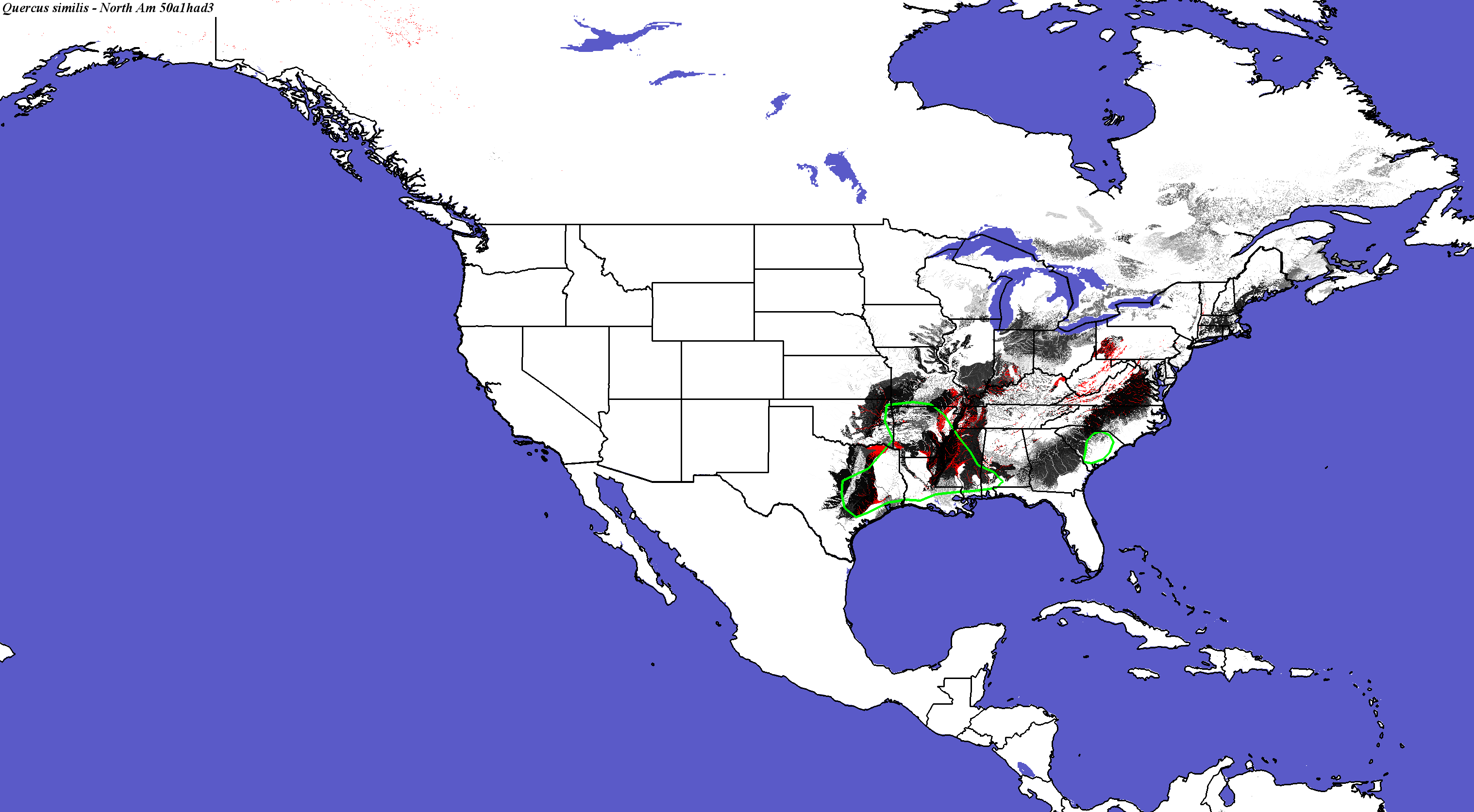

Hadley, Scenario A1FI, 2050 - Quercus similis - CONUS
Quercus similis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus similis - Global
Quercus_similis_final.1.conus
Quercus_similis_final.1.global.

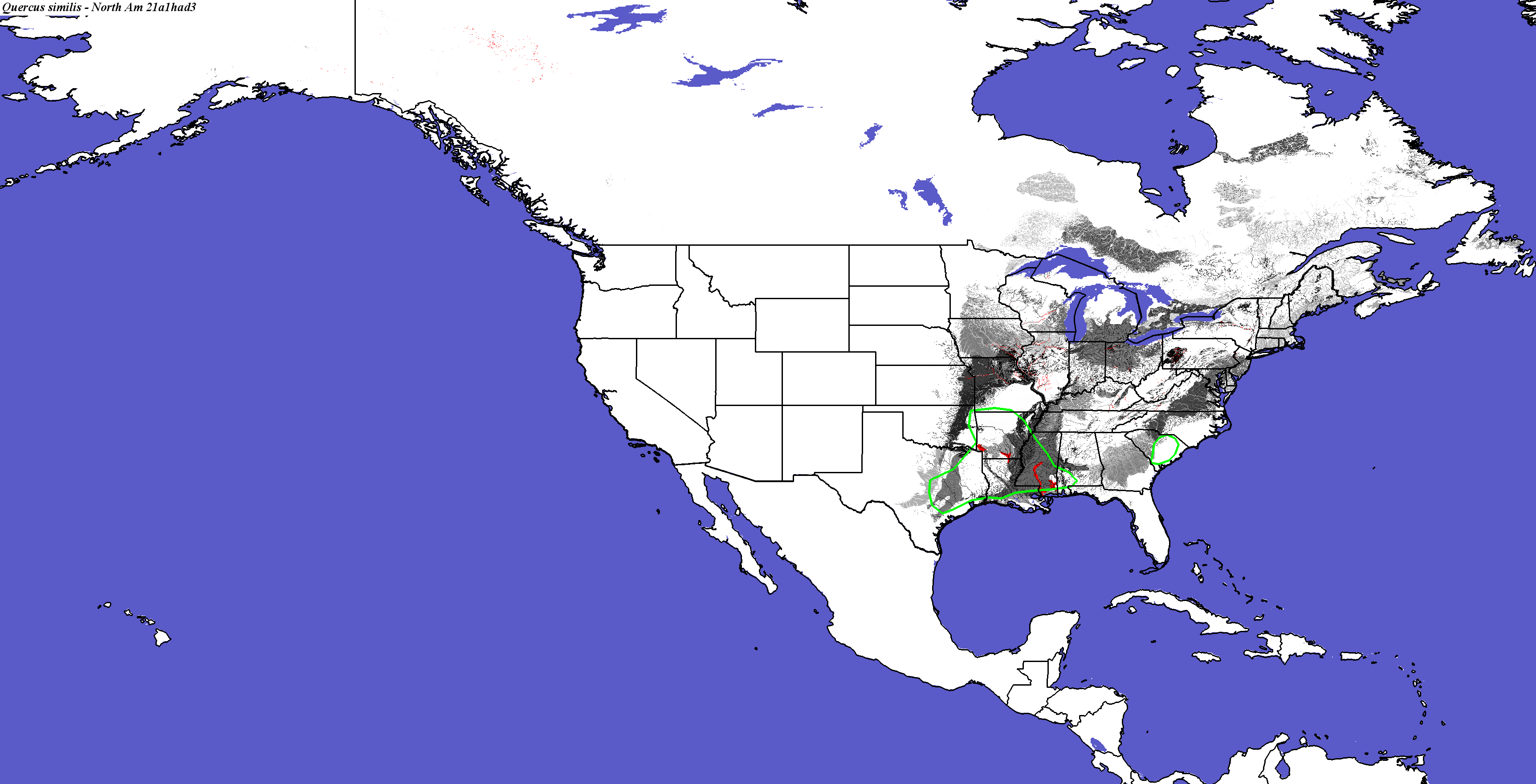

Hadley, Scenario A1FI, 2100 - Quercus similis - CONUS
Quercus similis not modeled by Iverson and Prasad
Quercus similis not modeled by Crookston and Rehfeldt
Quercus similis not modeled by Coops and Waring

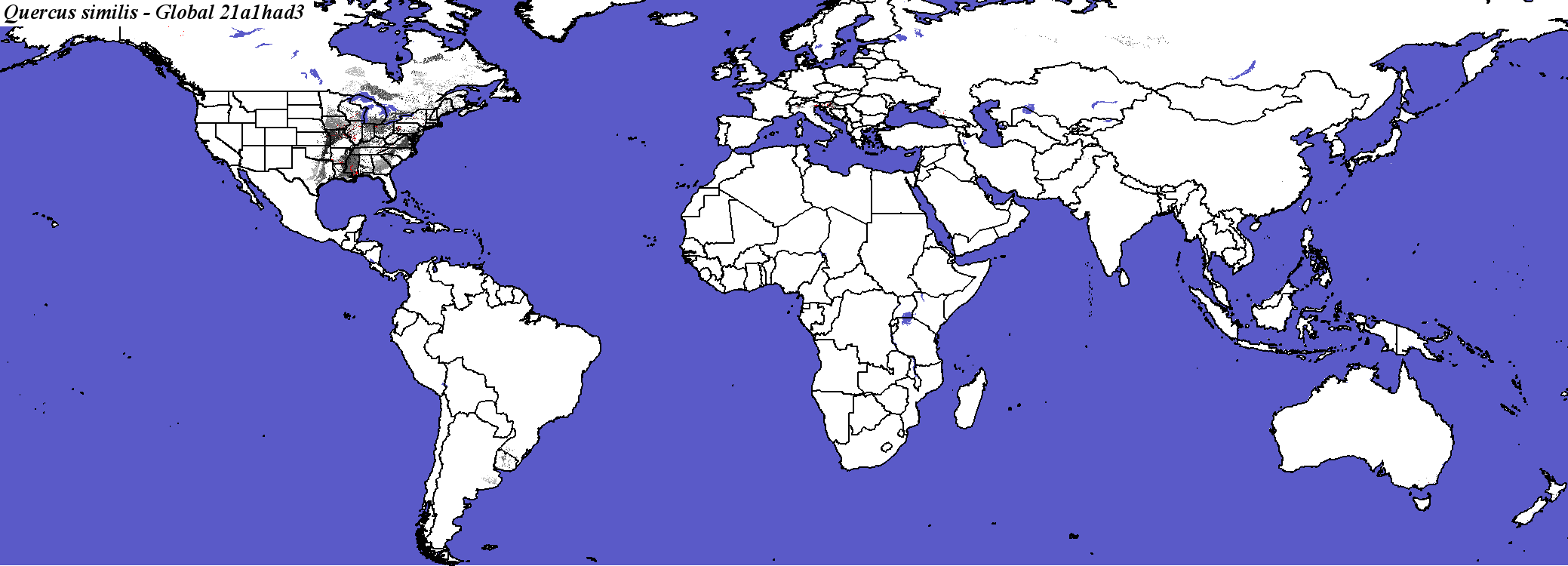

Hadley, Scenario A1FI, 2100 - Quercus similis - Global

Quercus_similis_final.1.conus
Quercus_similis_final.1.global.

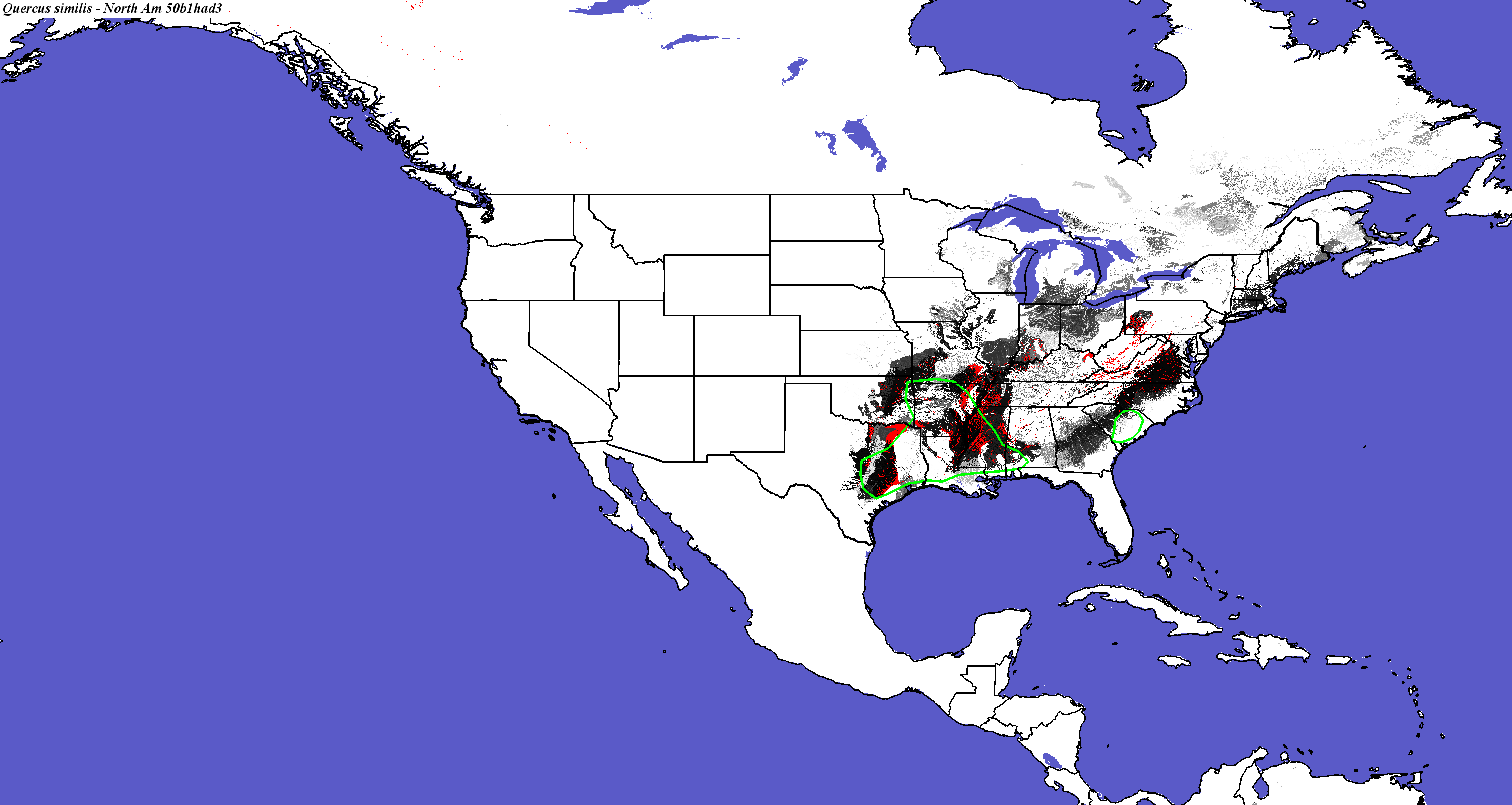

Hadley, Scenario B1, 2050 - Quercus similis - CONUS
Quercus similis not modeled by Crookston and Rehfeldt
Quercus similis not modeled by Coops and Waring

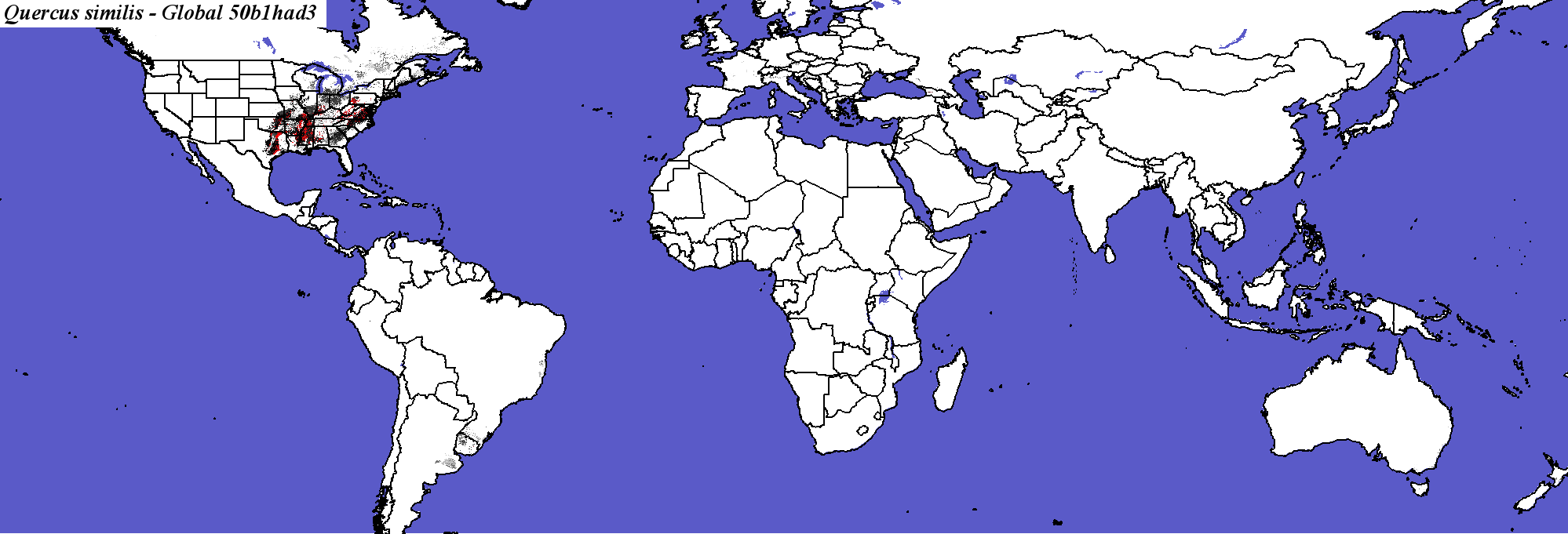

Hadley, Scenario B1, 2050 - Quercus similis - Global
Quercus_similis_final.1.conus
Quercus_similis_final.1.global

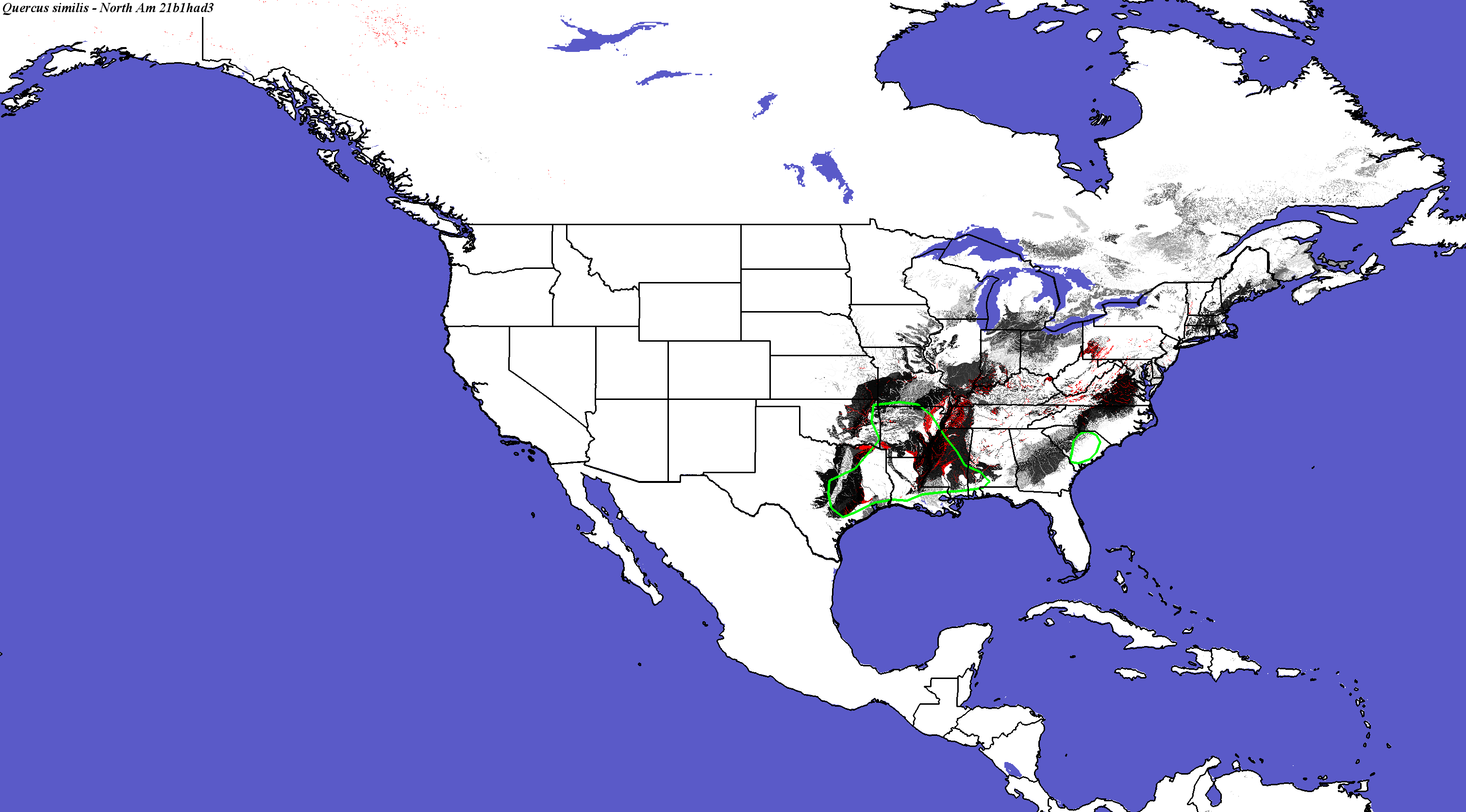

Hadley, Scenario B1, 2100 - Quercus similis - CONUS
Quercus similis not modeled by Iverson and Prasad
Quercus similis not modeled by Crookston and Rehfeldt

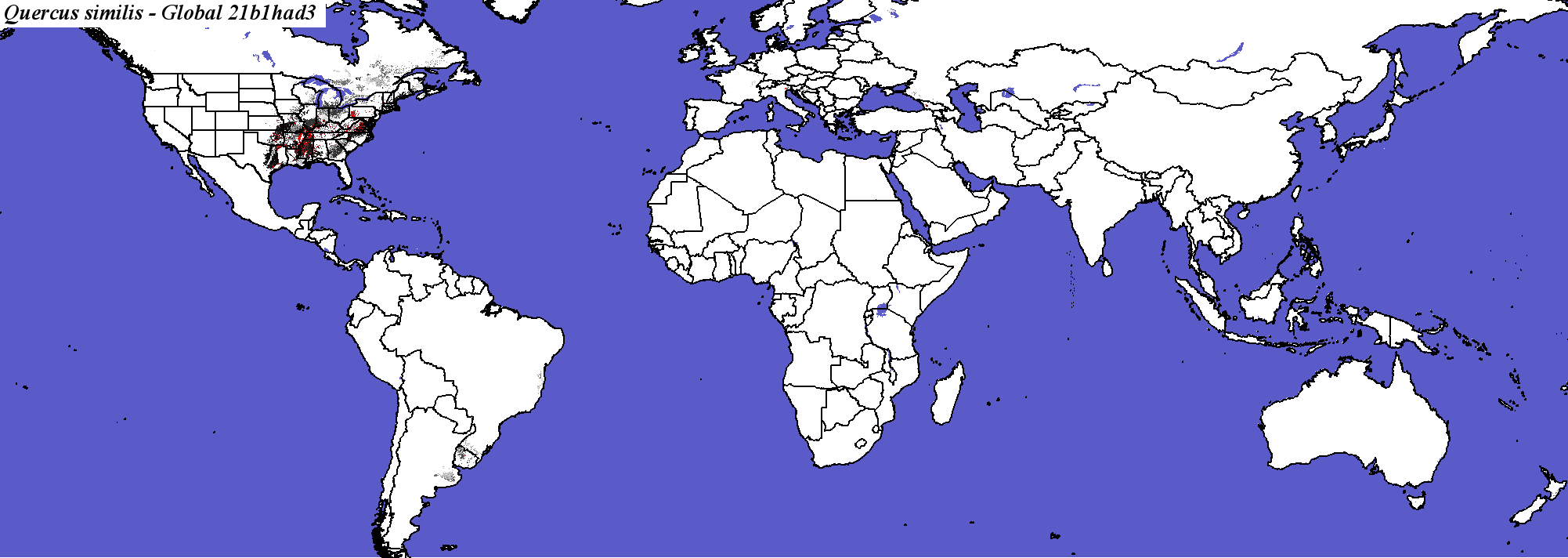

Hadley, Scenario B1, 2100 - Quercus similis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_similis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

23

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

56.8493

Area in Present Suitable Range (in km2)

234600

Area in Future Suitable Range (Had B1 2050, in km2)

100808

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

54108

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

23.0600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

91.6438

Percent Change in Area of Suitable Range (Had B1 2050)

-57.0200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

88.9041

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

25840.2 +/- 27873.6

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

25.8904

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

12.3346 +/- 14.0084

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

23.5616

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

45.0429 +/- 70.9324

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

59.4521

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

75.8904

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

46101

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

19.6500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

72.0548

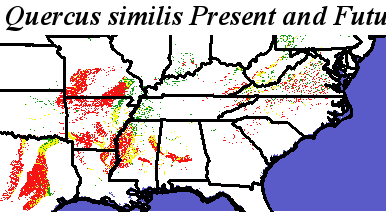

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus similis Quercus similis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_similis_final.elev Fine MRM Distance

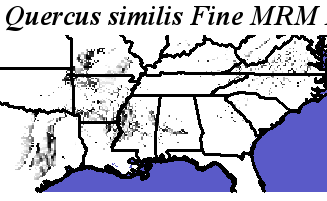

Quercus_similis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus similis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus similis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

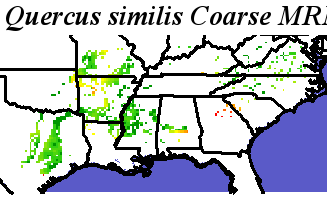

Quercus_similis_final.elev Coarse MRM Distance

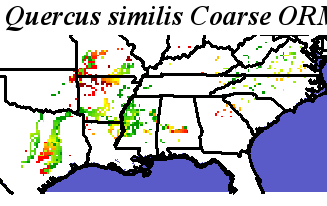

Quercus_similis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus similis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus similis
