Version 5 Tree Atlas


Quercus velutina

black oak

elev

Quercus velutina Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus velutina

USDA Plants Database entry for Quercus velutina
Silvics Manual entry for Quercus velutina


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
88072399046good representation throughout most of range

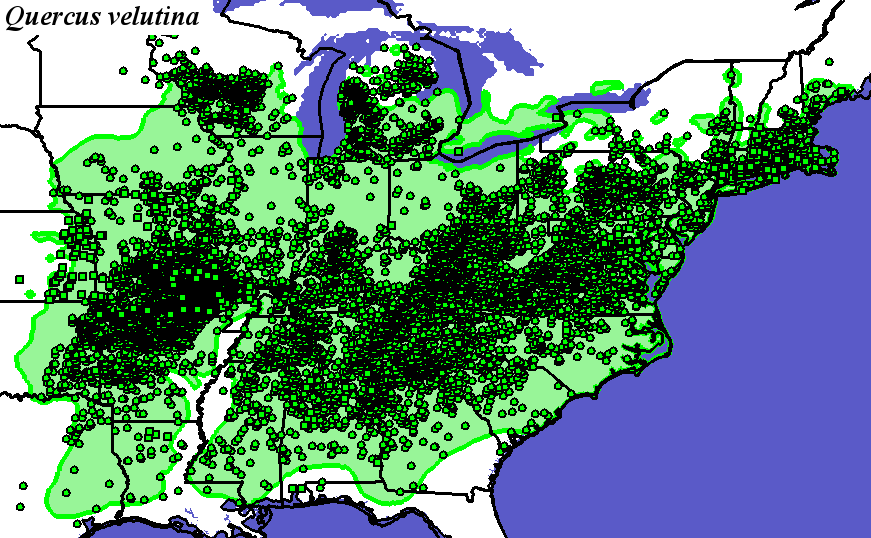

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_velutina_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_velutina_final
Quercus velutina - Occurrence Locations Quercus velutina - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_velutina_final.4.conus

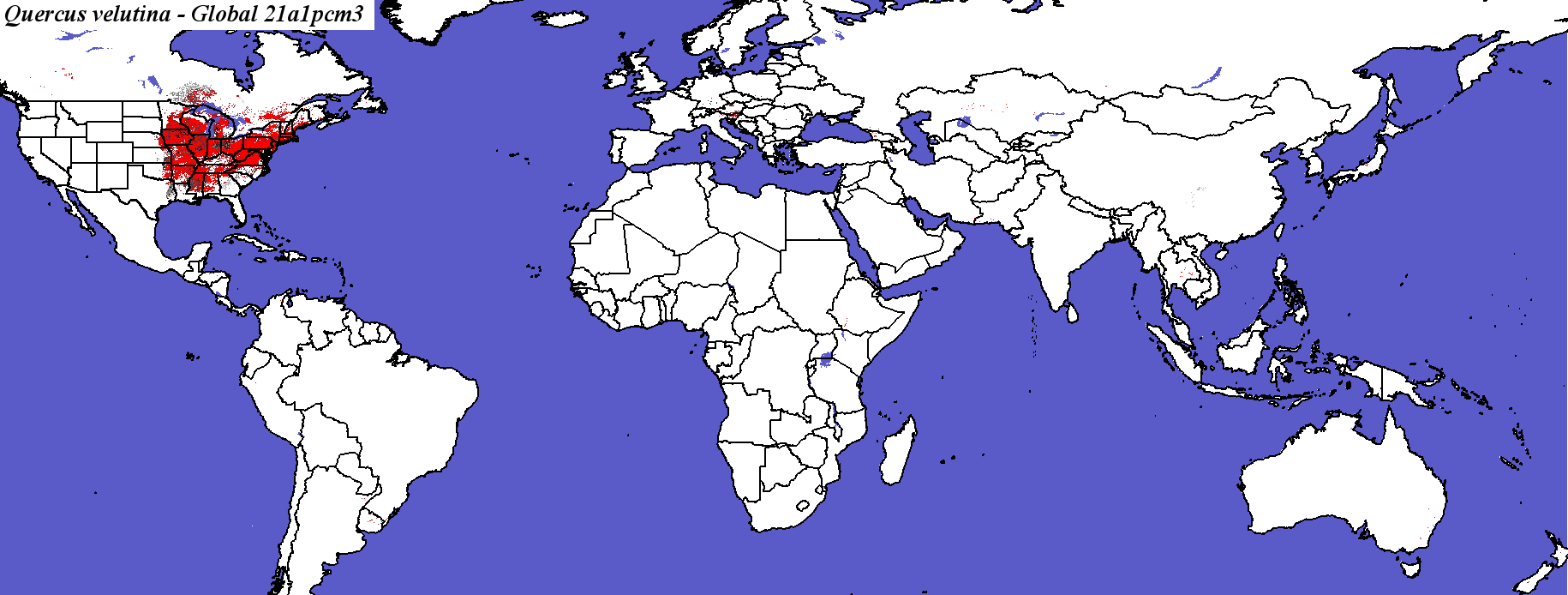

Quercus_velutina_final.4.global
Quercus velutina - CONUS
Compare with Current Range from the Silvics Manual for Quercus velutina
Compare with Current Range from Biota of North America Program (BONAP) for Quercus velutina

Compare with Quercus velutina modeled for Current conditions by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring
Quercus velutina - Global

PCM - Parallel Climate Model
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

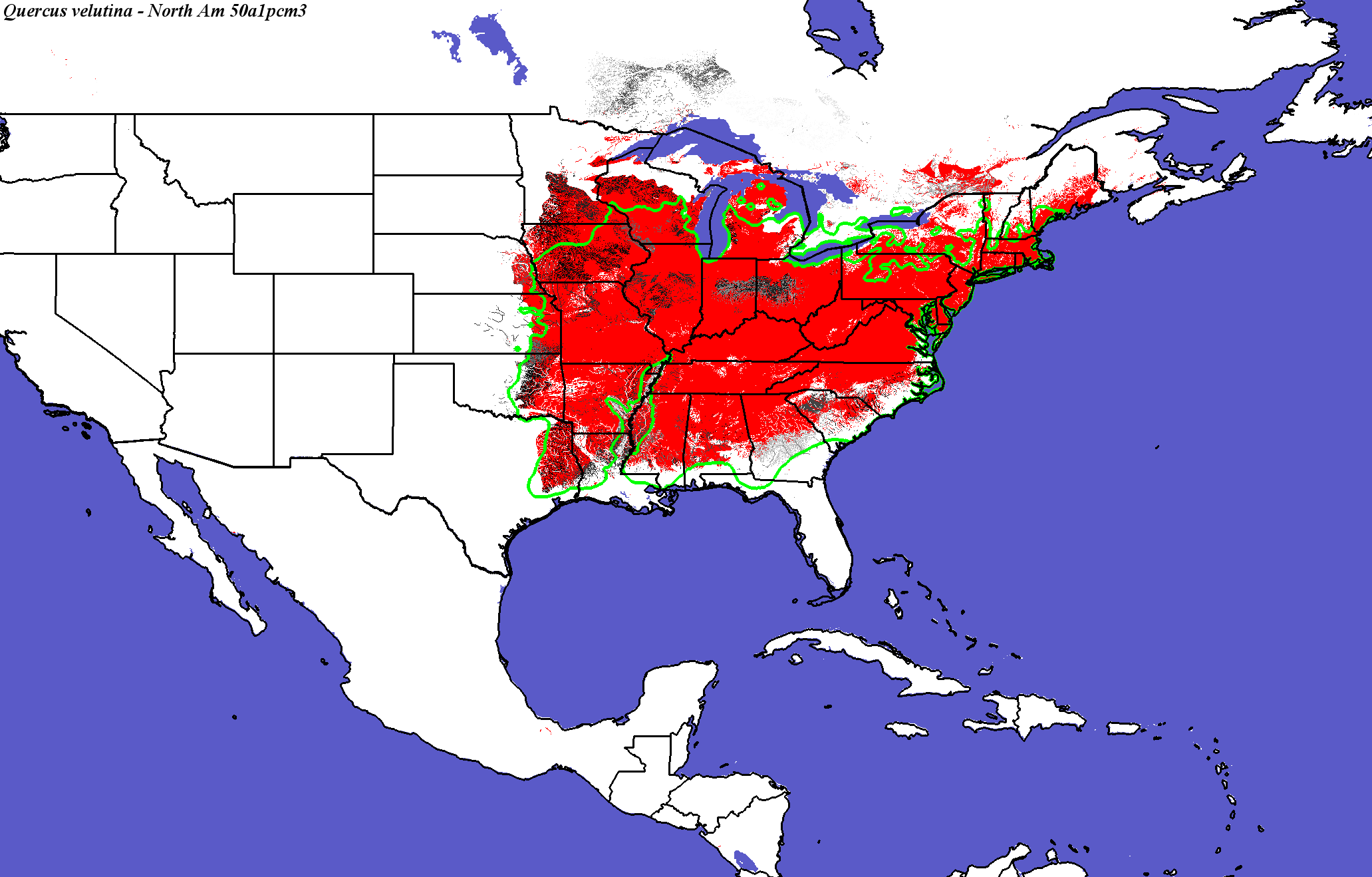

PCM, Scenario A1FI, 2050 - Quercus velutina - CONUS

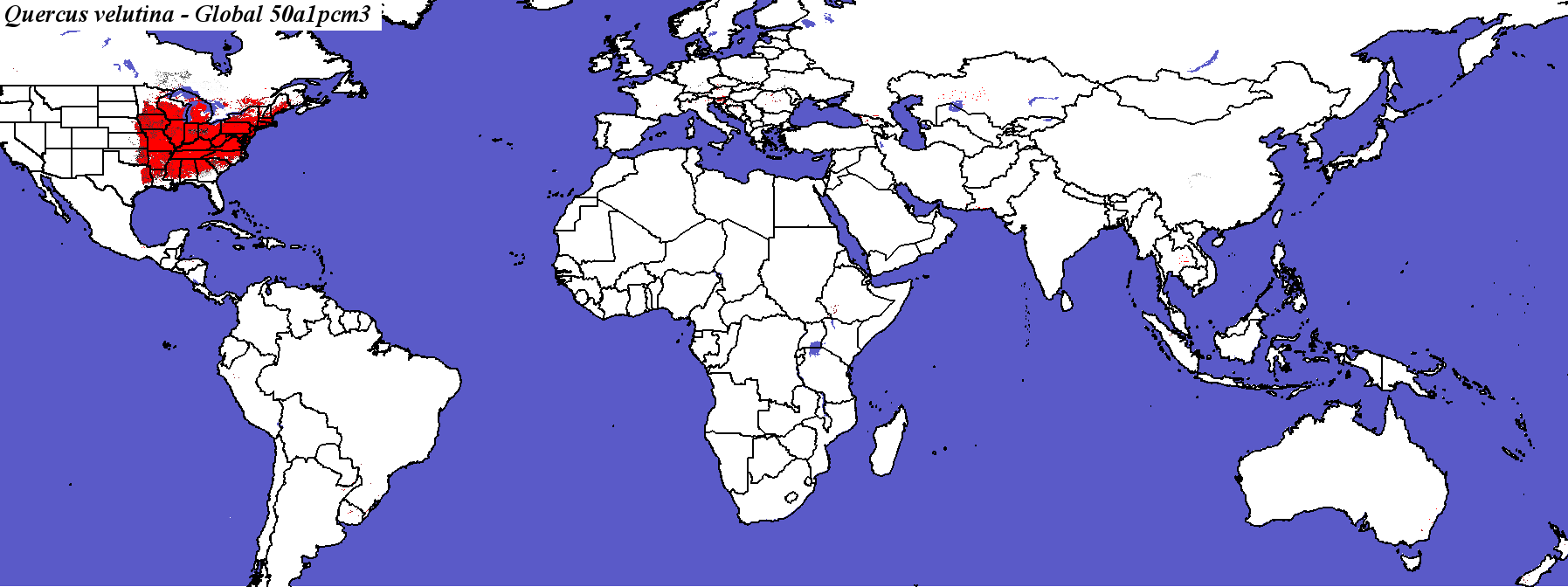

PCM, Scenario A1FI, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
PCM, Scenario A1FI, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus velutina - Global

Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
PCM, Scenario B1, 2050 - Quercus velutina - CONUS
PCM, Scenario B1, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
PCM, Scenario B1, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus velutina - Global

Hadley Climate Model
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
Hadley, Scenario A1FI, 2050 - Quercus velutina - CONUS
Quercus velutina not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global.

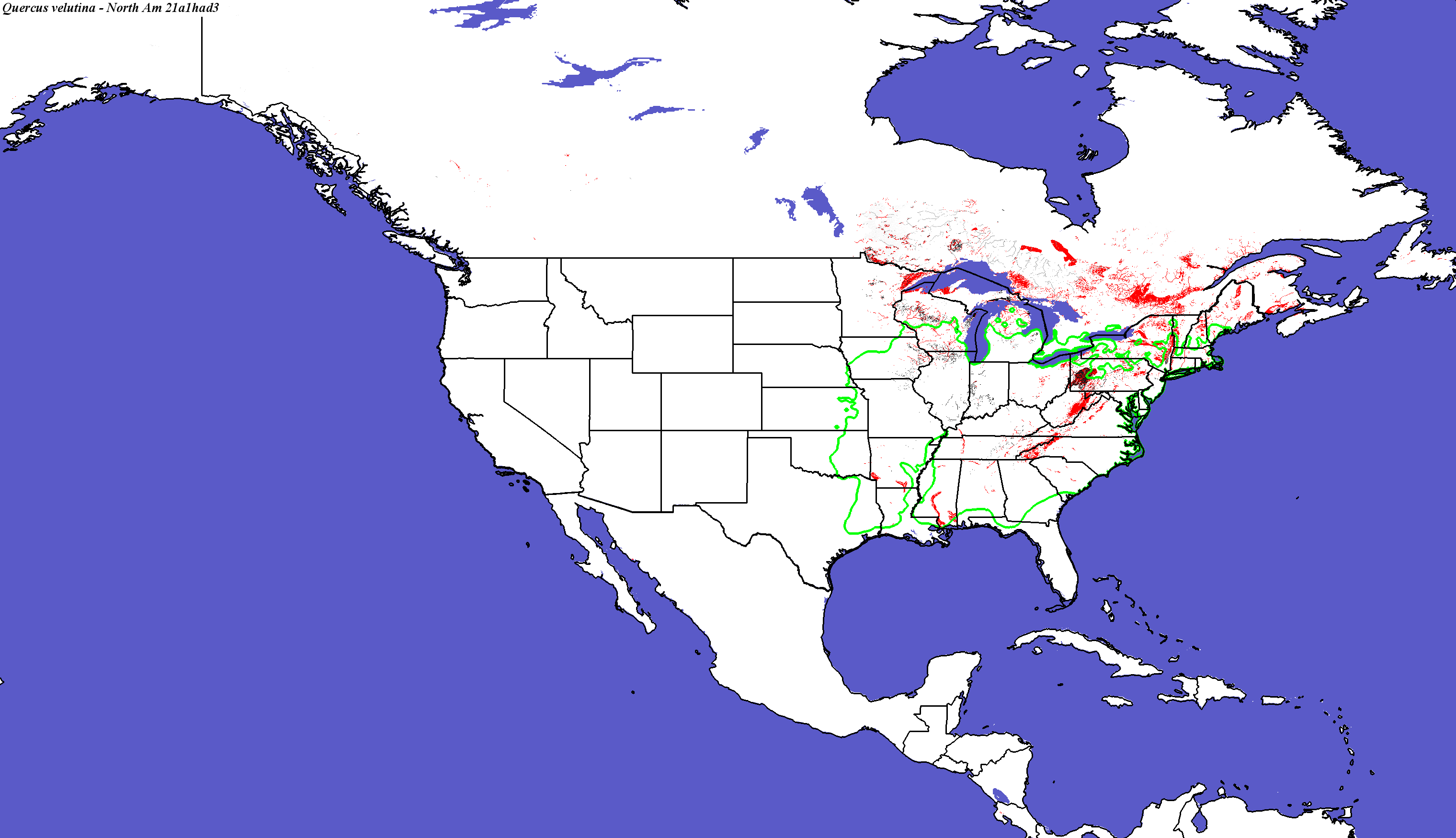

Hadley, Scenario A1FI, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring

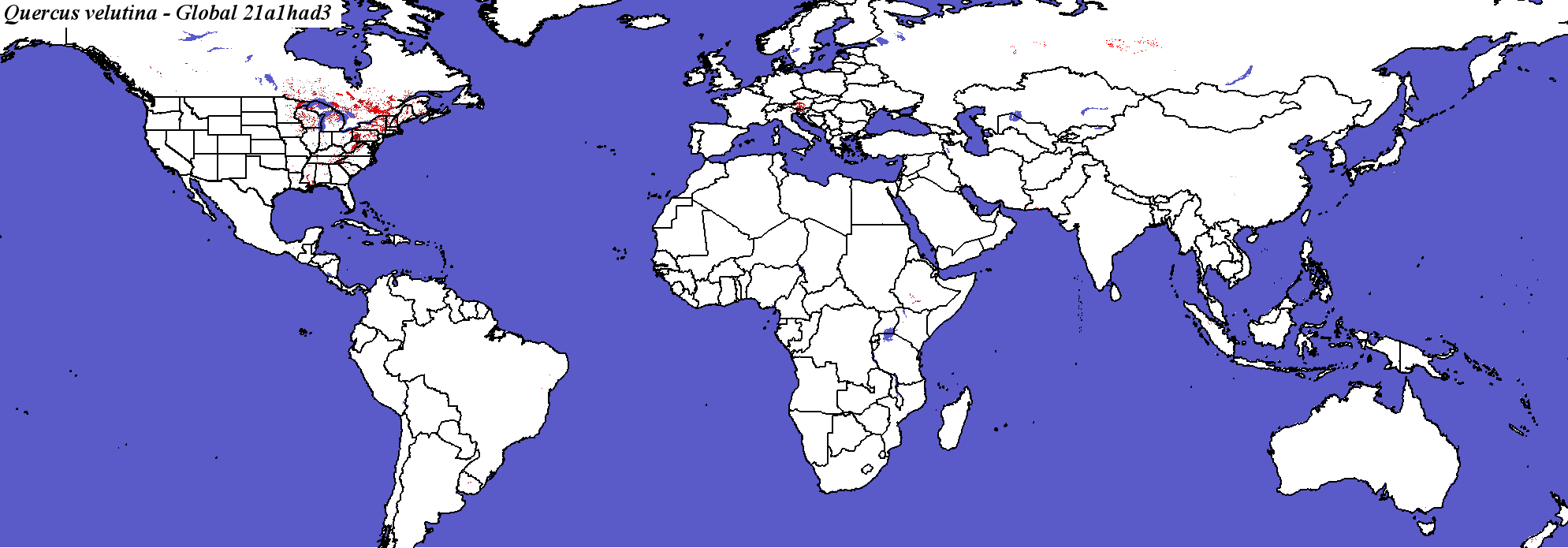

Hadley, Scenario A1FI, 2100 - Quercus velutina - Global

Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global.

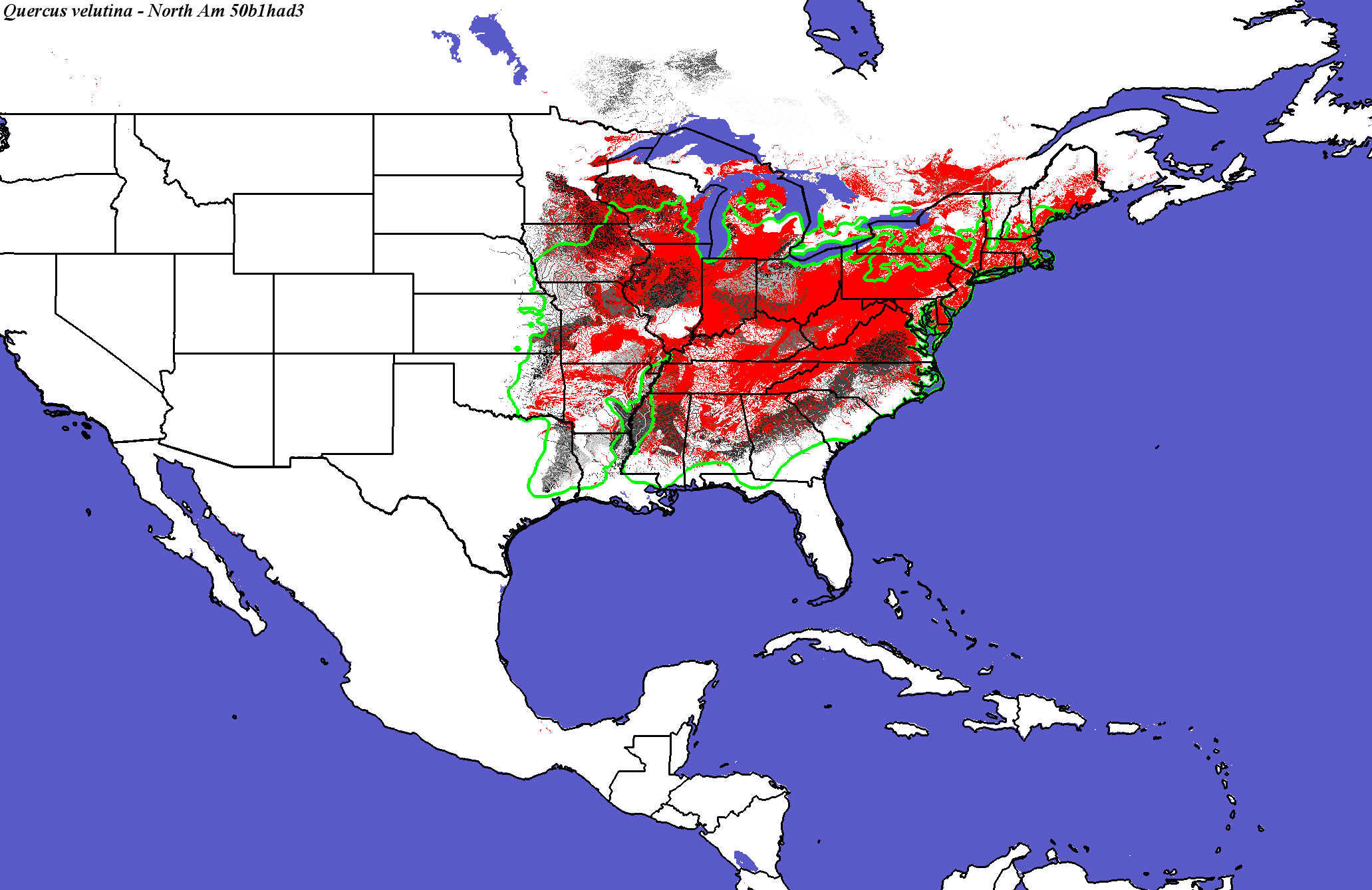

Hadley, Scenario B1, 2050 - Quercus velutina - CONUS
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

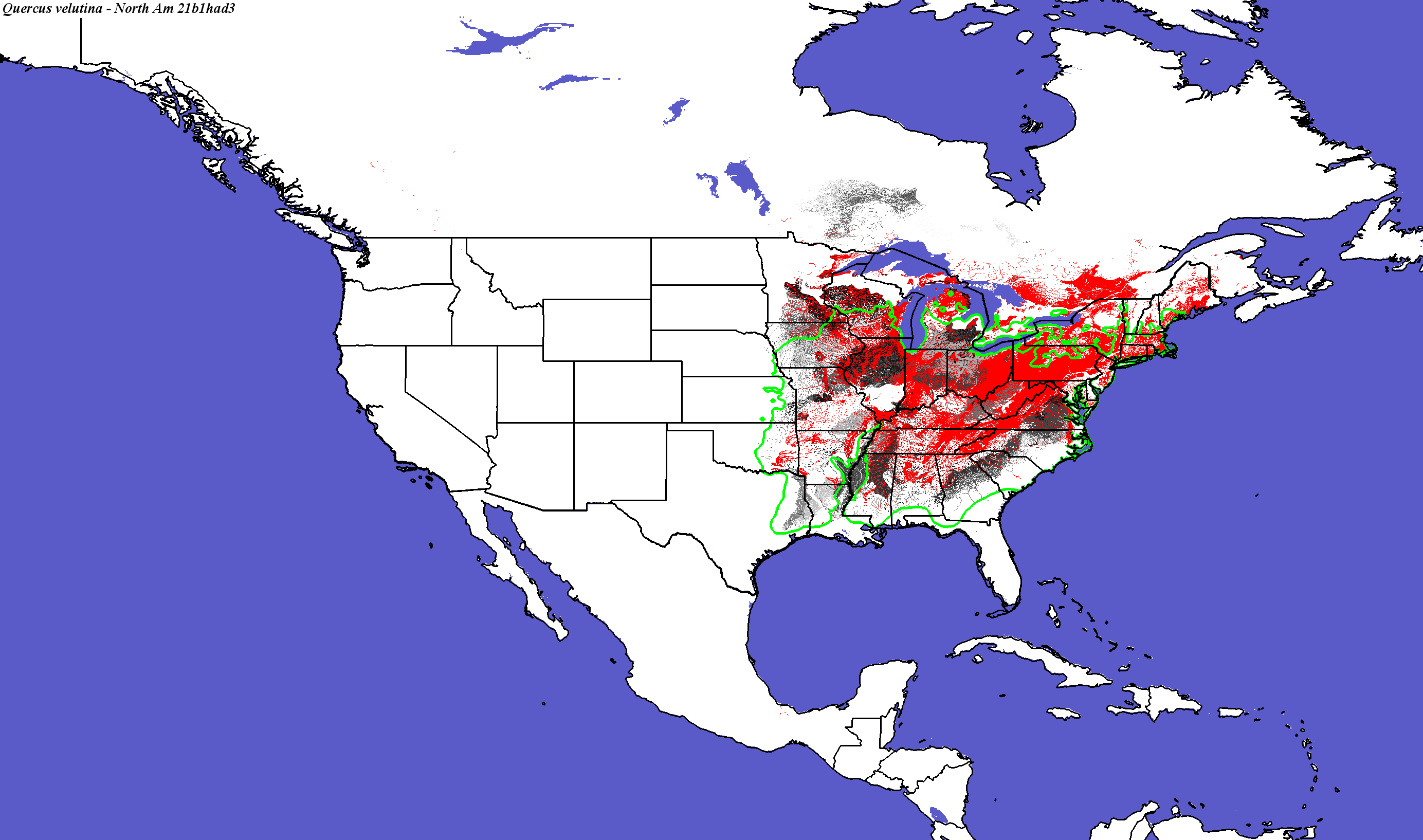

Hadley, Scenario B1, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt

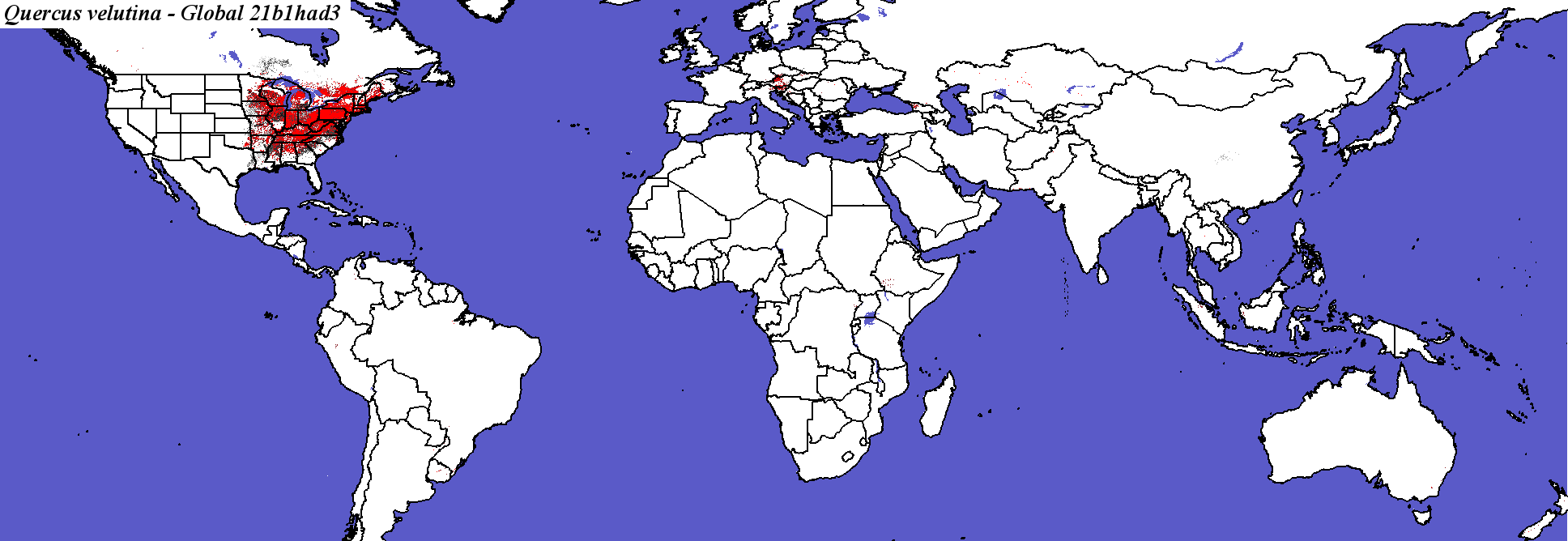

Hadley, Scenario B1, 2100 - Quercus velutina - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_velutina_final.elev

Number of Suitable Ecoregions (Niche Breadth)

277

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

3.56164

Area in Present Suitable Range (in km2)

2262512

Area in Future Suitable Range (Had B1 2050, in km2)

1371408

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

1221735

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.9900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

40.5479

Percent Change in Area of Suitable Range (Had B1 2050)

-39.3800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

68.2192

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8843.83 +/- 16837.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

72.8767

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.44362 +/- 9.3332

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

70

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

121.21 +/- 477.452

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

41.7808

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

61027

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.6900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

39.3151

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

474119

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.9500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

66.7123

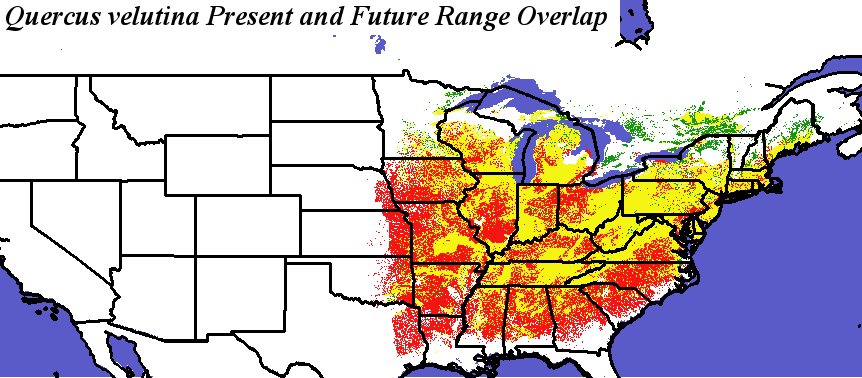

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus velutina Quercus velutina - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

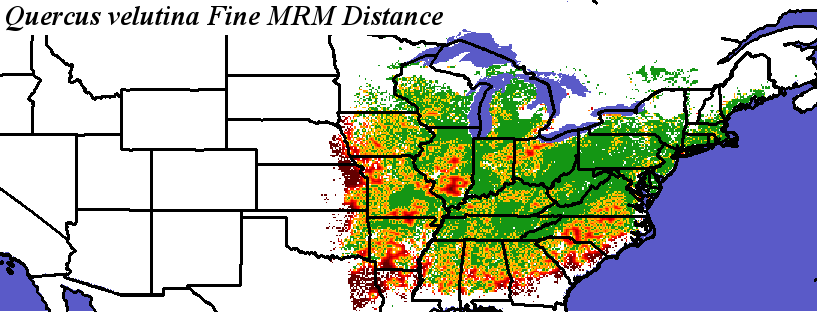

Quercus_velutina_final.elev Fine MRM Distance
Quercus_velutina_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus velutina
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

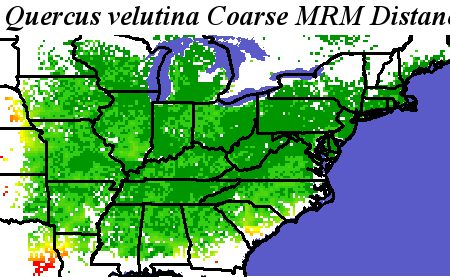

Quercus_velutina_final.elev Coarse MRM Distance
Quercus_velutina_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina
