Version 5 Tree Atlas


Tilia heterophylla

white basswood

elev

Tilia heterophylla Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Tilia heterophylla

USDA Plants Database entry for Tilia heterophylla
Silvics Manual entry for Tilia heterophylla


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Tilia americana var. heterophylla; Tilia heterophylla var. michauxii 453883much of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Tilia_heterophylla_final Occurrences
Hargroves Present Suitable Range Outline for Tilia_heterophylla_final

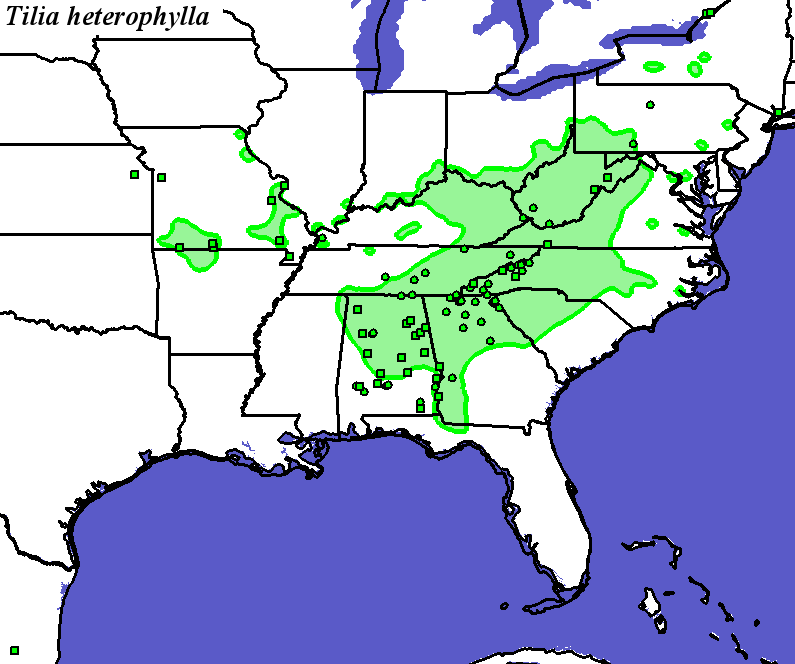

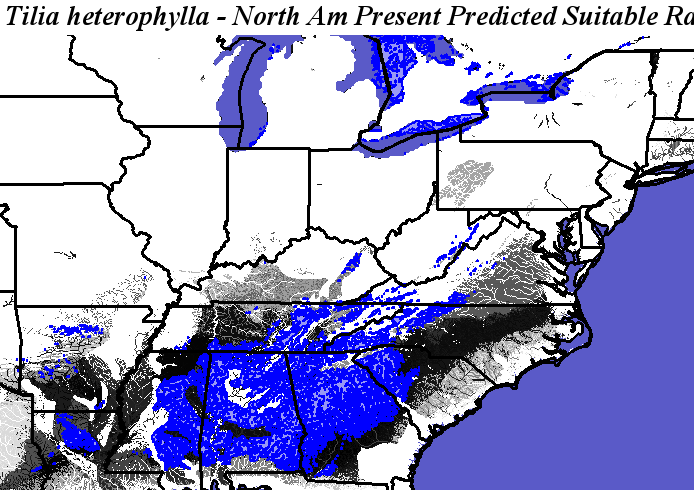

Tilia heterophylla - Occurrence Locations Tilia heterophylla - Hargrove's Present Suitable Range Outline
Present Conditions
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global

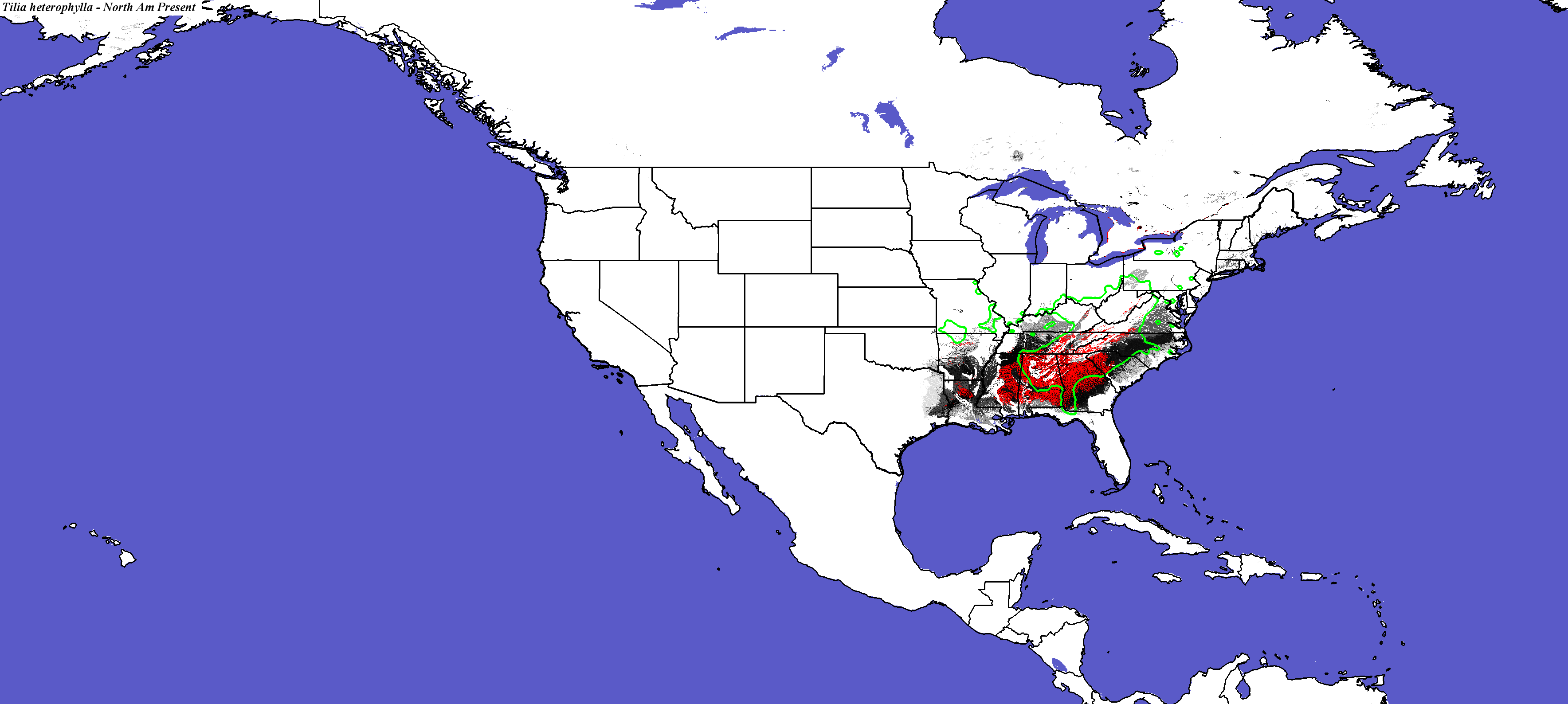

Tilia heterophylla - CONUS
Compare with Current Range from the Silvics Manual for Tilia heterophylla
Compare with Current Range from Biota of North America Program (BONAP) for Tilia heterophylla

Tilia heterophylla not modeled by Iverson and Prasad
Tilia heterophylla not modeled by Crookston and Rehfeldt
Tilia heterophylla not modeled by Coops and Waring
Tilia heterophylla - Global

PCM - Parallel Climate Model
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global

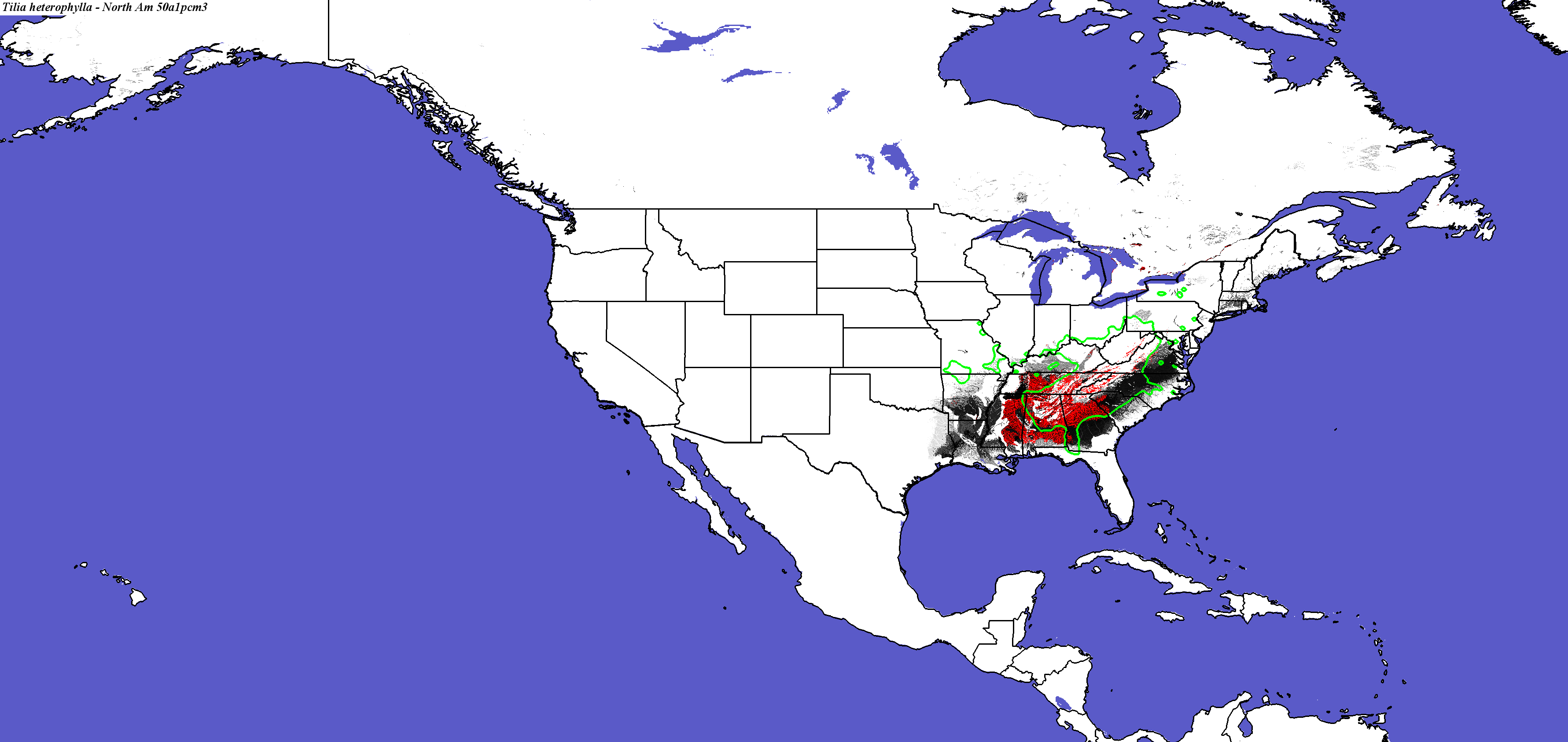

PCM, Scenario A1FI, 2050 - Tilia heterophylla - CONUS

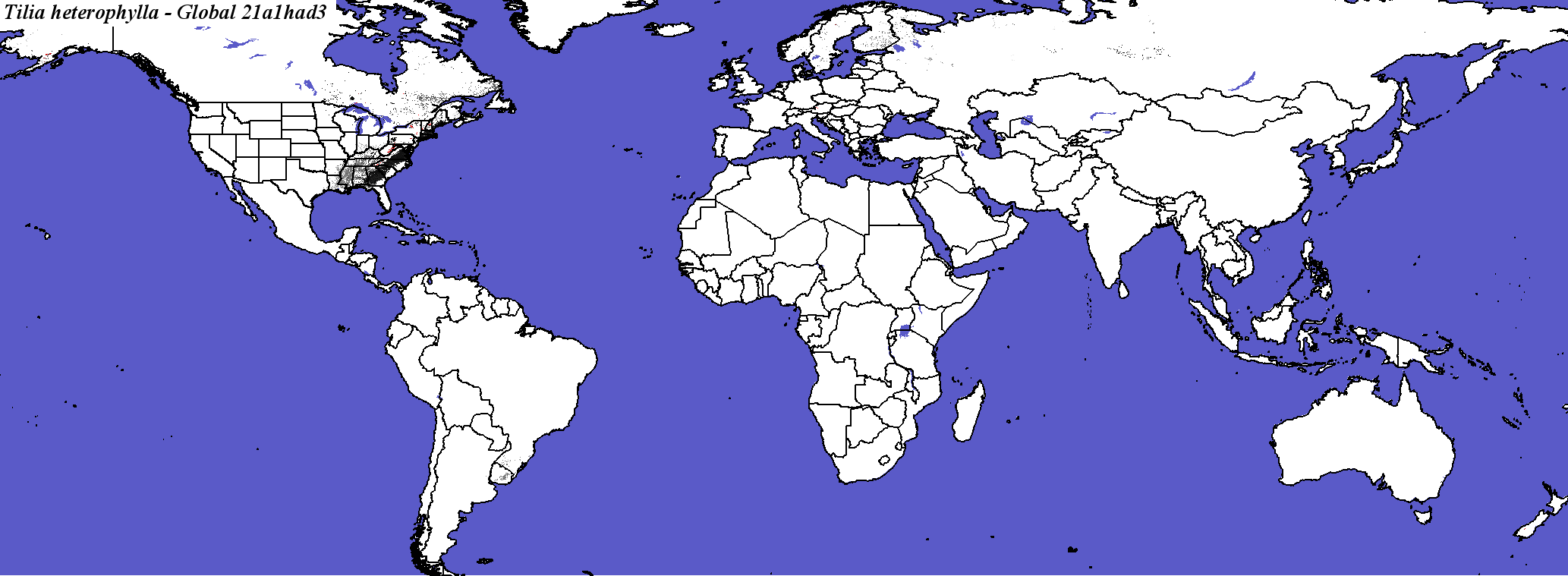

PCM, Scenario A1FI, 2050 - Tilia heterophylla - Global
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global

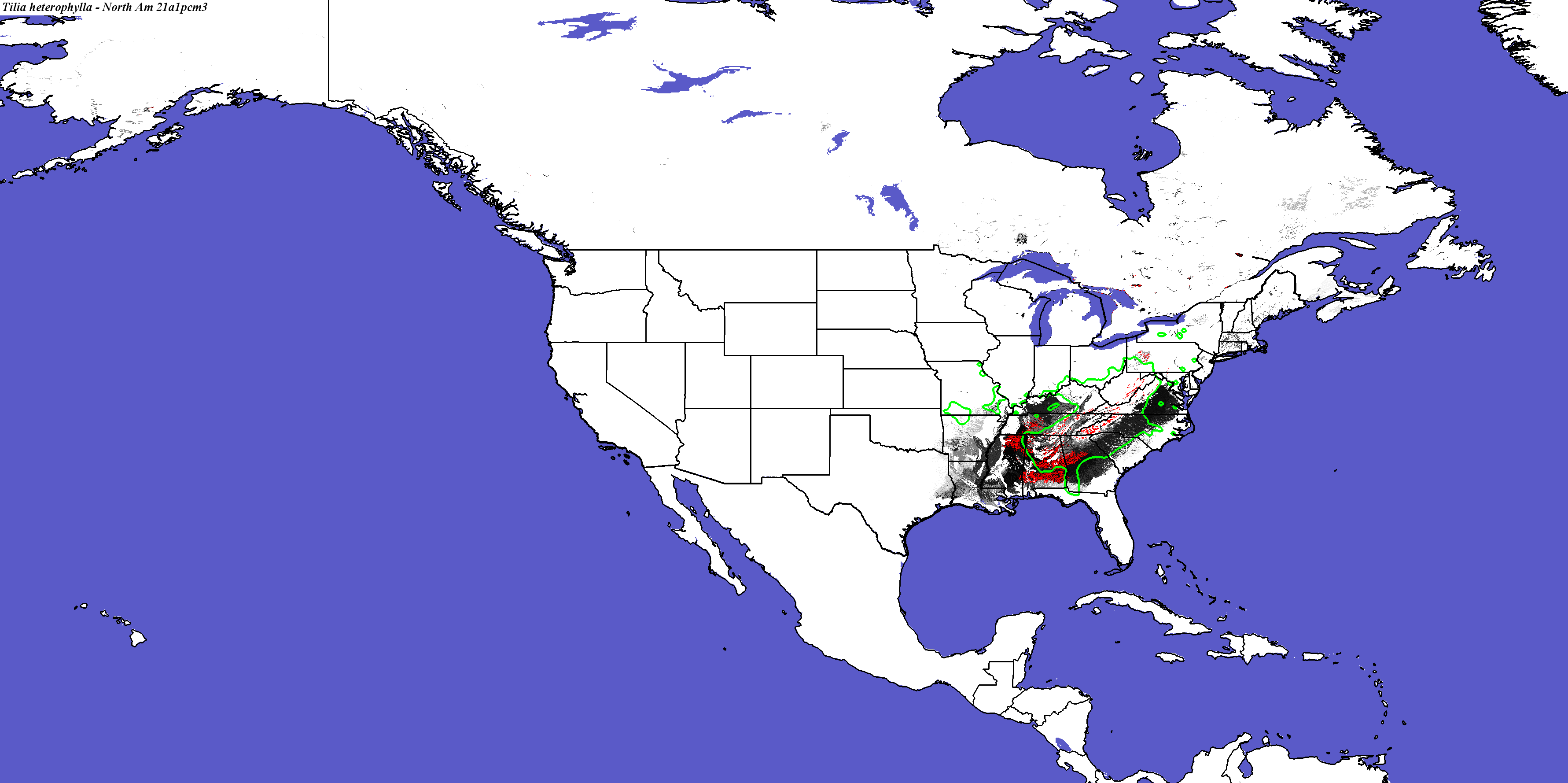

PCM, Scenario A1FI, 2100 - Tilia heterophylla - CONUS
Tilia heterophylla species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Tilia heterophylla - Global

Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global
PCM, Scenario B1, 2050 - Tilia heterophylla - CONUS
PCM, Scenario B1, 2050 - Tilia heterophylla - Global
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global
PCM, Scenario B1, 2100 - Tilia heterophylla - CONUS
Tilia heterophylla not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Tilia heterophylla - Global

Hadley Climate Model
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global

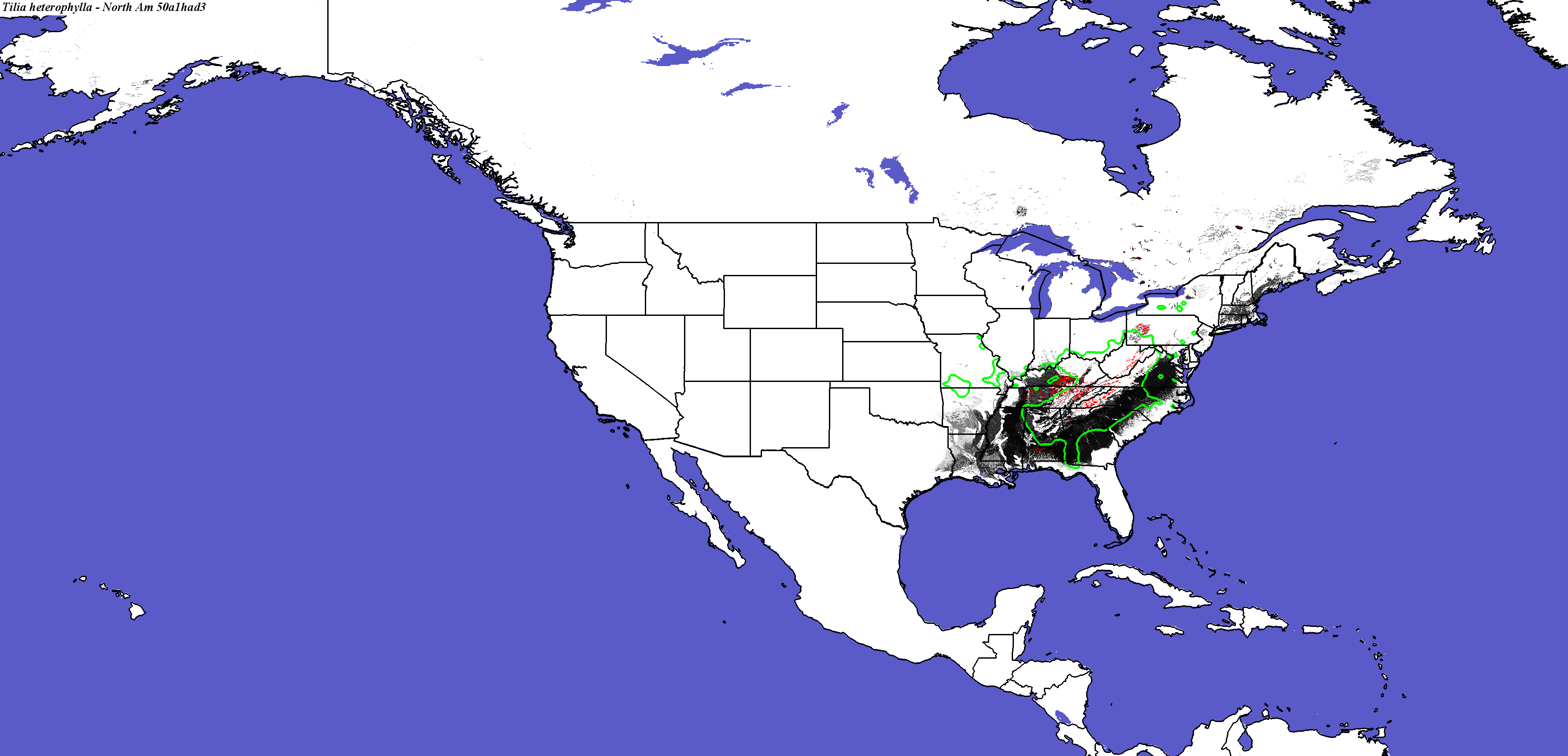

Hadley, Scenario A1FI, 2050 - Tilia heterophylla - CONUS
Tilia heterophylla not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Tilia heterophylla - Global
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global.
Hadley, Scenario A1FI, 2100 - Tilia heterophylla - CONUS
Tilia heterophylla not modeled by Iverson and Prasad
Tilia heterophylla not modeled by Crookston and Rehfeldt
Tilia heterophylla not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Tilia heterophylla - Global

Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global.
Hadley, Scenario B1, 2050 - Tilia heterophylla - CONUS
Tilia heterophylla not modeled by Crookston and Rehfeldt
Tilia heterophylla not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Tilia heterophylla - Global
Tilia_heterophylla_final.2.conus
Tilia_heterophylla_final.2.global
Hadley, Scenario B1, 2100 - Tilia heterophylla - CONUS
Tilia heterophylla not modeled by Iverson and Prasad
Tilia heterophylla not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Tilia heterophylla - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Tilia_heterophylla_final.elev

Number of Suitable Ecoregions (Niche Breadth)

17

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

67.8082

Area in Present Suitable Range (in km2)

185191

Area in Future Suitable Range (Had B1 2050, in km2)

65826

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

27580

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

14.8900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

96.8493

Percent Change in Area of Suitable Range (Had B1 2050)

-64.4500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

95.3425

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

55075.8 +/- 64305.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

7.80822

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

25.8192 +/- 31.5079

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

5.34247

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

398.226 +/- 955.306

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

7.53425

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

21594

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

11.6600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

5.20548

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

17936

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

9.6800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

94.3836

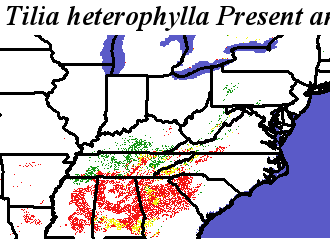

Present and Future Ranges - Hadley, Scenario B1, 2050 - Tilia heterophylla Tilia heterophylla - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Tilia_heterophylla_final.elev Fine MRM Distance
Tilia_heterophylla_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Tilia heterophylla Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Tilia heterophylla
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Tilia_heterophylla_final.elev Coarse MRM Distance
Tilia_heterophylla_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Tilia heterophylla Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Tilia heterophylla
