Version 5 Tree Atlas


Ulmus crassifolia

cedar elm

elev

Ulmus crassifolia Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Ulmus crassifolia

USDA Plants Database entry for Ulmus crassifolia
Silvics Manual entry for Ulmus crassifolia


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
4148422some parts of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Ulmus_crassifolia_final Occurrences

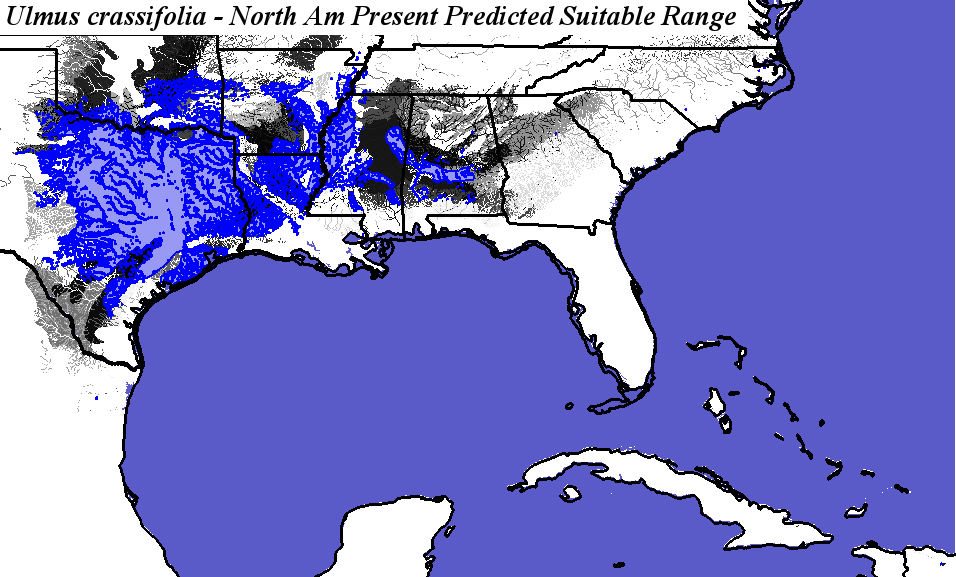

Hargroves Present Suitable Range Outline for Ulmus_crassifolia_final
Ulmus crassifolia - Occurrence Locations Ulmus crassifolia - Hargrove's Present Suitable Range Outline
Present Conditions
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global
Ulmus crassifolia - CONUS
Compare with Current Range from the Silvics Manual for Ulmus crassifolia
Compare with Current Range from Biota of North America Program (BONAP) for Ulmus crassifolia

Compare with Ulmus crassifolia modeled for Current conditions by Iverson and Prasad
Ulmus crassifolia not modeled by Crookston and Rehfeldt
Ulmus crassifolia not modeled by Coops and Waring
Ulmus crassifolia - Global

PCM - Parallel Climate Model
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global

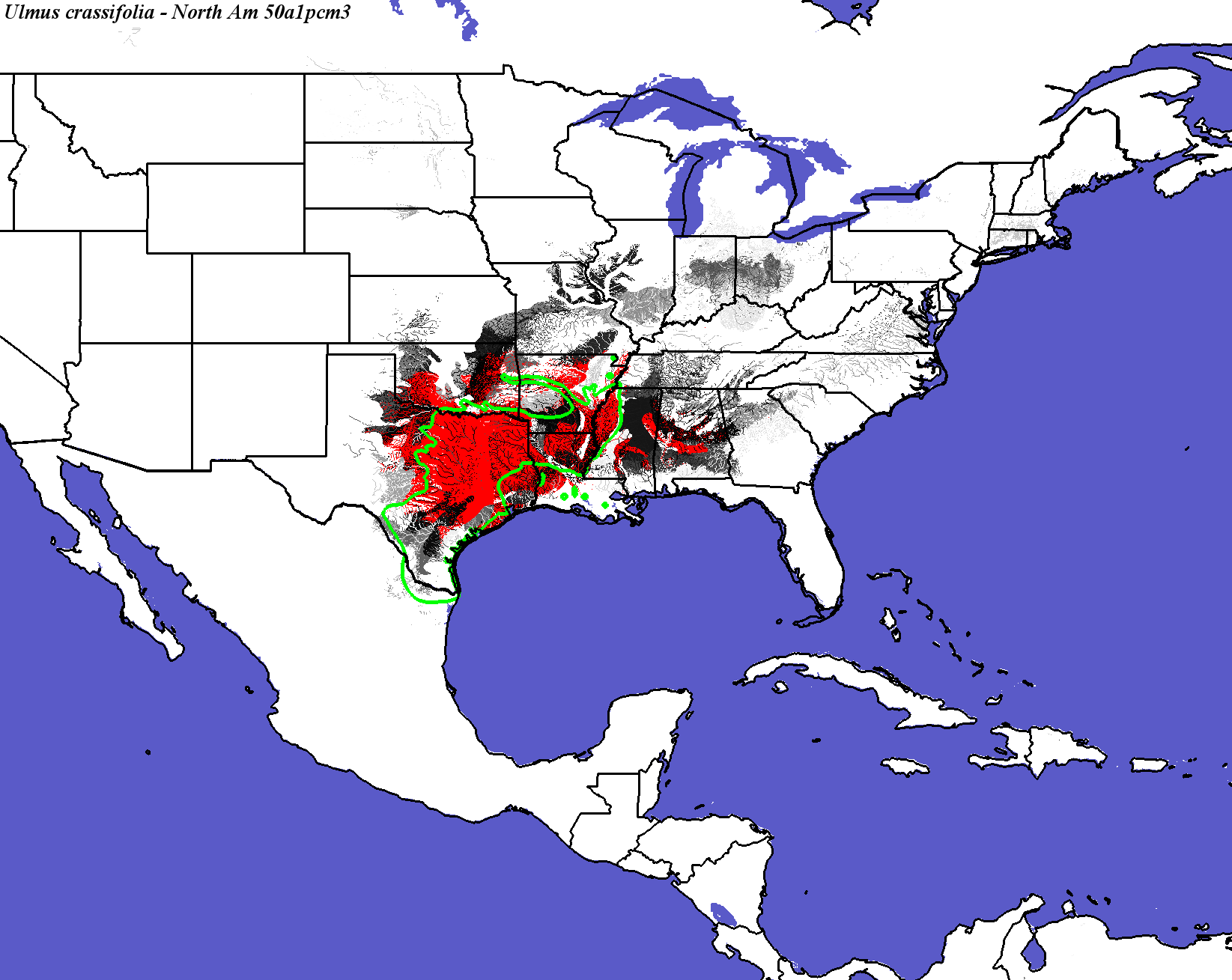

PCM, Scenario A1FI, 2050 - Ulmus crassifolia - CONUS

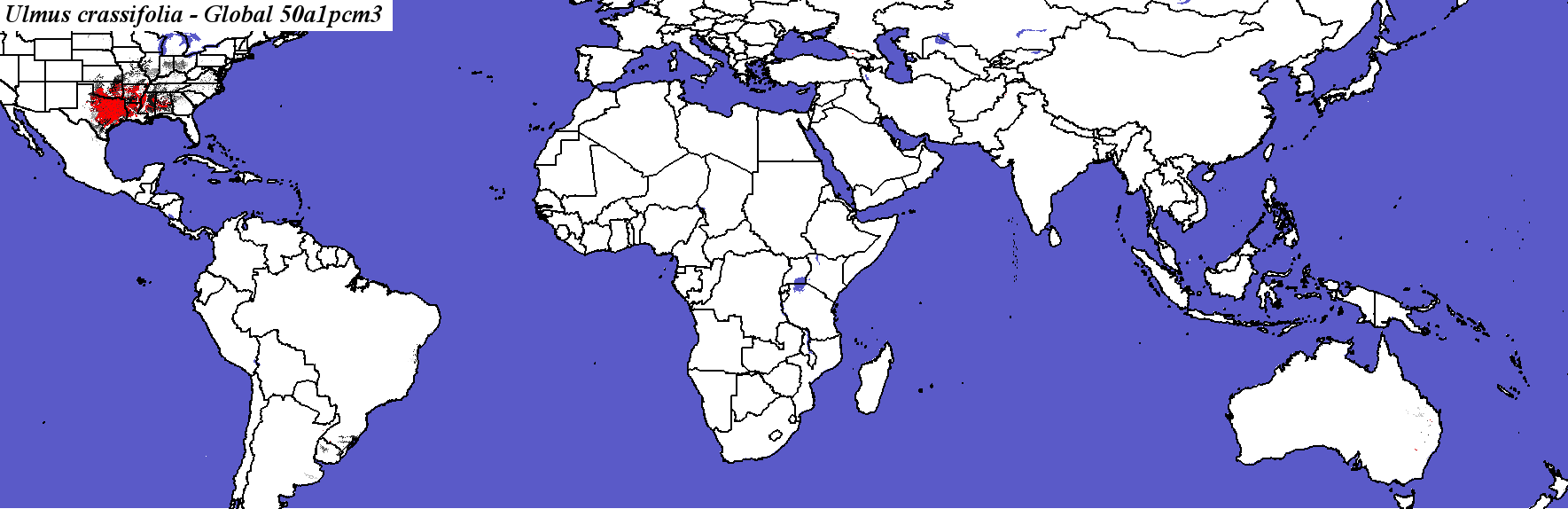

PCM, Scenario A1FI, 2050 - Ulmus crassifolia - Global
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global

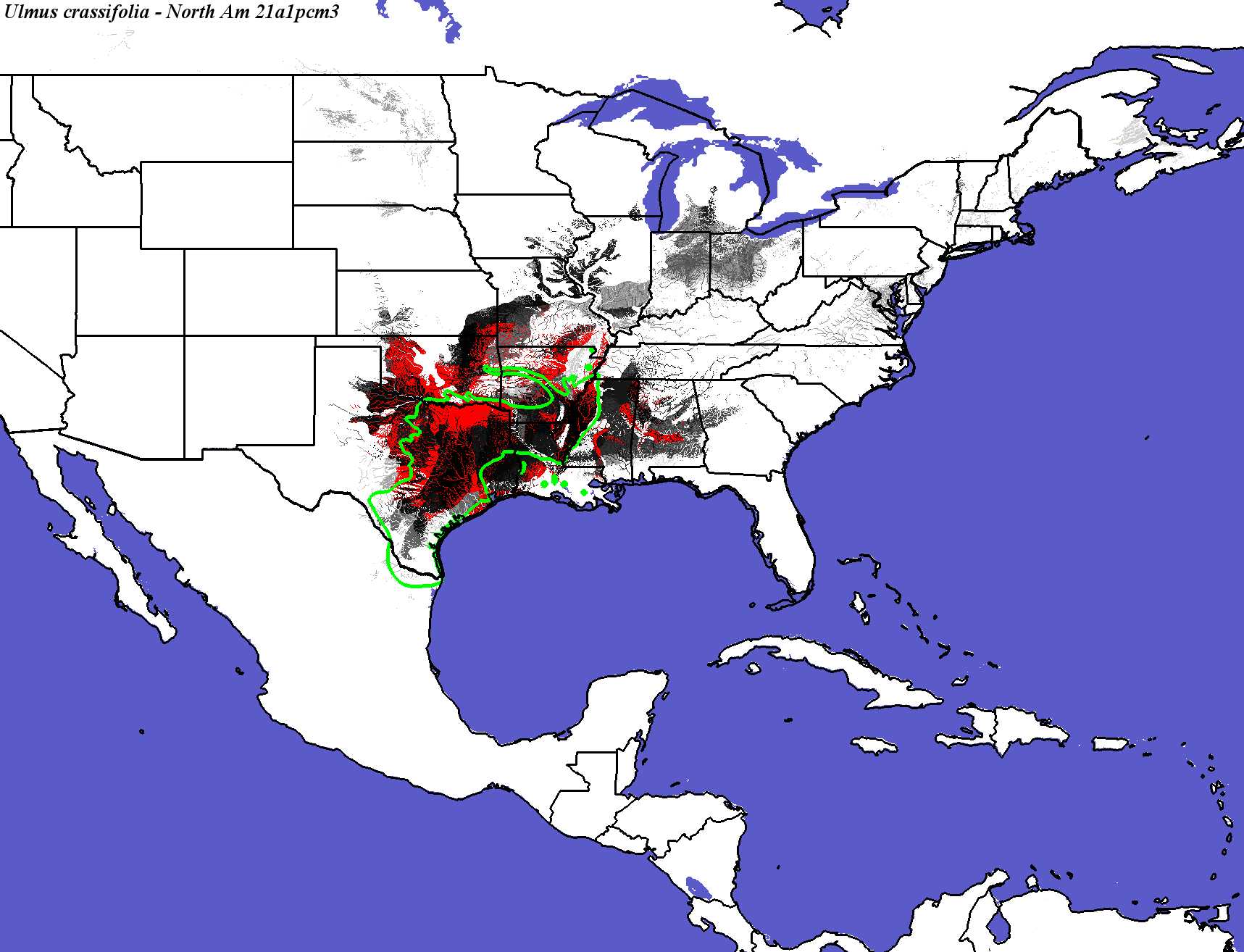

PCM, Scenario A1FI, 2100 - Ulmus crassifolia - CONUS
Compare with Ulmus crassifolia modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Ulmus crassifolia - Global

Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global

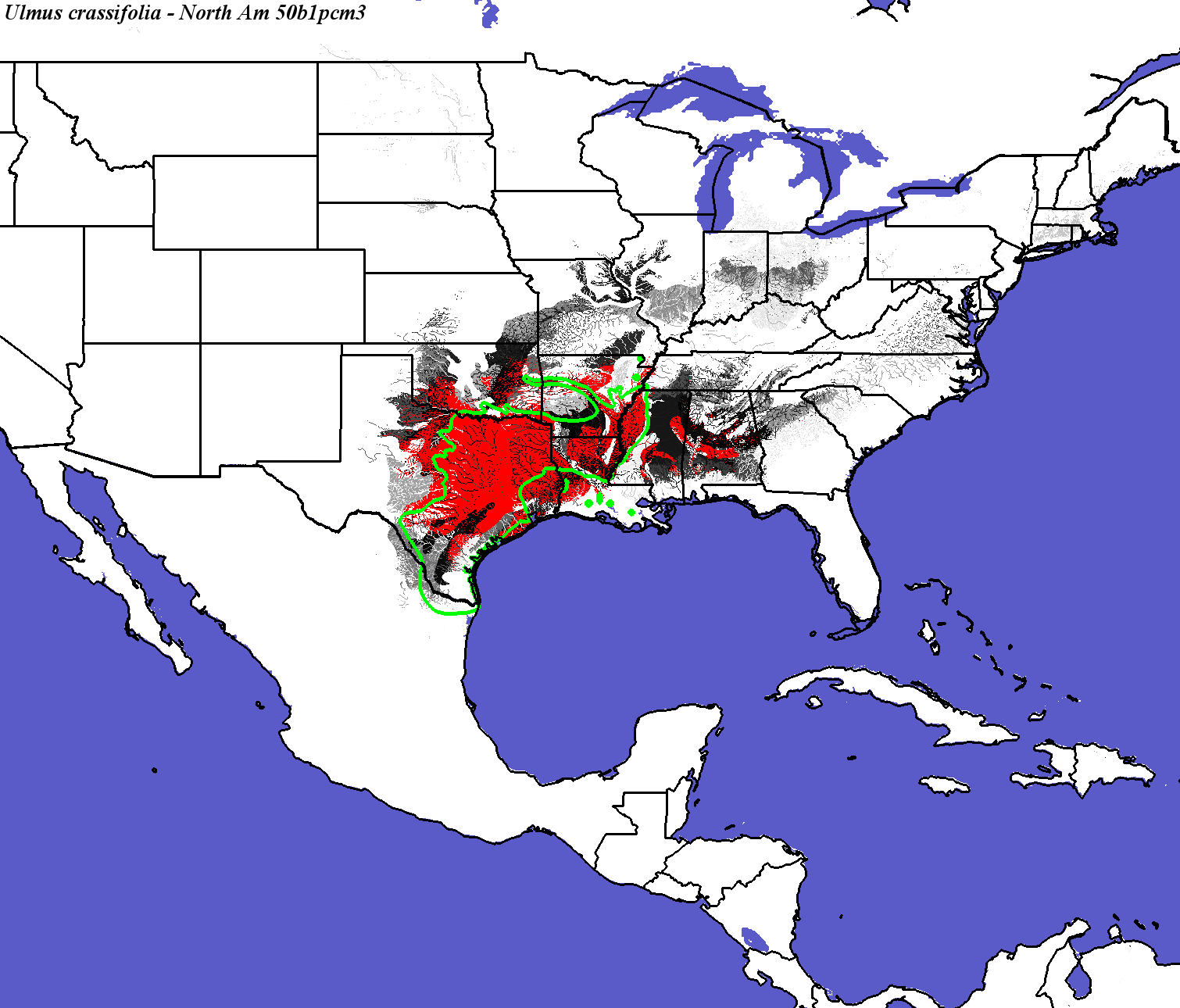

PCM, Scenario B1, 2050 - Ulmus crassifolia - CONUS
PCM, Scenario B1, 2050 - Ulmus crassifolia - Global
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global
PCM, Scenario B1, 2100 - Ulmus crassifolia - CONUS
Compare with Ulmus crassifolia modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Ulmus crassifolia - Global

Hadley Climate Model
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global

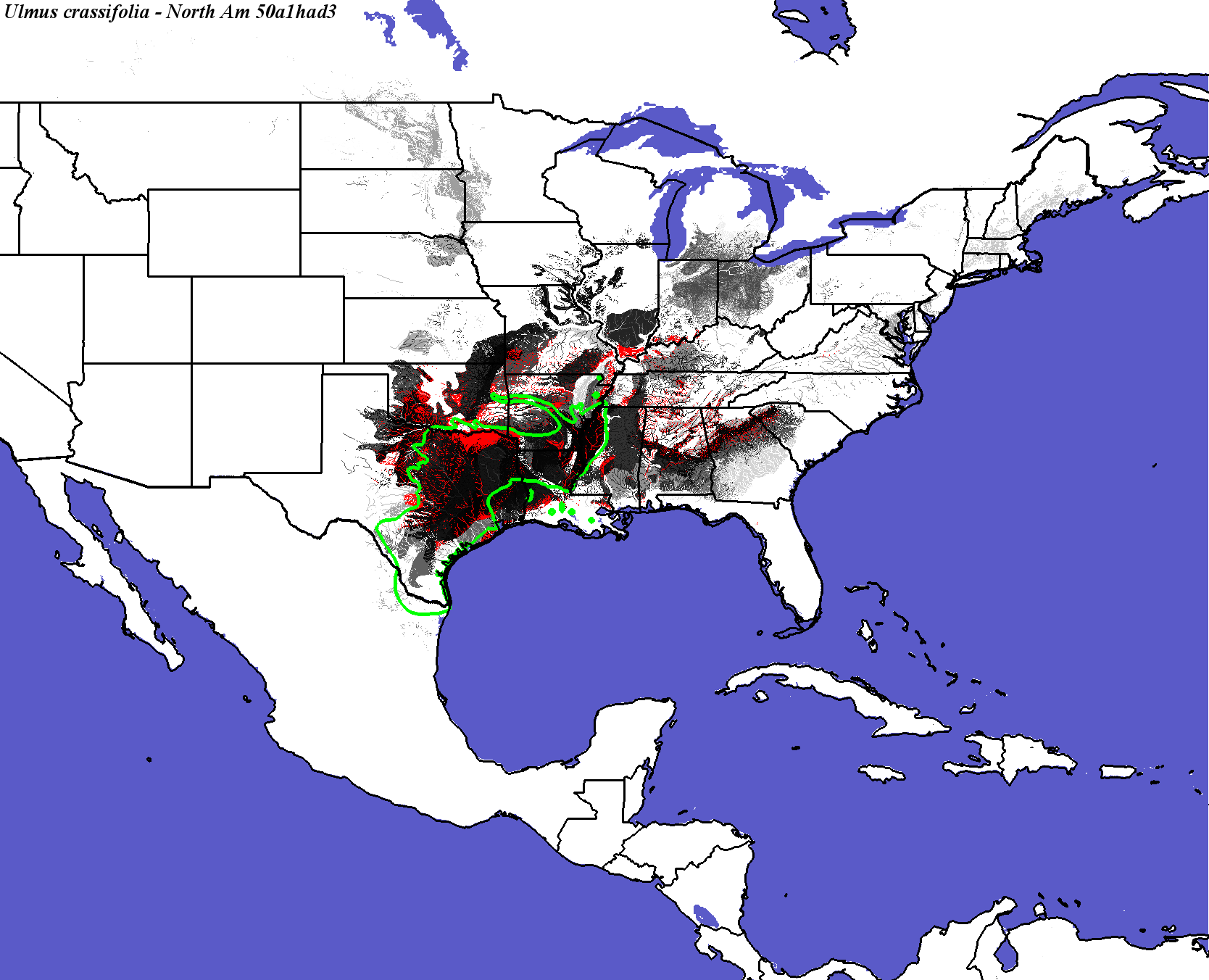

Hadley, Scenario A1FI, 2050 - Ulmus crassifolia - CONUS
Ulmus crassifolia not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Ulmus crassifolia - Global
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global.

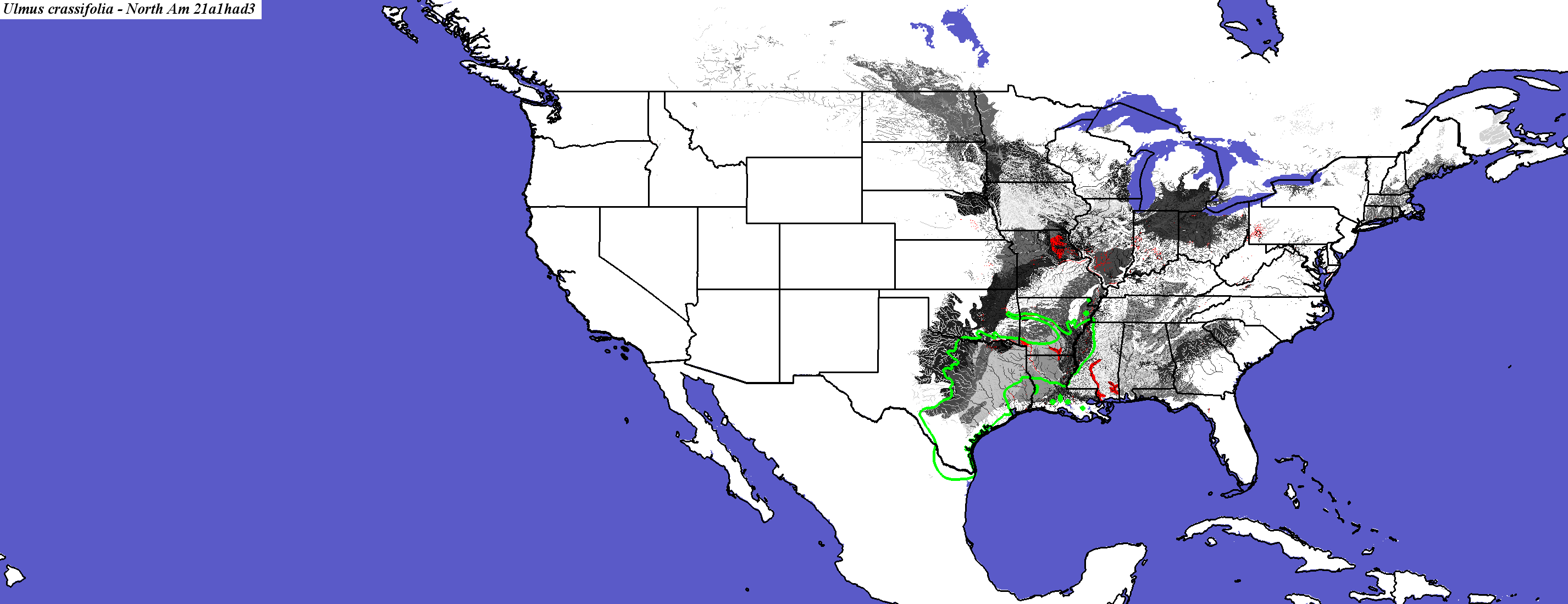

Hadley, Scenario A1FI, 2100 - Ulmus crassifolia - CONUS
Compare with Ulmus crassifolia modeled for Hadley A1FI in 2100 by Iverson and Prasad
Ulmus crassifolia not modeled by Crookston and Rehfeldt
Ulmus crassifolia not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Ulmus crassifolia - Global

Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global.
Hadley, Scenario B1, 2050 - Ulmus crassifolia - CONUS
Ulmus crassifolia not modeled by Crookston and Rehfeldt
Ulmus crassifolia not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Ulmus crassifolia - Global
Ulmus_crassifolia_final.3.conus
Ulmus_crassifolia_final.3.global
Hadley, Scenario B1, 2100 - Ulmus crassifolia - CONUS
Compare with Ulmus crassifolia modeled for Hadley B1 in 2100 by Iverson and Prasad
Ulmus crassifolia not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Ulmus crassifolia - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Ulmus_crassifolia_final.elev

Number of Suitable Ecoregions (Niche Breadth)

36

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

47.5342

Area in Present Suitable Range (in km2)

330251

Area in Future Suitable Range (Had B1 2050, in km2)

179469

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

96969

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

29.3600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

84.3836

Percent Change in Area of Suitable Range (Had B1 2050)

-45.6500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

76.4384

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14579.8 +/- 14814.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

50.411

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.54319 +/- 6.79381

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

53.8356

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

24.4223 +/- 27.5882

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

78.0822

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

71.9178

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

77441

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

23.4400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

59.3151

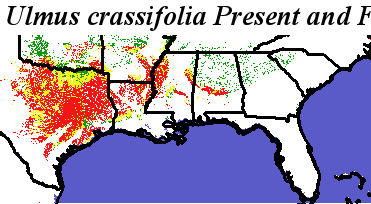

Present and Future Ranges - Hadley, Scenario B1, 2050 - Ulmus crassifolia Ulmus crassifolia - Range Change Statistics

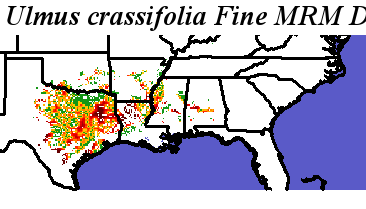

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Ulmus_crassifolia_final.elev Fine MRM Distance

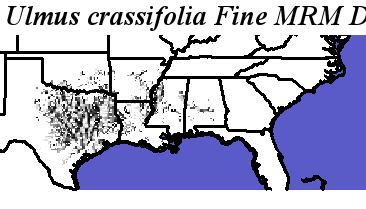

Ulmus_crassifolia_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus crassifolia Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Ulmus crassifolia
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Ulmus_crassifolia_final.elev Coarse MRM Distance
Ulmus_crassifolia_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus crassifolia Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Ulmus crassifolia

Thu Jul 21 10:06:20 EDT 2016
